Description

Aeroflow

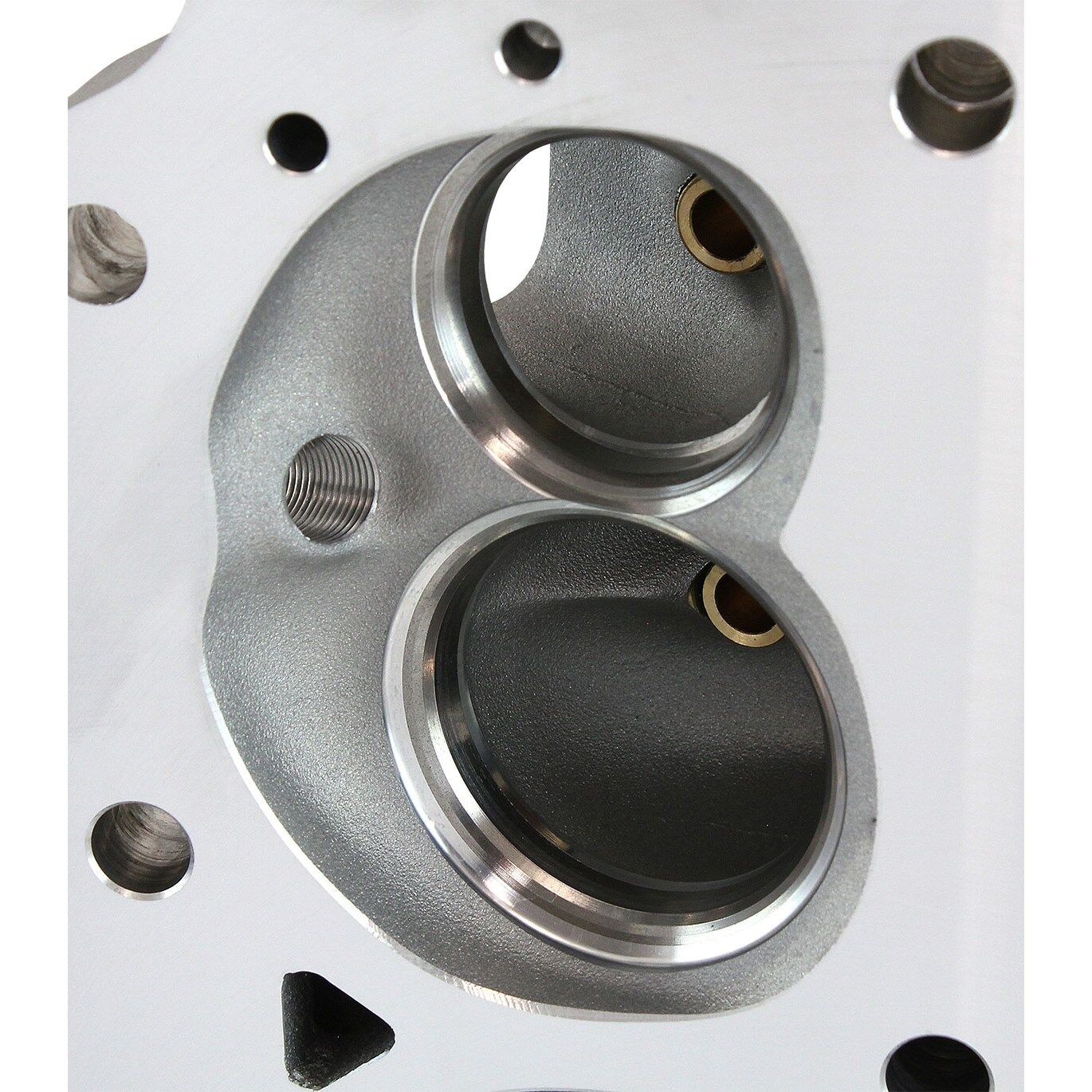

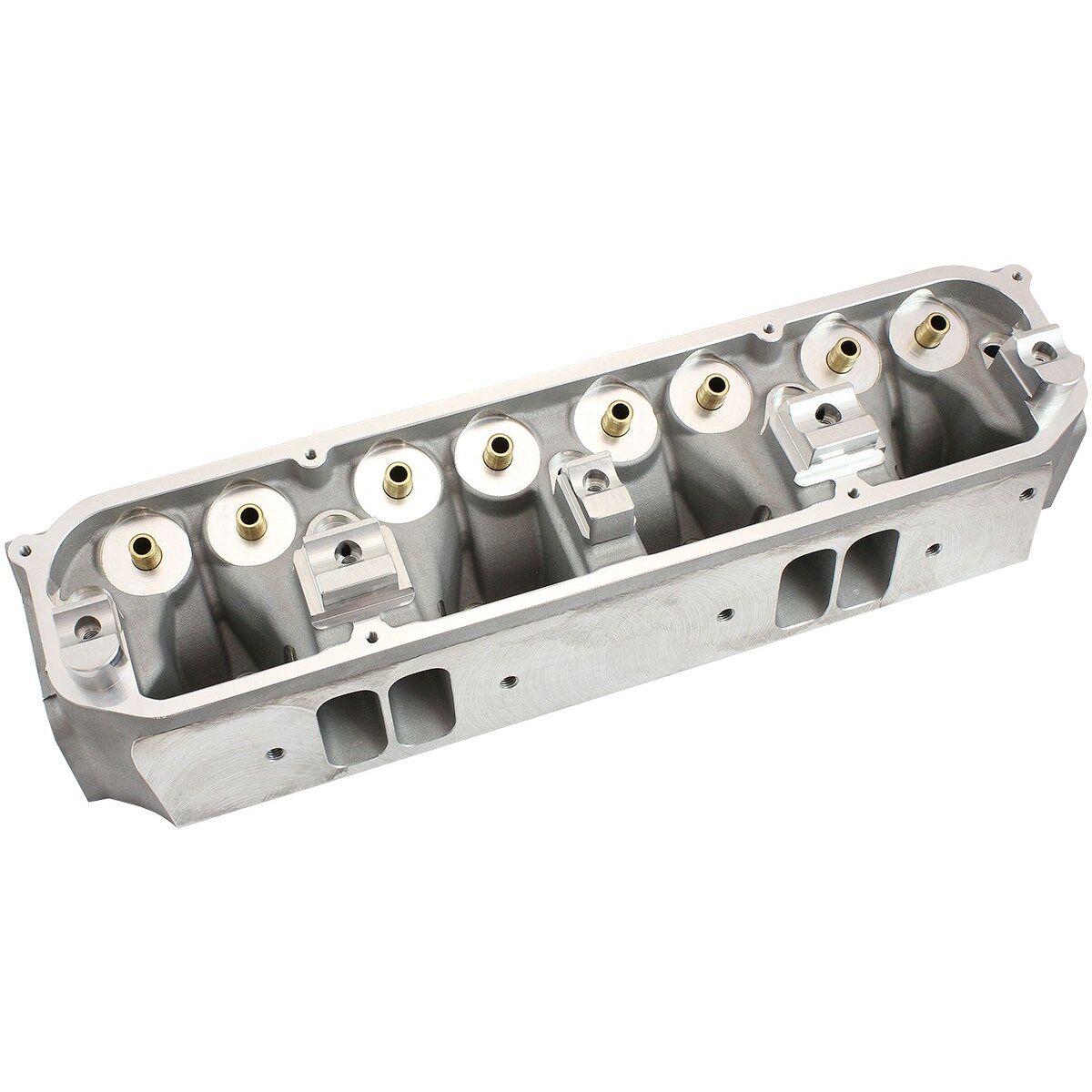

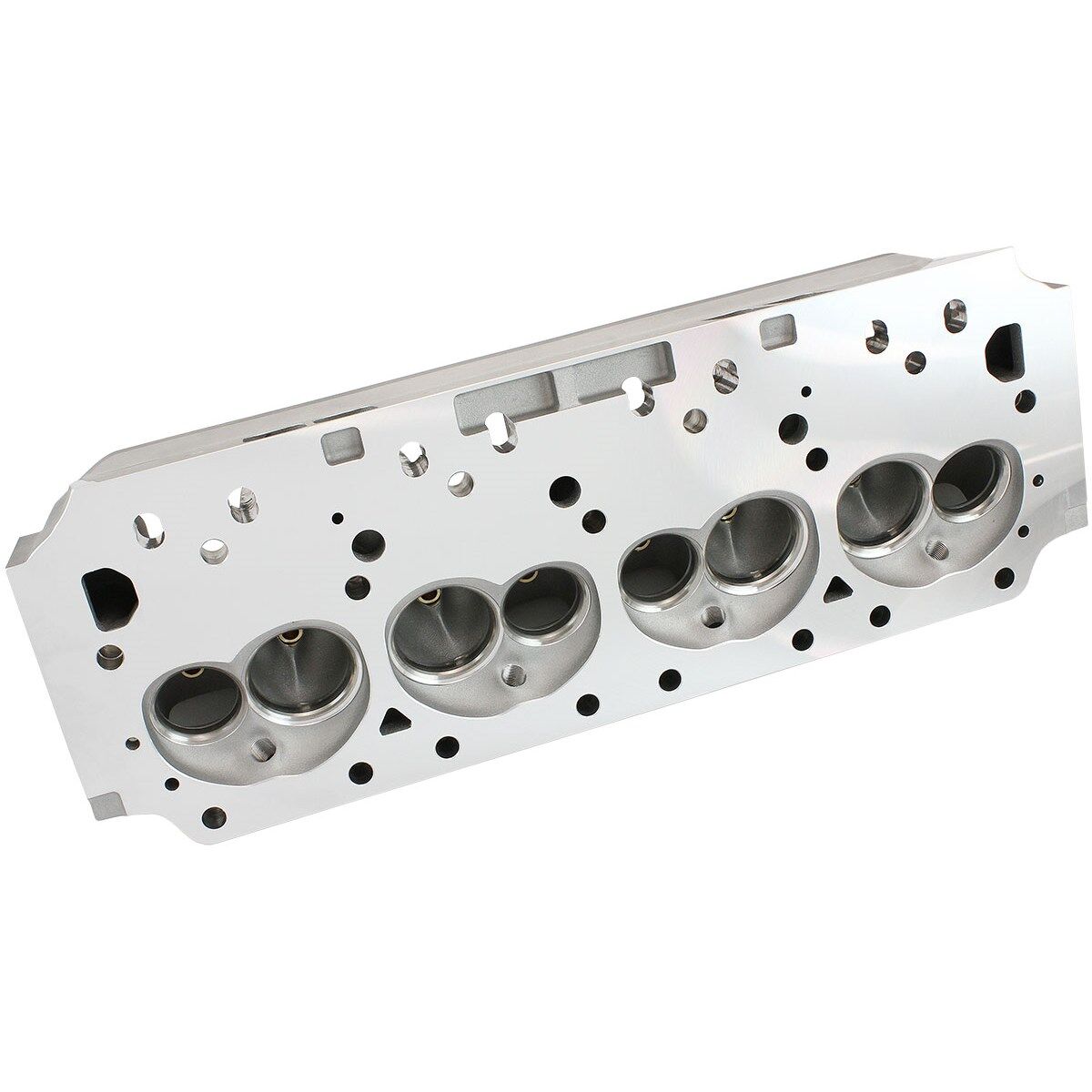

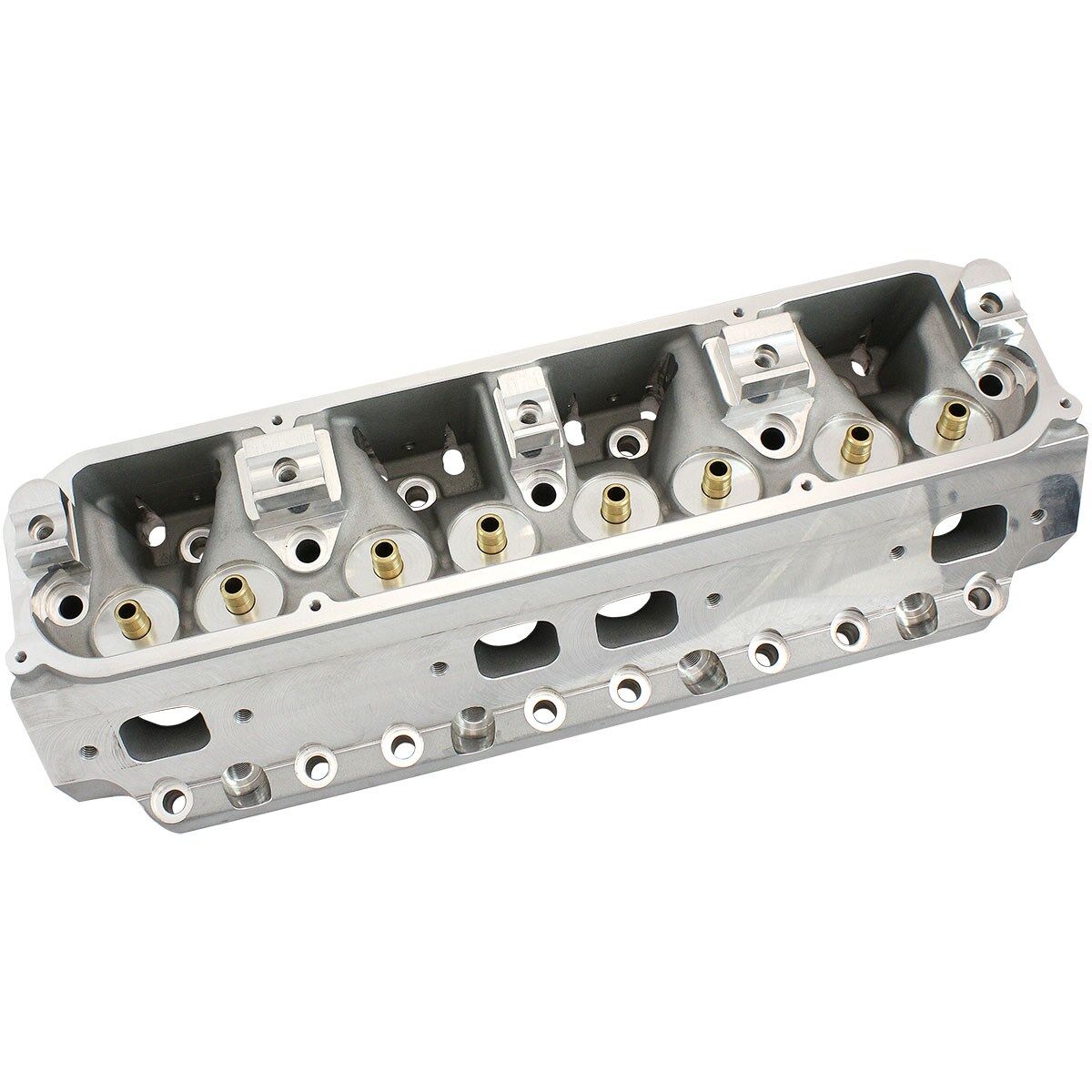

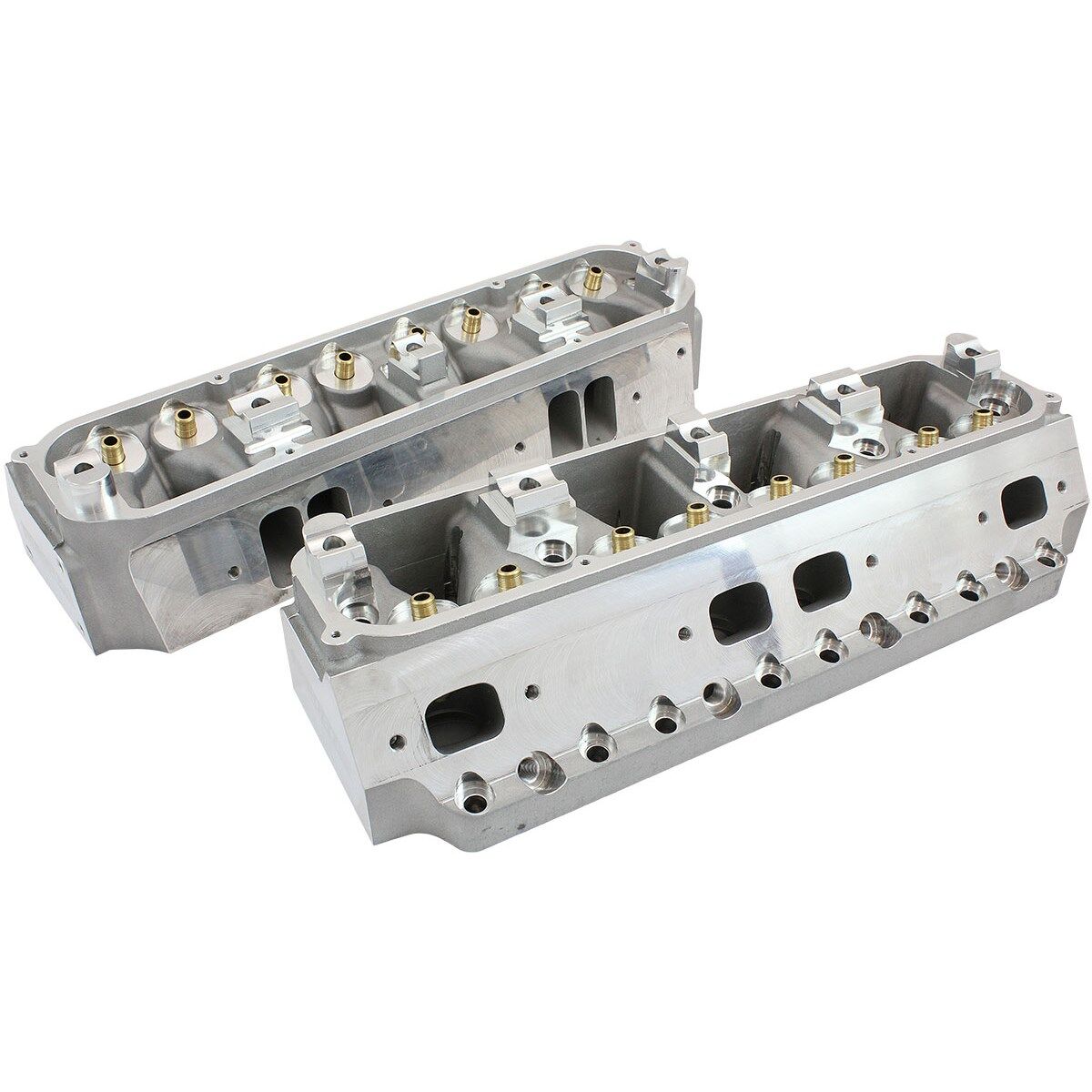

Bare Big Block Chrysler 383-440 240cc Aluminium Cylinder Heads with 78cc Chamber (Pair)

2.27" x 1.23" Intake Port, 1.65" x 1.25" Exhaust Port

AF95-0445

SOLD AS A PAIR

The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These heads utilize ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.

The Aeroflow Performance big block Chrysler cylinder heads are designed for street performance engines to give the ultimate in flow at a budget price. Made from A356 aluminium castings, the 240cc cylinder heads are ideal for operating in the idle to 6500 rpm range.

Specifications

Head Specifications

Material: A356 Aluminium
Compression Chamber: 78cc
Intake Port Volume: 240cc
Intake Port Dimension: 2.27" x 1.23"
Exhaust Port Volume: 74cc
Exhaust Port Dimension: 1.65" H x 1.25" W
Spark Plug Location: OEM
Intake Valve Diameter: 2.19"
Exhaust Valve Diameter: 1.76"
Valve Stem Diameter: 11/32"
Valve Spring Pocket I.D.: 1.740"
Valve Guide Material: Manganese Bronze
Valve Guide O.D.: .530" (.560" at base)
Rocker Stud Thread Size: OE Stock
Valve Angle: 15°
Deck Thickness: .625"

Suggested Components

Head Gasket: Fel-Pro 1009
Intake Gasket (383-400ci): Fel-Pro 1214
Intake Gasket (413-440ci): Fel-Pro 1215
Exhaust Gasket (383-400ci): Fel-Pro 1414
Head Bolts: ARP 144-3606 Or Aeroflow AF37-2124
Head Studs: ARP 145-4006 or Aeroflow AF37-2024
Spark Plugs (14mm x 3/4" reach with flat gasket seat): Champion RC9YC
