Aeroflow Aluminium 10 Gallon 38L Fuel Cell with Cavity / Sump 38cm x 41cm x 26cm

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

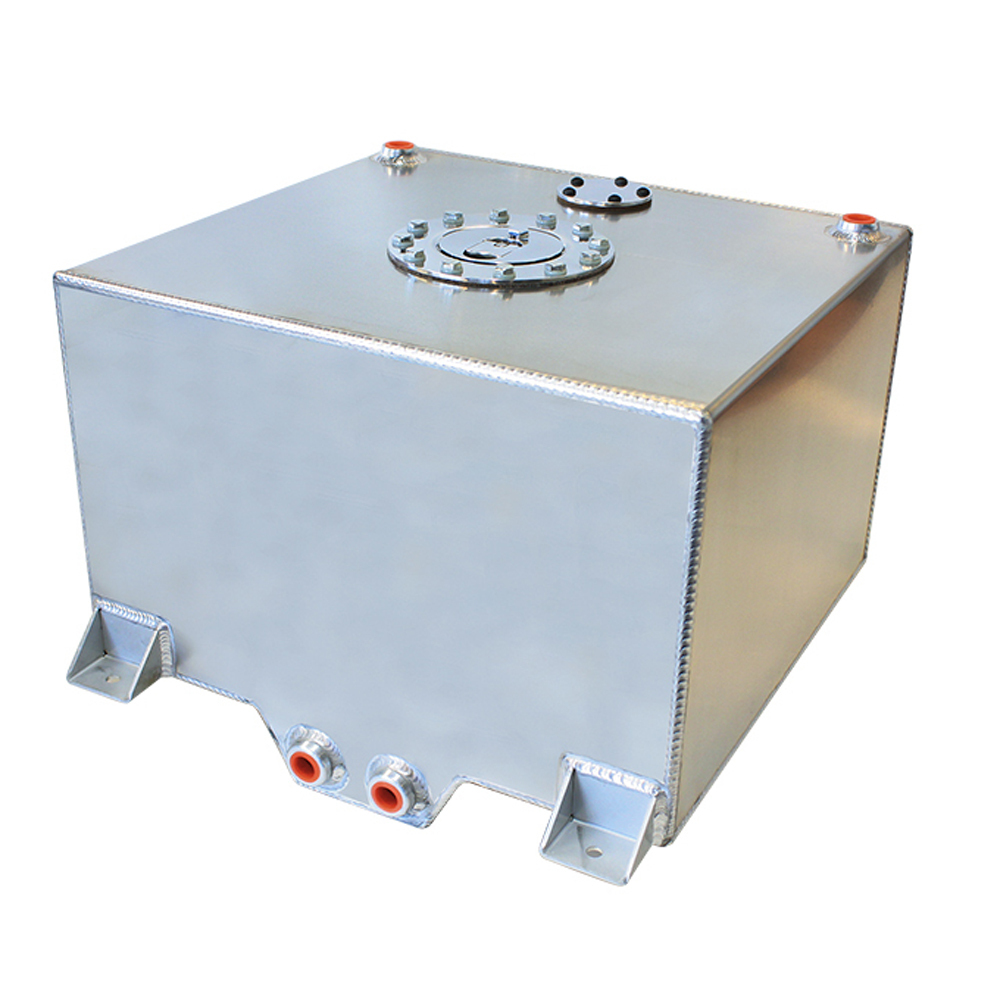

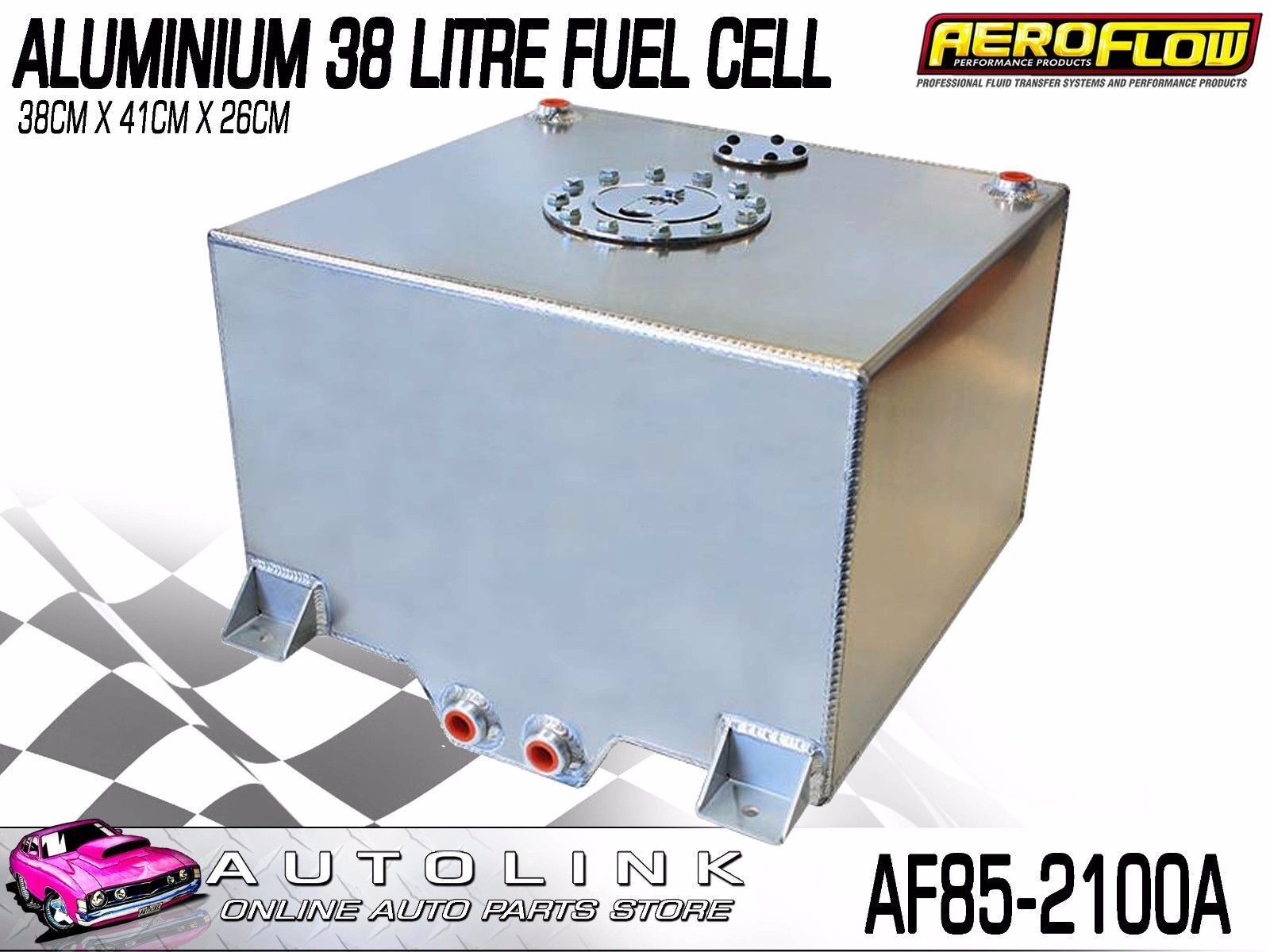

Aeroflow Aluminium 10 Gallon (38L) Fuel Cell with Cavity / Sump

AF85-2100A

SOLD AS EACH

Size: Length 14-15/16" x Width 16-1/8" x Height 10-1/4" (38cm x 41cm x 26cm)

High Grade Aluminium: 3.0mm Thickness

Robot Welded: The fuel cell has been welded solely by a high-level machine robot the quality of which can be seen by the clean corner welds.

Internally baffled: The fuel cell incorporates internal baffling to be Ethanol & Methanol safe.

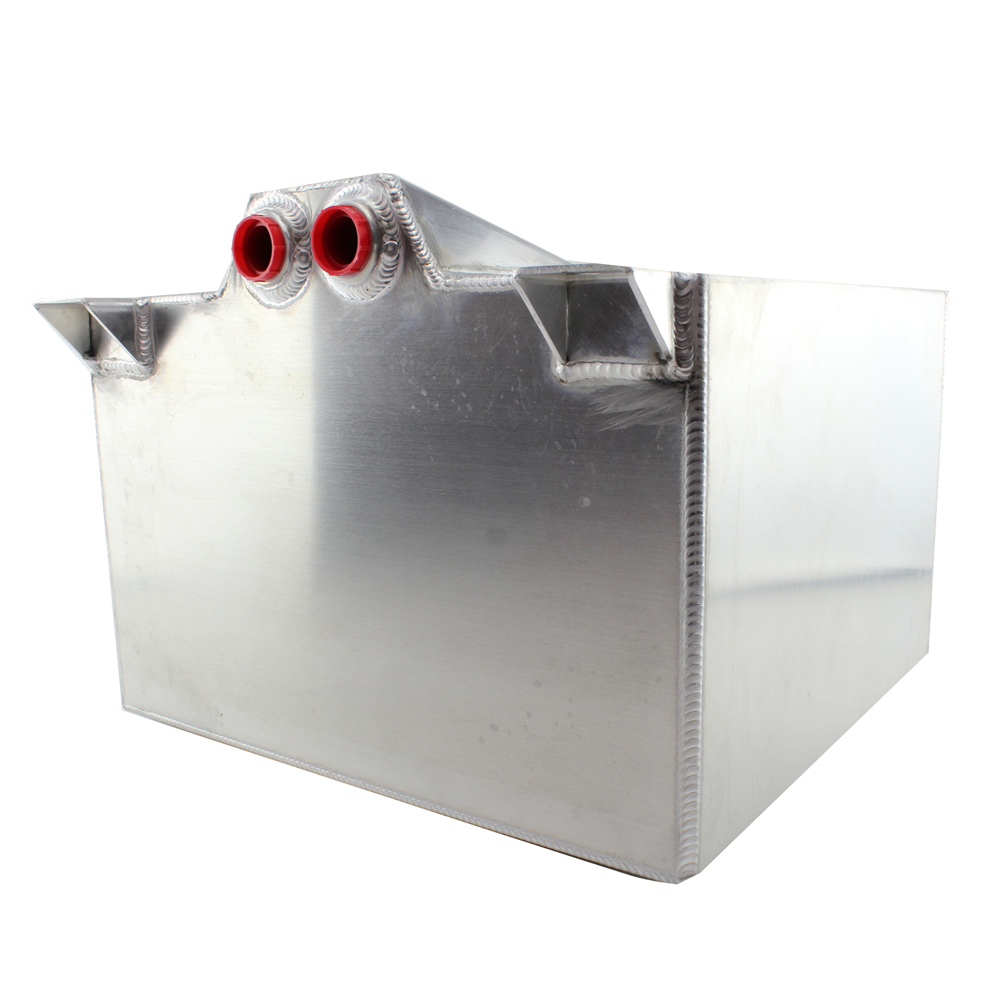

Fuel Pick-Up Point: As can be seen in the photo, The fuel OUT fittings are in a cavity at the base of the cell, which helps prevent fuel starvation at low fuel levels even under high G-force levels.

Fuel Inlet / Outlet Fittings: The fuel cell incorporates all -12 ORB female threads for use in all applications. 2 x pickups and 2 x returns or 1 x return and 1 x rollover.

For a bolt in roll-over valve use part AF614-08.

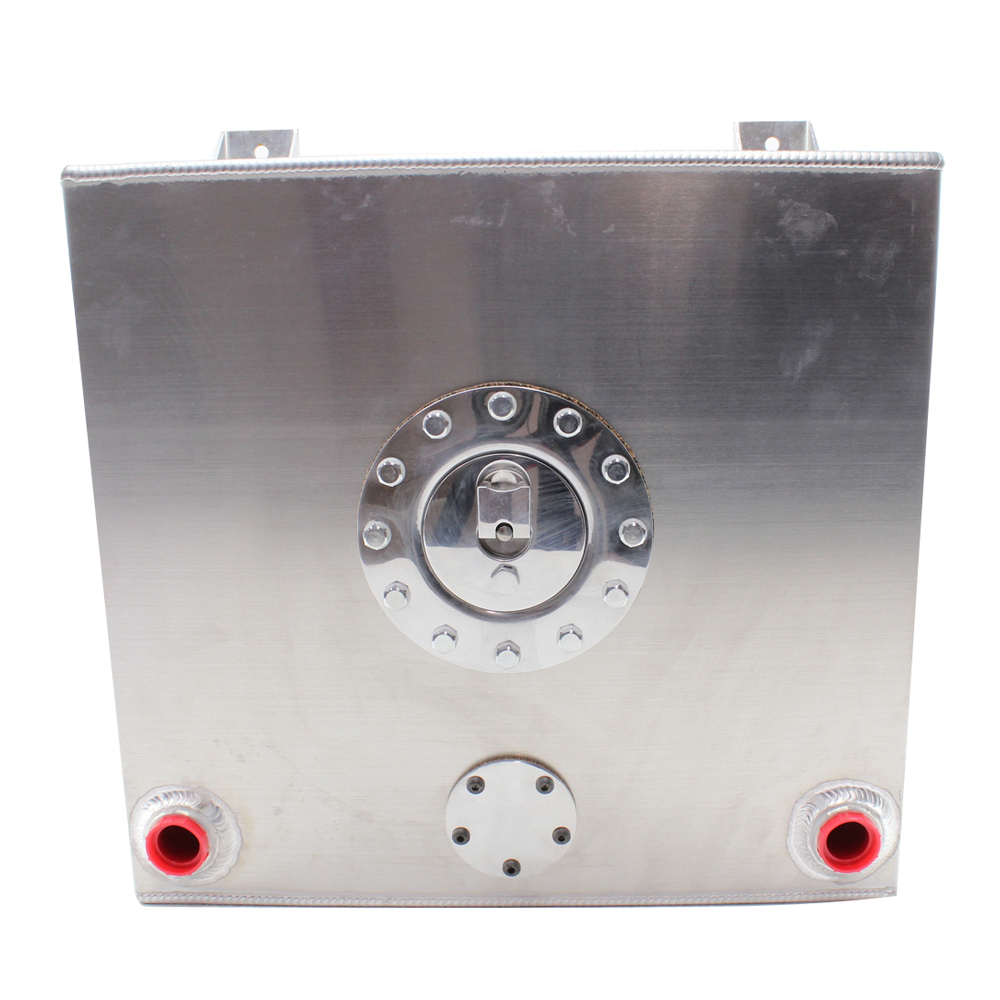

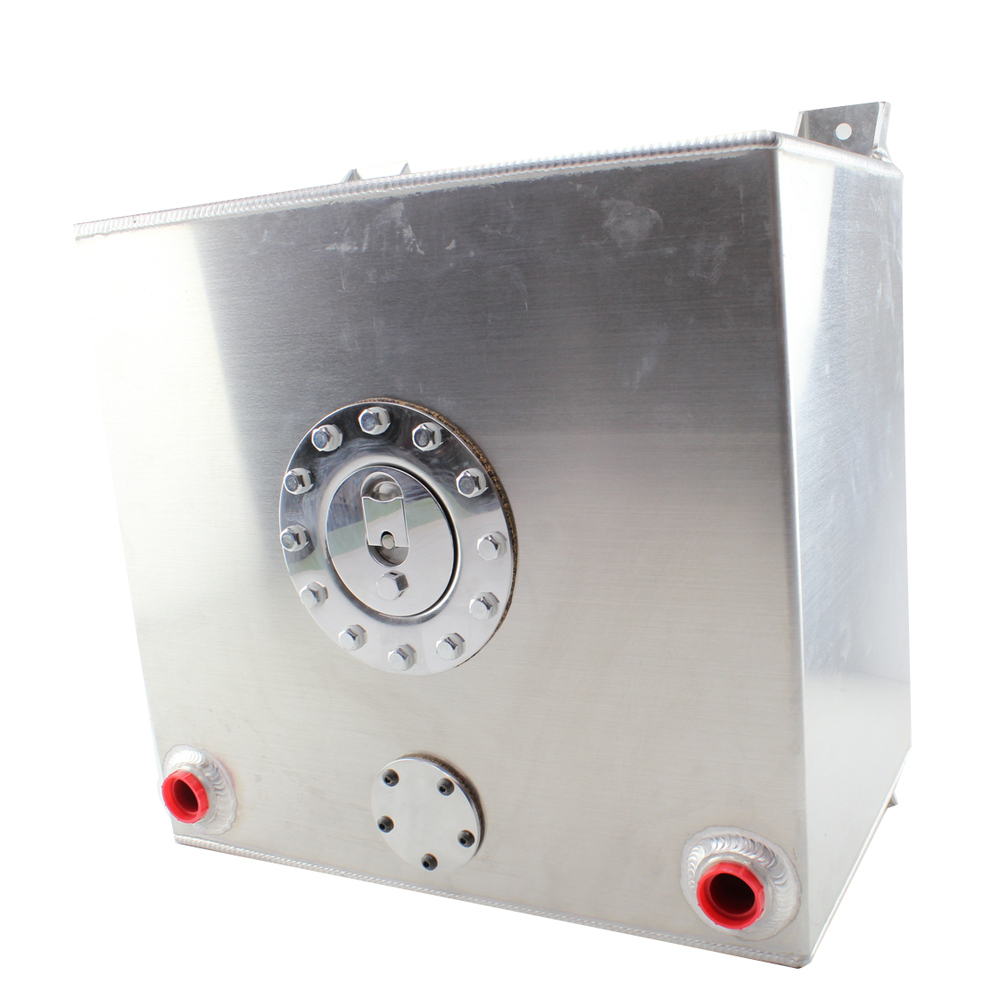

Flush Cap Mounting: Designed for fast cap removal with a flip up and twist action CNC billet polished alloy cap with a 1-way air valve in the cap.

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.

INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.

WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.

PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.

RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.

Thank you For Looking!

HAPPY SHOPPING !

Specifications

SKU	AF85-2100A
Barcode #	9337206027151
Brand	Aeroflow
Shipping Weight	8.5000kg
Shipping Width	0.480m
Shipping Height	0.500m
Shipping Length	0.380m
Shipping Cubic	0.091200000m3
Unit Of Measure	ea
