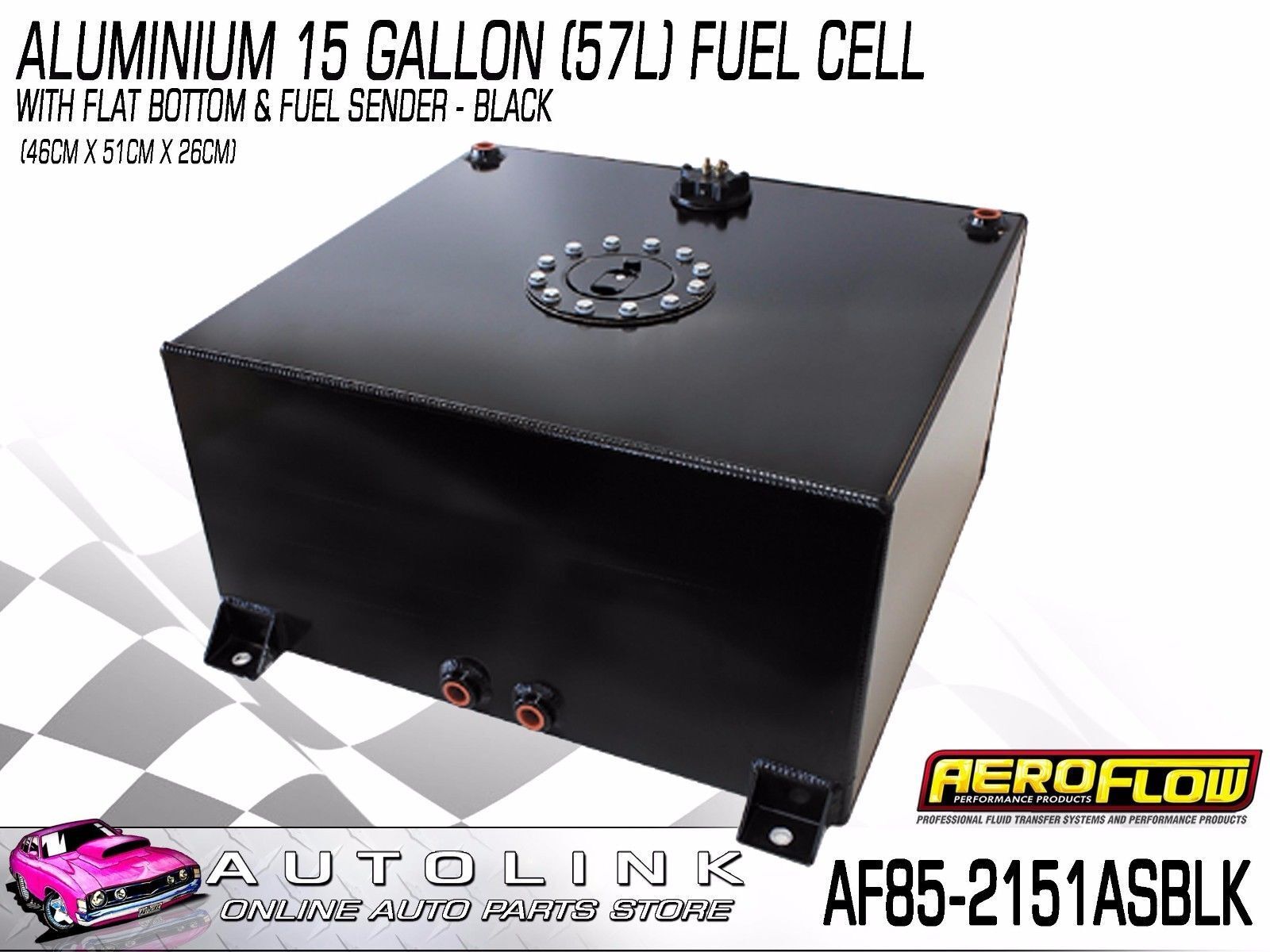

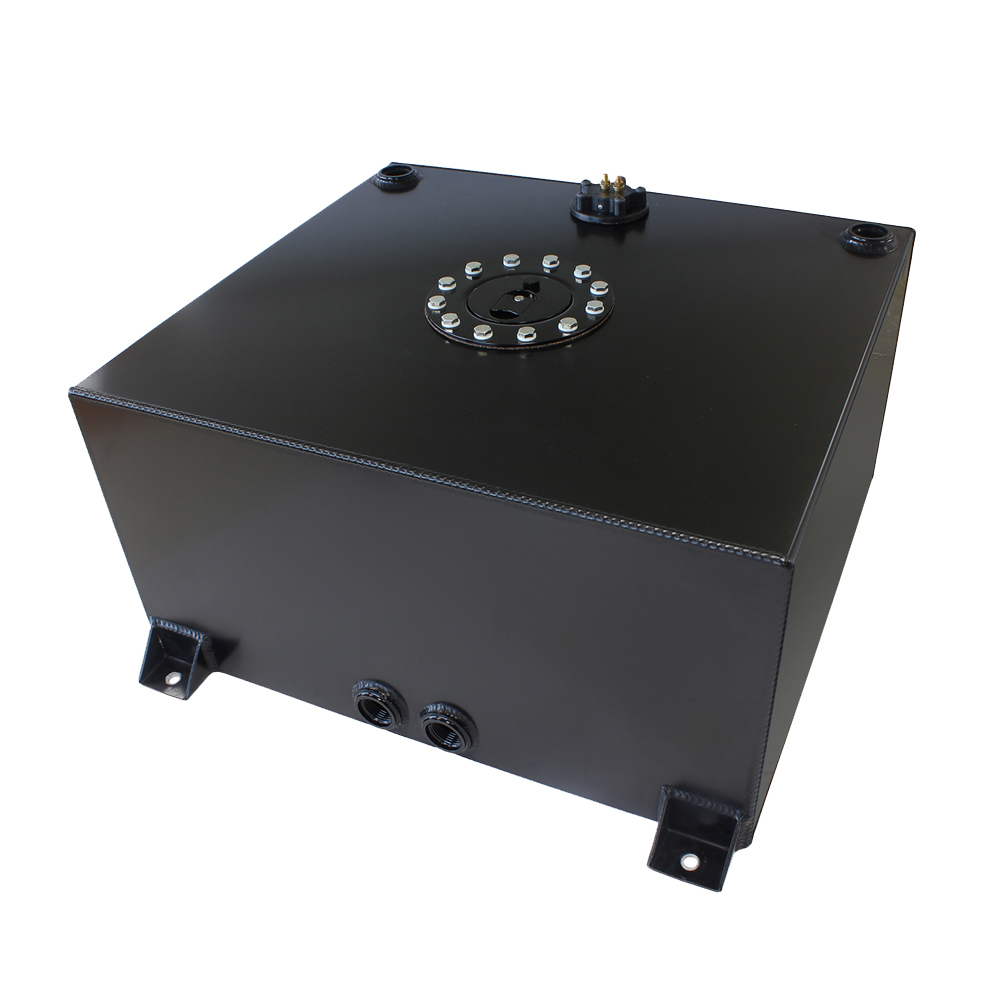

AEROFLOW AF85-2151ASBLK ALUMINIUM 57 LITRE FUEL CELL 46cm x 51cm x 26cm BLACK

ALUMINIUM 15 GALLON (57L) FUEL CELL WITH FLAT BOTTOM & FUEL SENDER (BLACK)

18-1/8" L x 20-1/16" W x 10-1/4" H

(46cm x 51cm x 26cm)



High Grade Aluminium: 3.0mm thickness

Robot Welded: The fuel cell has been welded solely by a high level machine robot the quality of which can be seen by the clean corner welds.

Safety Foam: The fuel cell incorporates aircraft quality anti-flammable yellow safety foam. Ethanol & Methanol safe.

Fuel Pick-Up Point: The fuel OUT fittings are in centre of the tank near the base of the cell.



Fuel Inlet / Outlet Fittings: The fuel cell incorporates all -12 ORB female threads for use in all applications.

2 X pickups and 2 X returns or 1 X return and 1 X rollover. For a bolt in Roll-Over valve use Part AF614-08.



Flush Cap: Designed for fast cap removal with a flip up and twist action CNC billet polished alloy cap with a 1 way air valve in the cap.

Fuel Level Sender Unit: The resistance at empty is 0 ohms and the resistance at full is 90 ohms.

Mounting Brackets: The cell can be secured with the 4 sturdy mounting brackets.



(Rubber mounts recommended for high flex chassis applications)
