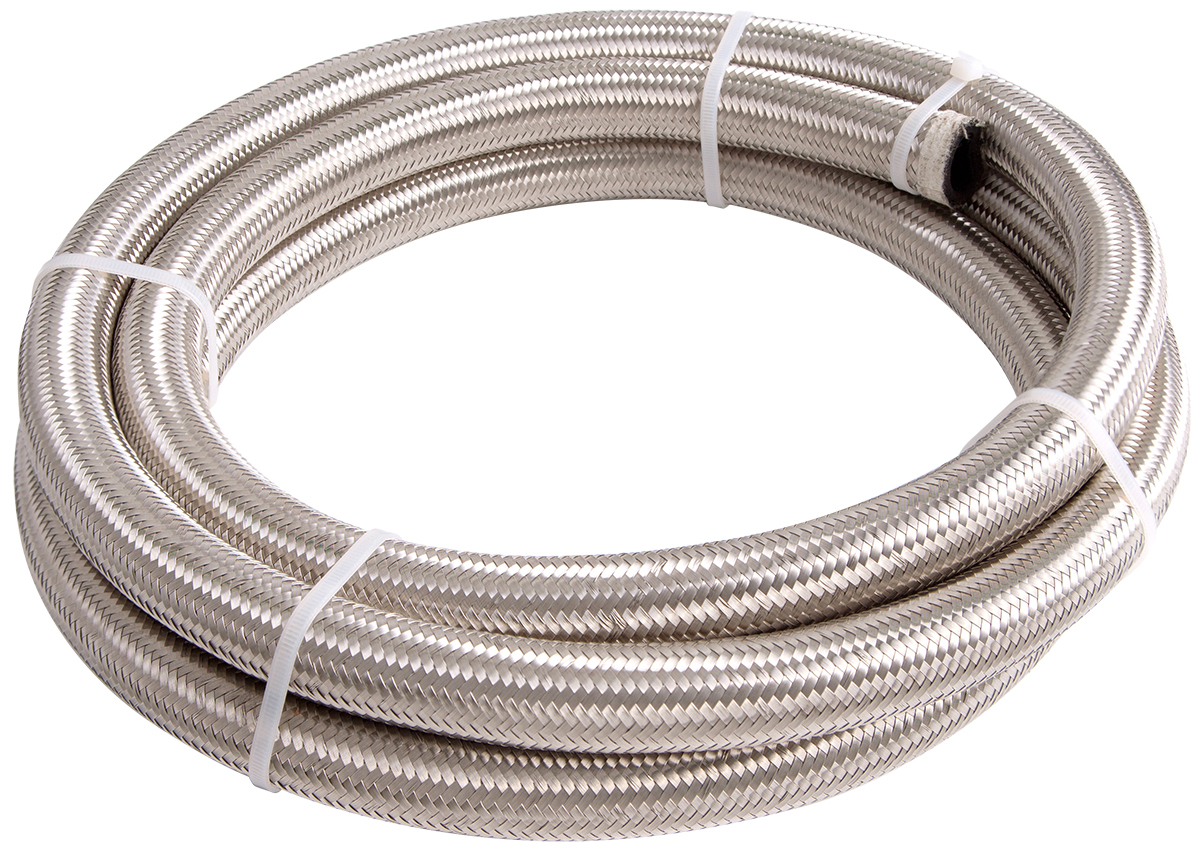

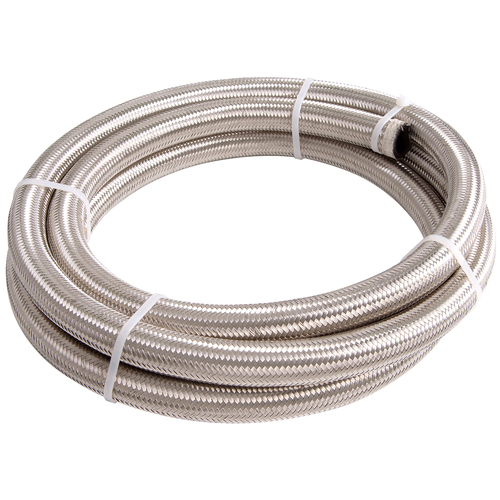

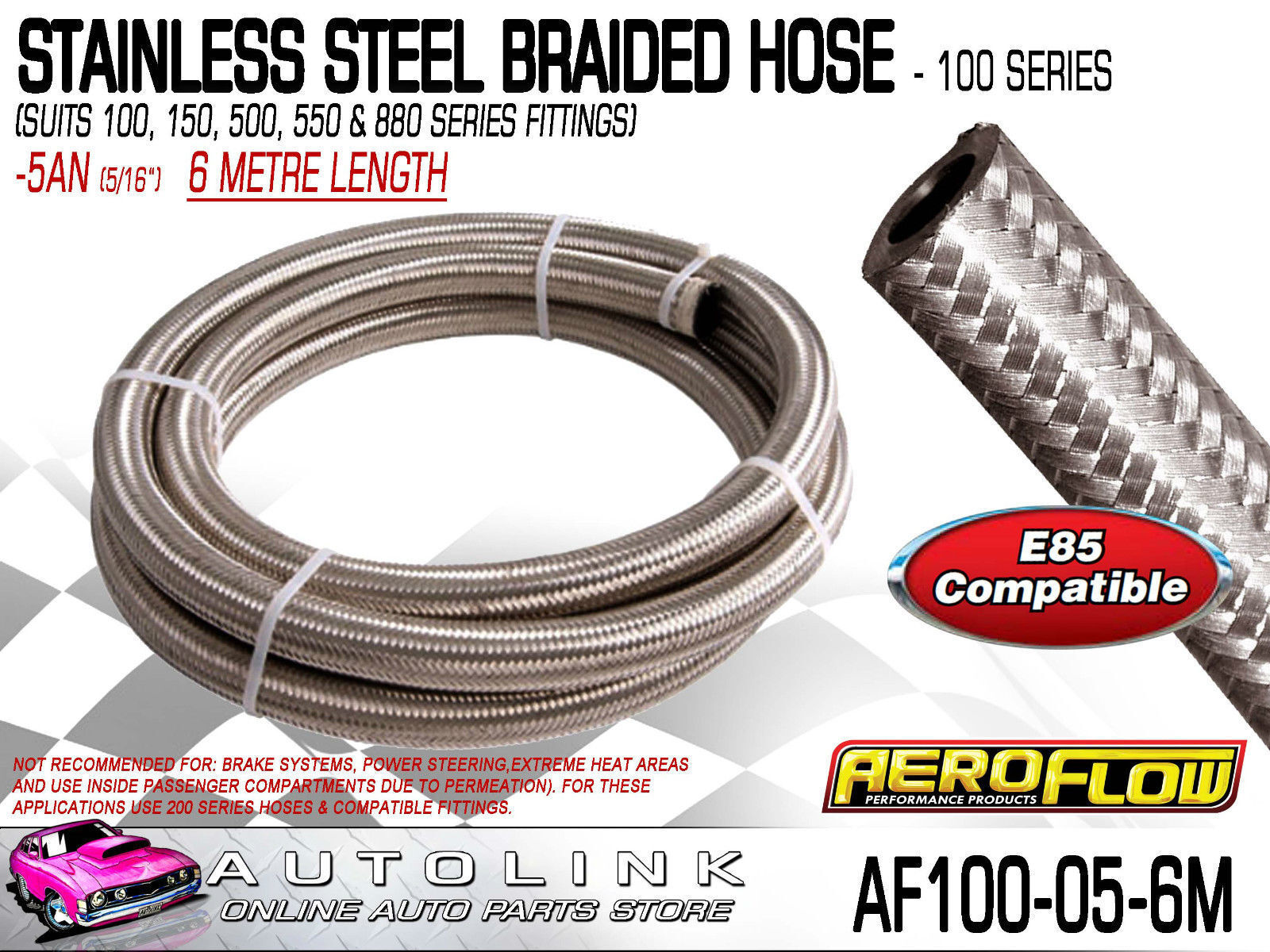

AEROFLOW STAINLESS STEEL BRAIDED HOSE 100 SERIES -5AN ( 6 METRE LENGTH )
Description
Aeroflow
100 SERIES STAINLESS STEEL BRAIDED HOSE -5AN
6 METRE ROLL
AF100-05-6M
SOLD AS EACH
100 Series Hose specifications:
- AN Size: -5
- Hose I.D: 1/4" (6.4mm)
- Hose O.D: 33/64" (13.1mm)
- Operating Pressure: 1000 psi
- Burst Pressure: 6000 psi
The Aeroflow 100 series hose is a true double braided stainless hose that uses the highest quality stainless wire available.
- Constructed with a stainless steel outer braid that resists abrasion and corrosion
- Combined with a reinforced Chlorinated Polyethylene (CPE) synthetic rubber liner with a nylon inner braid
- For use with fuel systems, E85, E10, methanol, oils, lubricants, coolant systems and vacuum applications
- Minimum temperature -40°C (-40°F), Maximum temperature 150°C (302°F)
- Suits 100, 150, 500, 550 & 880 series hose ends
- Use inner coil support spring on all tight radius bends and inlet / suction side of any pump
Note: Due to the use of unknown additives in some fuels, we are unable to guarantee our rubber hoses compatibility with all fuels unless otherwise stated. We recommend the use of Aeroflows PTFE series hose f or all other types of fuels.
Not Recommended For: Brake systems, transmissions, power steering, extreme heat areas and use inside passenger compartments (due to permeation). For these applications use 200 Series Hoses & compatible fittings.
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | AF100-05-6M-1 |
| Barcode # | 9337206078269 |
| Shipping Weight | 3.0000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.200m |
| Shipping Length | 0.400m |
| Shipping Cubic | 0.032000000m3 |
| Unit Of Measure | ea |
