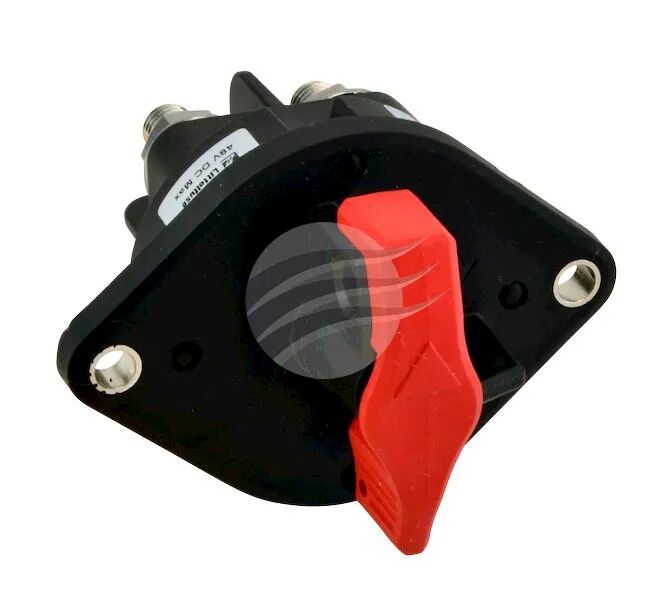

Cole Hersee SW8801R On Off 2 Position Red Battery Master Switch 12-48V 2,250 AMP
Description
Cole Hersee
Heavy Duty On Off 2 Position Battery Master Switch 12 to 48V 2,250 AMP - Red
SW8801R
SOLD AS EACH
Specs
- Voltage 12 - 48 VOLT
- Amps
- Function ON / OFF
- Number of Terminals 4
- Number of Postions 2
- Contact Configuration DPST
- Cole Hersee TR Series Heavy Duty Battery Master Switch 12-48 Volt 2,250amps
- 2 Postion - On/Off, Double Pole - Single Throw, Lockable Red Actuator
- 500amp continuous rating per Circuit on Battery Terminals, 3,000amp Inrush rating (1 Sec)
- Silver contacts, Black Plastic housing and flange

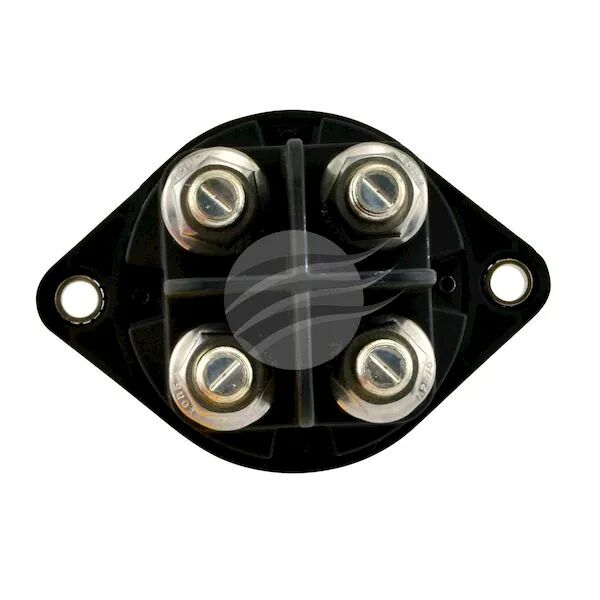

- 4 x 25mm, M12 x 1.75mm Thread Steel Zinc plated Battery Studs
- 100mm centre to centre, uses M8 or 5/16 Bolts
- Housing Protection Rating: IP67 and IP69K, 30G Shock, 8G Vibration Resistance
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | SW8801R |
| Barcode # | 9356659362855 |
| Brand | COLE HERSEE |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.100m |
| Shipping Length | 0.280m |
| Shipping Cubic | 0.005040000m3 |
| Unit Of Measure | ea |
