Description

OEX

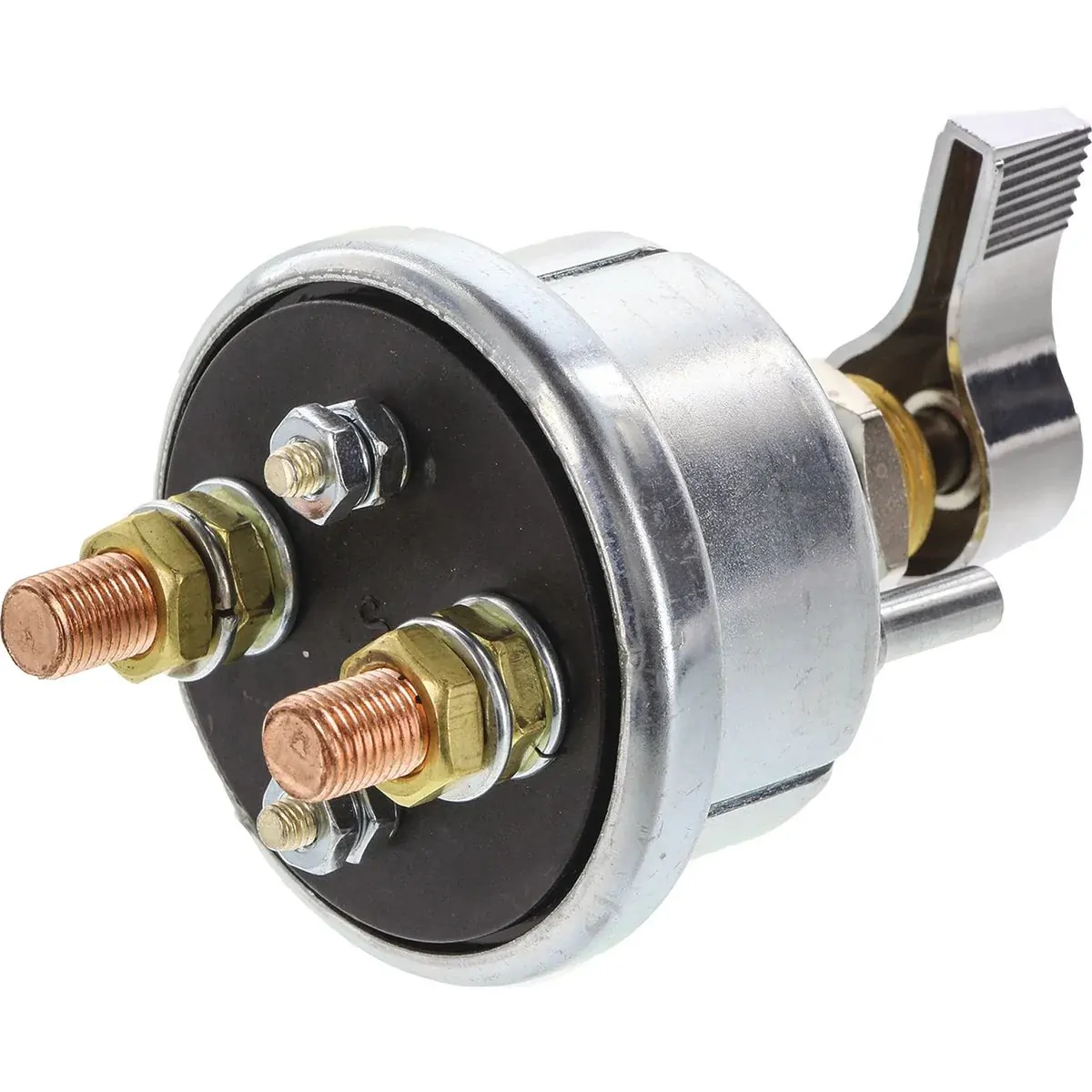

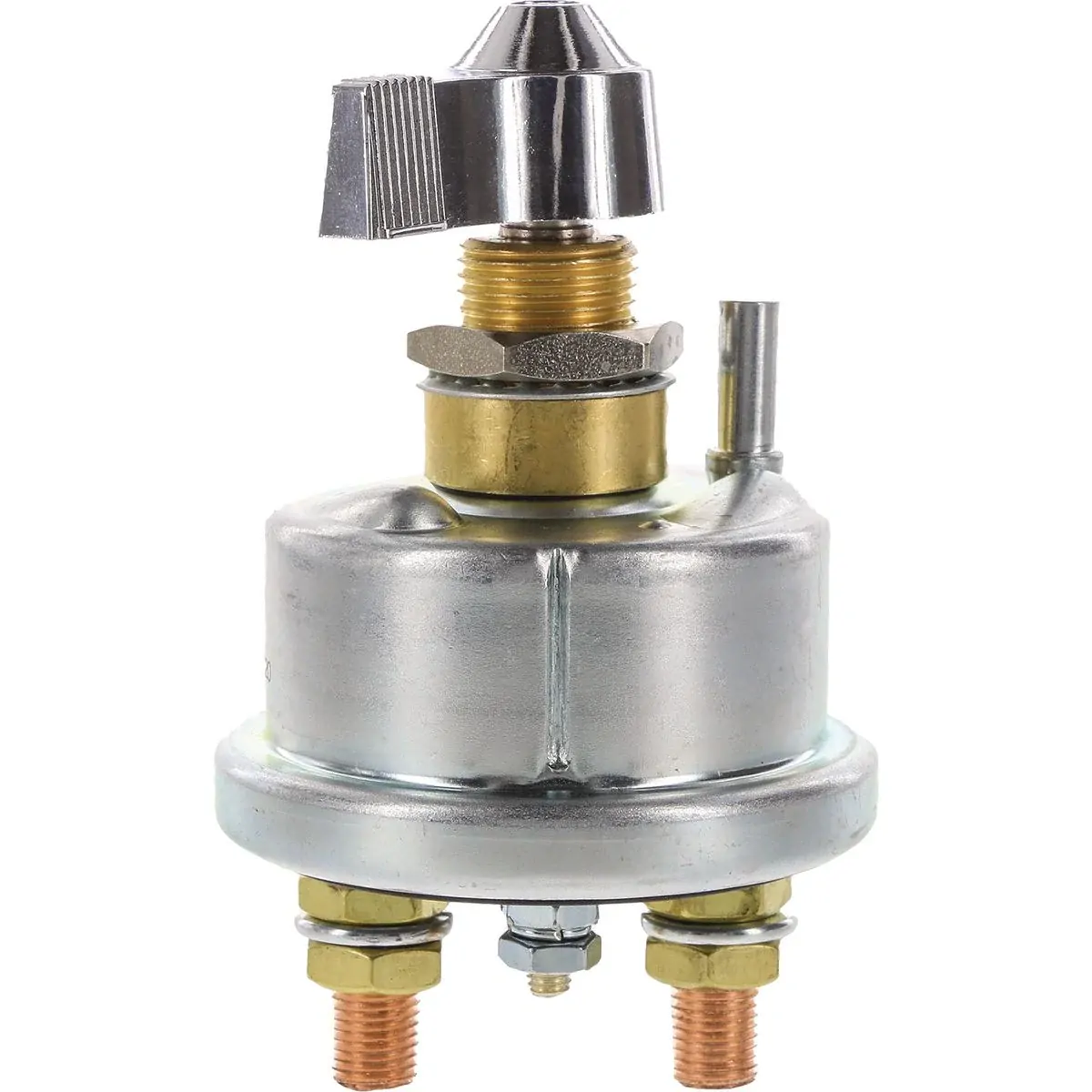

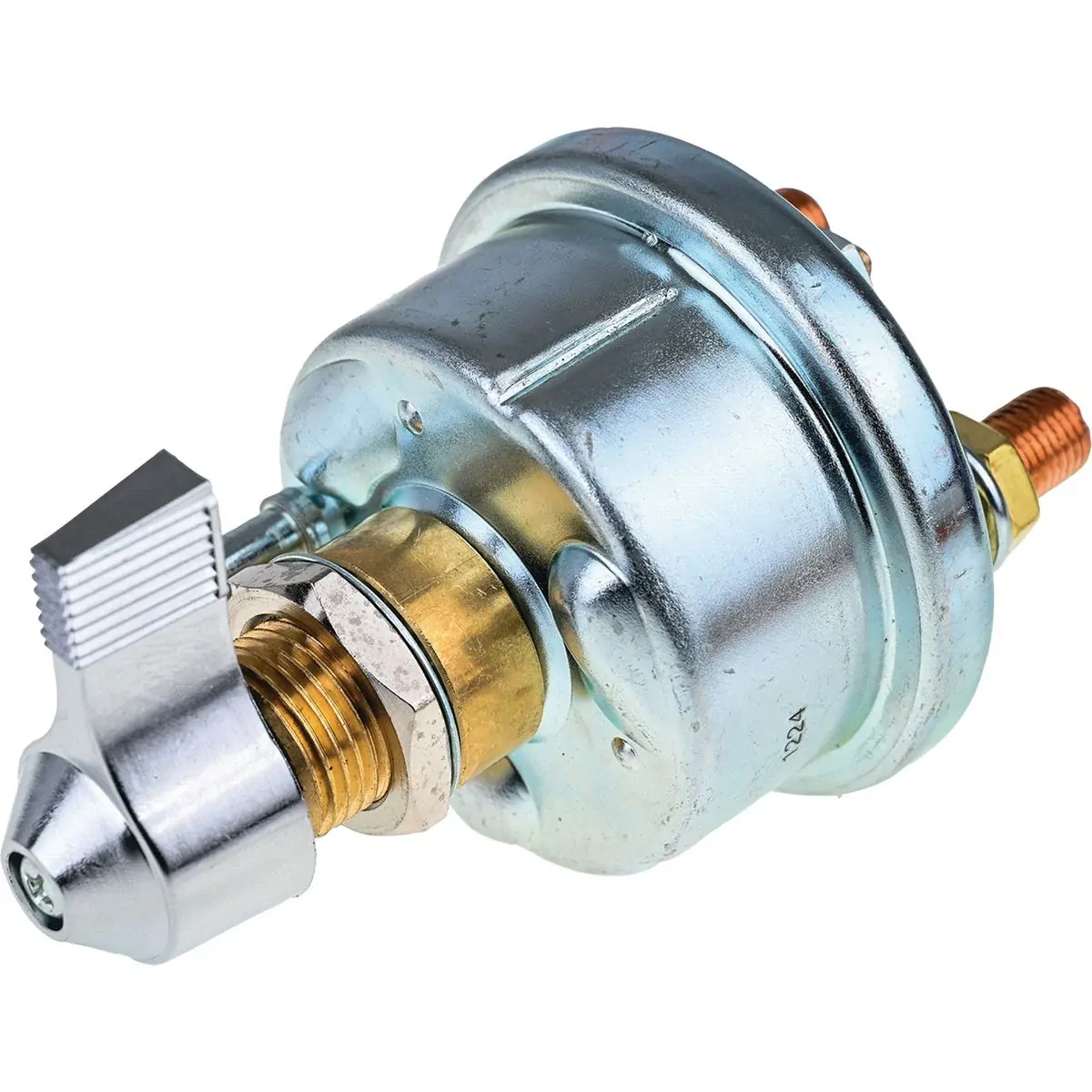

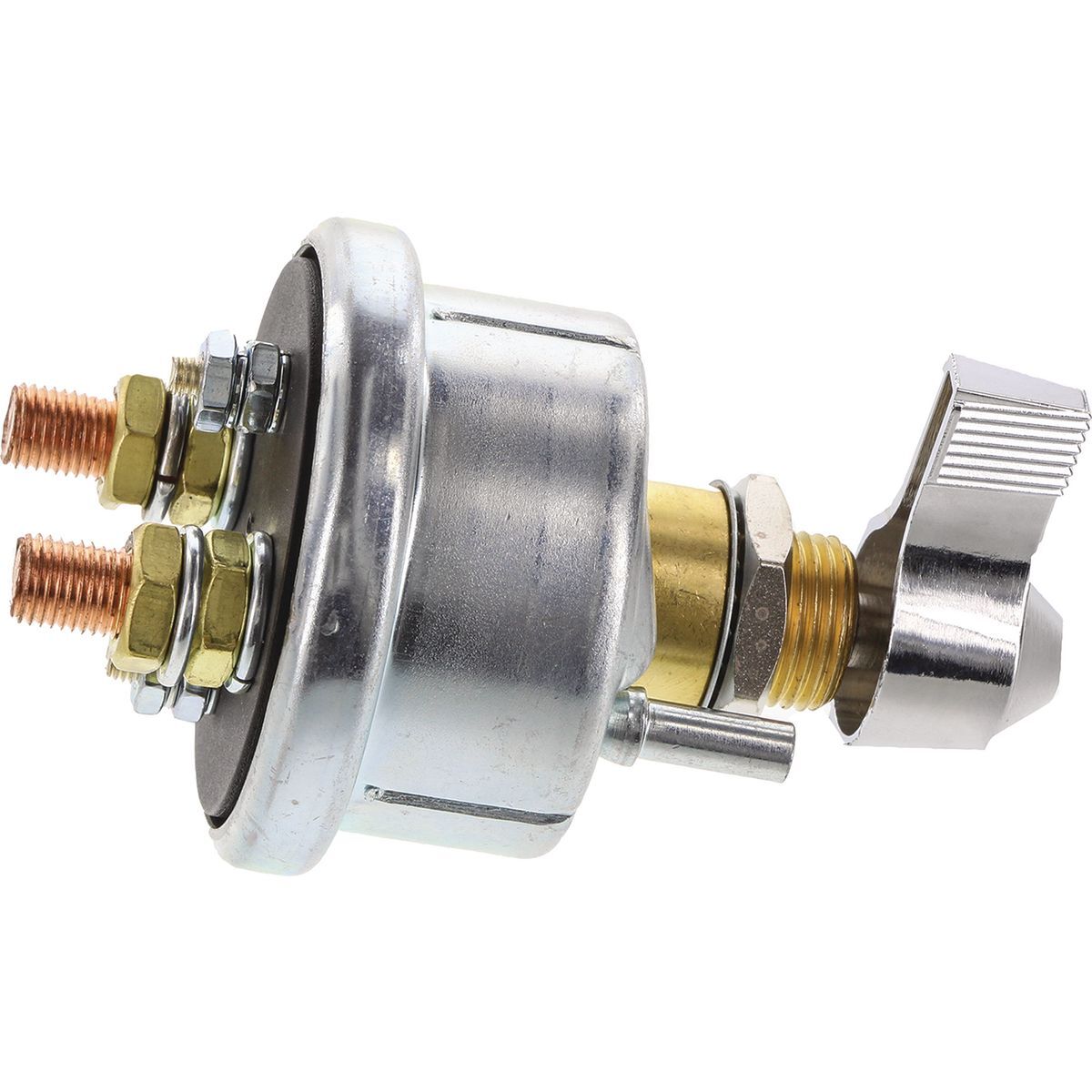

2 Positions Battery Master Isolation Switch 6-36V 125A

ACX3406

SOLD AS EACH

The OEX Battery Master / Isolation Switch is engineered to provide reliable power control and disconnection in a variety of electrical systems operating between 6 and 36 volts. With a continuous current rating of 125 amps and the capacity to handle intermittent loads of up to 375 amps, this switch can accommodate heavy-duty battery isolation demands found in automotive, marine, caravan, and industrial applications.

Specs

Continuous current rating: 125 amps, suitable for extended use without overheating.
Intermittent rating: 375 amps, allowing temporary high current surges.
Cranking rating: 1000 amps for 10 seconds, supporting engine starting loads.
Voltage range: 6 to 36 volts, versatile for various DC electrical systems.
Field terminals rated at 20 amps continuous with two stud sizes: #10-32 for field connections and 3/8"-24 for battery connections.
Switch type: On-Off double pole, single throw (DPST) with two poles and two positions to disconnect or connect battery circuits safely.
Features a weather-resistant O-ring seal, providing protection against moisture and dust for outdoor or harsh environments.
Mounting stem with 3/4"-16 thread and 14.6mm length, with a 19mm mounting hole diameter suitable for panels up to 6.5mm thick.
