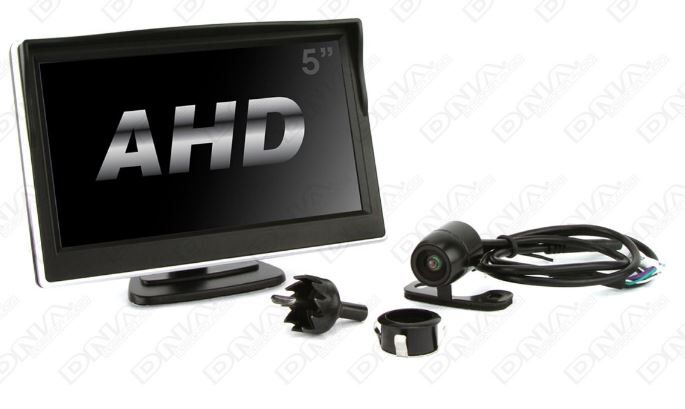

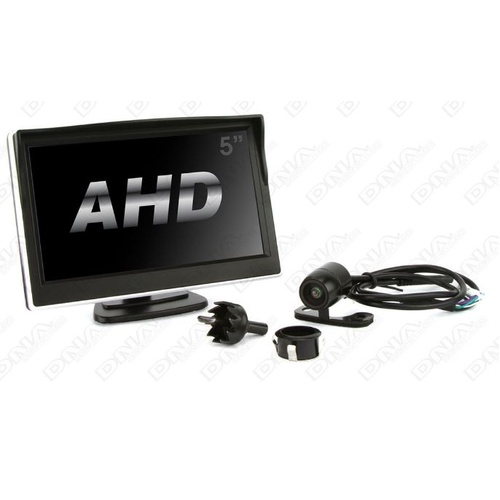

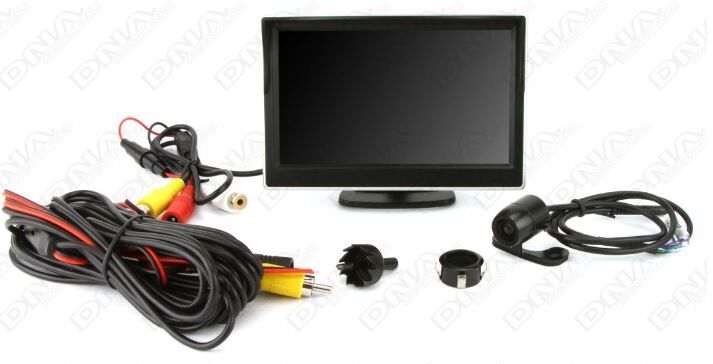

DNA RVS50P-AHD | 5 Inch Rear View AHD Monitor | With Butterfly & Flush Mount

DNA 5 Inch Rear View AHD Monitor With Butterfly & Flush Mount Camera RCB170-AHD

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

DNA

5 Inch Rear View AHD Monitor With Butterfly & Flush Mount Camera RCB170-AHD

RVS50P-AHD

SOLD AS EACH

5 Inch Rearview AHD Monitor With Butterfly/Flush Mount Camera (RCB170-AHD)

This kit provides a complete safety package incorporating a 5 inch screen and reverse camera in a convenient pack.

5 Inch rearview LCD monitor - (RVS50-AHD)

This 5 Inch screen is compatible with all our AHD cameras models and has a built-in sunvisor
Fully adjustable ball joint bracket which is dash mountable with adhesive tape.
Has two video inputs and includes 12V power cable.

RVS50-AHD Screen Features:

High definition LCD display
360 Degree adjustable mount
2 x RCA Video inputs (AV2 (White) has priority over AV1 (Yellow)

Screen Specifications:

Screen Size: 5 Inch
Video System: PAL
Mode: 4:3 or 16:9
Resolution: 800(H)*400(V)
Video Input: 1.0V±0.5Vp-p 75O
Auto Switching: V1 & V2 (Priority)
Operating temperature: -10°C - +50°C
Working Voltage: DC12V (+/-10%)
Consumption: 130mA±10%

CMOS Reverse Camera Butterfly Mount - (RCB170-AHD)

This miniature butterfly/flush mount camera is a truly universal solution for multipurpose vehicle installations.
Model Strengths:
Universal
Zinc Alloy Housing
Miniature
Side Mounting Option
PAL
Parking Guide Lines*
Mirror Image*

Features:

AHD1080p/AHD720p format (Purple wire): By default is set to AHD1080P. (Cut wire to change to AHD720P)
Image Control (Green wire): By default is set for rear camera installation. (Cut wire to change image for front camera installation)
Parking Line (White wire): By default is set to show parking lines. (Cut wire to turn off)

Camera Specifications:

Image Sensor: CMOS
Video System: PAL
Resolution: 1920(H)*1080(V)
Horizontal Resolution : 600 TVL
Electronic Shutter: 1s-1/10000(S)
SNR: =46.5dB
Min Illumination: 0.001Lux
Video Output: 1.0V±0.5Vp-p 75O
View Angle: 170°
Working Voltage: DC9V-15V±0.5V
Consumption: 100mA±10%
Waterproof Rating: IP68
Packaging: DNA Gift box
