DNA VRTY20 | Video Camera Adaptor Harness | for Toyota Hilux

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

DNA

Video Camera Adaptor Harness for Toyota Hilux Models From June 2020 On

VRTY20

SOLD AS EACH

Video Camera Retention Harness To Suit Toyota Hilux Vehicles From June 2020 Onwards

Suits:

Toyota Hilux June 2020 Onwards.
For use with Toyota OEM head units and JBL head units with push buttons and two rotary control knobs.

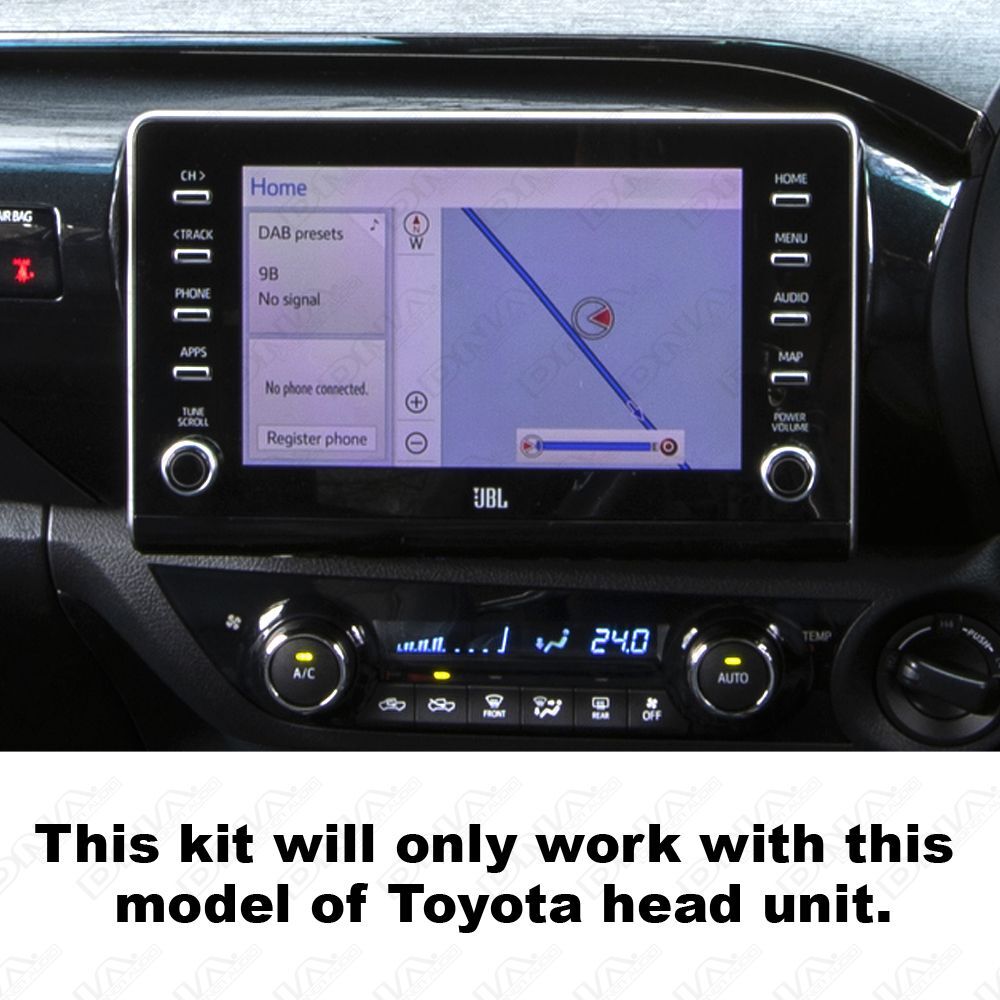

This video retention harness is designed for plug and play DIY installation of an aftermarket reverse camera (sold separately) in Toyota Hilux vehicles from June 2020 Onwards. It allows easy installation and integration of an aftermarket reverse camera to the OEM factory Toyota Hilux screen. (From June 2020 onwards, refer to photo of the OEM Toyota head unit as a reference).

This harness has been designed for simple plug and play installation into the Toyota Hilux vehicle, without the need of cutting or soldering any wires. It saves pulling apart the dash and trying to access the rear of the head unit area, whereas this harness simply plugs and plays into the harness location in the passenger footwell kick panel area.

WARNING - Please note:

The aftermarket camera (sold separately) that you are connecting to this harness will require it to have a voltage regulator as the red wire on this harness is from the 6 volt power source in the Hilux. This red wire must have a load coming off of it to work.

The camera will also need to be set as NTSC image format to match the Toyota OEM screen.

All DNA cameras listed at the bottom suit this harness.

Quick Installation Points:

Gaining access to the harness wiring in the vehicle:

1. Lift up and remove the passenger side door sill plate.
2. Remove the passenger side footwell kick panel.

Installing the camera harness with the vehicle harness wiring:

(WARNING: Ensure vehicle is switched off before disconnecting this plug)
a. Unplug the factory harness plug from the passenger side footwell area.
b. Plug the factory harness plug into the female end of this harness
c. Plug the male end of this harness into the factory harness socket in the vehicle.
d. Plug the RCA plug from the camera extension cable (Camera sold separately) into the RCA socket on this harness.

Installing the aftermarket camera and testing:

3. Install and wire the aftermarket camera as desired. (sold separately)
4. Once this harness and the camera are installed, test it to make sure it is working and the viewing angle is suitable.
5. Ensure all wiring is routed in the vehicle and to the rear of the vehicle safely and securely.
6. Re-install the passenger side footwell kick panel.
7. Re-install the passenger side door sill plate.

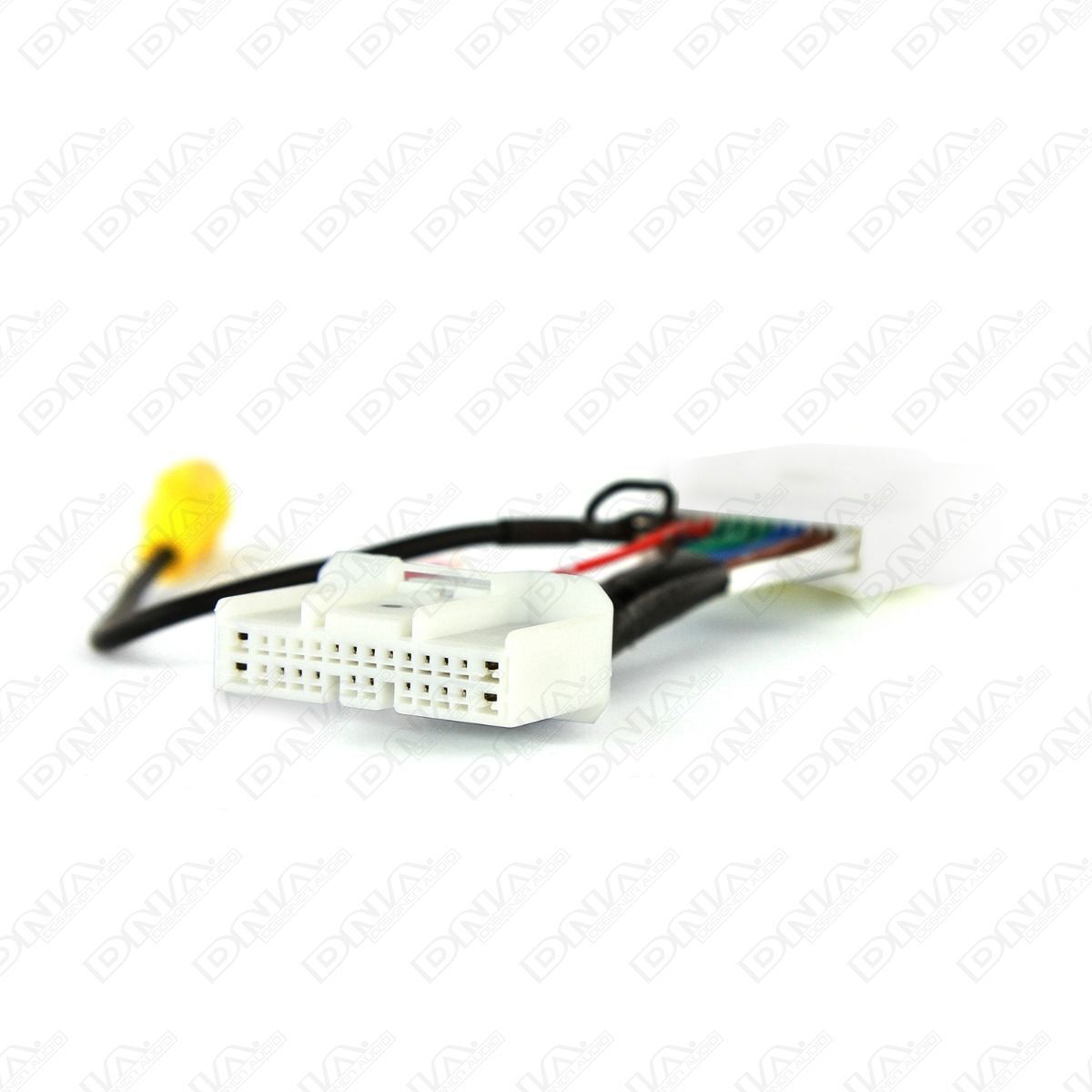

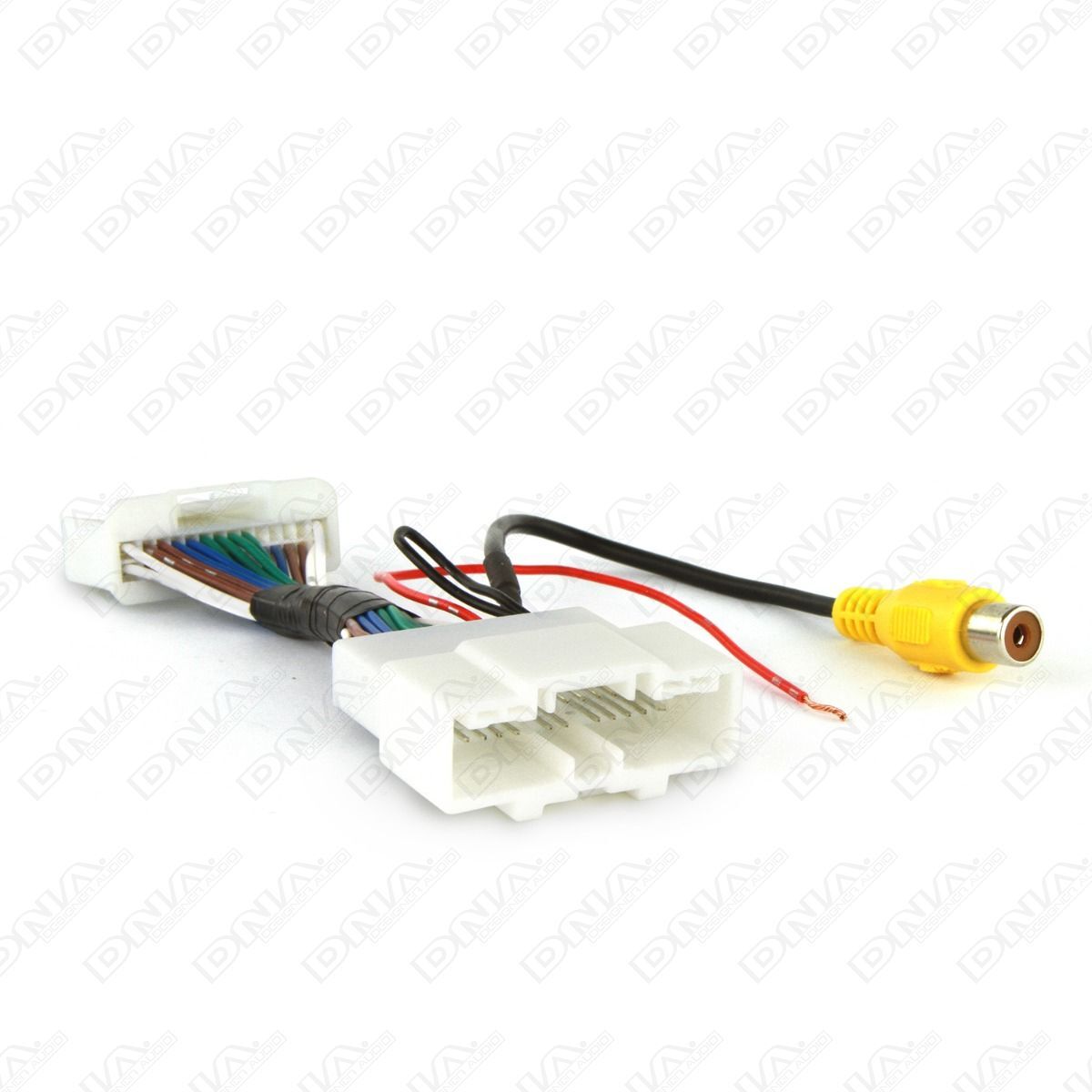

Harness: 1 x Male 26 pin plug to 1 x female 26 pin plug and 1 x inline female RCA socket with 1 x bare end red 6 volt power wire

Harness length: Approx. 13cm
Video cable length: Approx. 15cm
Includes installation instructions
Packaging: DNA Blister & card

DNA has a large range of cameras available that can be used with this harness:

RCB100 - Butterfly Camera
RCB170 - Butterfly / Flush Mount Camera
RCH170 - Large Butterfly Camera & Harness Kit
RCL170 - Large Heavy Duty Butterfly Camera
RCO170 - OEM Stalk Mount Camera
RCP170 - Pivot Mount Camera
RCS170 - Stalk Mount Camera

Also available is the complete plug and video retention camera and harness kit: RCH170
