SKU: RCS170

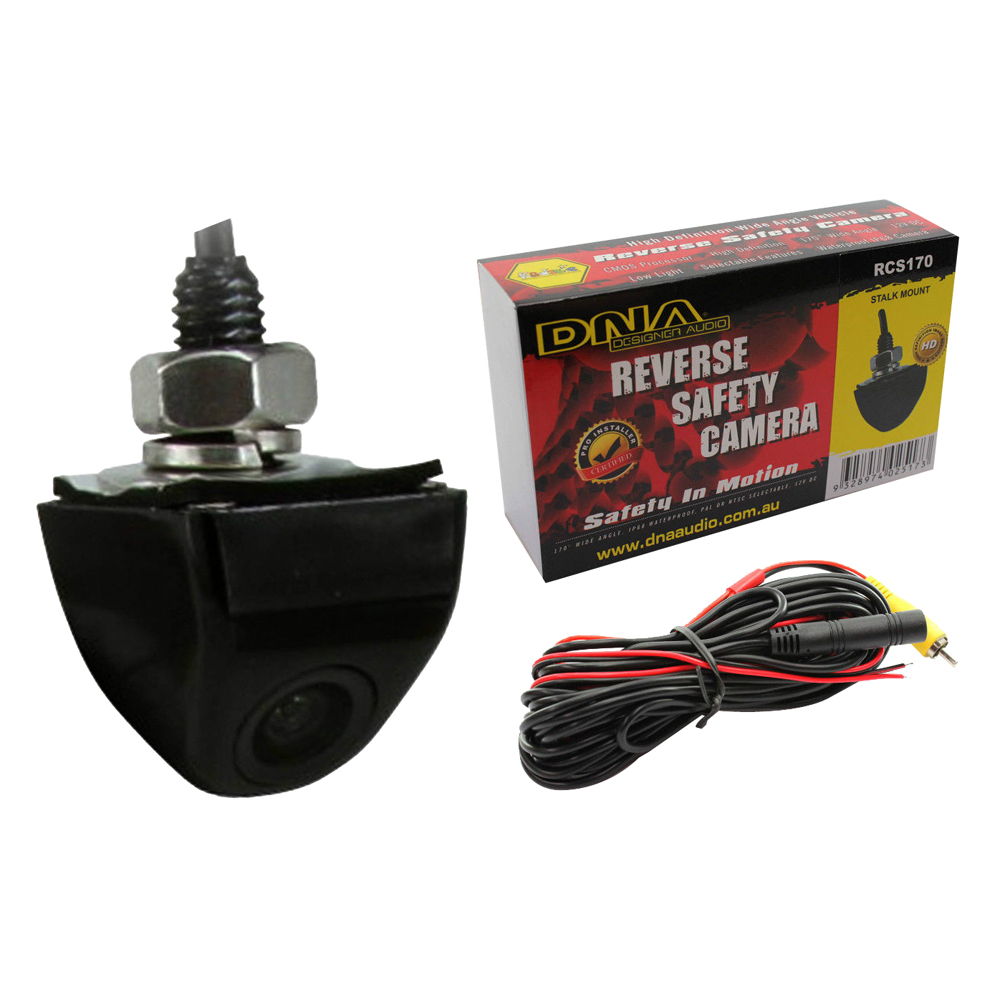

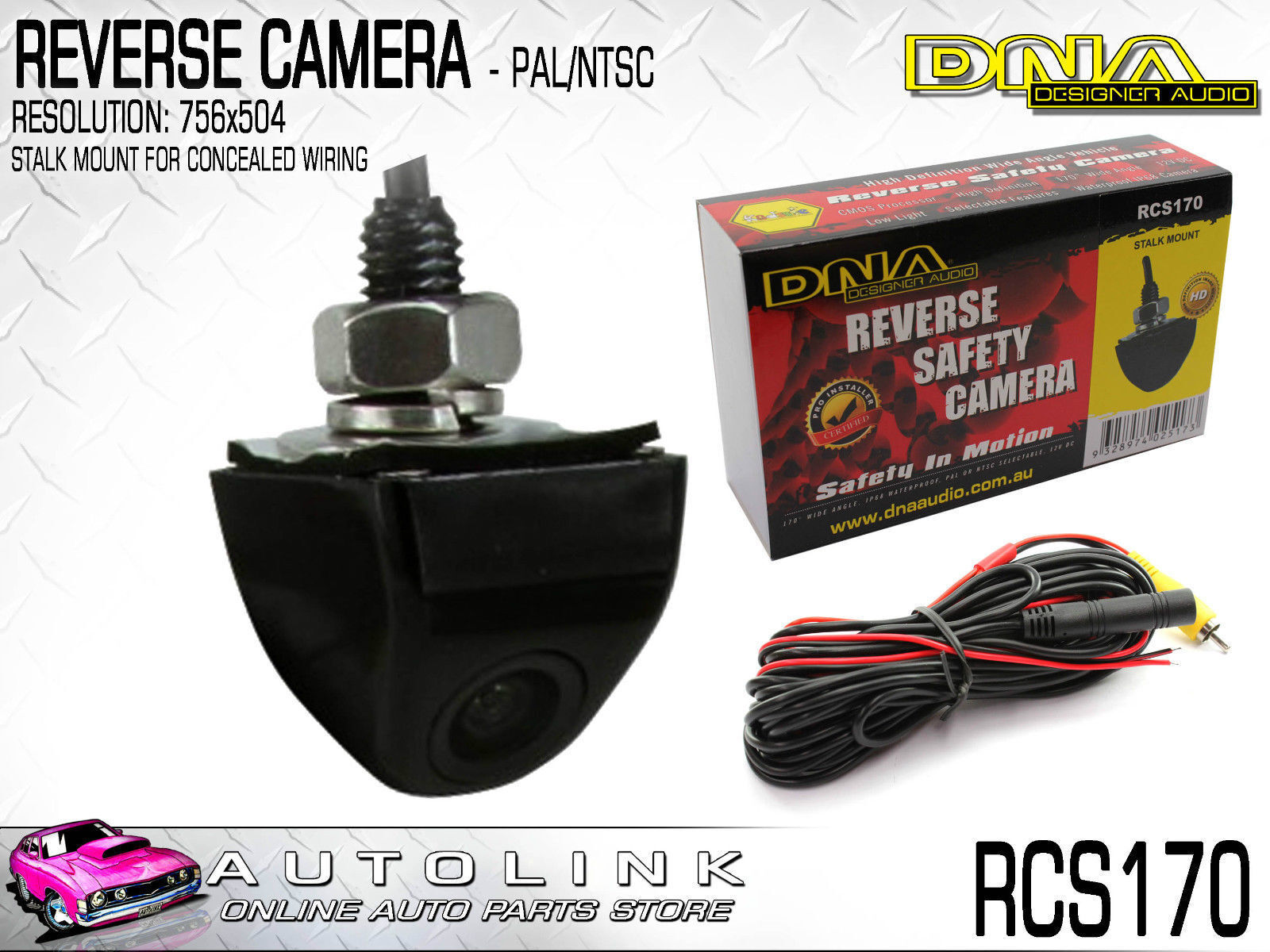

DNA REVERSE CAMERA (CMOS) STALK MOUNT - PAL/NTSC 756x504 RESOLUTION (WATERPROOF)

$94.00
RRP $128.00
SAVE $34.00 (27%)

More info.

Make 4 interest-free payments of $23.50 fortnightly and receive your order now.

In Stock


Calculate Shipping



FREE STD SHIPPING - $0.00
Delivery Australia Wide

Description

My Stores Logo









DNA Audio



CMOS REVERSE CAMERA STALK MOUNT - PAL/NTSC



This camera is ideal for OEM applications, where wiring is concealed for a neat and professional finish.



OEM Solution, Zinc Alloy Housing

Only Requires 8mm Hole

PAL / NTSC Selectable* (By default set to PAL. To select NTSC cut the wire)

Mirror Image*



Features:

Includes selectable options: PAL/NTSC video format and reverse mirror imaging.

Camera also comes with a stalk mount and has a Waterproof IP68 rating.



Specifications:

Image Sensor: CMOS (PC3089)

Video System: PAL or NTSC (Selectable)

Scanning area: 4.80mm*3.73mm

Resolution: 756(H)*504(V)

Horizontal Resolution : 600 TVL

Electronic Shutter: 1s-1/10000(S)

SNR: =46.5dB

Min Illumination: 0.01Lux

Video Output: 1.0V±0.5Vp-p 75O

View Angle: 170°

Working Voltage: DC9V-15V±0.5V

Consumption: 100mA±10%

Waterproof Rating: IP68











RCS170

CUSTOMER SERVICE - 03 9356 0173

YES WE CAN COMBINE SHIPPING



(CAN ALSO PICK UP FROM OUR NORTH SUNSHINE DEPOT)



TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.



INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS.

A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD, ALTHOUGH WE STRONGLY RECOMMENDED

YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE CONTACT AUTOLINK

ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.



WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.



PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.



RETURN

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED.

ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.





Thank you For Looking!

HAPPY SHOPPING !














Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.



INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.



WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.



PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.



RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.



Thank you For Looking!

HAPPY SHOPPING !



Specifications

SKU RCS170
Barcode # 9328974025173
Brand DNA AUDIO
Shipping Weight 0.5000kg
Shipping Width 0.120m
Shipping Height 0.060m
Shipping Length 0.170m
Shipping Cubic 0.001224000m3
Unit Of Measure ea
