ICE 7 AMP 2 STEP STREET RACE IGNITION BOX WITH PUSH BUTTON REV LIMITER 7062MC

ICE IGNITION

CONTROL BOX – 7 AMP, 2 STEP

WAS 7052MC

NOW USE 7062MC

SOLD AS EACH

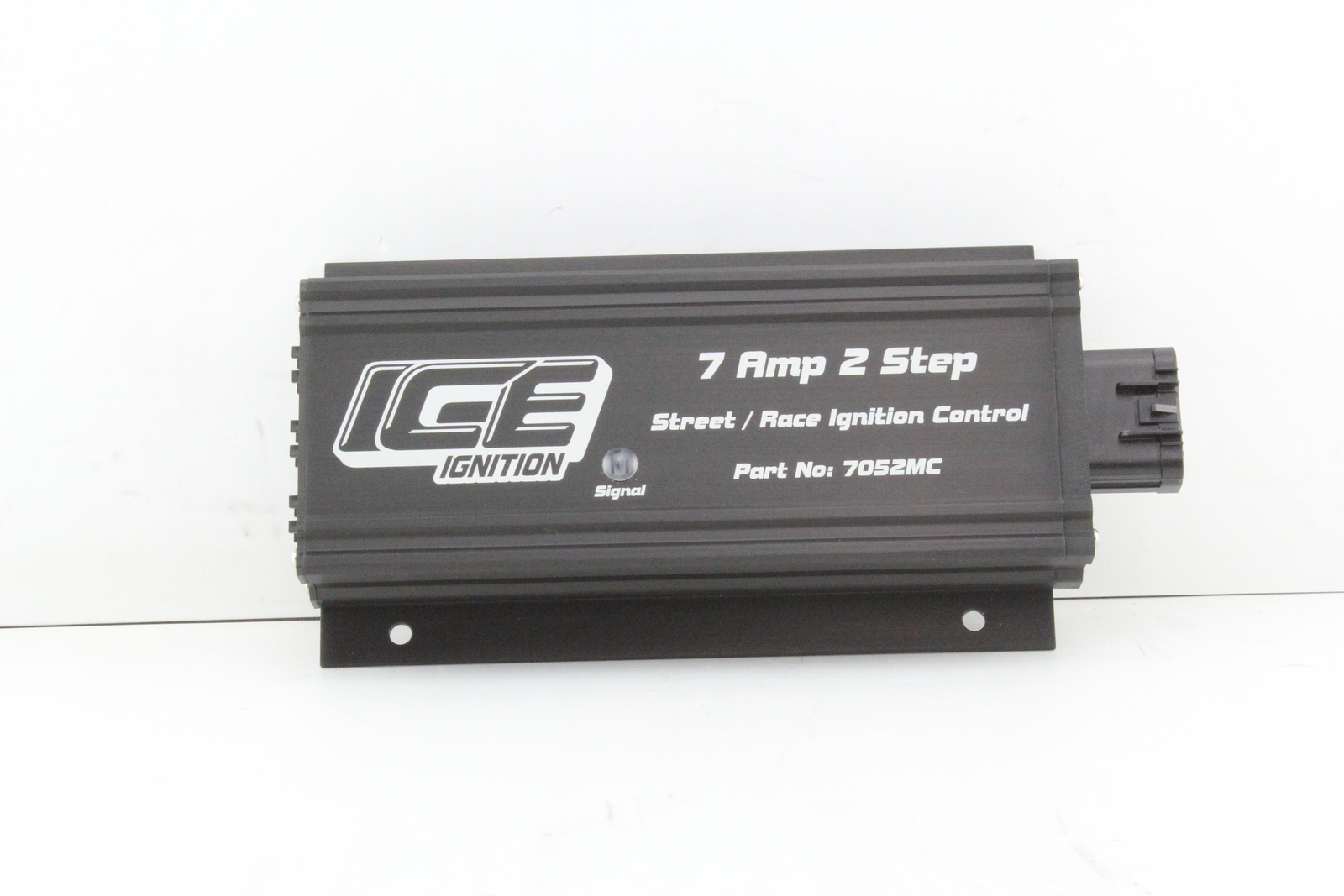

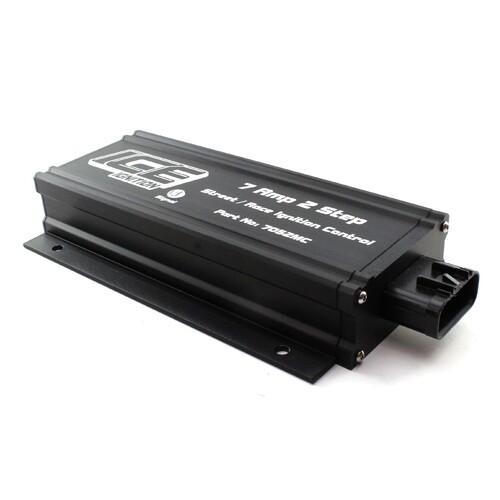

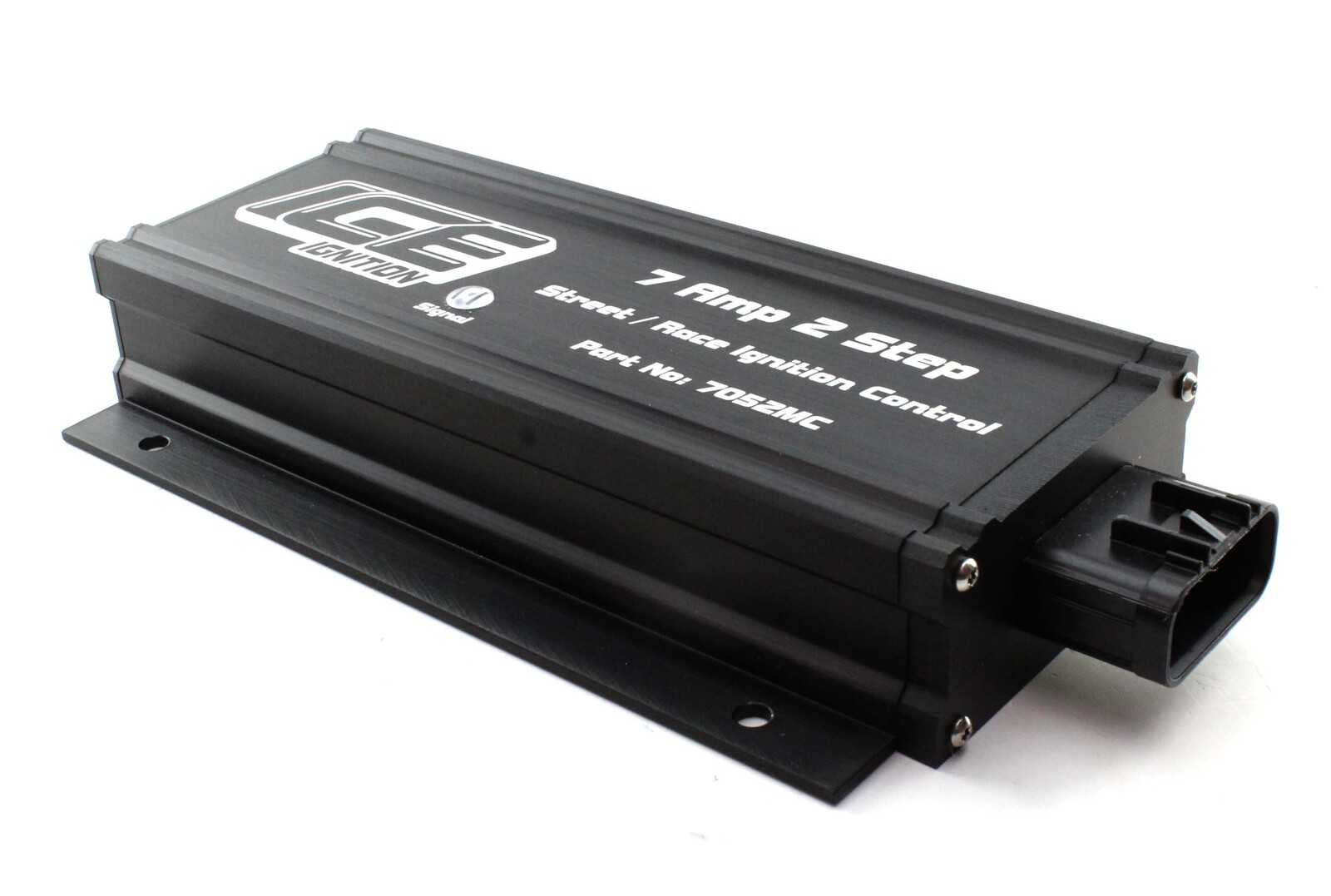

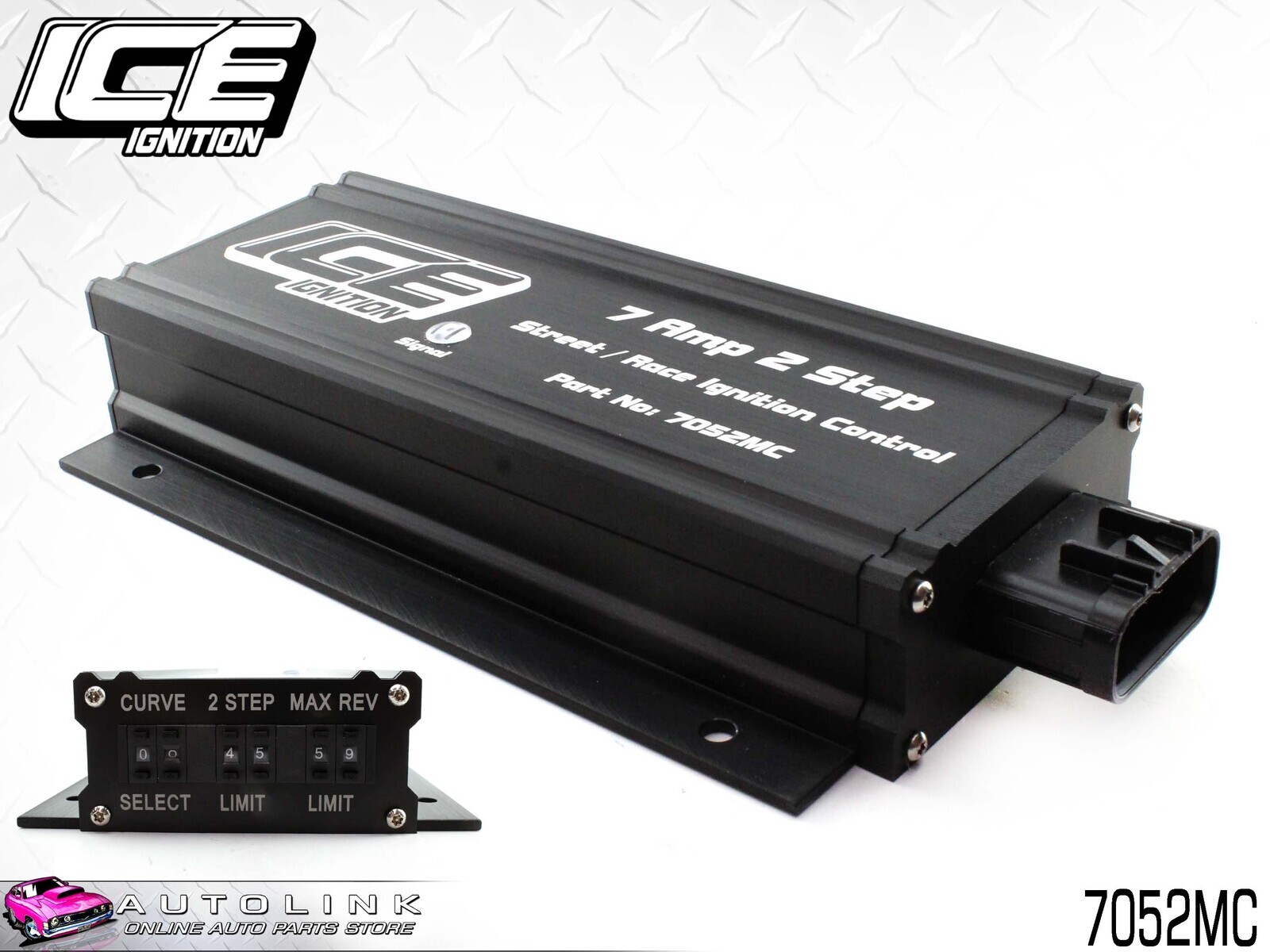

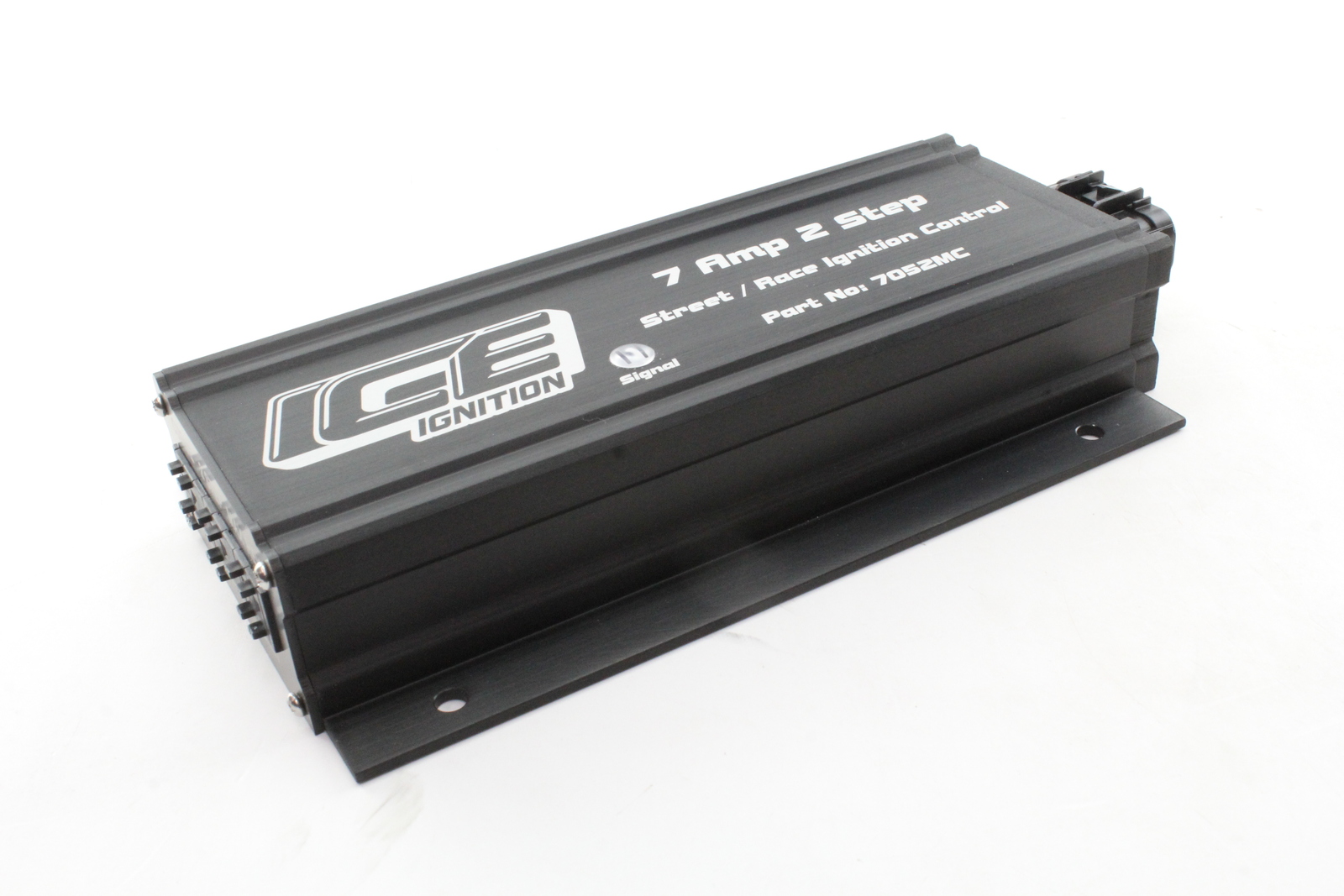

The ICE Ignition 7052MC Street / Race Series Control Box features the following.

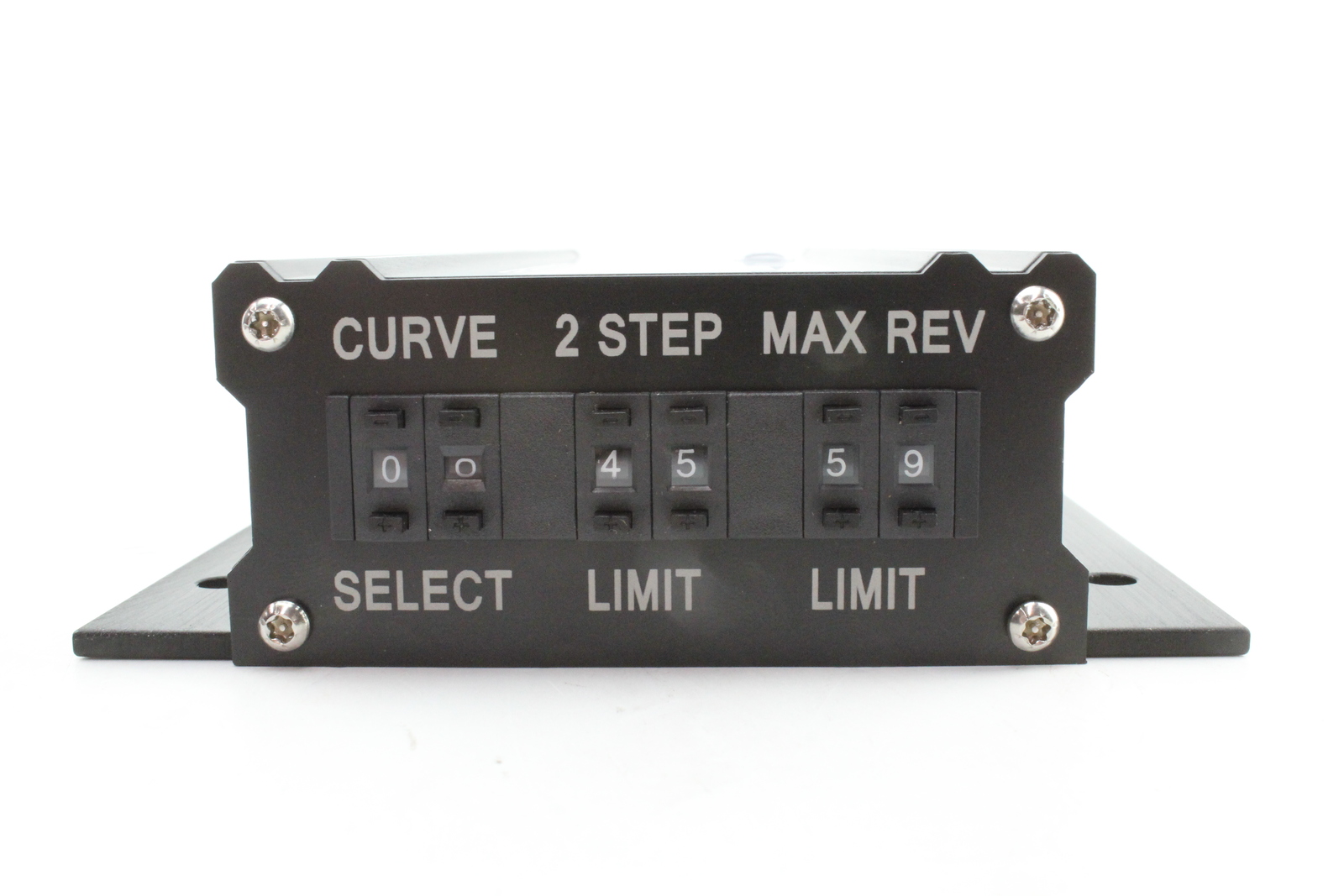

128 Pre-programmed ignition curves - 128 push-button selectable curves enables timing adjustment in real-time. It eliminates the need for distributor re-graphing

when engine upgrades are introduced. It allows you to adjust timing for changes in fuel quality. With 128 timing curves at your disposal, the tuning potential is almost endless.

MAX REV Limiter - A push-button selectable rev limiter that can be adjusted in 100 RPM increments.

It provides great insurance against accidentally over revving your engine by cutting out the spark.

2-STEP Rev Limiter - A push-button selectable rev limiter that can be adjusted in 100 RPM increments.

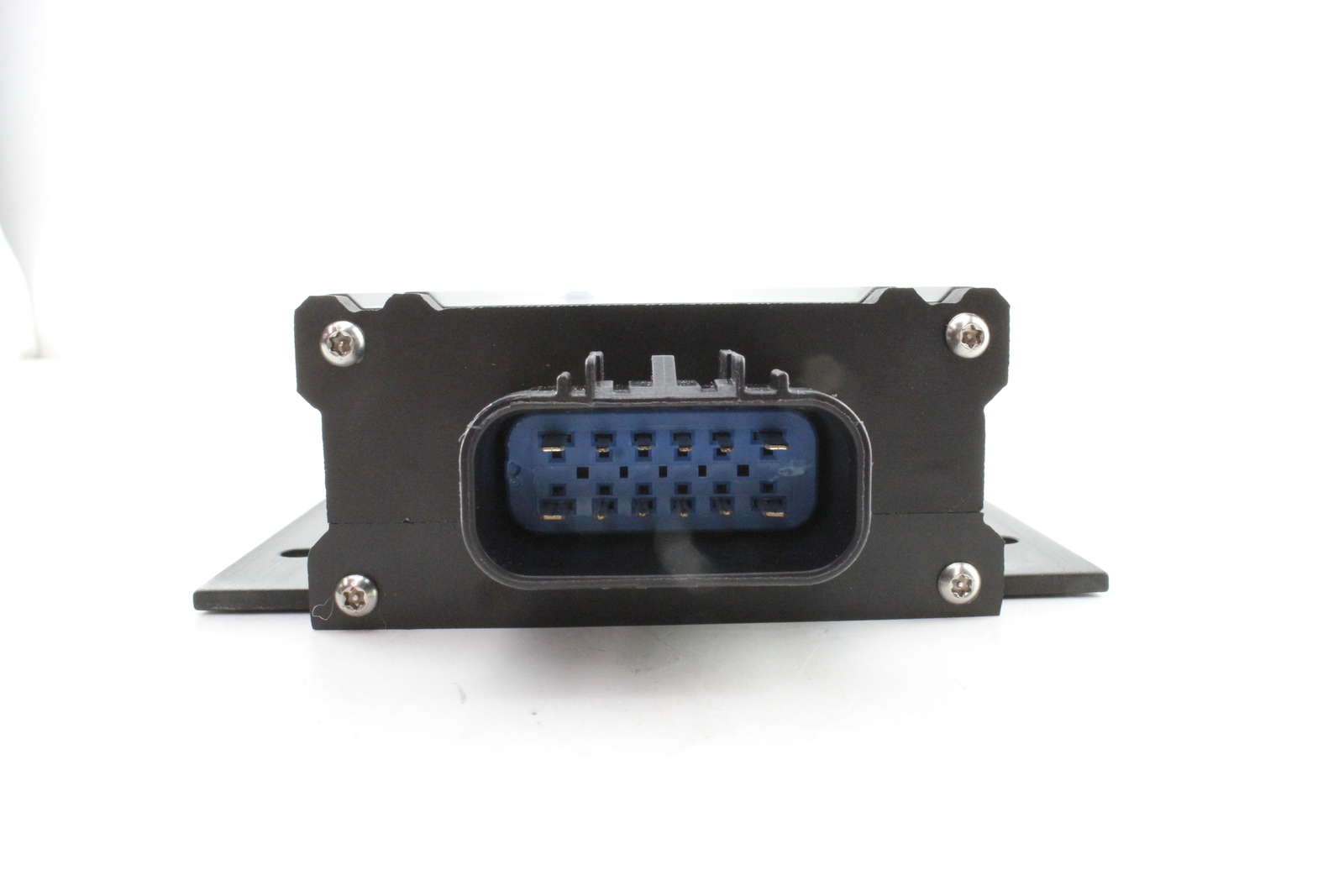

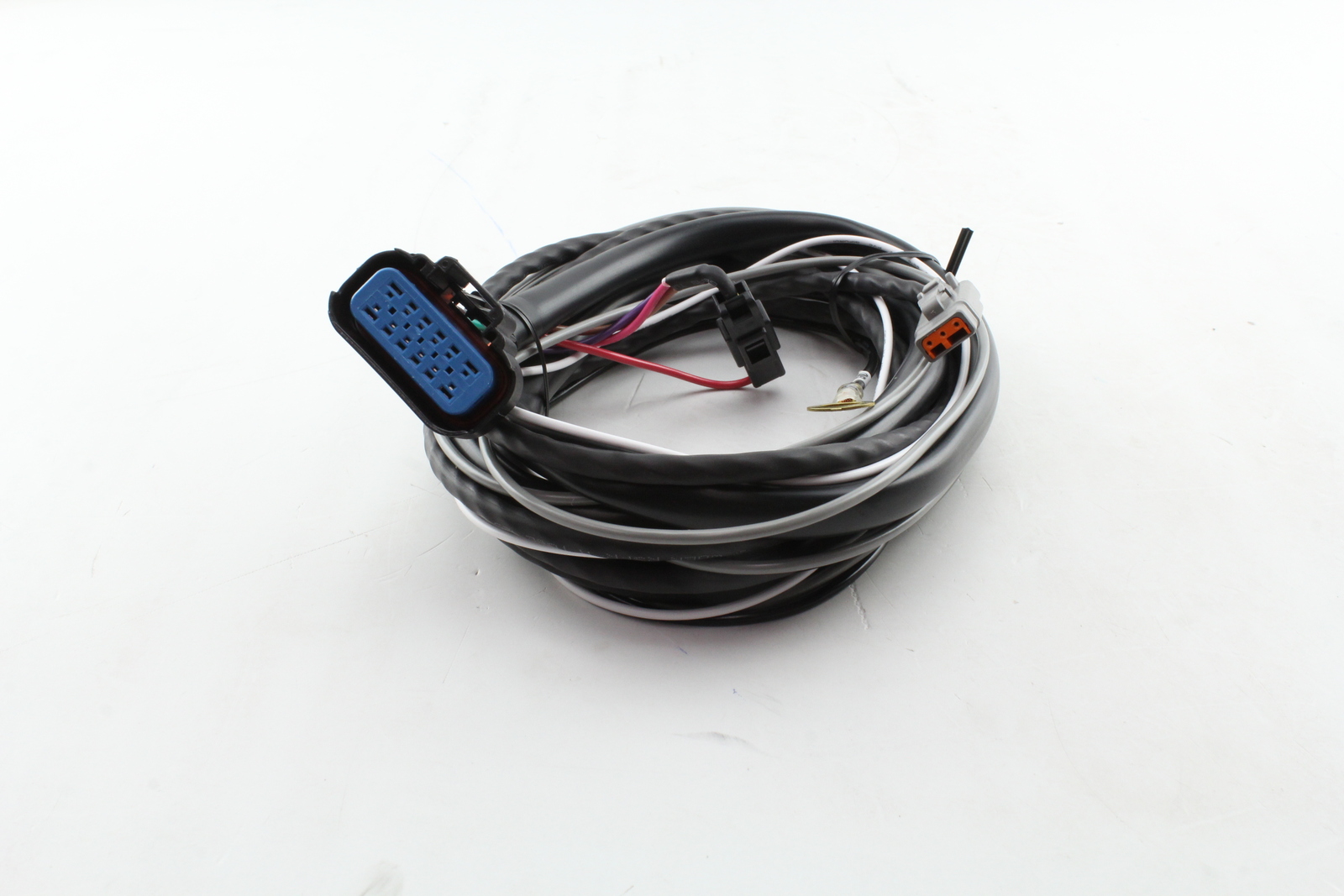

The 2-STEP only becomes active when 12  volts is applied to the white wire in the ignition wiring loom. When active the 2-

STEP

takes precedence over the Max REV Limiter. It's ideal if you have a trans brake, launch control or it could be used as a Valet

Mode.

The controller must be mounted inside your car, NOT inside your engine bay. ICE Ignition recommends the use of NON-

RESISTOR Spark Plugs.
