ICE Ignition EFI Sniper 7 Amp Kit IK0297-EFI-SNIPER for Ford Cleveland 302 351 V8

ICE IGNITION

STREET AND RACE IGNITION SYSTEM DESIGNED

FOR EFI OR HOLLEY SNIPER ENGINES.

FORD CLEVELAND V8

IK0297-EFI-SNIPER

SOLD AS EACH

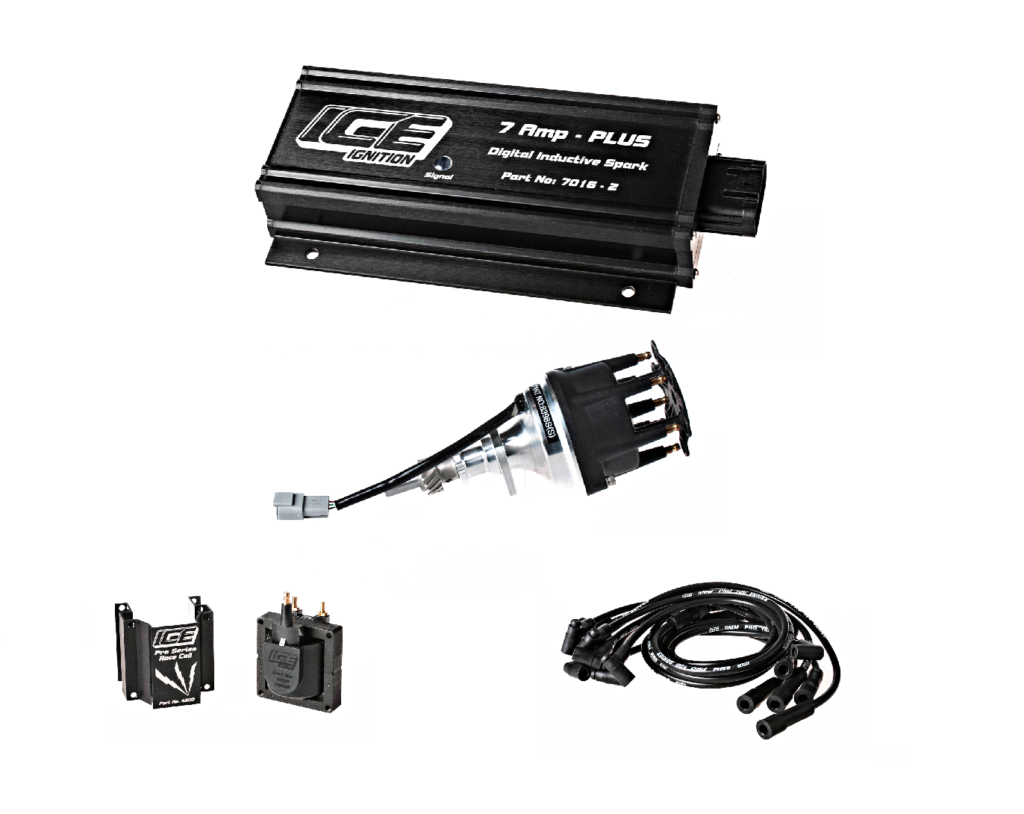

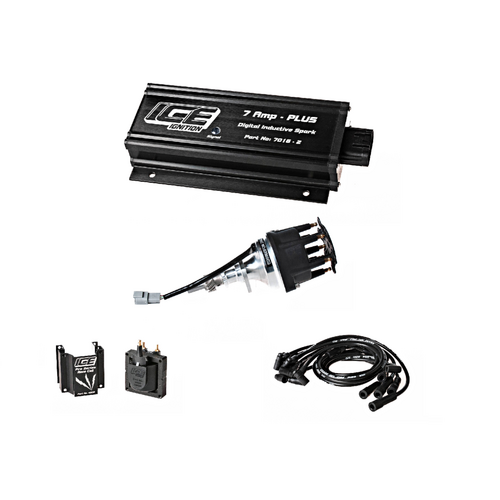

KIT INCLUDES:

• ICE Billet 6061-T6 alloy distributor in small or large cap let us know which you are after with either spheroidal graphite cast iron, silicon bronze or hardened steel gear.
• 7 Amp / 10 Amp / 20 Amp digital ignition control with signal LED indicator and dedicated tach output.
• High voltage ICE Pro Series Race Coil.
• 9mm Pro 100 Series plug wire kit to suit your engine with number markers.
• 3 Year Warranty.

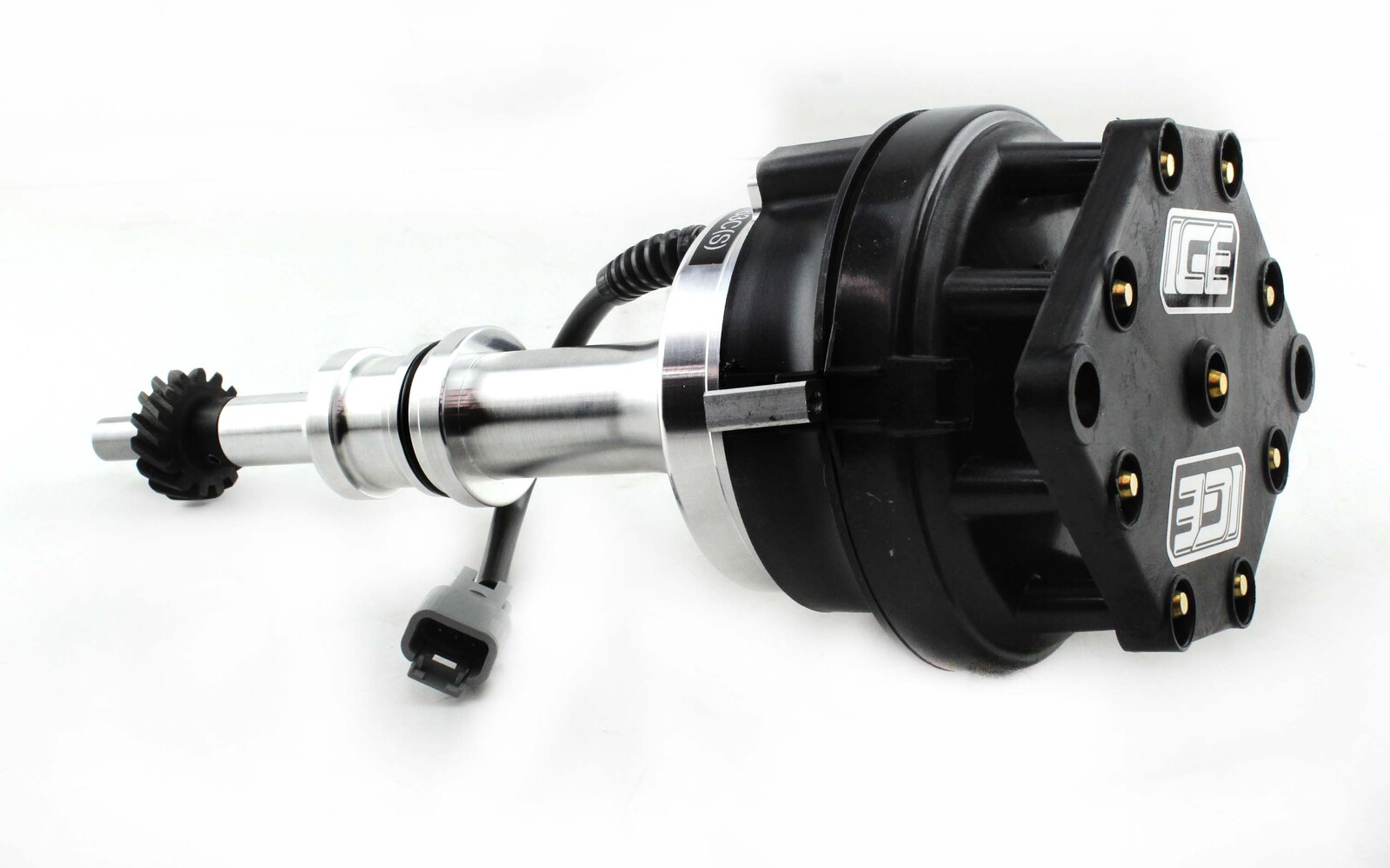

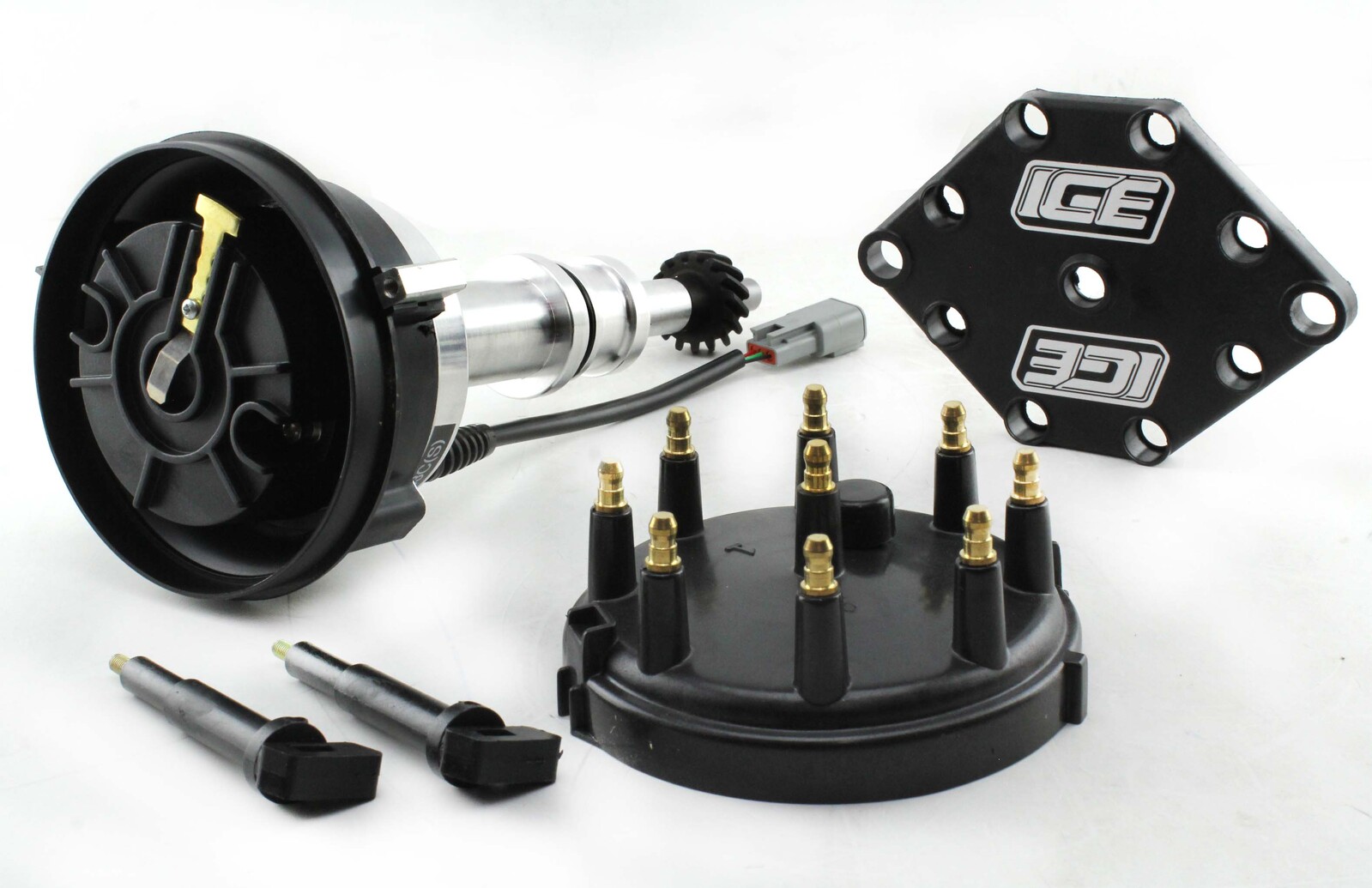

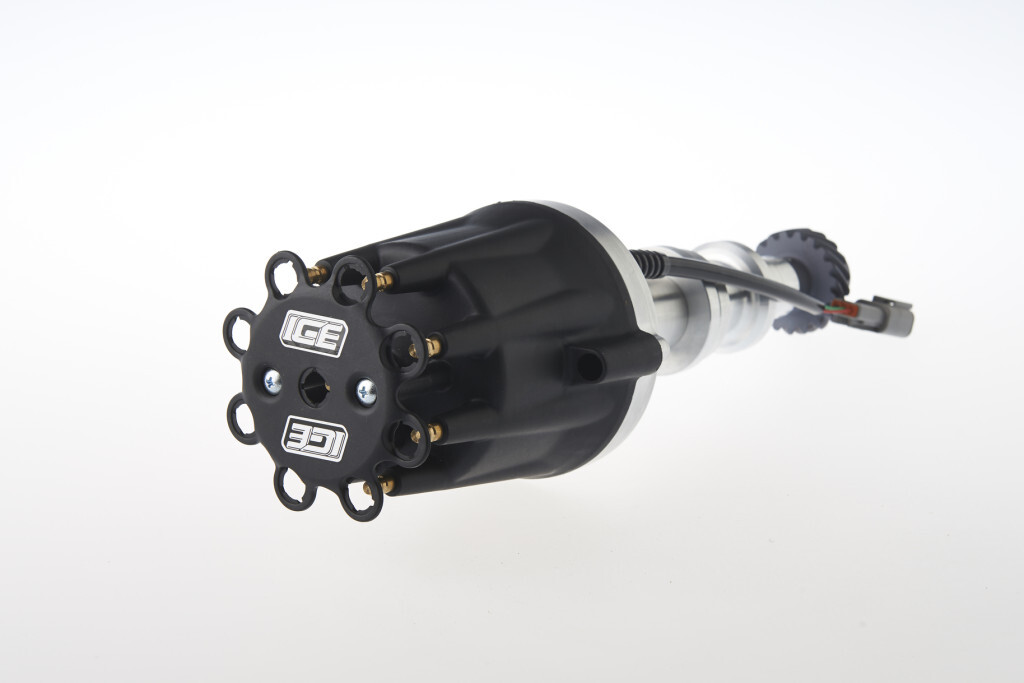

8100 Series

Billet Distributors

• Available for most popular V8 engines, the ICE 8100 Series large cap billet distributors feature a race inspired cap design with wing clamp plug wire retainer and a choice of distributor gears. Specifically for engines where distributor clearance is not an issue and the look of a large cap distributor is preferred.



OR



8300 Series

Billet Distributors

• ICE 8300 Series small cap billet distributors feature a compact cap design with screw on plug wire retainer and choice of distributor gears. Available for all popular V8 and 6cyl engine types and used when distributor clearance is tight or the look of a small distributor is preferred.



7016-2 – 7 Amp PLUS

Sniper / EFI Ignition Modules

• The ICE 7016-2 7 Amp PLUS ignition control is the standard when it comes to inductive ignitions. It is suitable for 4, 6 and 8 cyl engines in EFI or timing computer (eg: Haltech VMS or MSD Grid) applications and features intelligent type (variable dwell) spark control. Compatible with both positive (leading) edge or negative (falling) edge square wave signals from aftermarket ECU’s or timing computers, it also incorporates a built in variable voltage booster with up to a maximum of 16 volts. It produces a higher output than other variable dwell ignition controls by using 7 amps of primary current combined with long duration for phenomenal total spark energy.



This model comes with:

• Spark only control
• 3 Year Warranty

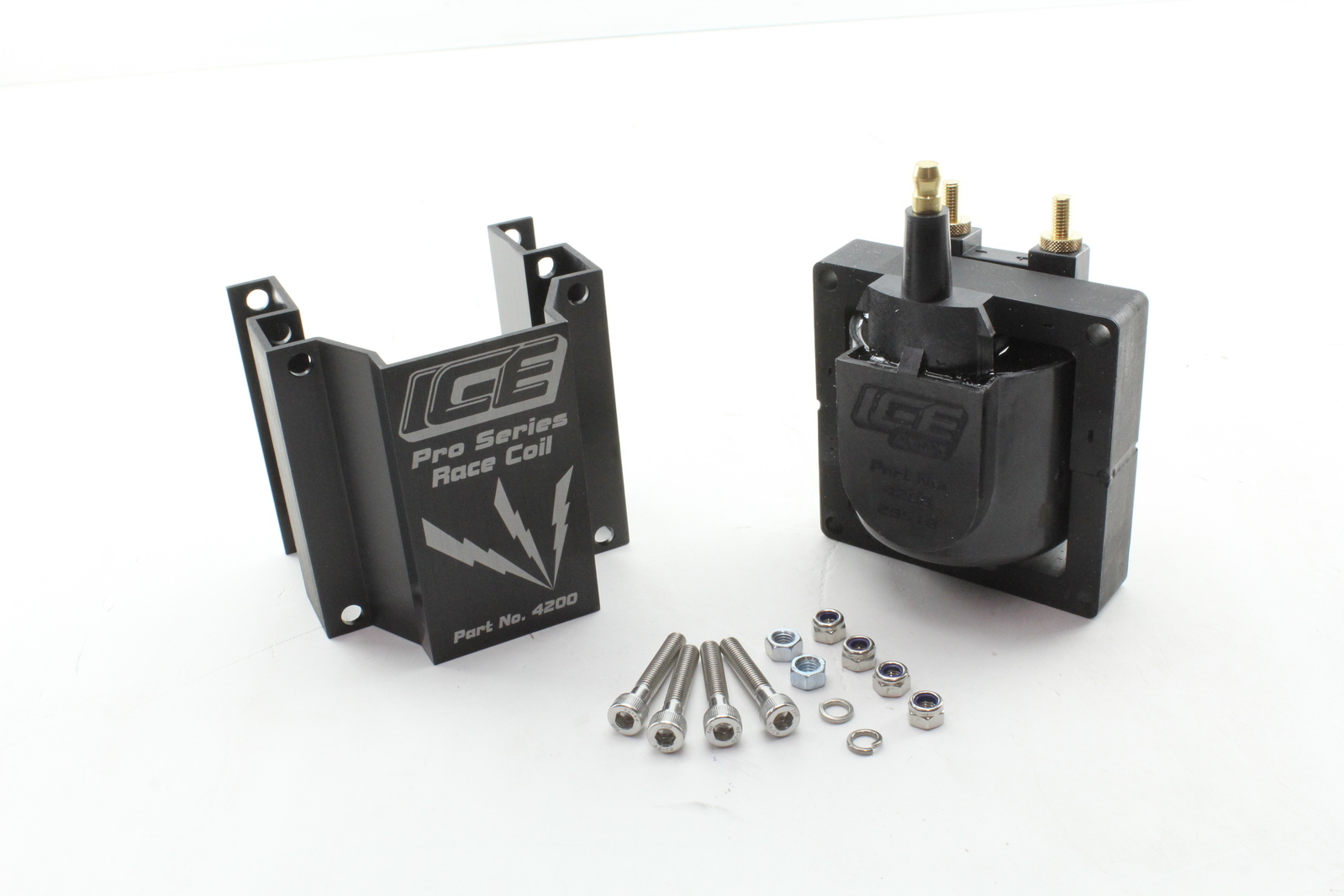

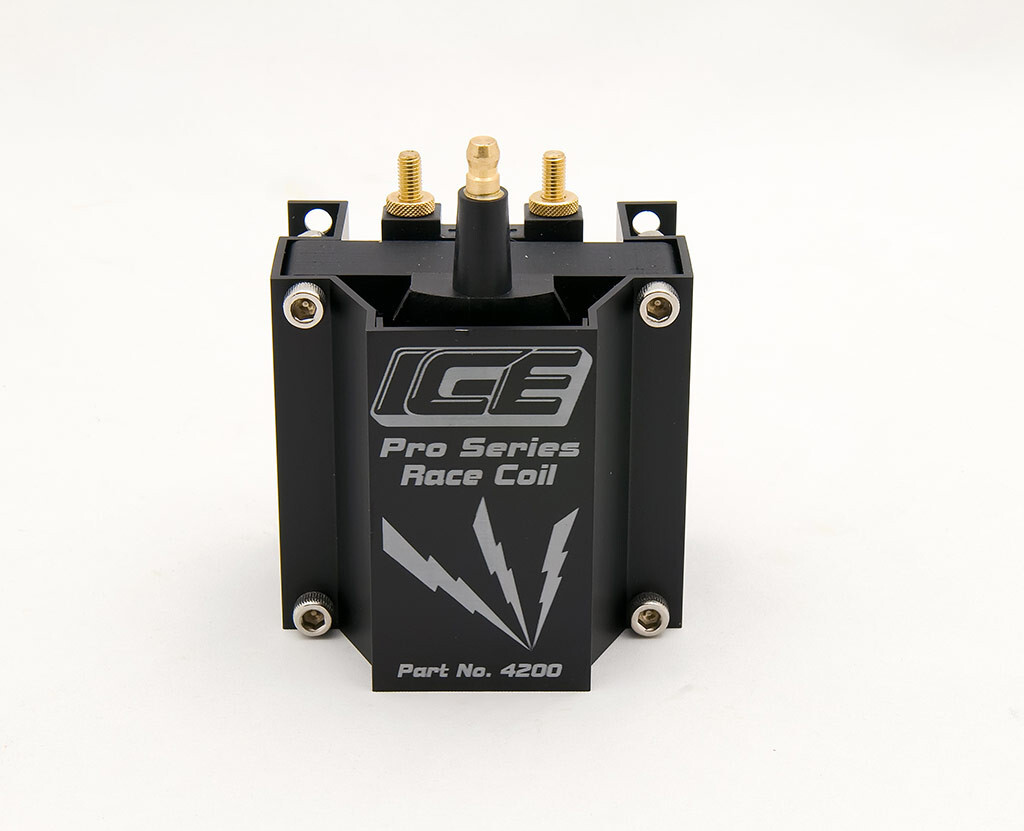

4200 Pro Series Race Coil

Ignition Coils

The ICE 4200 Pro Series Race Coil is typically used with ICE 7 Amp systems in N/A applications and ICE 10 & 20 Amp systems in both N/A and boosted applications.

The sophisticated technology in the ICE 4200 Pro Series Race Coil is designed to deliver the highest possible intensity and duration to support the most powerful race ignition systems and resist vibration in the most punishing of conditions, featuring:

• Black anodised extruded alloy protective cover with integrated mounting bracket.
• Quality brass terminals to resist corrosion.
• Advanced design to withstand vibration and deliver maximum, consistent voltage.
• Lightweight for a coil of this output.
• Extremely long service life under the most demanding road, off-road, race or marine applications.

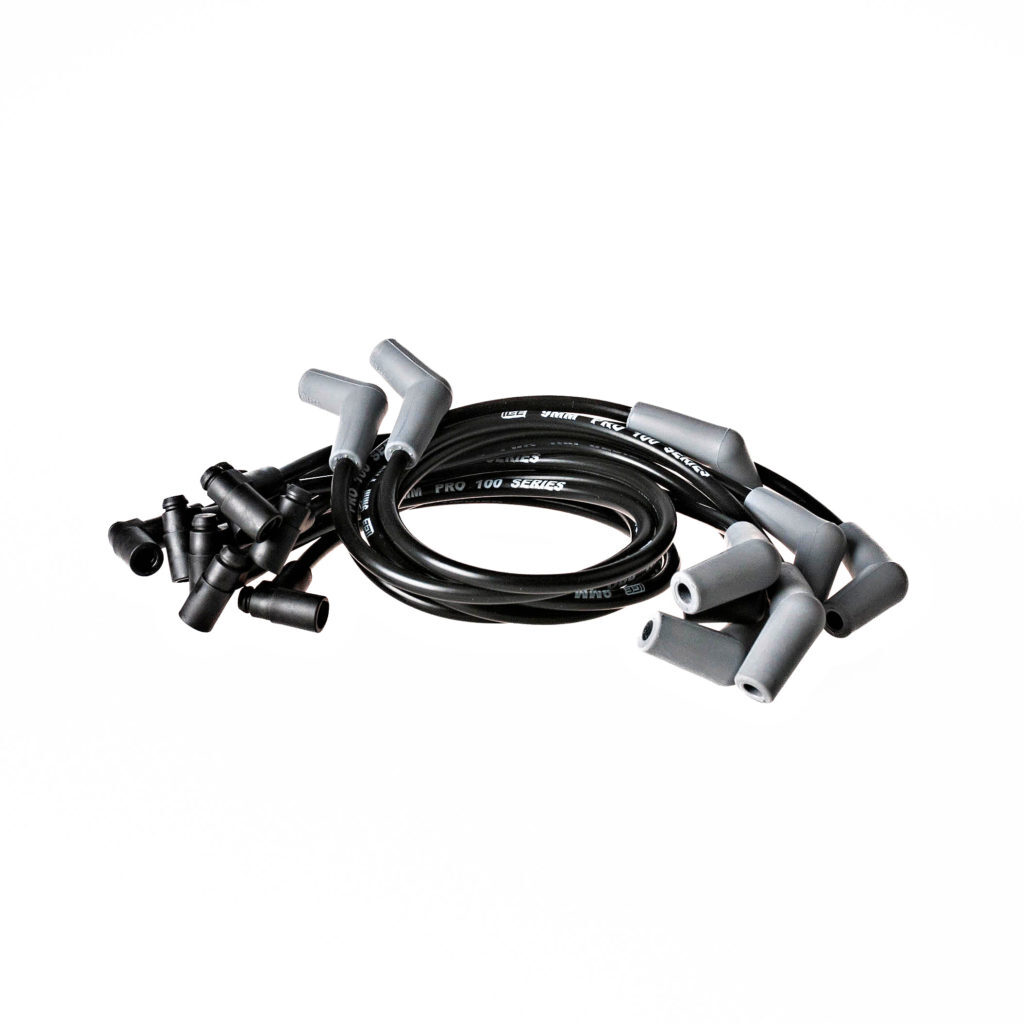

Ignition Lead Set

• ICE Ignition offers a range of fully finished plug wire / lead set ready to install.
• Suits V8 Cleveland engine - street/race 9mm lead diameter.
• We manufacture in-house using the best quality low resistance, high suppression spiral wound copper alloy core and secure stainless steel cap and plug fittings.
