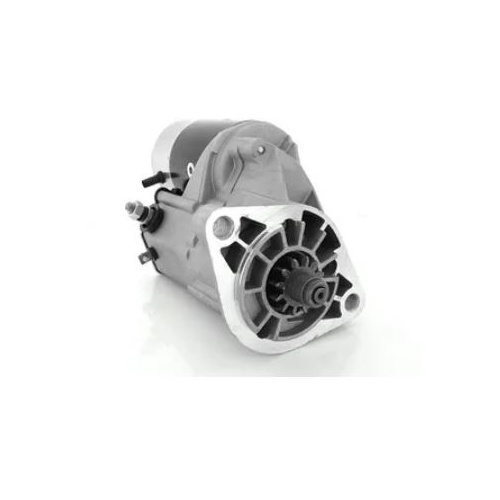

Jaylec 70-8553 | Starter Motor | for Toyota Landcruiser | 1HZ 1HD-T 1HD-FT

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

Jaylec

Brand New Starter Motor 12V 12T

70-8553

SOLD AS EACH

For Toyota Coaster & Landcruiser 6cyl Diesel Inc Turbo

1HZ 1HD-T 1HD-FT 1PZ

Specs

Voltage 12V
Kilowatt 2.5kW
Number of Teeth 12T
Pinion Diameter 45mm
Rotation CW
Pinion at Rest 15mm
Flange Diameter 90mm
Mount Hole Center to Center 142mm
Mount Hole Diameter 13mm
Overall Length 297mm
Oil Sealed
Series
Ground NEGATIVE
Housing Index FIXED

Application

TOYOTA COASTER HZB50 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 94kW Bus RWD [01/93 - 10/02] STARTER MOTOR 1
TOYOTA LAND CRUISER HDJ100 TD 4.2L 1HD-FTE SOHC 24v Turbo Diesel Direct Inj. 6cyl 150kW SUV AWD [01/98 - 08/07] STARTER MOTOR 1 Denso style unit. Will interchange with 11 tooth unit.
TOYOTA LAND CRUISER HDJ101K TD IMPORT 4.2L 1HD-FTE SOHC 24v Turbo Diesel Direct Inj. 6cyl 151kW SUV AWD [01/98 - 07/02] STARTER MOTOR 1 Denso style unit. Will interchange with 11 tooth unit.
TOYOTA LAND CRUISER HDJ78,HDJ78R TD 24V 4.2L 1HD-FT SOHC 24v Turbo Diesel Direct Inj. 6cyl 122kW SUV AWD [08/01 - 02/07] STARTER MOTOR 1 Denso style unit. Will interchange with 11 tooth unit.
TOYOTA LAND CRUISER HDJ79R TD 24V 4.2L 1HD-FT SOHC 24v Turbo Diesel Direct Inj. 6cyl 122kW Pickup AWD [08/01 - 01/07] STARTER MOTOR 1 Denso style unit. Will interchange with 11 tooth unit.
TOYOTA LAND CRUISER HDJ80 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 115kW SUV AWD [01/90 - 08/92] STARTER MOTOR 1 Denso style unit. Will interchange with 11 tooth unit.
TOYOTA LAND CRUISER HDJ80 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 118kW SUV AWD [08/92 - 12/97] STARTER MOTOR 1 Denso style unit. Will interchange with 11 tooth unit.
TOYOTA LAND CRUISER HDJ80,HDJ81V TD 24V 4.2L 1HD-FT SOHC 24v Turbo Diesel Direct Inj. 6cyl 125kW SUV AWD [01/95 - 12/97] STARTER MOTOR 1 Denso style unit. Will interchange with 11 tooth unit.
TOYOTA LAND CRUISER HDJ81 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 123kW SUV AWD [01/90 - 12/97] STARTER MOTOR 1 Denso style unit. Will interchange with 11 tooth unit.
TOYOTA LAND CRUISER HZJ105 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW SUV AWD [03/98 - 08/07] STARTER MOTOR 1 Denso style unit. Will interchange with 11 tooth unit.
TOYOTA LAND CRUISER HZJ70RV,HZJ73,HZJ75R... D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW SUV AWD [01/90 - 01/07] STARTER MOTOR 1 Denso style unit. Will interchange with 11 tooth unit.
TOYOTA LAND CRUISER HZJ75RP,HZJ79R D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW Pickup AWD [01/90 - 01/07] STARTER MOTOR 1 Denso style unit. Will interchange with 11 tooth unit.
TOYOTA LAND CRUISER HZJ77 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 99kW SUV AWD [04/90 - 07/99] STARTER MOTOR 1 Option offered OEX unit, Denso style. 12 tooth, 12V 2.5KW. To suit 12V applications. Will interchange with 11 tooth unit.
TOYOTA LAND CRUISER HZJ79L-TJM D MINE SPEC 4.2L 1H-Z SOHC 12v Diesel 6cyl 94kW Pickup AWD [08/99 ON] STARTER MOTOR 1 Denso style unit. Will interchange with 11 tooth unit.
TOYOTA LAND CRUISER HZJ80 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 94kW SUV AWD [01/90 - 12/97] STARTER MOTOR 1 Denso style unit. Will interchange with 11 tooth unit.
YANMAR 6LP 6LP 4.2L 6LP Diesel Standalone Engine [01/80 ON] STARTER MOTOR 1
