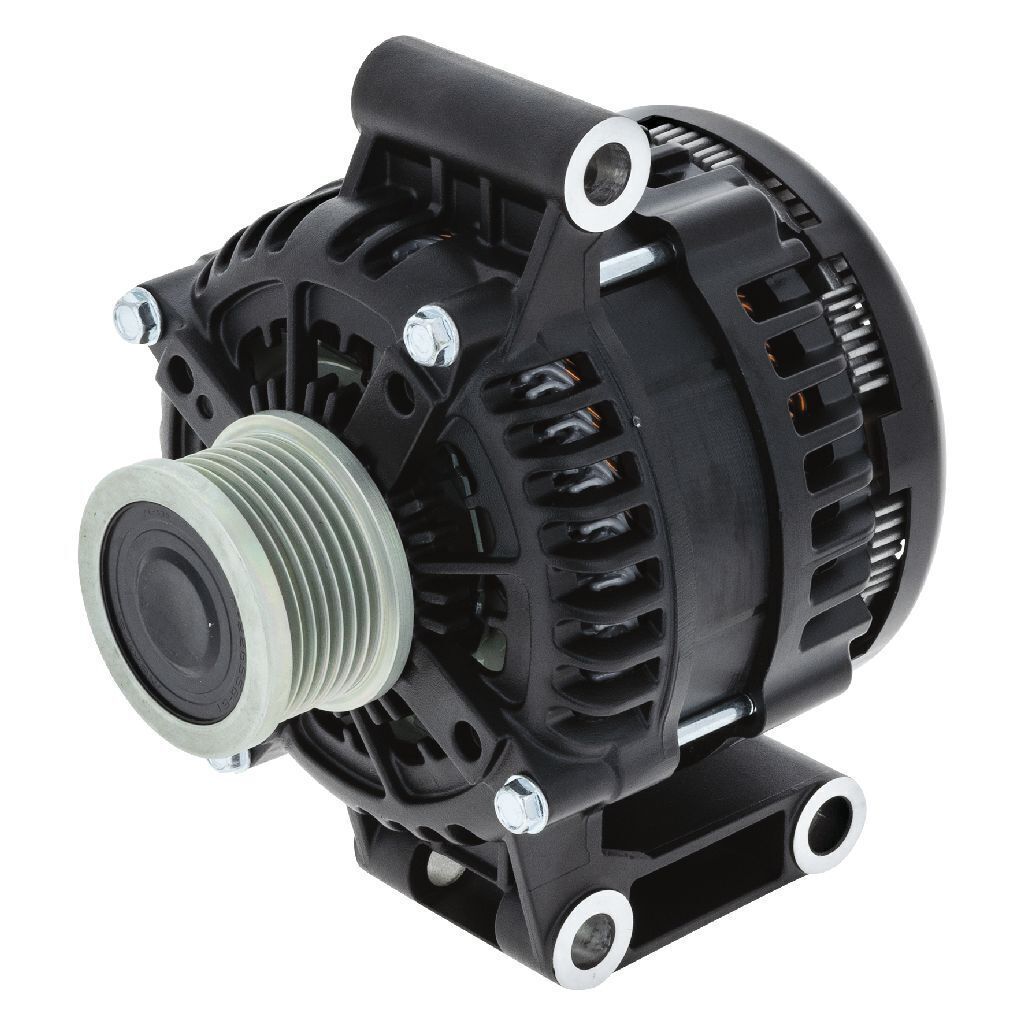

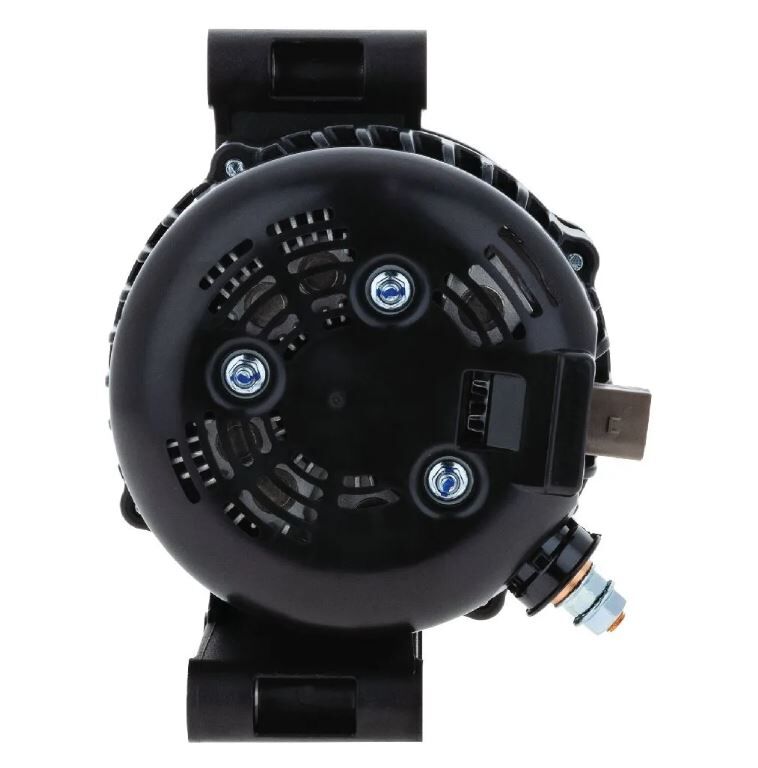

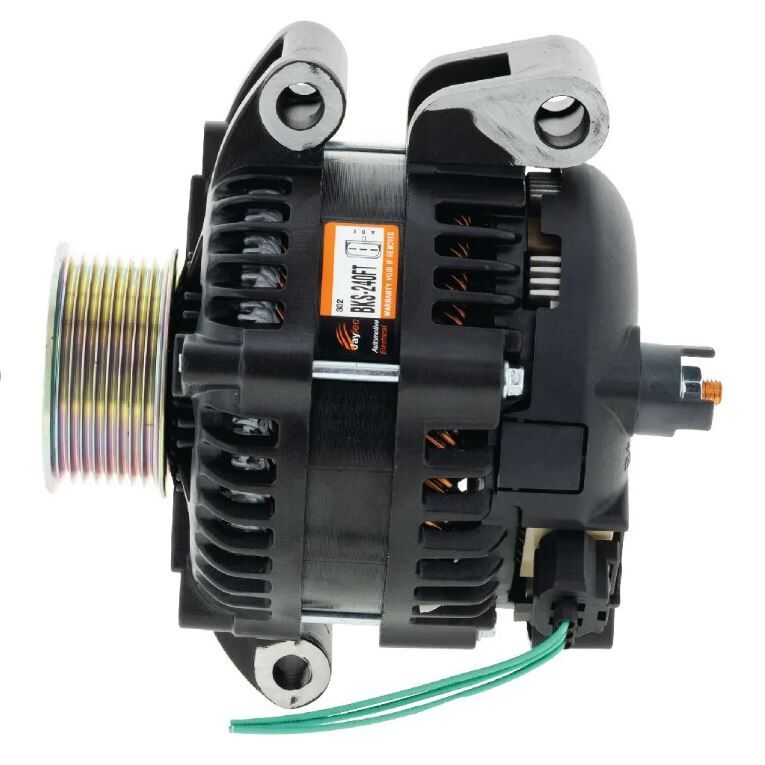

Jaylec BKS-240FR Black Series Alternator 12V 240A for Ford Ranger & Mazda BT50

Jaylec

High Performance High Output Alternator 12V 240A - Ford 2.2L P4AT & 3.2L P5AT

BKS-240FR

SOLD AS EACH



Note:

• Match by OE Numbers ONLY.
• Will not suit all models.
• This alternator is fitted with rectifier and clutch pulley.
• Please note a battery positive wiring upgrade is needed for this alternator.



We recommend this product be installed by a licensed Auto Electrician.



When your vehicle demands more than what the factory ever intended, the Jaylec Black Series High Performance Upgrade Alternator delivers the muscle to keep every accessory running strong on the tracks, at camp, or deep in remote touring country.



Purpose-built for 4x4, performance, heavy-duty, and road-transport applications, the Black Series range is engineered for vehicles running high-demand electrical systems. From dual batteries to modern comms, lighting, and recovery gear, these alternators provide the reliable output needed to keep your adventure powered.



Why Upgrade to the Black Series Alternator?

Replaces the Standard 130A Alternator

• A true upgrade for vehicles requiring additional charging capacity.



Higher Charge at Lower RPM

• Designed to deliver strong charging output even at idle or low engine speeds.



Designed for Vehicles That Outgrow Their O.E. Alternator

• Perfect for accessory-loaded 4WDs where factory charging systems fall short.



Higher Output at Lower Cut-In Speeds

• Delivers strong charging performance right from idle, ideal for slow technical driving, winching, and long periods of idling at camp.



Built for High-Demand 4x4 Accessories

Capable of powering and maintaining charge while running:

• Fridges & dual battery systems
• Driving lights and upgraded lighting
• Winches
• Dual thermo-fans
• Electric steering & injection systems
• Air conditioning systems
• Navigation, monitoring & comms equipment



Heavy-Duty Engineering for Harsh Conditions

• Premium bearings, efficient cooling fans, and a rigorous design/testing process ensure the Black Series outperforms standard and many aftermarket units.



Hot & Cold Amperage Rated Genuine Performance Data

• The Jaylec Black Series is one of the few ranges rated both Hot and Cold, giving 4x4 owners realistic output expectations under real-world operating temperatures. This is a major advantage when reliability matters most.



• COLD 13.5V @ 240A
• HOT 13.5V @ 217A



Built to Outperform Not Just Replace

• With significantly improved electrical performance and durability, these alternators are crafted to replace and outperform the most popular high-output units on the market today. Whether you're touring, towing, or pushing deep off-grid, the Black Series delivers dependable power when it counts.



Warranty Information 4WD Applications

• 2 Years or 50,000km (whichever comes first)
• Applicable to all 4WD installations.



Warranty Exclusions

The warranty does not cover alternators that have been:

• Submerged in water
• Used in vehicles with electrical loads of 85% or more of the alternator's hot-rated output
• Run with a lithium battery system without a DC-to-DC charger
• Installed with wiring that has not been upgraded to handle the alternator's increased output

These conditions ensure safe operation and protect the alternator from overload or improper installation.



Power Your 4x4 the Right Way

• When you're running serious gear, a stock alternator simply won't keep up. Upgrade to the Jaylec Black Series High Performance Alternator and enjoy reliable, consistent charging for every adventure no matter how demanding the load.



Specifications:

• Voltage 12V
• Amperage           Cold 240A, Hot 217A
• Mount Leg ID     74mm
• C-C Mounts         174mm
• Hole ID Top        13mm
• Hole ID Bottom 13mm
• Shaft Size            17mm
• Pulley Type         7PV, CLUTCH
• Pulley Belt Width
• Pulley Grooves   7
• Pulley Diameter 58mm
• Regulator Type  INTERNAL
• Series
• Connections Plug #          EP82-2
• Terminals            B+, COM/LIN, D
• Excitation            EXTERNAL
• Ground  NEGATIVE



Application

• FORD RANGER PX TDdi 2.2L P4-AT DOHC 16v Turbo Diesel Direct Inj. 4cyl 110kW Cab Chassis AWD [11/11 - 06/15]      ALTERNATOR     1
• FORD RANGER PX TDdi 2.2L P4-AT DOHC 16v Turbo Diesel Direct Inj. 4cyl 110kW Cab Chassis RWD [11/11 - 06/15]      ALTERNATOR     1             Confirm by OE number.
• FORD RANGER PX TDdi 2.2L P4-AT DOHC 16v Turbo Diesel Direct Inj. 4cyl 110kW Utility AWD [11/11 - 06/15]  ALTERNATOR     1
• FORD RANGER PX TDdi 2.2L P4-AT DOHC 16v Turbo Diesel Direct Inj. 4cyl 110kW Utility RWD [11/11 - 06/15]  ALTERNATOR     1             Confirm by OE number.
• FORD RANGER PX,PXII,PXIII TDdi 3.2L P5-AT DOHC 20v Turbo Diesel Direct Inj. 5cyl 147kW Cab Chassis AWD [11/11 - 05/22]              ALTERNATOR     1             Suits only PX. 2011 to 3/6/2015 Construction Year to: 06/2015 for model code: PX
• FORD RANGER PX,PXII,PXIII TDdi 3.2L P5-AT DOHC 20v Turbo Diesel Direct Inj. 5cyl 147kW Utility AWD [11/11 - 05/22]         ALTERNATOR     1             Suits only PX. 2011 to 3/6/2015 Construction Year to: 06/2015 for model code: PX
• FORD RANGER PX,PXII,PXIII TDdi 3.2L P5-AT DOHC 20v Turbo Diesel Direct Inj. 5cyl 147kW Utility RWD [11/11 - 05/22]         ALTERNATOR     1             Suits only PX. 2011 to 3/6/2015 Construction Year to: 06/2015 for model code: PX



• MAZDA BT-50 B22,B32,UP,UR II MZ-CD 2.2L P4-AT DOHC 16v Turbo Diesel Direct Inj. 4cyl 110kW Utility RWD [11/11 - 08/15]          ALTERNATOR     1
• MAZDA BT-50 UP0YF1,UR0YF1 II MZ-CD 3.2L P5-AT DOHC 20v Turbo Diesel Direct Inj. 5cyl 147kW Utility AWD [11/11 - 06/20]          ALTERNATOR     1             Suits only from 2011 to 3/6/2015 Construction Year to: 06/2015
• MAZDA BT-50 UP0YF1,UR0YF1 II MZ-CD 3.2L P5-AT DOHC 20v Turbo Diesel Direct Inj. 5cyl 147kW Utility RWD [11/11 - 06/20]          ALTERNATOR     1             Suits only from 2011 to 3/6/2015 Construction Year to: 06/2015
• MAZDA BT-50 UP0YF1,UR0YF1 MZ-CD 3.2L P5-AT DOHC 20v Turbo Diesel Direct Inj. 5cyl 147kW Cab Chassis RWD [11/11 - 06/20]               ALTERNATOR     1             Suits only from 2011 to 3/6/2015 Construction Year to: 06/2015
