MSD MSD84741 PRO BILLET DISTRIBUTOR KIT READY TO RUN CHEVY SMALL & BIG BLOCK V8

MSD

READY TO RUN IGNITION KIT

CHEVY V8

MSD84741

SOLD AS EACH

Pro-Billet Distributor, Blaster Coil, 8.5mm Ignition Lead Set, Lead separators

•        Everything you need to fire up your new crate engine
•        Pro-Billet Ready-to-Run Distributor
•        8.5mm Super Conductor Plug Wires
•        Pro-Clamp separators
•        Billet Hold-Down Clamp is also supplied
•        Simple and clean installation with only three wires to connect
•        Powerful built-in module produces a 7.5 amp single spark through high rpm
•        Easy-to-adjust mechanical advance with supplied springs and stop bushings
•        Vacuum advance canister for improved economy (can be locked out)
•        CNC machined billet aluminium housing and billet aluminium base
•        Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
•        Polished steel shaft is QPQ coated and guided by a sealed ball bearing
•        Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
•        Special oil tract improves lubrication to the distributor and cam gear
•        O-ring sealscan be added to modified blocks to improve oil pressure control
•        Does not require an MSD Ignition Control
•        Improved output coil for electronic ignitions
•        Copper alloy conductor Ignition Leads have a resistance value of less than 50 ohms per foot for superior spark
•        Forty feet of conductor is wound into a single foot of wire for high EMI suppression
•        Conductor core features Dupont Kevlar material for increased tensile strength
•        Durable outer sleeve is a proprietary compound for resistance to high heat or abrasion

The Ready-to-Run Distributor is a great choice for your engine. They feature a high output module that produces a vigorous jolt across the plug gap and the installation is simple with just three wires to connect! The Blaster SS Coil is a compact and efficient coil that is easy to mount and the system is complemented with MSD red 8.5mm Super Conductor wires. The wires are supplied as a universal fit, with our straight/multi-angle boots and terminals on the spark plug side and after you route them and cut to length, you simply install the e terminal and boot. Our Pro-Clamp separators keep the wires neat and secure and we even supply a Pro-Billet Hold-Down Clamp for the distributor

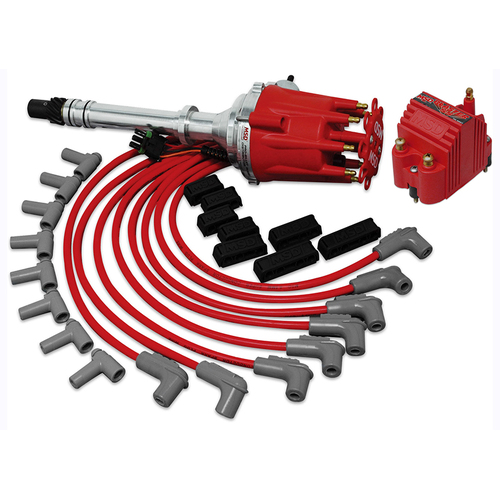

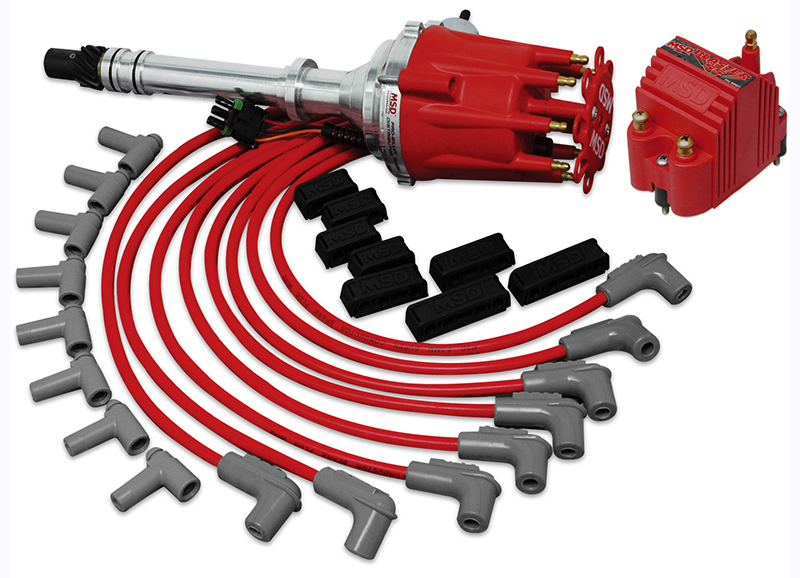

INCLUDES:

• DISTRIBUTOR ASSEMBLY WITH CAP
• BLASTER SS COIL
• LEAD SET & SEPARATORS
