OEX ALTERNATOR SUIT TOYOTA LANDCRUISER FZJ105R 4.5L 1998-2002 DXA433U

OEX Alternator for Toyota Landcruiser PZJ73R 3.5L 5cyl 1989-7/1992

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

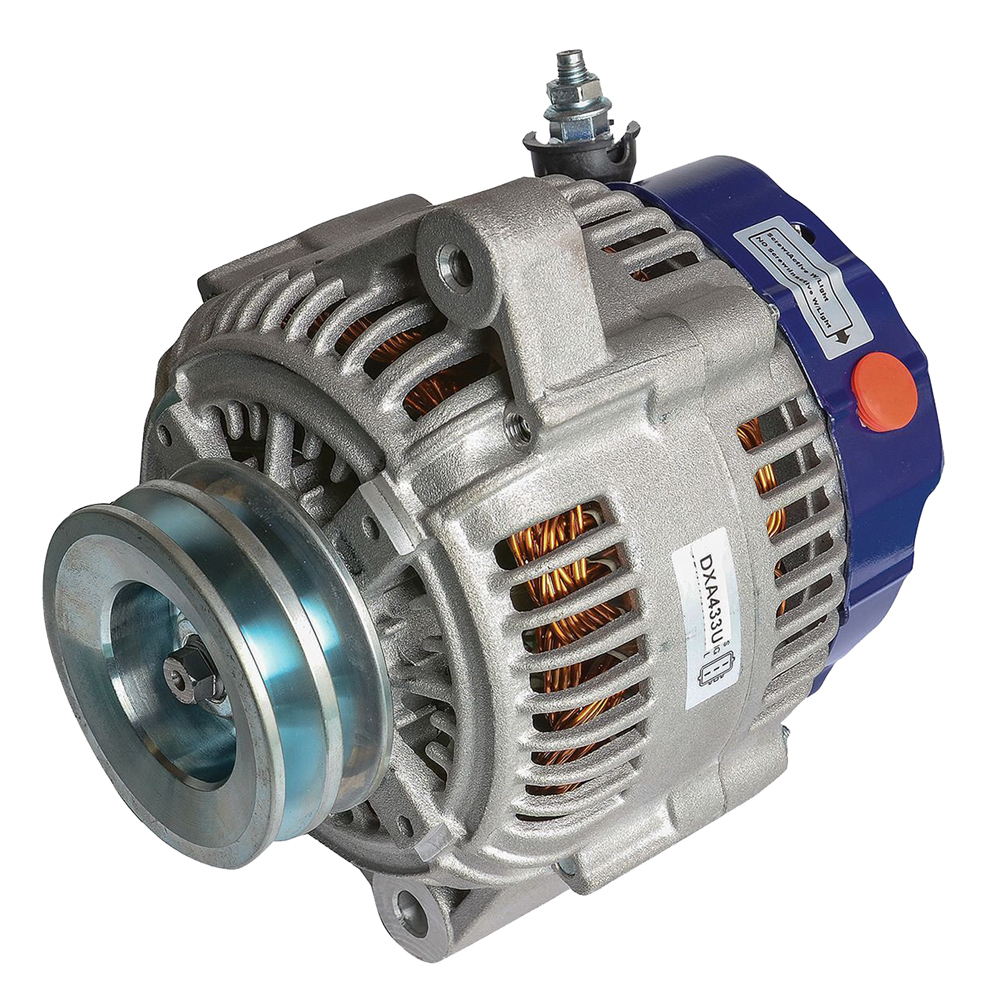

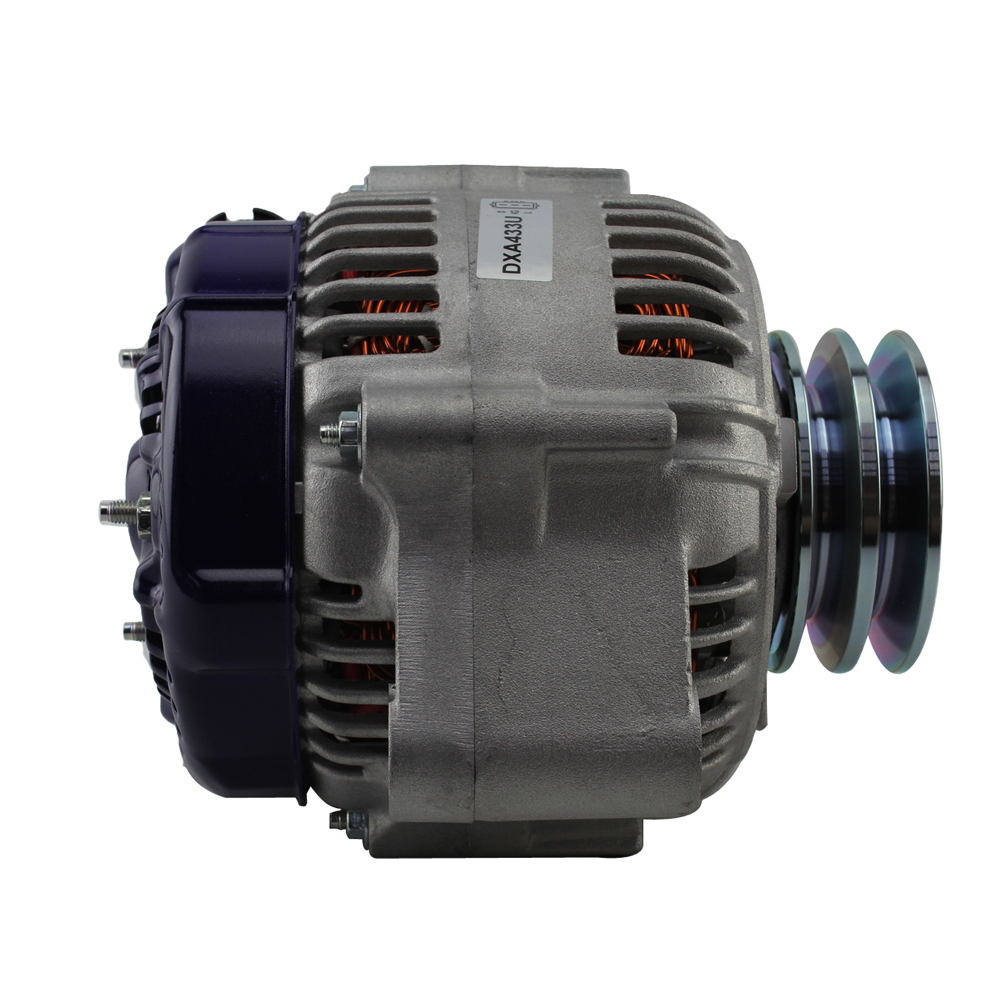

OEX Alternator 12V 110A Denso Style

Was DXA433 now use DXA433U

Description: Alt 12V 110A Denso Style
Warranty: 3 years Passenger 1 year Commercial
Adjusting Hole Diameter: M8
Mount Leg Thickness: 58mm

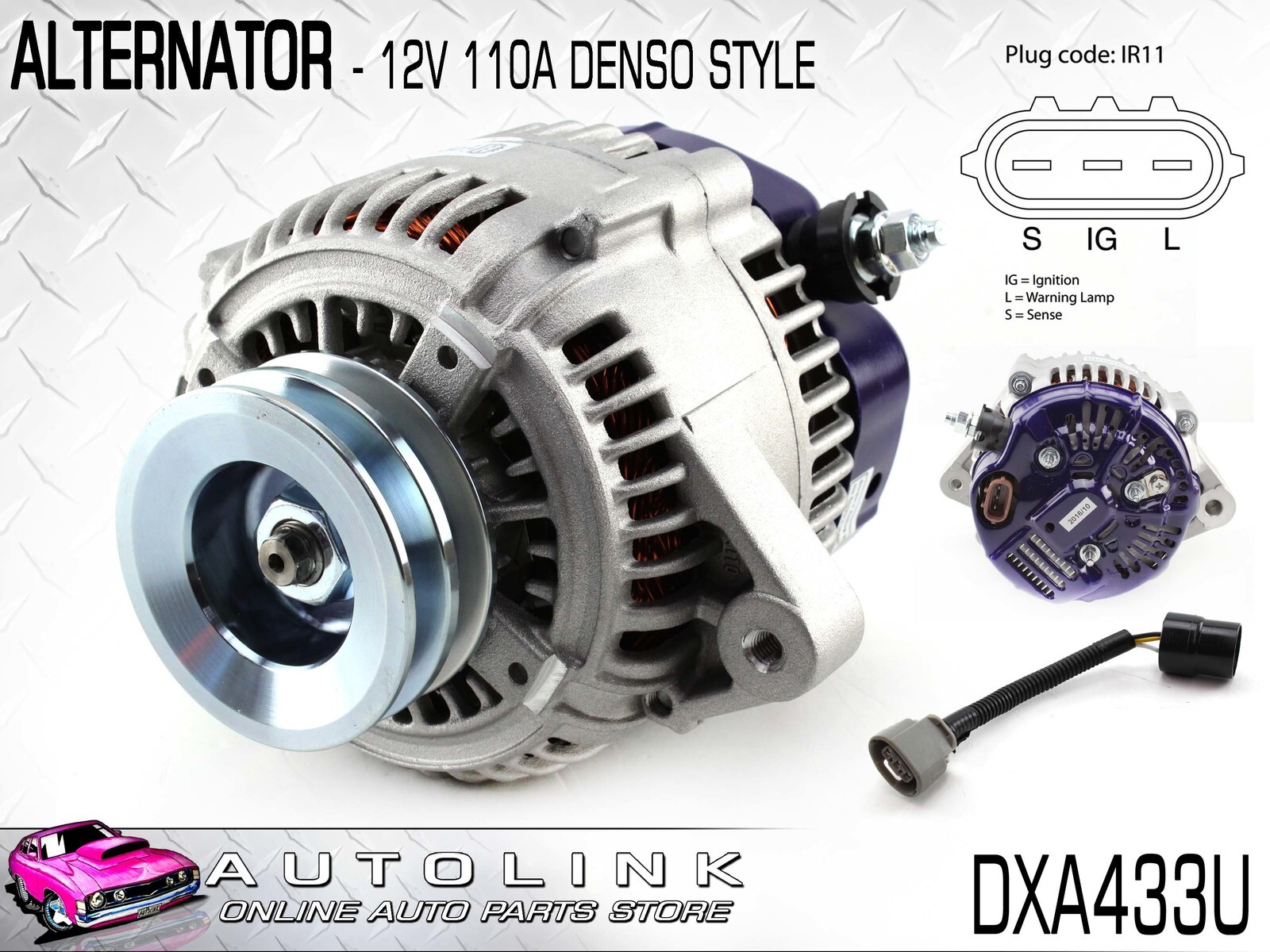

Pin Code: IR11
Pivot Hole Diameter: 10
Power Rating (Amp): 110
Pulley Outside Diameter: 72mm
Pulley Section: AA
Regulator Type: Internal
Shaft Diameter 17mm
Suits Unit Make: Denso
Voltage: 12
Weight: 6.5kg
Alternator Mount: Single Leg
Mount Cnt to Cnt: 165mm

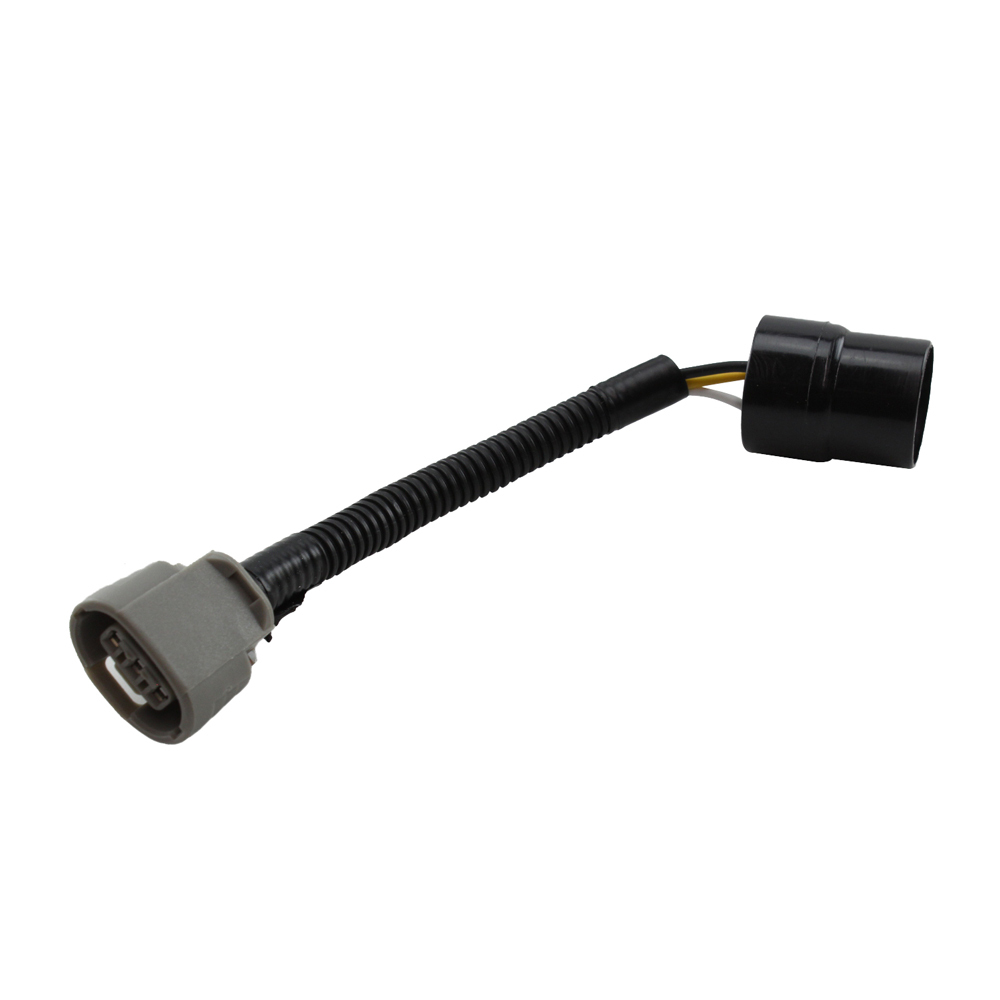

Note: Specially designed regulator work on active & inactive warning light circuits. Adaptor to suit HXK-30, HXK-22, HXK-17.

DXA433U

SOLD AS EACH

Compatible with these vehicles:

Toyota Landcruiser Bundera PZJ70R 3.5L 1PZ SOHC 10v Diesel Inj. 5cyl 72kW 5sp Man 2dr Wagon & Softop 4WD [08/1989-07/1992] Alternator 1

Toyota Landcruiser HDJ100R HDJ101 (Grey Import) HDJ78R HDJ79R HDJ80R HDJ81 (Grey Import)

Landcruiser HDJ100R 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. 6cyl 4sp Auto 4dr Wagon 4WD [08/2000-07/2002] Alternator 1 Option offered is suitable for both active and inactive warning lamp circuits.
Landcruiser HDJ100R 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. 6cyl 5sp Auto 4dr Wagon 4WD [08/2002-07/2007] Alternator 1 Will Replace Units With Active Or Inactive Warning Light Functions
Landcruiser HDJ100R 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. 6cyl 5sp Man 4dr Wagon 4WD [08/2000-07/2007] Alternator 1 Will Replace Units With Active Or Inactive Warning Light Functions
Landcruiser HDJ101 (Grey Import) 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. 6cyl 4sp Auto 4dr Wagon 4WD [08/1998-07/2002] Alternator 1 Will Replace Units With Active Or Inactive Warning Light Functions
Landcruiser HDJ78R 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. 6cyl 5sp Man 3dr Troopcarrier 4WD [08/1999-07/2007] Alternator 1 Will Replace Units With Active Or Inactive Warning Light Functions
Landcruiser HDJ79R 4.2L 1HD-FTE SOHC 24v Turbo Diesel Inj. 6cyl 5sp Man 2dr Cab Chassis & Pickup 4WD [08/1999-07/2007] Alternator 1 Option offered is suitable for both active and inactive warning lamp circuits.
Landcruiser HDJ80R 4.2L 1HD-FT SOHC 24v Turbo Diesel Inj. 6cyl 4sp Auto 4dr Wagon 4WD [08/1994-07/1999] Alternator 1 Option offered is suitable for both active and inactive warning lamp circuits.
Landcruiser HDJ80R 4.2L 1HD-FT SOHC 24v Turbo Diesel Inj. 6cyl 5sp Man 4dr Wagon 4WD [08/1994-07/1999] Alternator 1 Option offered is suitable for both active and inactive warning lamp circuits.
Landcruiser HDJ80R 4.2L 1HD-T SOHC 12v Turbo Diesel Inj. 6cyl 4sp Auto 4dr Wagon 4WD [08/1990-07/1994] Alternator 1 Will Replace Units With Active Or Inactive Warning Light Functions
Landcruiser HDJ80R 4.2L 1HD-T SOHC 12v Turbo Diesel Inj. 6cyl 5sp Man 4dr Wagon 4WD [08/1990-07/1994] Alternator 1 Will Replace Units With Active Or Inactive Warning Light Functions
Landcruiser HDJ81 (Grey Import) 4.2L 1HD-T SOHC 12v Turbo Diesel Inj. 6cyl 4sp Auto 4dr Wagon 4WD [08/1990-07/1994] Alternator 1 Will Replace Units With Active Or Inactive Warning Light Functions

Toyota Landcruiser HZJ105R HZJ73R HZJ75R HZJ78R HZJ79L HZJ79R HZJ80R

Landcruiser HZJ105R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 4sp Auto 4dr Wagon 4WD [01/1998-07/2002] Alternator 1 Option offered is suitable for both active and inactive warning lamp circuits.
Landcruiser HZJ105R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 4dr Wagon 4WD [01/1998-07/2007] Alternator 1 Will Replace Units With Active Or Inactive Warning Light Functions
Landcruiser HZJ73R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 2dr Wagon & Softop 4WD [01/1990-07/1991] Alternator 1 Will Replace Units With Active Or Inactive Warning Light Functions
Landcruiser HZJ75R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 2dr Cab Chassis & Pickup 4WD [01/1990-07/1999] Alternator 1 Option offered is suitable for both active and inactive warning lamp circuits.
Landcruiser HZJ75R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 2dr Wagon & Softop 4WD [01/1990-07/1999] Alternator 1 Option offered is suitable for both active and inactive warning lamp circuits.
Landcruiser HZJ75R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 3dr Troopcarrier 4WD [01/1990-07/1999] Alternator 1 Will Replace Units With Active Or Inactive Warning Light Functions
Landcruiser HZJ78R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 3dr Troopcarrier 4WD [08/1999-12/2006] Alternator 1 Option offered is suitable for both active and inactive warning lamp circuits.
Landcruiser HZJ79L LH Drive / Mining 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 2dr Cab Chassis & Pickup [01/2000-On] Alternator 1
Landcruiser HZJ79R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 2dr Cab Chassis & Pickup 4WD [08/1999-12/2006] Alternator 1 Will Replace Units With Active Or Inactive Warning Light Functions
Landcruiser HZJ80R 4.2L 1HZ SOHC 12v Diesel Inj. 6cyl 5sp Man 4dr Wagon 4WD [01/1990-12/1997] Alternator 1 Will Replace Units With Active Or Inactive Warning Light Functions

Toyota Landcruiser PZJ73R 3.5L 1PZ SOHC 10v Diesel Inj. 5cyl 72kW 5sp Man 2dr Wagon & Softop 4WD [08/1989-07/1992] Alternator 1 Option offered is suitable for both active and inactive warning lamp circuits.

Unit

Unit Denso Alternator 100211-5260 [27060-17171] 12v 80amps Alternator 1 L Terminal Does Not Drive Choke
Unit Denso Alternator 100211-5270 Alternator 1 L Terminal Does Not Drive Choke
Unit Denso Alternator 100211-6120 [27060-17040] 12v 100amps Alternator 1 L Terminal Does Not Drive Choke, Will require Adaptor Harness HXK-22
Unit Denso Alternator 100211-7000 [27060-16160] 12v 60amps Alternator 1 L Terminal Does Not Drive Choke
Unit Denso Alternator 101211-5260 [27060-17170] 12v 80amps Alternator 1 L Terminal Does Not Drive Choke
Unit Denso Alternator 101211-5261 [27060-17171] 12v 80amps Alternator 1 L Terminal Does Not Drive Choke
Unit Denso Alternator 101211-7000 [27060-66040] 12v 100amps Alternator 1 The option offered May require wiring modification, may require original SRE housing. Modification is to be performed by an Auto Electrician or suitably qualified fitter
Unit Denso Alternator 101211-7010 [27060-17180] 12v 110amps Alternator 1 L Terminal Does Not Drive Choke
Unit Denso Alternator 101211-7011 [27060-17181] 12v 110amps Alternator 1
Unit Denso Alternator 101211-7380 12v Alternator 1
Unit Denso Alternator 101211-7870 [27060-17230] 12v 120amps Alternator 1 L Terminal Does Not Drive Choke
Unit Denso Alternator 102211-5111 12v Alternator 1
Unit Ingram Alternator 843567 Alternator 1
Unit Repco Auto Parts Alternator ALT608 Alternator 1 L Terminal Does Not Drive Choke
Unit Wilson Alternator 90-29-5221 Alternator 1 L Terminal Does Not Drive Choke
Unit Wilson Alternator 90-29-5302 Alternator 1 L Terminal Does Not Drive Choke
