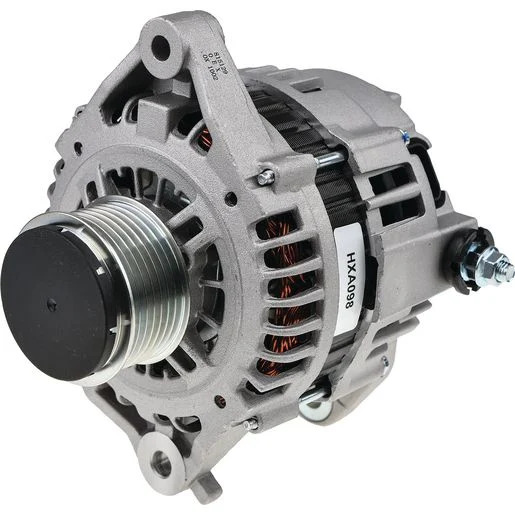

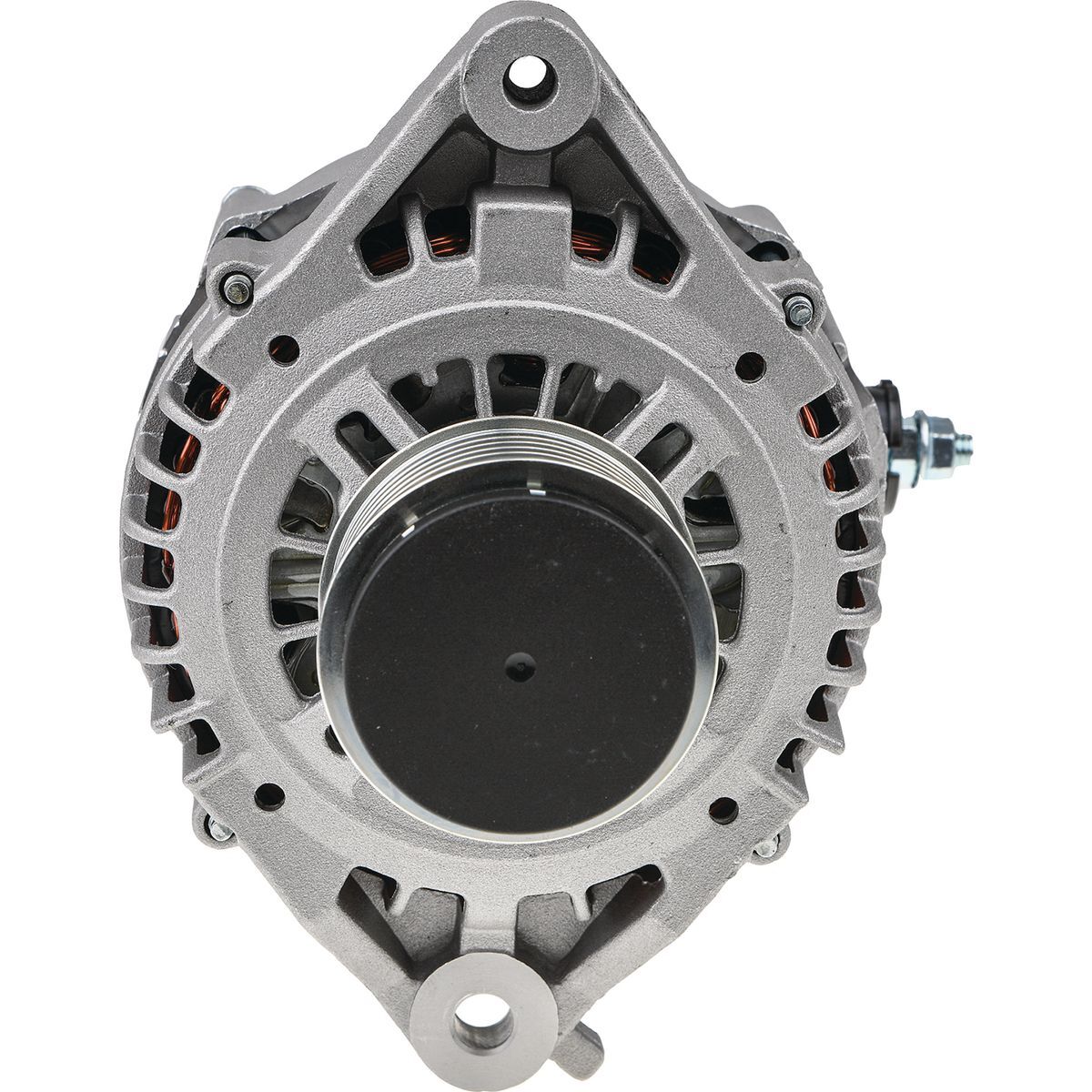

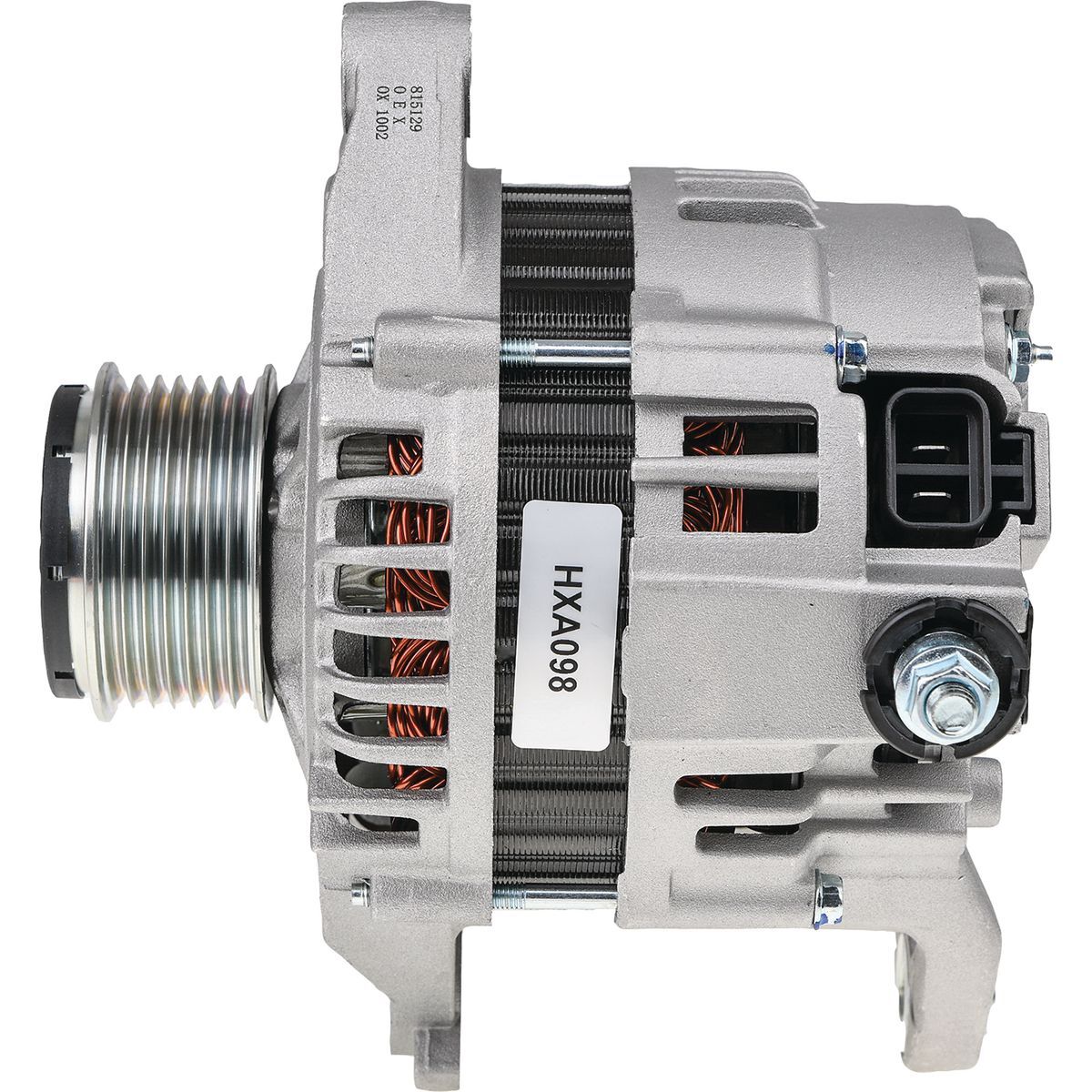

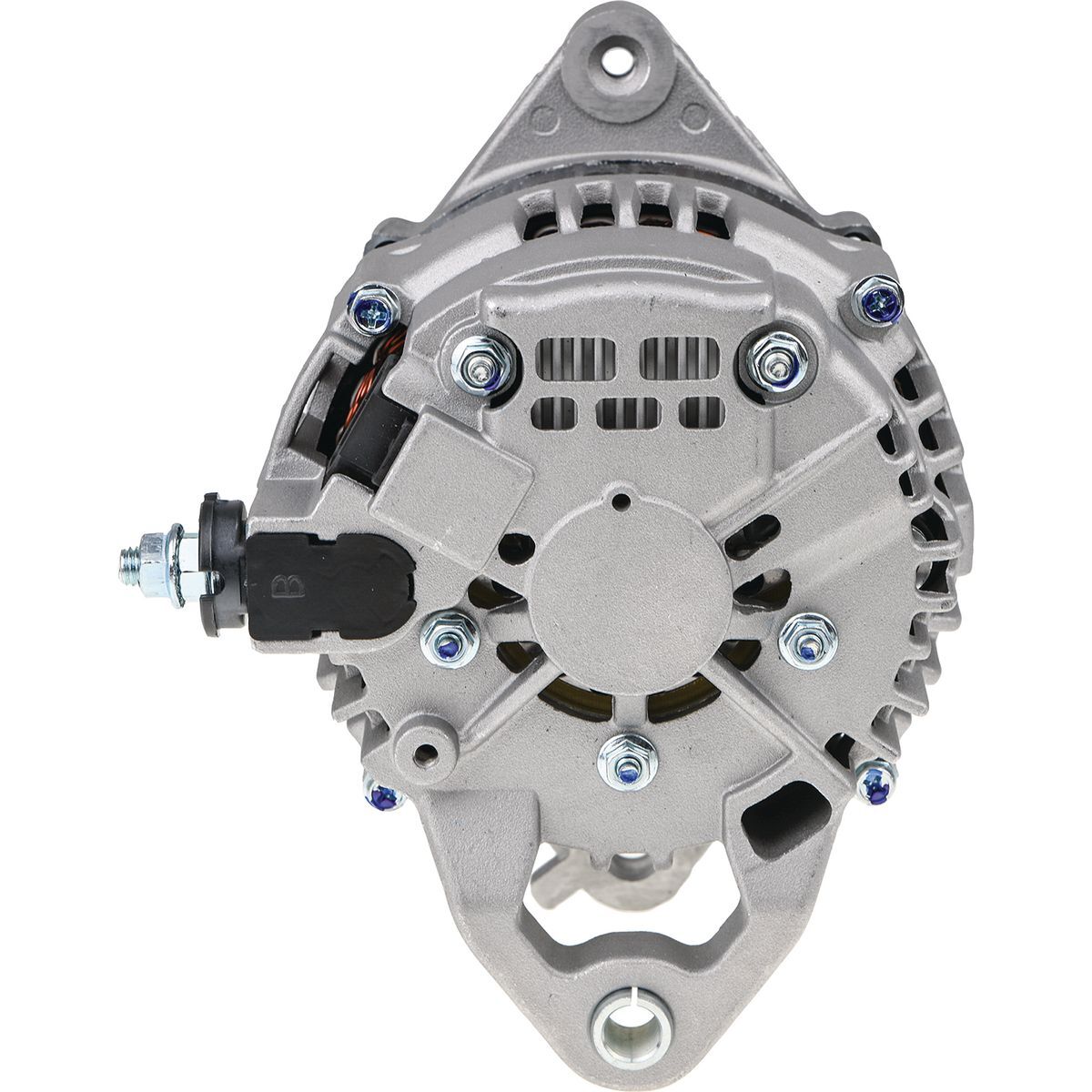

Oex Alternator HXA098 OE LR190-770-PO for Nissan Caravan Navara & Patrol Models

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

OEX

ALTERNATOR

HXA098

SOLD AS EACH

NISSAN

12 VOLT 90 AMP HITACHI STYLE

Part No. HXA098
Type ALTERNATOR
Brand OEX
Unit of Measure EACH
Description OEX Alternator 12V 90A Hitachi Style
Warranty 3yr Passenger 1yr Commercial
Adjusting Hole Diameter M8x1.25
Inside Mounting Legs 80mm
Pin Code IR49
Pivot Hole Diameter 10.5
Power Rating (Amp) 90
Pulley Outside Diameter 60mm
Pulley Section 7 Groove
Regulator Type Internal
Suits Unit Make Hitachi
Voltage 12
Note This option will replace LR190-770*(refer to part number upon original unit) , this option has a clutch style pulley. Battery terminal position to be checked. Unit fitted with clutch style pulley. Adaptor to suit HXK-32, HXK-24
Alternator Mount Twin Leg
Mount Cnt to Cnt 170mm
New / Reman. New
OEM Number LR190-770-PO

APPLICATION

NISSAN CARAVAN E25 (GREY IMPORT) 3.0L ZD30DD DOHC 16v Diesel Direct Inj. 4cyl 4sp Auto 4dr Van RWD [04/01 - 03/12] ALTERNATOR 1
NISSAN CARAVAN E25 (GREY IMPORT) 3.0L ZD30DD DOHC 16v Diesel Direct Inj. 4cyl 5sp Man 4dr Van RWD [04/01 - 03/12] ALTERNATOR 1
NISSAN CARAVAN E25 (GREY IMPORT) 3.0L ZD30DDTi DOHC 16v Turbo Diesel Direct Inj. 4cyl 116kW 5sp Man 4dr Van 4WD [04/01 - 03/12] ALTERNATOR 1 Option Offered Is 90 Amp Unit With B+ Terminal Pointing Upwards - Confirm Suitability
NISSAN CARAVAN E25 (GREY IMPORT) 3.0L ZD30DDTi DOHC 16v Turbo Diesel Direct Inj. 4cyl 116kW 5sp Man 4dr Van RWD [04/01 - 03/12] ALTERNATOR 1 Option Offered Is 90 Amp Unit With B+ Terminal Pointing Upwards - Confirm Suitability
NISSAN NAVARA D22 (97-15) 3.0L ZD30DDT DOHC 16v Turbo Diesel Direct Inj. 4cyl 110kW 5sp Man 2dr Cab Chassis 4WD [11/01 - 12/06] ALTERNATOR 1 Option offered to be confirmed for compatibility, battery terminal position to be checked. This option will replace LR190-770*(refer to part number upon original unit) , this option has a clutch style pulley.
NISSAN NAVARA D22 (97-15) 3.0L ZD30DDT DOHC 16v Turbo Diesel Direct Inj. 4cyl 110kW 5sp Man 4dr Cab Chassis & Pickup 4WD [11/01 - 12/06] ALTERNATOR 1 Option offered to be confirmed for compatibility, battery terminal position to be checked. This option will replace LR190-770*(refer to part number upon original unit) , this option has a clutch style pulley.
NISSAN PATROL Y61 GU 3.0L ZD30DDTi DOHC 16v Turbo Diesel Direct Inj. 4cyl 116kW 4sp Auto 4dr Wagon 4WD [04/00 - 03/07] ALTERNATOR 1 Option offered to be confirmed for compatibility, battery terminal position to be checked. This option will replace LR190-770*(refer to part number upon original unit) , this option has a clutch style pulley.
NISSAN PATROL Y61 GU 3.0L ZD30DDTi DOHC 16v Turbo Diesel Direct Inj. 4cyl 116kW 5sp Man 4dr Wagon 4WD [04/00 - 03/07] ALTERNATOR 1 Option offered to be confirmed for compatibility, battery terminal position to be checked. This option will replace LR190-770*(refer to part number upon original unit) , this option has a clutch style pulley.
NISSAN PATROL Y61 GU 3.0L ZD30DDTi Euro4 DOHC 16v Turbo Diesel Direct Inj. 4cyl 118kW 4sp Auto 4dr Wagon 4WD [03/07 - 12/16] ALTERNATOR 1 Option offered to be confirmed for compatibility, battery terminal position to be checked. This option will replace LR190-770*(refer to part number upon original unit) , this option has a clutch style pulley.
NISSAN PATROL Y61 GU 3.0L ZD30DDTi Euro4 DOHC 16v Turbo Diesel Direct Inj. 4cyl 118kW 5sp Man 2dr Cab Chassis & Pickup 4WD [04/07 - 12/16] ALTERNATOR 1 Option offered to be confirmed for compatibility, battery terminal position to be checked. This option will replace LR190-770*(refer to part number upon original unit) , this option has a clutch style pulley.
NISSAN PATROL Y61 GU 3.0L ZD30DDTi Euro4 DOHC 16v Turbo Diesel Direct Inj. 4cyl 118kW 5sp Man 4dr Wagon 4WD [04/07 - 12/16] ALTERNATOR 1 Option offered to be confirmed for compatibility, battery terminal position to be checked. This option will replace LR190-770*(refer to part number upon original unit) , this option has a clutch style pulley.

UNIT Hitachi Alternator LR160-671B [23100-2W201] 12v 60amps ALTERNATOR 1 Option offered will replace LR190-770_

UNIT Hitachi Alternator LR160-745 12v ALTERNATOR 1 Option offered will replace LR190-770_

UNIT Hitachi Alternator LR190-745 12v ALTERNATOR 1 Option offered will replace LR190-770_

UNIT Nissan Alternator 23100-VC100 12v 90amps ALTERNATOR 1 Option offered will replace LR190-770_

UNIT Trumark Alternator FSA-7067 12v 90amps ALTERNATOR 1 Option offered will replace LR190-770_
