Description

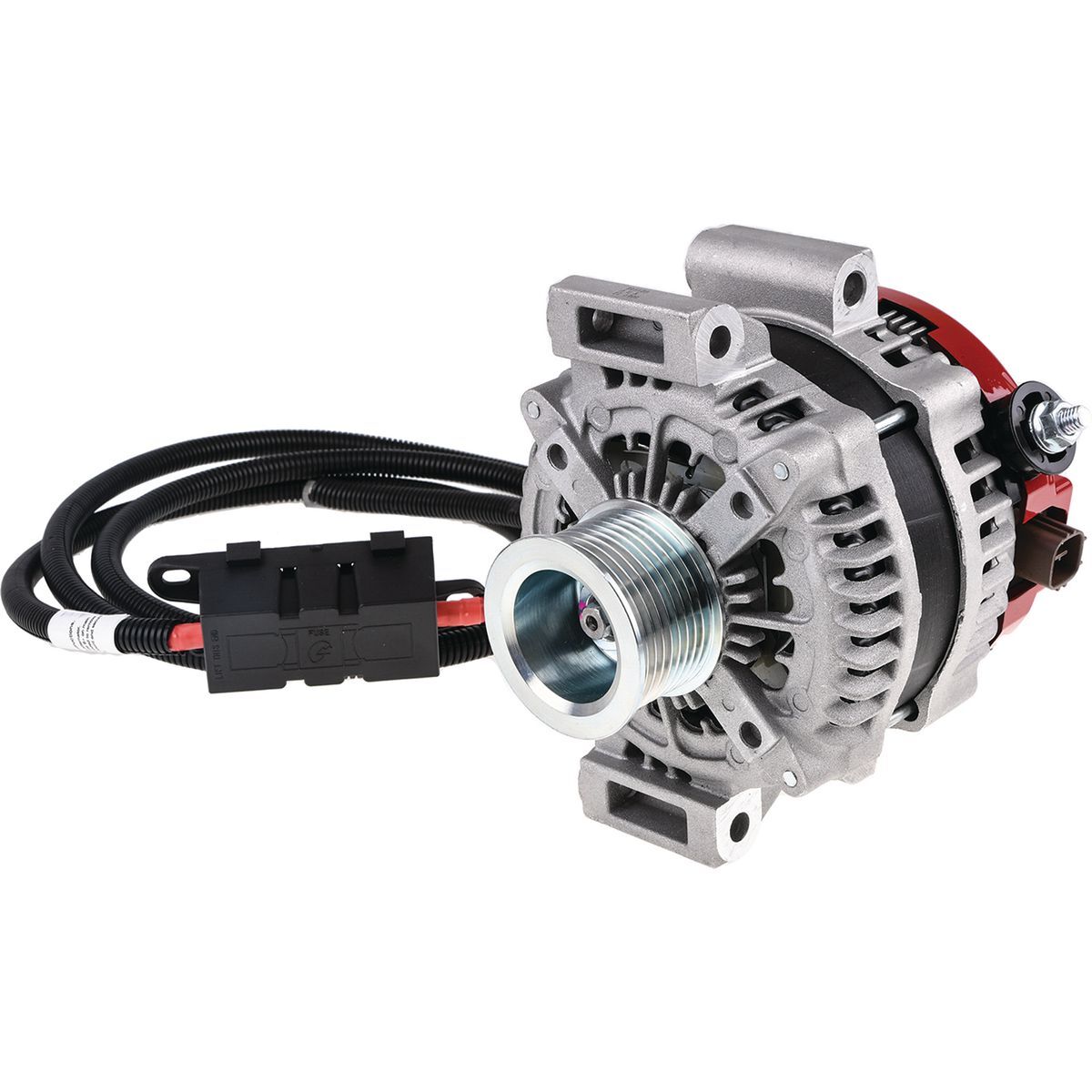

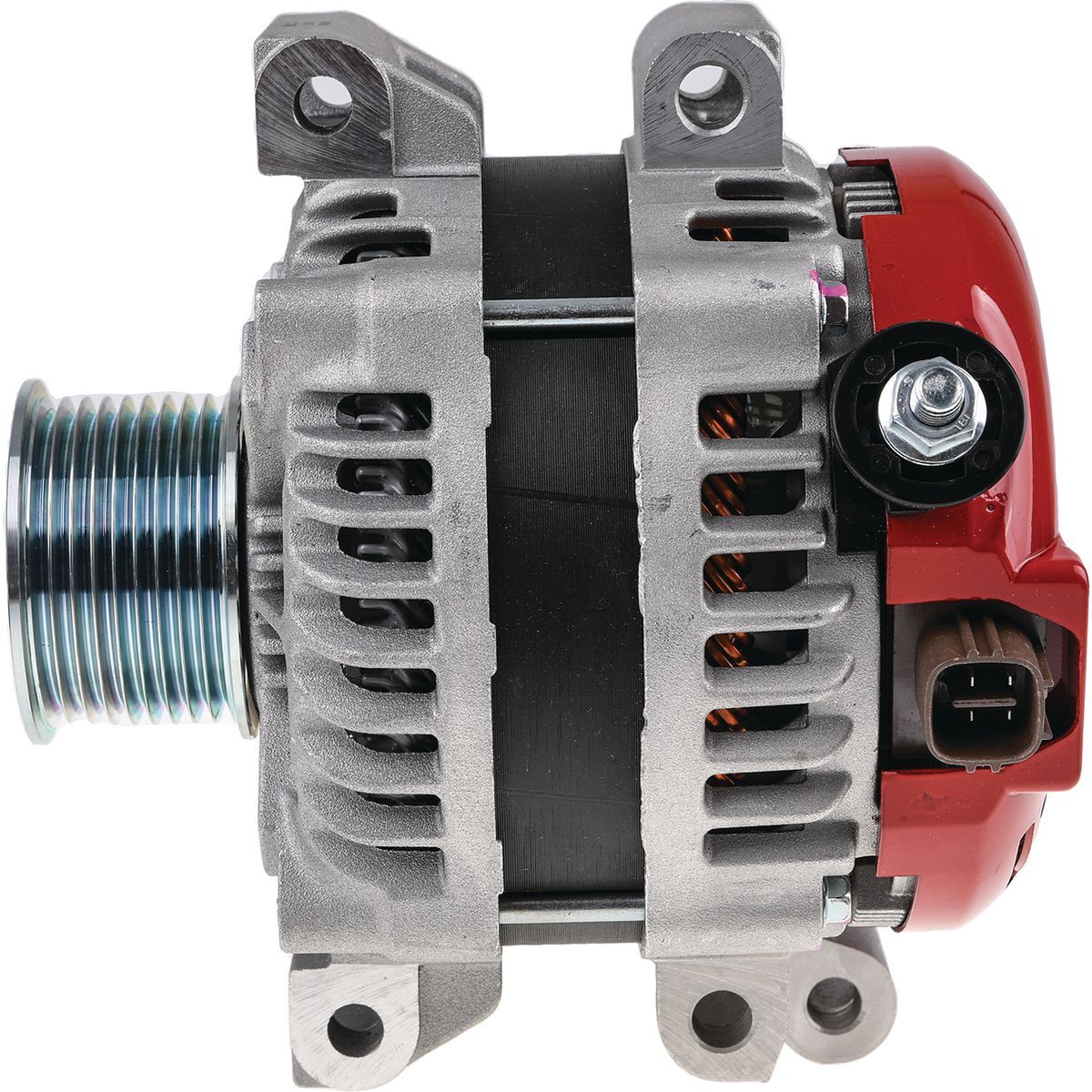

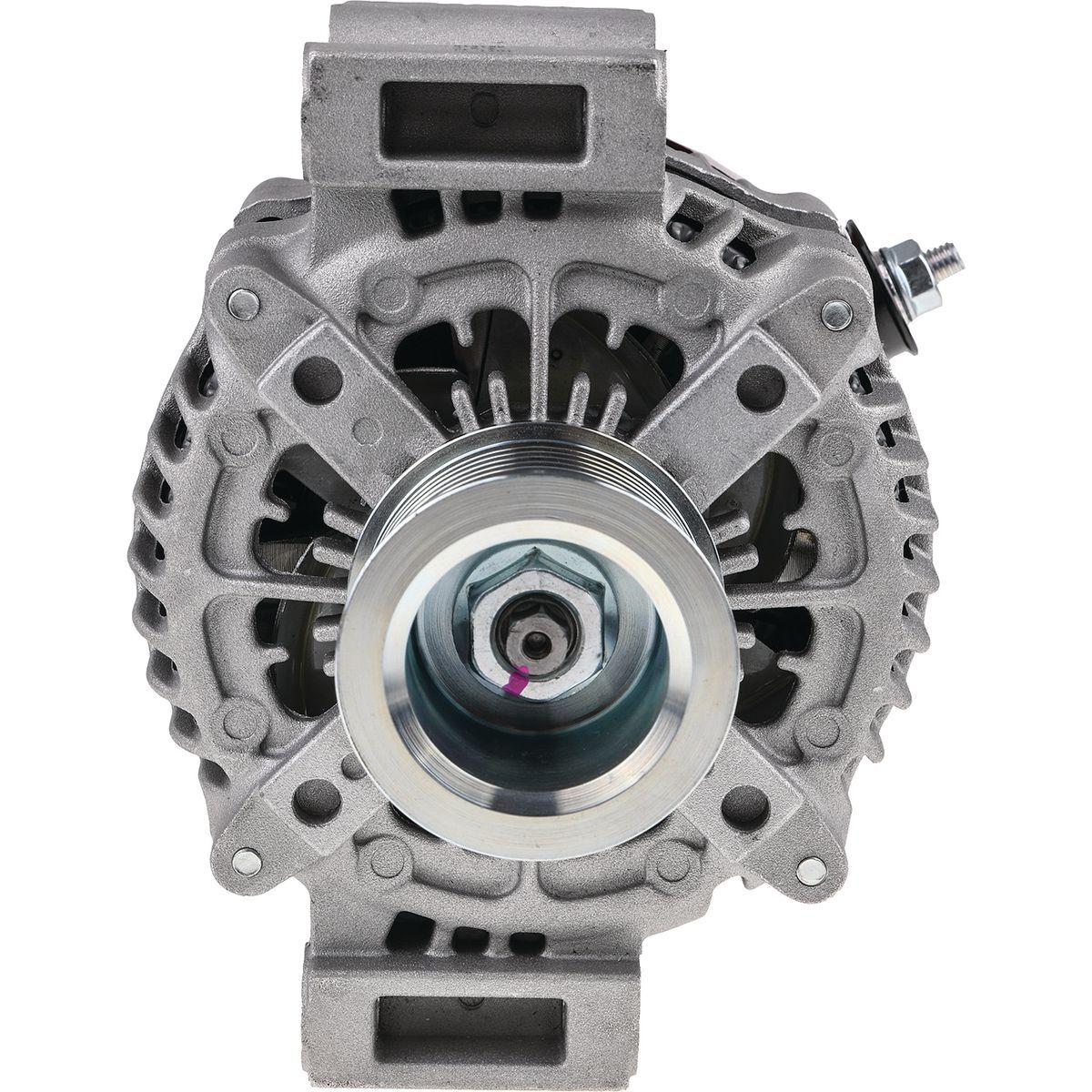

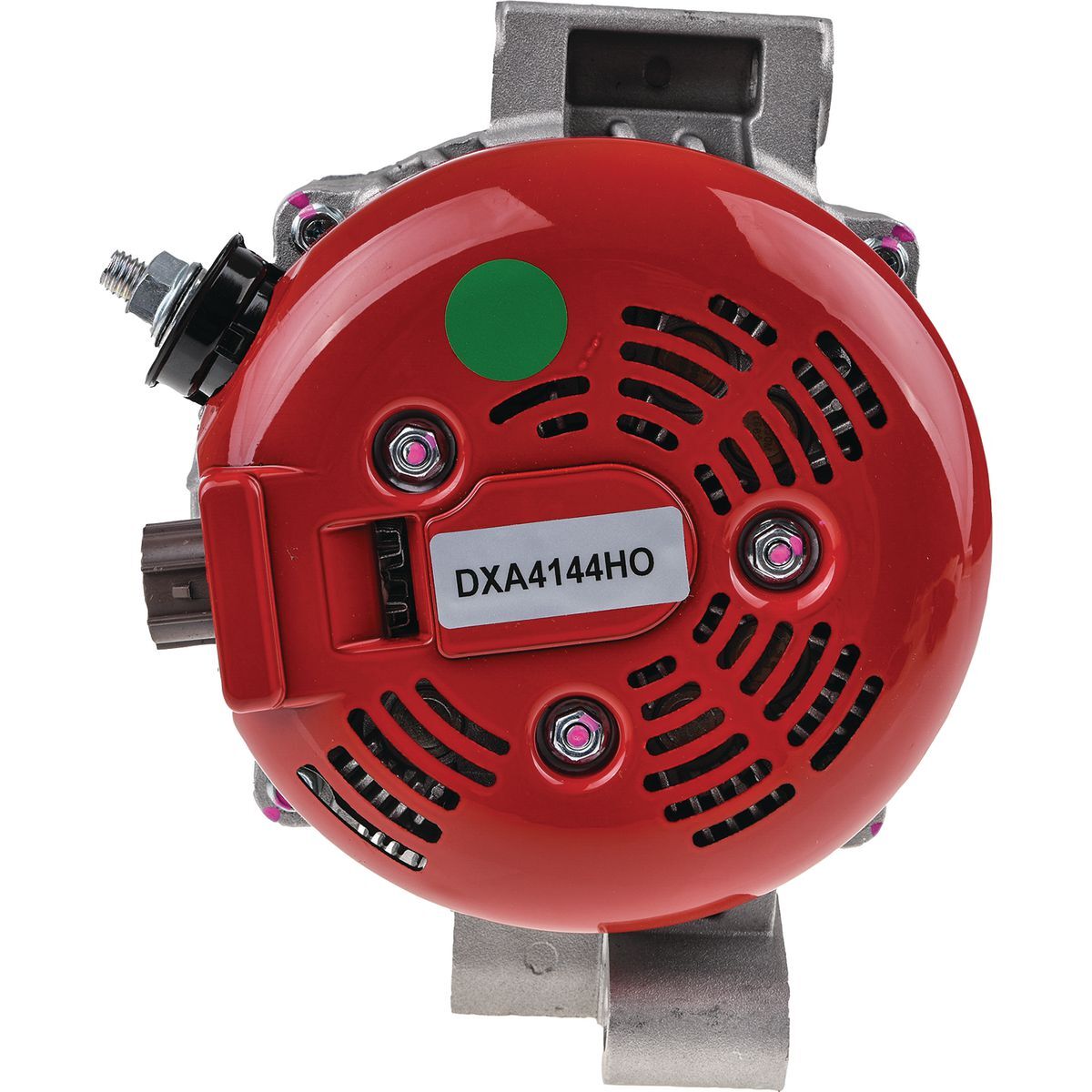

OEX Alternator

12 Volt 220 Amp Denso Style

Specifics

Part No. DXA4144HO
Type ALTERNATOR
Brand OEX
Unit of Measure EACH
Description OEX Alternator 12V 220A Denso Style
Warranty 3yr Passenger 1yr Commercial
Inside Mounting Legs 64mm
Mount Hole Diameter 10
Mount Leg Thickness 60mm
Pin Code IR115
Power Rating (Amp) 220
Pulley Outside Diameter 58mm
Pulley Section 9 Groove
Regulator Type Internal
Suits Unit Make Denso
Voltage 12
Note Semi-sealed brush box to minimise entry of debris

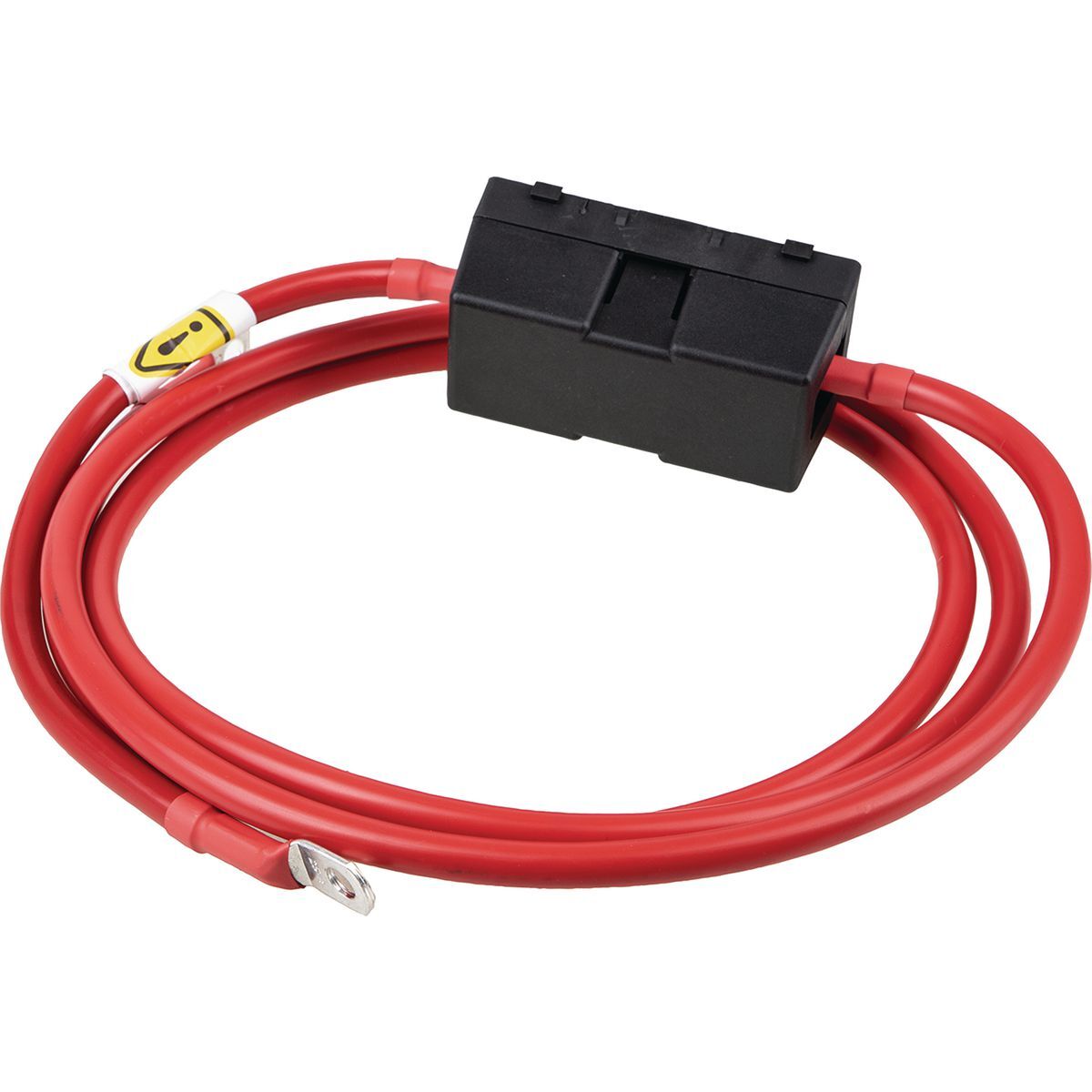

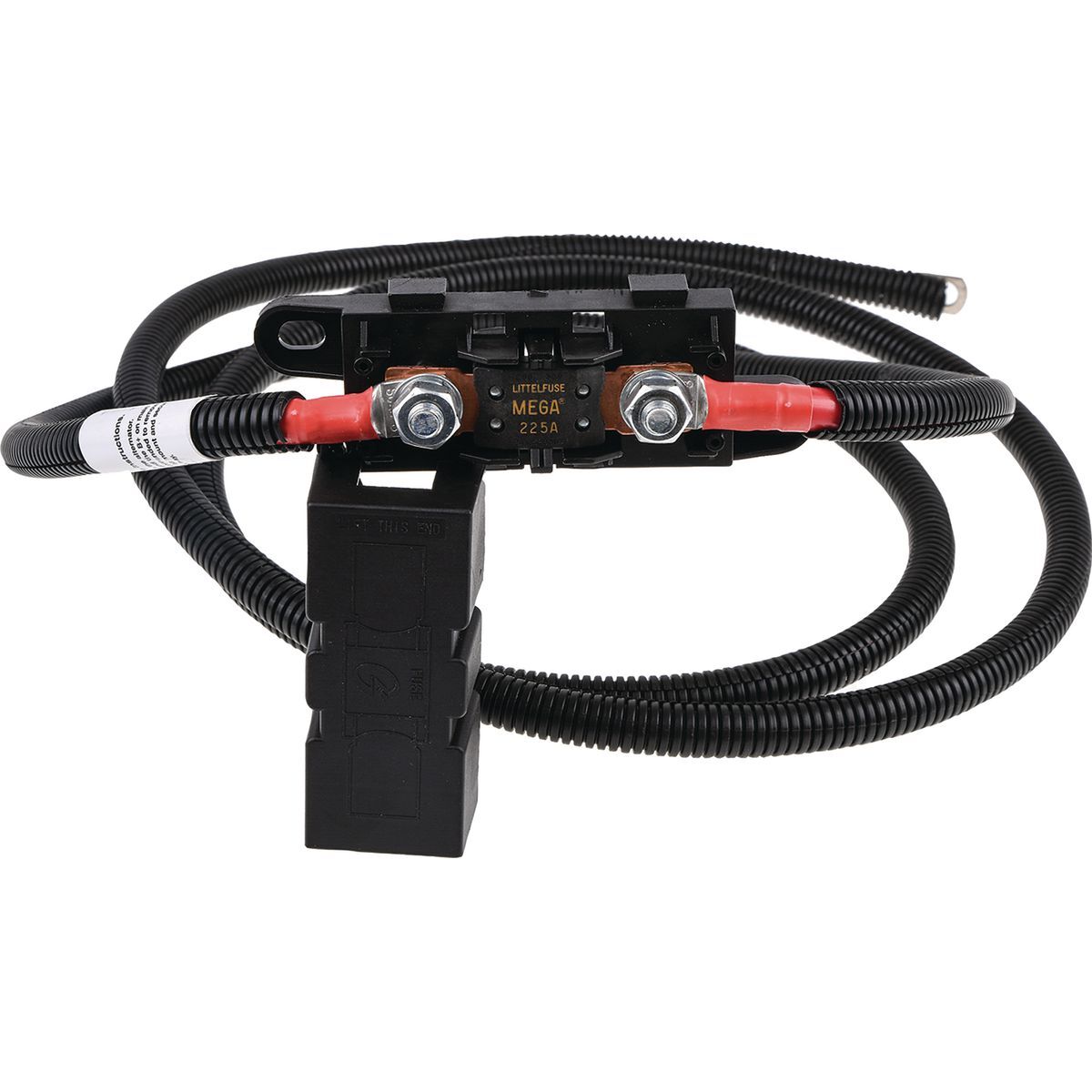

Cable and fuse included for upgrade
Alternator Mount Pad
Mount Cnt to Cnt 161mm
New / Reman. New
OEM Number DXA570

Features

Upgrade original 150A to 220A High Output
TOYOTA LANDCRUISER VDJ79R /VDJ200R 4.5L 1VD-FTV
Cable and fuse included for upgrade
This alternator fitted with a semi-sealed brush box to minimise entry of debris to the brush box.

DXA4144HO

SOLD AS EACH

Compatible with these vehicles:

TOYOTA LAND CRUISER VDJ200 D-4D 4.5L 1VD-FTV Euro 4 DOHC 32v Turbo Diesel Direct Inj. V8 195kW SUV AWD [09/07 - 07/15] ALTERNATOR 1 If the original alternator fuse cannot be removed, do not connect the original B+ cable lug to the alternator. Insulate the existing lug (original cable lug) properly using dual wall heat shrink to prevent a short circuit.
TOYOTA LAND CRUISER VDJ200 D-4D 4.5L 1VD-FTV Euro 4 DOHC 32v Turbo Diesel Direct Inj. V8 200kW SUV AWD [08/15 - 06/21] ALTERNATOR 1 Option offered is 220 amp Denso style unit. Confirm output with original unit for suitability
TOYOTA LAND CRUISER VDJ76R,VDJ78R TD 32V 4.5L 1VD-FTV Euro 4 DOHC 32v Turbo Diesel Direct Inj. V8 151kW SUV AWD [01/07 - 08/22] ALTERNATOR 1 If the original alternator fuse cannot be removed, do not connect the original B+ cable lug to the alternator. Insulate the existing lug (original cable lug) properly using dual wall heat shrink to prevent a short circuit. -------------------- Option offered is 220 amp Denso style unit. Confirm output with original unit for suitability
TOYOTA LAND CRUISER VDJ79R TD 32V 4.5L 1VD-FTV Euro 4 DOHC 32v Turbo Diesel Direct Inj. V8 151kW Pickup AWD [01/07 - 08/22] ALTERNATOR 1 If the original alternator fuse cannot be removed, do not connect the original B+ cable lug to the alternator. Insulate the existing lug (original cable lug) properly using dual wall heat shrink to prevent a short circuit. -------------------- Option offered is 220 amp Denso style unit. Confirm output with original unit for suitability
TOYOTA LAND CRUISER VDJL76R,VDJL78R TD 32V 3.5t 4.5L 1VD-FTV Euro 4 DOHC 32v Turbo Diesel Direct Inj. V8 151kW SUV AWD [09/22 ON] ALTERNATOR 1 If the original alternator fuse cannot be removed, do not connect the original B+ cable lug to the alternator. Insulate the existing lug (original cable lug) properly using dual wall heat shrink to prevent a short circuit.
