OEX ALTERNATOR SUIT TOYOTA LANDCRUISER FZJ105R 4.5L 1998-2002 DXA433U

Jaylec BKS-240LC Black Series Alternator 12V 240A for Toyota Cruiser 76 79 200 V8

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

Jaylec

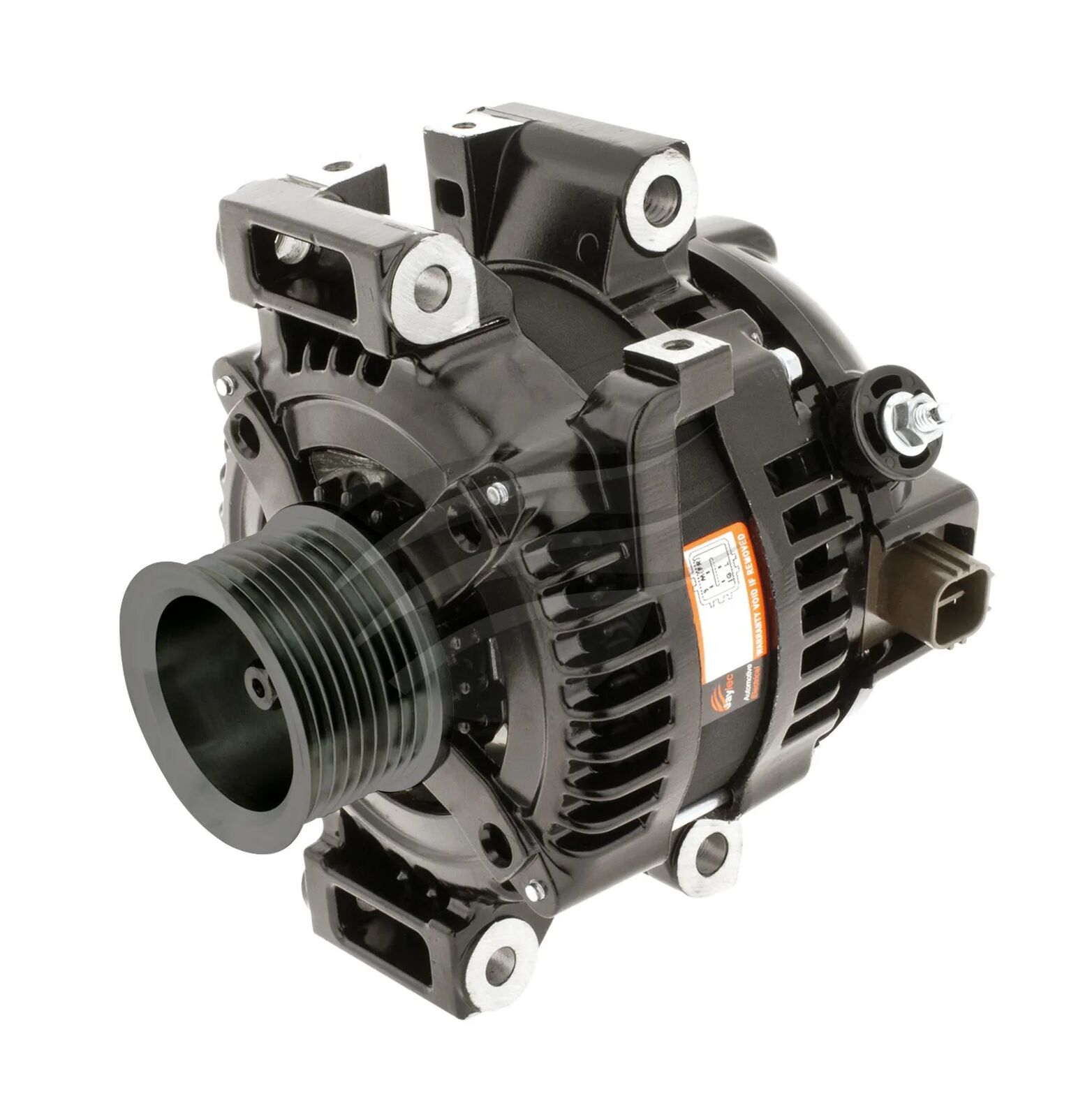

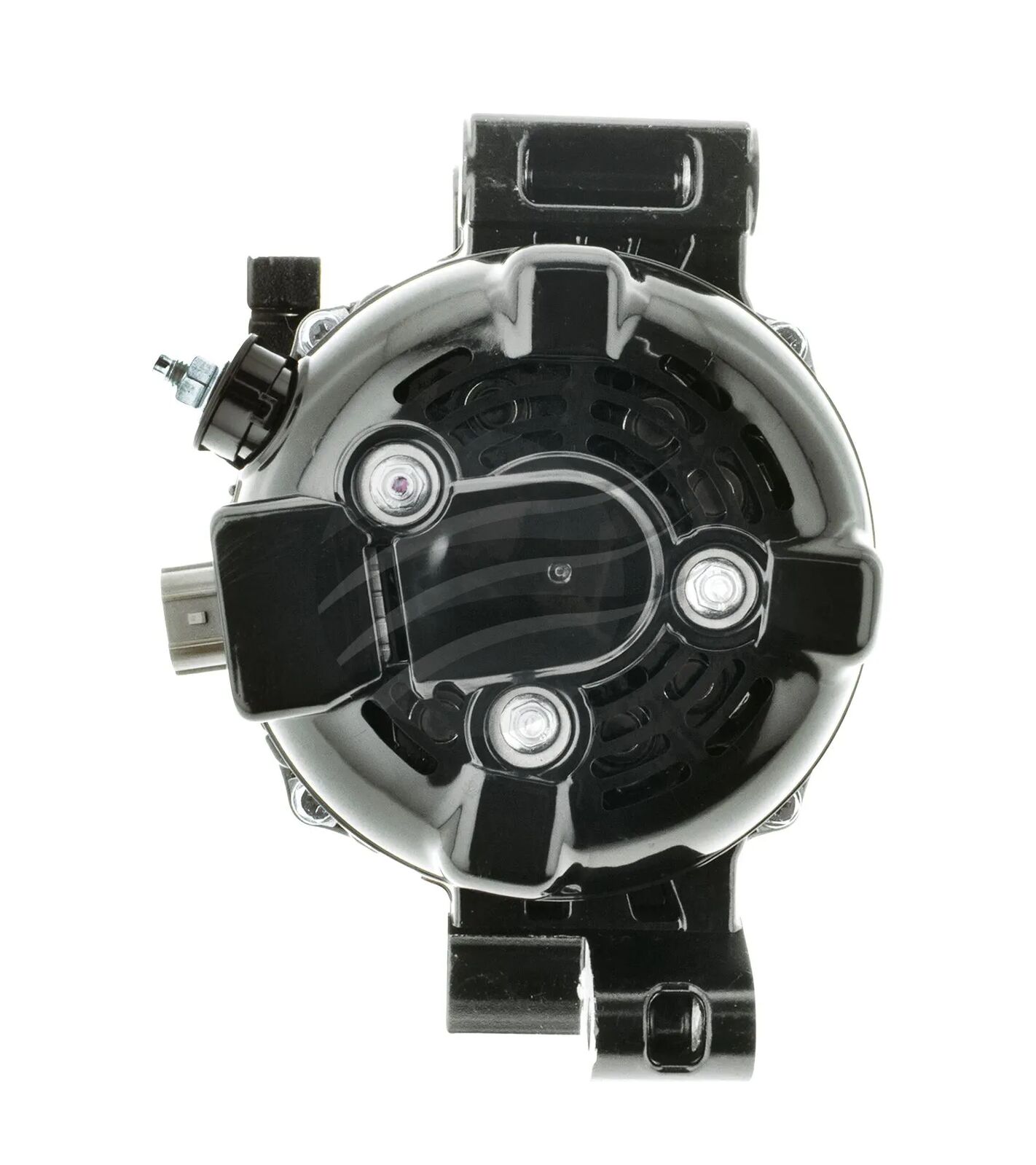

Black Series High Performance High Output Alternator 12V 240A Denso Style

BKS-240LC

SOLD AS EACH

4 Phase Stator for Higher Charging at Lower Rpm
NSK Bearings
Anti Vibtaion Protection

Specifications

Voltage 12V
Amperage 240A
Mount Leg ID 51mm
C-C Mounts 185mm
Hole ID Top M10
Hole ID Bottom 10mm
Shaft Size
Pulley Type 6PV, FIXED
Pulley Belt Width
Pulley Grooves 6
Pulley Diameter 56mm
Regulator Type INTERNAL
Series HAIR PIN
Connections Plug # EP39
Terminals B+, L, S
Excitation EXTERNAL
Ground NEGATIVE

APPLICATION

TOYOTA LAND CRUISER VDJ200 D-4D 4.5L 1VD-FTV Euro 4 DOHC 32v Turbo Diesel Direct Inj. V8 195kW SUV AWD [09/07 - 07/15] ALTERNATOR 1 If the original alternator fuse cannot be removed, do not connect the original B+ cable lug to the alternator. Insulate the existing lug (original cable lug) properly using dual wall heat shrink to prevent a short circuit.
TOYOTA LAND CRUISER VDJ200 D-4D 4.5L 1VD-FTV Euro 4 DOHC 32v Turbo Diesel Direct Inj. V8 200kW SUV AWD [08/15 - 06/21] ALTERNATOR 1 Option offered is 220 amp Denso style unit. Confirm output with original unit for suitability
TOYOTA LAND CRUISER VDJ76R,VDJ78R TD 32V 4.5L 1VD-FTV Euro 4 DOHC 32v Turbo Diesel Direct Inj. V8 151kW SUV AWD [01/07 - 08/22] ALTERNATOR 1 If the original alternator fuse cannot be removed, do not connect the original B+ cable lug to the alternator. Insulate the existing lug (original cable lug) properly using dual wall heat shrink to prevent a short circuit. -------------------- Option offered is 220 amp Denso style unit. Confirm output with original unit for suitability
TOYOTA LAND CRUISER VDJ79R TD 32V 4.5L 1VD-FTV Euro 4 DOHC 32v Turbo Diesel Direct Inj. V8 151kW Pickup AWD [01/07 - 08/22] ALTERNATOR 1 If the original alternator fuse cannot be removed, do not connect the original B+ cable lug to the alternator. Insulate the existing lug (original cable lug) properly using dual wall heat shrink to prevent a short circuit. -------------------- Option offered is 220 amp Denso style unit. Confirm output with original unit for suitability
TOYOTA LAND CRUISER VDJL76R,VDJL78R TD 32V 3.5t 4.5L 1VD-FTV Euro 4 DOHC 32v Turbo Diesel Direct Inj. V8 151kW SUV AWD [09/22 ON] ALTERNATOR 1 If the original alternator fuse cannot be removed, do not connect the original B+ cable lug to the alternator. Insulate the existing lug (original cable lug) properly using dual wall heat shrink to prevent a short circuit.
TOYOTA LAND CRUISER VDJL79R TD 32V 3.5t 4.5L 1VD-FTV Euro 4 DOHC 32v Turbo Diesel Direct Inj. V8 151kW Pickup AWD [09/22 ON] ALTERNATOR 1
