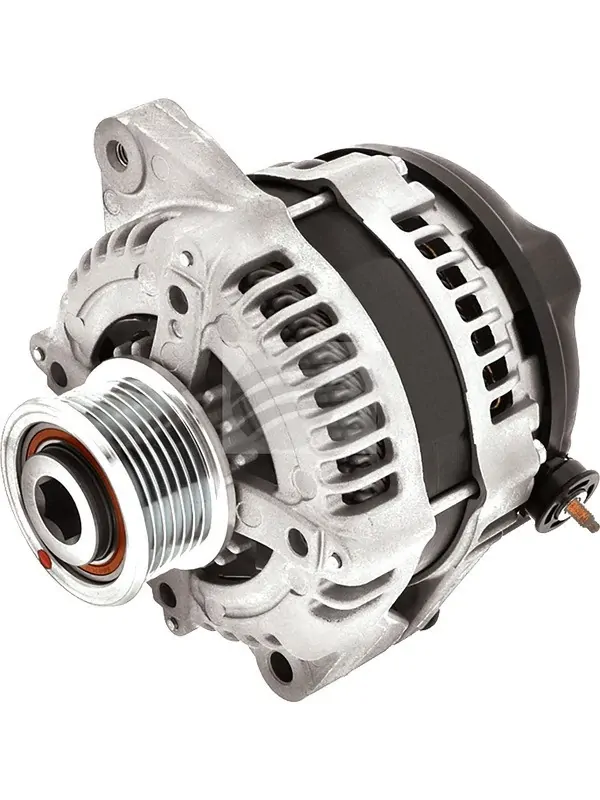

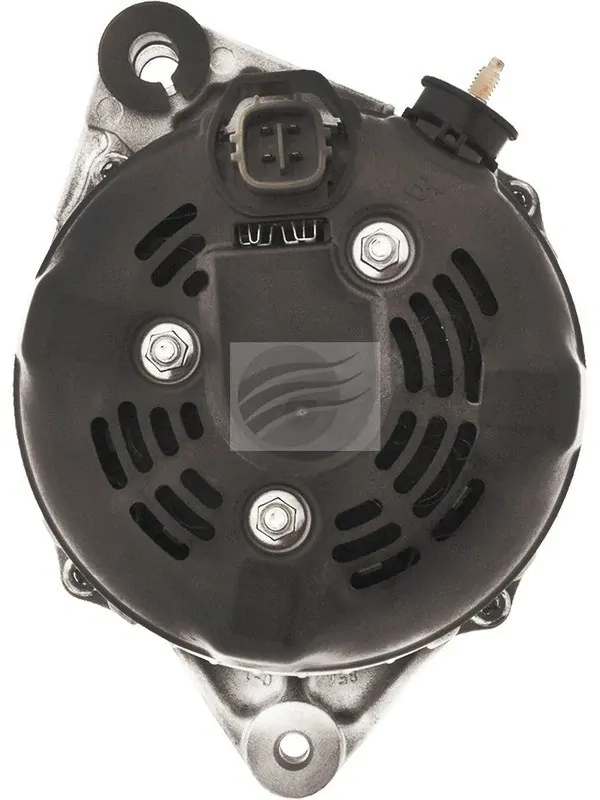

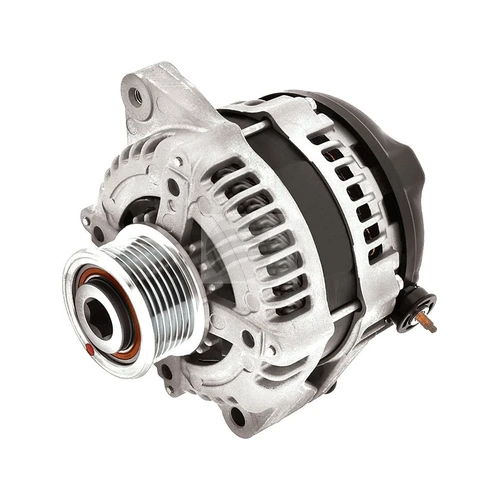

Jaylec 65-8591HD Alternator 150A for Toyota Hilux Pardo 3.0L 1KD D4D

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

Jaylec

Alternator Heavy Duty 12V 150 Amp

65-8591HD

SOLD AS EACH

Specifications

Voltage 12V
Amperage 150A
Mount Leg ID 58mm
C-C Mounts 165mm
Hole ID Top M8
Hole ID Bottom 10mm
Shaft Size
Pulley Type 7PV, CLUTCH
Pulley Belt Width
Pulley Grooves 7
Pulley Diameter 63mm
Regulator Type INTERNAL
Series

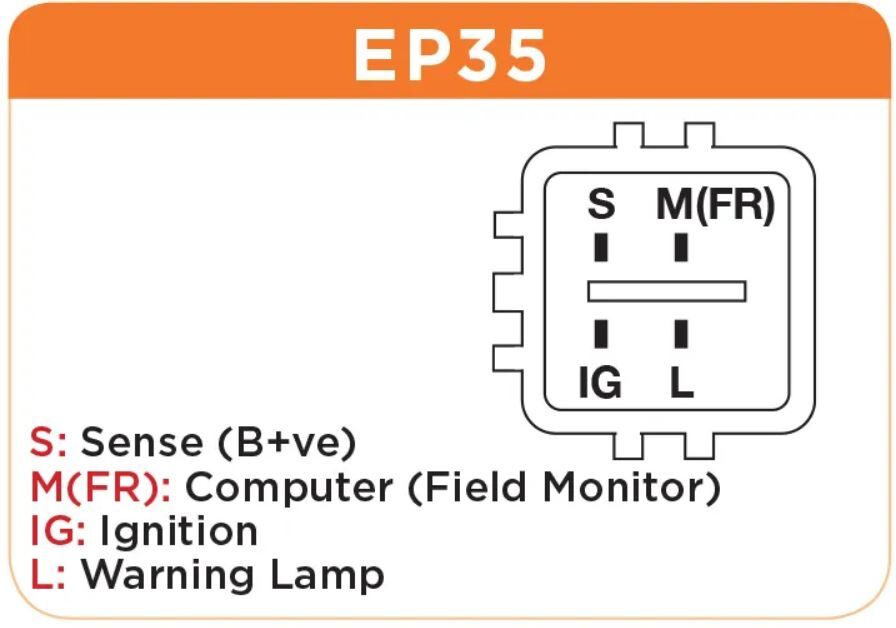

Connections Plug # EP35
Terminals B+, S, IG, M(FR), L
Excitation EXTERNAL
Ground NEGATIVE

Note

Interchangeable with 65-8591, 65-8591-1, 65-8591-2, 65-8591EP, 65-8591-1G, BKS-240KUN, DXA552, DXA552U, DXA552M, DXA4056 & DXA552HO
MATCH BY OE NUMBERS ONLY. A COUPLE OF REG VARIATIONS AND MAY NOT SUIT SOME HILUX OR HIACE WITH 2KDFTV ENGINE.

Features

If replacing the 85A alternator with either the 130A, 150A, 160A or 240A unit, it is recommended to upgrade battery cable and fuse from alternator to battery.

APPLICATION

DAIHATSU DELTA V138 Di 3.0L 1KD-FV DOHC 16v Diesel Direct Inj. 4cyl 85kW Cab Chassis RWD [10/03 - 12/06] ALTERNATOR 1

TOYOTA COMMUTER,HIACE KDH202,KDH212,KDH222 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Bus RWD [09/06 - 12/06] ALTERNATOR 1
TOYOTA COMMUTER,HIACE KDH203R,KDH221,KDH22... V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Bus RWD [08/04 - 01/19] ALTERNATOR 1
TOYOTA COMMUTER,HIACE KDH205,KDH225,KDH227 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 94kW Bus AWD [08/04 - 09/07] ALTERNATOR 1
TOYOTA COMMUTER,HIACE KDH223 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Bus RWD [05/10 - 12/14] ALTERNATOR 1
TOYOTA HIACE KDH200,KDH220 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 75kW Van RWD [01/05 - 09/06] ALTERNATOR 1
TOYOTA HIACE KDH200,KDH220 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [09/06 - 07/10] ALTERNATOR 1
TOYOTA HIACE KDH200,KDH223 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 75kW Van RWD [01/05 - 01/19] ALTERNATOR 1
TOYOTA HIACE KDH201,KDH221 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Van RWD [05/10 - 01/19] ALTERNATOR 1
TOYOTA HIACE KDH201,KDH221 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [11/06 - 01/19] ALTERNATOR 1
TOYOTA HIACE KDH205,KDH225 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 94kW Van AWD [08/04 - 09/07] ALTERNATOR 1
TOYOTA HIACE KDH206 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Van AWD [09/07 - 11/08] ALTERNATOR 1
TOYOTA HIACE KDH206 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Van AWD [11/08 - 05/19] ALTERNATOR 1
TOYOTA HILUX KUN16 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Cab Chassis RWD [02/05 - 08/06] ALTERNATOR 1
TOYOTA HILUX KUN16 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Utility RWD [08/05 - 08/06] ALTERNATOR 1
TOYOTA HILUX KUN16 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Utility RWD [08/06 - 05/15] ALTERNATOR 1
TOYOTA HILUX KUN16R VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Cab Chassis RWD [08/06 - 06/15] ALTERNATOR 1
TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Cab Chassis AWD [02/05 - 08/06] ALTERNATOR 1
TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Utility AWD [03/05 - 08/06] ALTERNATOR 1
TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Cab Chassis AWD [08/06 - 09/15]
TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Utility AWD [08/06 - 09/15] ALTERNATOR 1
TOYOTA LAND CRUISER PRADO KDJ120,KDJ125 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 127kW SUV AWD [11/06 - 12/10] ALTERNATOR 1
TOYOTA LAND CRUISER PRADO KDJ150,KDJ155 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 127kW SUV AWD [08/09 - 06/15] ALTERNATOR 1
TOYOTA MASTER ACE SURF CR21,CR28 TD 2.0L 2C-T SOHC 8v Turbo Diesel 4cyl 62kW Bus RWD [02/85 - 10/93] ALTERNATOR 1
TOYOTA REGIUS ACE KDH200 D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [08/04 - 12/20] ALTERNATOR 1
TOYOTA REGIUS ACE KDH201,KDH211,KDH221 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Van RWD [08/04 - 12/20] ALTERNATOR 1
TOYOTA REGIUS ACE KDH206 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Bus AWD [08/04 - 12/20] ALTERNATOR 1
TOYOTA REGIUS ACE KDH206 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Van AWD [08/04 - 12/20] ALTERNATOR 1
