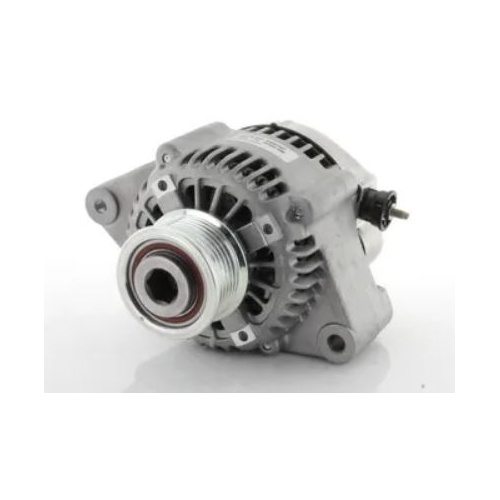

Denso 65-8591-1G Alternator 80A for Toyota Hiace & Hilux 3.0L 1KD 2.5L 2KD

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

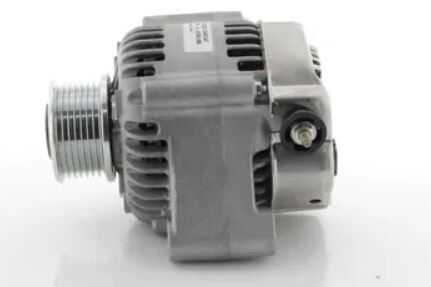

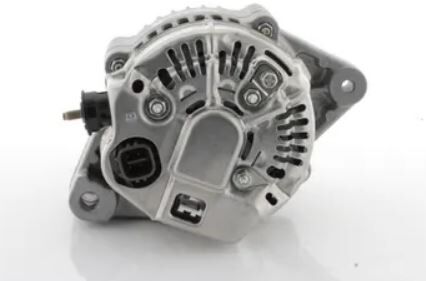

Denso Alternator

12V 80 Amp

65-8591-1G

SOLD AS EACH

Specifications

Voltage 12V
Amperage 80A
Mount Leg ID 58mm
C-C Mounts 165mm
Hole ID Top M8
Hole ID Bottom 10mm
Shaft Size
Pulley Type 7PV, CLUTCH
Pulley Belt Width
Pulley Grooves 7
Pulley Diameter 53mm
Regulator Type INTERNAL
Series

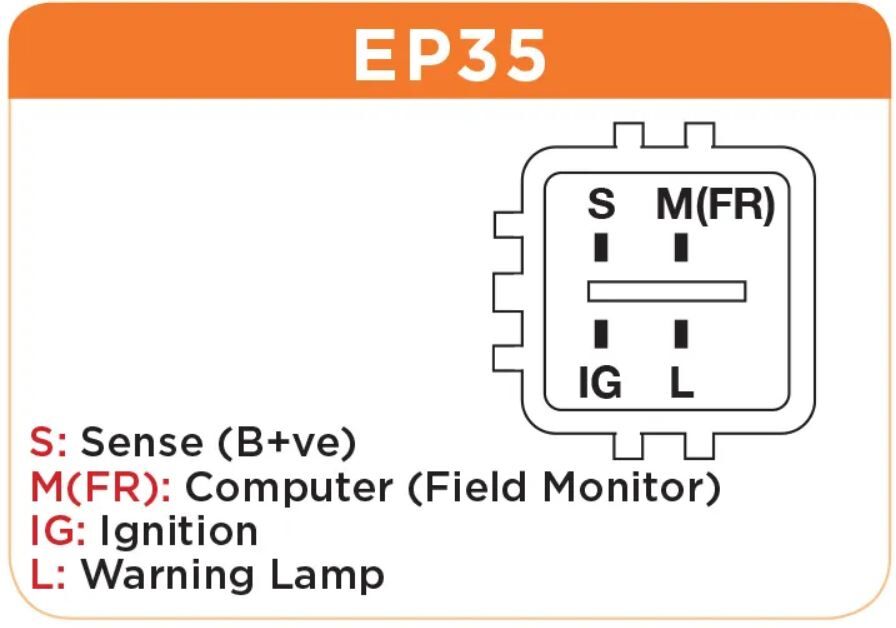

Connections Plug # EP35
Terminals B+, S, IG, M(FR), L
Excitation EXTERNAL
Ground NEGATIVE

Note

Interchangeable with 65-8591, 65-8591-1, 65-8591-2, 65-8591EP, 65-8591HD, BKS-240KUN, DXA552, DXA552U, DXA552M, DXA4056 & DXA552HO
MATCH BY OE NUMBERS ONLY. A COUPLE OF REG VARIATIONS AND MAY NOT SUIT SOME HILUX OR HIACE WITH 2KDFTV ENGINE.

Features

If replacing the 80A or 85A alternator with either the 130A, 150A, 160A or 240A unit, it is recommended to upgrade battery cable and fuse from alternator to battery.

APPLICATION

TOYOTA COMMUTER,HIACE KDH202,KDH212,KDH222 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Bus RWD [09/06 - 12/06] ALTERNATOR 1
TOYOTA COMMUTER,HIACE KDH203R,KDH221,KDH22... V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Bus RWD [08/04 - 01/19] ALTERNATOR 1
TOYOTA COMMUTER,HIACE KDH223 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Bus RWD [05/10 - 12/14] ALTERNATOR 1
TOYOTA HIACE KDH200,KDH220 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 75kW Van RWD [01/05 - 09/06] ALTERNATOR 1
TOYOTA HIACE KDH200,KDH220 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [09/06 - 07/10] ALTERNATOR 1
TOYOTA HIACE KDH200,KDH223 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 75kW Van RWD [01/05 - 01/19] ALTERNATOR 1
TOYOTA HIACE KDH201,KDH221 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Van RWD [05/10 - 01/19] ALTERNATOR 1
TOYOTA HIACE KDH201,KDH221 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [11/06 - 01/19] ALTERNATOR 1
TOYOTA HIACE KDH206 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Van AWD [09/07 - 11/08] ALTERNATOR 1
TOYOTA HIACE KDH206 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Van AWD [11/08 - 05/19] ALTERNATOR 1
TOYOTA HILUX KUN16 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Cab Chassis RWD [02/05 - 08/06] ALTERNATOR 1
TOYOTA HILUX KUN16 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Utility RWD [08/05 - 08/06] ALTERNATOR 1
TOYOTA HILUX KUN16 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Utility RWD [08/06 - 05/15] ALTERNATOR 1
TOYOTA HILUX KUN16R VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Cab Chassis RWD [08/06 - 06/15] ALTERNATOR 1
TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Cab Chassis AWD [02/05 - 08/06] ALTERNATOR 1
TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Utility AWD [03/05 - 08/06] ALTERNATOR 1
TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Cab Chassis AWD [08/06 - 09/15] ALTERNATOR 1
TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Utility AWD [08/06 - 09/15] ALTERNATOR 1
TOYOTA REGIUS ACE KDH200 D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [08/04 - 12/20]
