OEX ALTERNATOR 12V 130A DXA552U

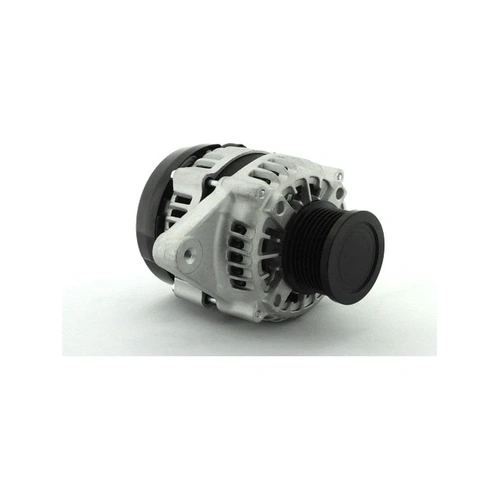

Jaylec 65-8591-1 Alternator 85A for Toyota Hiace Hilux 3.0L 1KD 2.5L 2KD

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

Jaylec Alternator

12V 85 Amp

65-8591-1

SOLD AS EACH

NSK Bearings
Anti Vibtaion Protection

Specifications

Voltage 12V
Amperage 85A
Mount Leg ID 58mm
C-C Mounts 165mm
Hole ID Top M8
Hole ID Bottom 10mm
Shaft Size
Pulley Type 7PV, CLUTCH
Pulley Belt Width
Pulley Grooves 7
Pulley Diameter 63mm
Regulator Type INTERNAL
Series

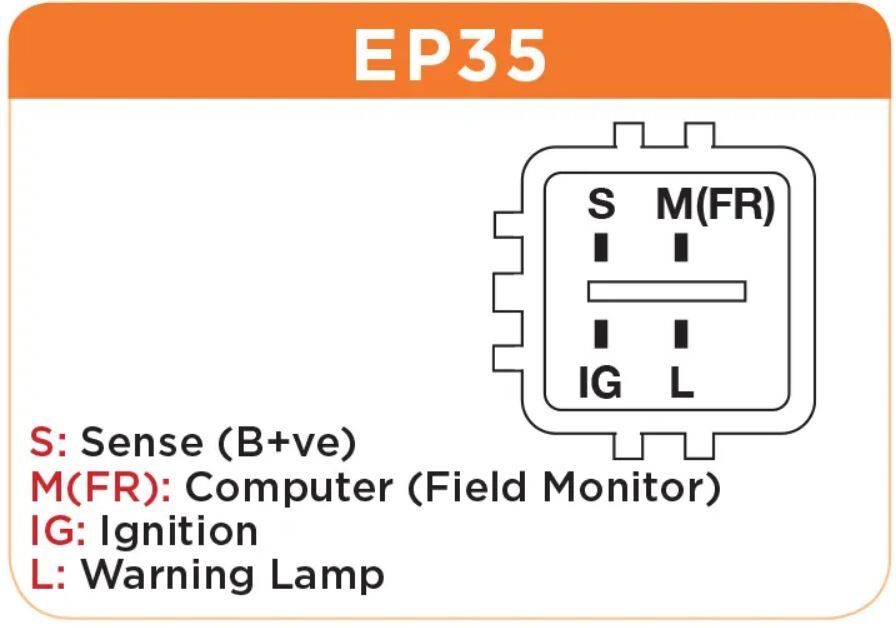

Connections Plug # EP35
Terminals B+, S, IG, M(FR), L
Excitation EXTERNAL
Ground NEGATIVE

Note

Interchangeable with 65-8591, 65-8591-2, 65-8591EP, 65-8591HD, 65-8591-1G, BKS-240KUN, DXA552, DXA552U, DXA552M, DXA4056 & DXA552HO
MATCH BY OE NUMBERS ONLY. A COUPLE OF REG VARIATIONS AND MAY NOT SUIT SOME HILUX OR HIACE WITH 2KDFTV ENGINE.

Features

If replacing the 85A alternator with either the 130A, 160A or 240A unit, it is recommended to upgrade battery cable and fuse from alternator to battery.

APPLICATION

TOYOTA COMMUTER,HIACE KDH202,KDH212,KDH222 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Bus RWD [09/06 - 12/06] ALTERNATOR 1
TOYOTA COMMUTER,HIACE KDH203R,KDH221,KDH22... V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Bus RWD [08/04 - 01/19] ALTERNATOR 1
TOYOTA COMMUTER,HIACE KDH223 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Bus RWD [05/10 - 12/14] ALTERNATOR 1
TOYOTA HIACE KDH200,KDH220 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 75kW Van RWD [01/05 - 09/06] ALTERNATOR 1
TOYOTA HIACE KDH200,KDH220 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [09/06 - 07/10] ALTERNATOR 1
TOYOTA HIACE KDH200,KDH223 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 75kW Van RWD [01/05 - 01/19] ALTERNATOR 1
TOYOTA HIACE KDH201,KDH221 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Van RWD [05/10 - 01/19] ALTERNATOR 1
TOYOTA HIACE KDH201,KDH221 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [11/06 - 01/19] ALTERNATOR 1
TOYOTA HIACE KDH206 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Van AWD [09/07 - 11/08] ALTERNATOR 1
TOYOTA HIACE KDH206 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Van AWD [11/08 - 05/19] ALTERNATOR 1
TOYOTA HILUX KUN16 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Cab Chassis RWD [02/05 - 08/06] ALTERNATOR 1
TOYOTA HILUX KUN16 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Utility RWD [08/05 - 08/06] ALTERNATOR 1
TOYOTA HILUX KUN16 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Utility RWD [08/06 - 05/15] ALTERNATOR 1
TOYOTA HILUX KUN16R VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Cab Chassis RWD [08/06 - 06/15] ALTERNATOR 1
TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Cab Chassis AWD [02/05 - 08/06] ALTERNATOR 1
TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Utility AWD [03/05 - 08/06] ALTERNATOR 1
TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Cab Chassis AWD [08/06 - 09/15] ALTERNATOR 1
TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Utility AWD [08/06 - 09/15] ALTERNATOR 1
TOYOTA REGIUS ACE KDH200 D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [08/04 - 12/20]

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.

INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.

WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.

PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.

RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.

Thank you For Looking!

HAPPY SHOPPING !

Specifications

SKU	65-8591-1
Barcode #	9316042337129
Brand	JAYLEC
Shipping Weight	7.6000kg
Shipping Width	0.220m
Shipping Height	0.180m
Shipping Length	0.240m
Shipping Cubic	0.009504000m3
