OEX DXA433M | Alternator 12V 110A | for Toyota Landcruiser Diesel Inc Turbo 4.2L

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

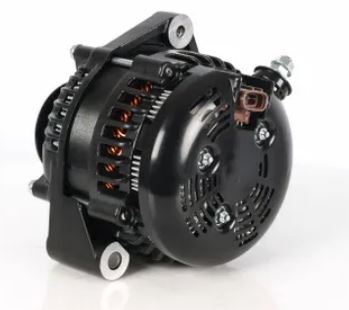

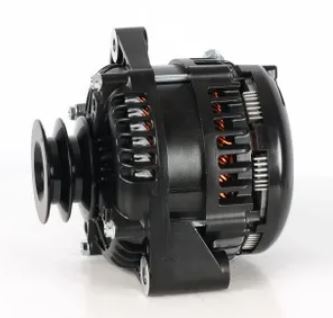

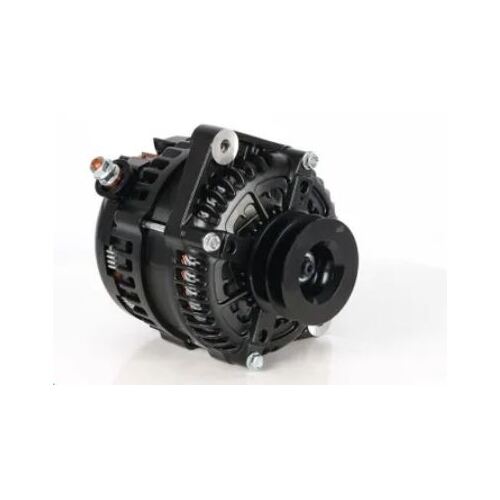

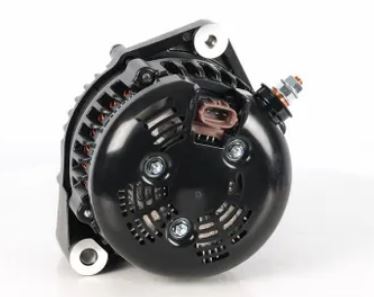

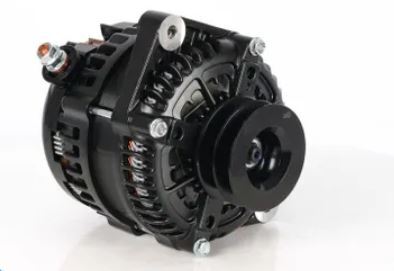

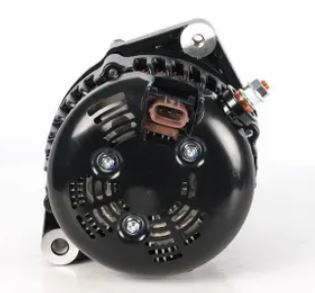

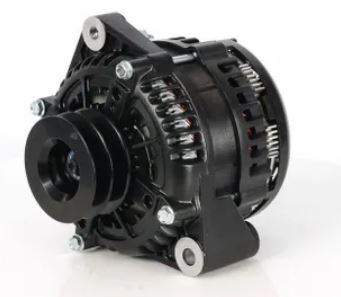

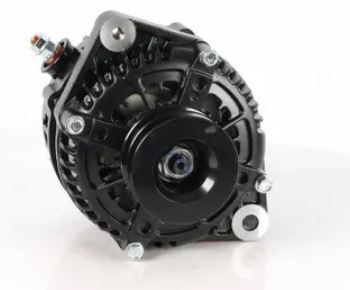

OEX Alternator 12V 110A Denso Style

Was DXA433 DXA433U Now DXA433M

SOLD AS EACH

Part No. DXA433M
Type ALTERNATOR
Brand OEX
Unit of Measure EACH
Description OEX Alternator 12V 110A Denso Style
Warranty 3yr Passenger 1yr Commercial
Pulley Type Fixed Pulley
Adjusting Hole Diameter M8x1.25
Mount Leg Thickness 58mm
Pin Code IR11
Pivot Hole Diameter 10
Power Rating [Amp] 110
Pulley Outside Diameter 76mm
Pulley Section AA
Regulator Type Internal
Rotation CW
Suits Unit Make Denso
Voltage 12
Note

Option offered has active warning light circuit regulator, for Inactive warning light circuit, use adapter harness supplied. Refer instructions supplied with alternator.

Alternator Mount Single Leg
Item Type Alternator
Mount Cnt to Cnt 165mm
New / Reman. New
Insulated Return No

APPLICATION

TOYOTA LAND CRUISER HDJ100 TD 4.2L 1HD-FTE SOHC 24v Turbo Diesel Direct Inj. 6cyl 150kW SUV AWD [01/98 - 08/07] ALTERNATOR 1
TOYOTA LAND CRUISER HDJ101K TD IMPORT 4.2L 1HD-FTE SOHC 24v Turbo Diesel Direct Inj. 6cyl 151kW SUV AWD [01/98 - 07/02] ALTERNATOR 1
TOYOTA LAND CRUISER HDJ78R TD 24V 4.2L 1HD-FT SOHC 24v Turbo Diesel Direct Inj. 6cyl 122kW SUV AWD [08/01 - 02/07] ALTERNATOR 1
TOYOTA LAND CRUISER HDJ79R TD 24V 4.2L 1HD-FT SOHC 24v Turbo Diesel Direct Inj. 6cyl 122kW Pickup AWD [08/01 - 01/07] ALTERNATOR 1
TOYOTA LAND CRUISER HDJ80 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 115kW SUV AWD [01/90 - 08/92] ALTERNATOR 1
TOYOTA LAND CRUISER HDJ80 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 118kW SUV AWD [08/92 - 12/97] ALTERNATOR 1
TOYOTA LAND CRUISER HDJ80,HDJ81V TD 24V 4.2L 1HD-FT SOHC 24v Turbo Diesel Direct Inj. 6cyl 125kW SUV AWD [01/95 - 12/97] ALTERNATOR 1
TOYOTA LAND CRUISER HDJ81 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 123kW SUV AWD [01/90 - 12/97] ALTERNATOR 1
TOYOTA LAND CRUISER HZJ105 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW SUV AWD [03/98 - 08/07] ALTERNATOR 1
TOYOTA LAND CRUISER HZJ70RV,HZJ75RV,HZJ7... D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW SUV AWD [01/90 - 01/07] ALTERNATOR 1
TOYOTA LAND CRUISER HZJ75RP,HZJ79R D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW Pickup AWD [01/90 - 01/07] ALTERNATOR 1
TOYOTA LAND CRUISER HZJ79L-TJM D MINE SPEC 4.2L 1H-Z SOHC 12v Diesel 6cyl 94kW Pickup AWD [08/99 ON] ALTERNATOR 1
TOYOTA LAND CRUISER HZJ80 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 94kW SUV AWD [01/90 - 12/97] ALTERNATOR 1
TOYOTA LAND CRUISER PZJ70RV D 3.5L 1PZ SOHC 10v Diesel 5cyl 72kW SUV AWD [01/90 - 08/91] ALTERNATOR 1
