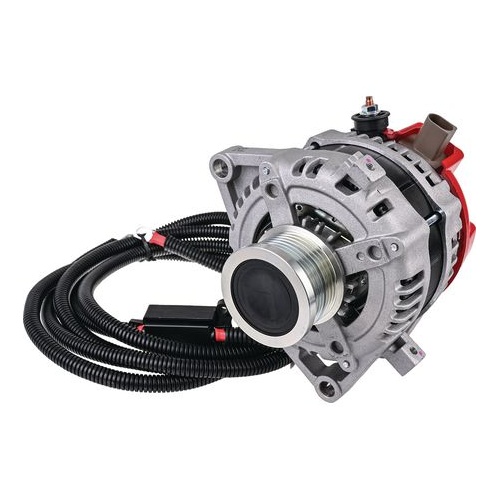

Oex DXA4184HO-160A Alternator 160 Amp for Toyota HiLux GUN 2.8L 1GD & 2.4L 2GD Diesel

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

OEX Alternator

12 Volt 160 Amp Denso Style - High Output

DXA4184HO-160A

SOLD AS EACH

Specifics

Part No. DXA4184HO-160A
Type ALTERNATOR
Brand OEX
Unit of Measure EACH
Description OEX Alternator 12V 160A Denso Style (High Output)
Warranty 3yr Passenger 1yr Commercial
Adjusting Hole Diameter 11.5
Inside Mounting Legs 51mm

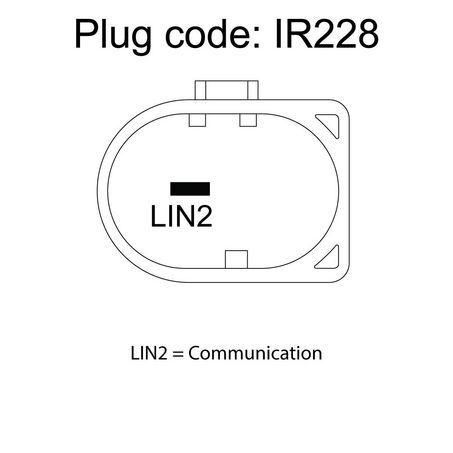

Pin Code IR228
Pivot Hole Diameter M10x1.25 / 10
Power Rating [Amp] 160
Pulley Outside Diameter 58mm
Pulley Section 7 Groove
Regulator Type Internal
Suits Unit Make Denso
Voltage 12

Note

Cable and fuse included for upgrade.
This high output alternator is designed to charge lead-acid batteries.
To charge lithium batteries, charging must be done through a BC-DC charger
Alternator Mount Twin Leg
Mount Cnt to Cnt 160mm
New / Reman. New

Features

Cable and fuse included for upgrade

APPLICATION

TOYOTA COMMUTER,HIACE GDH322 VI 2.8L 1GD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Bus RWD [05/19 ON] ALTERNATOR 1 If the OEM alternator is 150A, upgrading the battery to alternator cable is not required.
TOYOTA FORTUNER GUN156 D 2.8L 1GD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 130kW SUV AWD [10/15 - 05/20] ALTERNATOR 1 When installing this high output unit you will be required to upgrade the alternator to the battery cable to compensate for extra current. Upgrade cable and fuse included in the box.
TOYOTA HILUX GUN112,GUN122,GUN125... VIII TDi 2.4L 2GD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 110kW Cab Chassis RWD [07/15 ON] ALTERNATOR 1 When installing this high output unit you will be required to upgrade the alternator to the battery cable to compensate for extra current. Upgrade cable and fuse included in the box.
TOYOTA HILUX GUN112R,GUN120R,GUN1... VIII TDi 2.4L 2GD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 110kW Utility RWD [05/15 ON] ALTERNATOR 1 When installing this high output unit you will be required to upgrade the alternator to the battery cable to compensate for extra current. Upgrade cable and fuse included in the box.
TOYOTA HILUX GUN123 VIII D-4D 2.8L 1GD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 125kW Utility RWD [07/15 - 07/17] ALTERNATOR 1 When installing this high output unit you will be required to upgrade the alternator to the battery cable to compensate for extra current. Upgrade cable and fuse included in the box.
TOYOTA HILUX GUN123,GUN123R VIII D-4D 2.8L 1GD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 125kW Cab Chassis RWD [07/15 - 07/17] ALTERNATOR 1 When installing this high output unit you will be required to upgrade the alternator to the battery cable to compensate for extra current. Upgrade cable and fuse included in the box.
TOYOTA HILUX GUN125R VIII TDi 2.4L 2GD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 110kW Cab Chassis AWD [07/15 ON] ALTERNATOR 1 When installing this high output unit you will be required to upgrade the alternator to the battery cable to compensate for extra current. Upgrade cable and fuse included in the box.
TOYOTA HILUX GUN125R VIII TDi 2.4L 2GD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 110kW Utility AWD [05/15 ON] ALTERNATOR 1 When installing this high output unit you will be required to upgrade the alternator to the battery cable to compensate for extra current. Upgrade cable and fuse included in the box.
TOYOTA HILUX GUN126 VIII D-4D 2.8L 1GD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 150kW Cab Chassis AWD [05/20 ON] ALTERNATOR 1 When installing this high output unit you will be required to upgrade the alternator to the battery cable to compensate for extra current. Upgrade cable and fuse included in the box.
TOYOTA HILUX GUN126 VIII D-4D 2.8L 1GD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 150kW Utility AWD [06/20 ON] ALTERNATOR 1 When installing this high output unit you will be required to upgrade the alternator to the battery cable to compensate for extra current. Upgrade cable and fuse included in the box.
TOYOTA HILUX GUN126R VIII D-4D 2.8L 1GD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 130kW Cab Chassis AWD [07/15 - 04/20] ALTERNATOR 1 When installing this high output unit you will be required to upgrade the alternator to the battery cable to compensate for extra current. Upgrade cable and fuse included in the box.
TOYOTA HILUX GUN126R VIII D-4D 2.8L 1GD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 130kW Utility AWD [07/15 - 04/20] ALTERNATOR 1 When installing this high output unit you will be required to upgrade the alternator to the battery cable to compensate for extra current. Upgrade cable and fuse included in the box.
TOYOTA HILUX GUN136 VIII D-4D 2.8L 1GD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 130kW Utility RWD [07/15 - 04/20] ALTERNATOR 1 When installing this high output unit you will be required to upgrade the alternator to the battery cable to compensate for extra current. Upgrade cable and fuse included in the box.
TOYOTA HILUX GUN136 VIII D-4D 2.8L 1GD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 150kW Utility RWD [05/20 ON] ALTERNATOR 1 When installing this high output unit you will be required to upgrade the alternator to the battery cable to compensate for extra current. Upgrade cable and fuse included in the box.
