Jaylec 65-8348 Alternator 12V 110A for Toyota Landcruiser Diesel Inc Turbo 4.2L

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

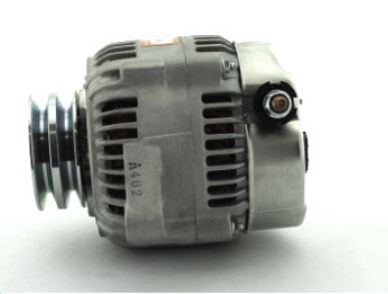

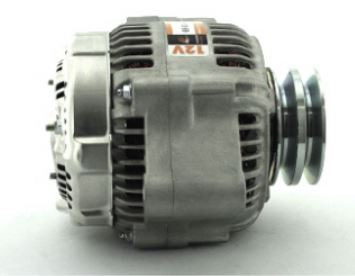

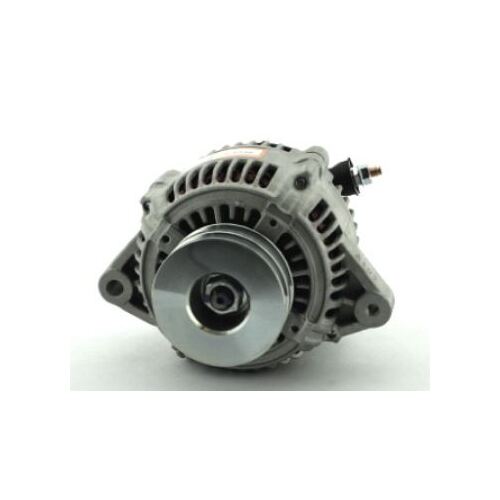

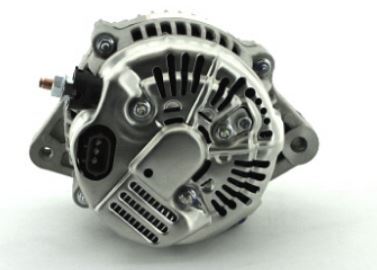

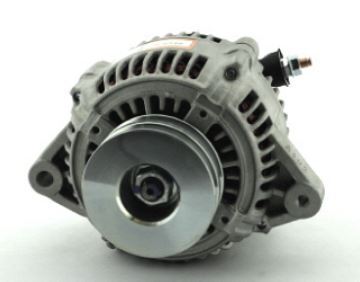

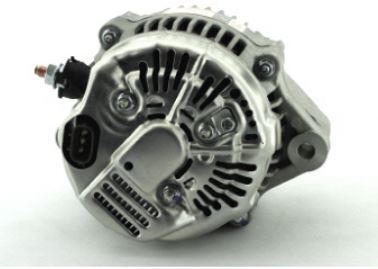

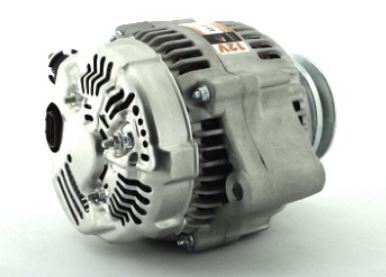

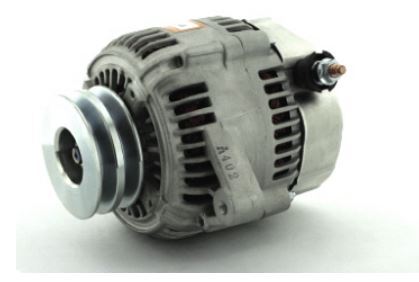

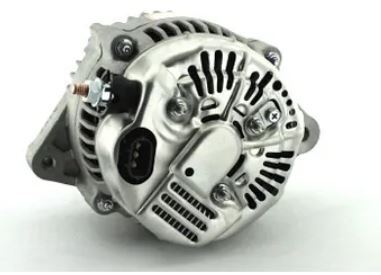

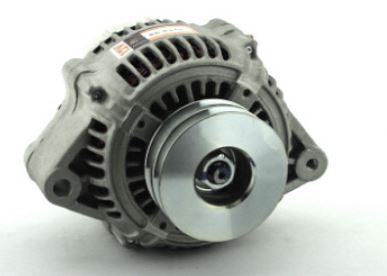

Jaylec Alternator 12V 110A Denso Style

65-8348

SOLD AS EACH

Specifications

Voltage 12V
Amperage 110A
Mount Leg ID 58mm
C-C Mounts 165mm
Hole ID Top M8
Hole ID Bottom 10mm
Shaft Size
Pulley Type TWIN "A"
Pulley Belt Width
Pulley Grooves 2
Pulley Diameter 78mm
Regulator Type INTERNAL
Series
Connections Plug # EP7/ EP24
Terminals B+, S, IG, L
Excitation EXTERNAL
Ground NEGATIVE

APPLICATION

TOYOTA LAND CRUISER HDJ100 TD 4.2L 1HD-FTE SOHC 24v Turbo Diesel Direct Inj. 6cyl 150kW SUV AWD [01/98 - 08/07] ALTERNATOR 1
TOYOTA LAND CRUISER HDJ101K TD IMPORT 4.2L 1HD-FTE SOHC 24v Turbo Diesel Direct Inj. 6cyl 151kW SUV AWD [01/98 - 07/02] ALTERNATOR 1
TOYOTA LAND CRUISER HDJ78R TD 24V 4.2L 1HD-FT SOHC 24v Turbo Diesel Direct Inj. 6cyl 122kW SUV AWD [08/01 - 02/07] ALTERNATOR 1
TOYOTA LAND CRUISER HDJ79R TD 24V 4.2L 1HD-FT SOHC 24v Turbo Diesel Direct Inj. 6cyl 122kW Pickup AWD [08/01 - 01/07] ALTERNATOR 1
TOYOTA LAND CRUISER HDJ80 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 115kW SUV AWD [01/90 - 08/92] ALTERNATOR 1
TOYOTA LAND CRUISER HDJ80 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 118kW SUV AWD [08/92 - 12/97] ALTERNATOR 1
TOYOTA LAND CRUISER HDJ80,HDJ81V TD 24V 4.2L 1HD-FT SOHC 24v Turbo Diesel Direct Inj. 6cyl 125kW SUV AWD [01/95 - 12/97] ALTERNATOR 1
TOYOTA LAND CRUISER HDJ81 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 123kW SUV AWD [01/90 - 12/97] ALTERNATOR 1
TOYOTA LAND CRUISER HZJ105 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW SUV AWD [03/98 - 08/07] ALTERNATOR 1
TOYOTA LAND CRUISER HZJ70RV,HZJ75RV,HZJ7... D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW SUV AWD [01/90 - 01/07] ALTERNATOR 1
TOYOTA LAND CRUISER HZJ75RP,HZJ79R D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW Pickup AWD [01/90 - 01/07] ALTERNATOR 1
TOYOTA LAND CRUISER HZJ79L-TJM D MINE SPEC 4.2L 1H-Z SOHC 12v Diesel 6cyl 94kW Pickup AWD [08/99 ON] ALTERNATOR 1
TOYOTA LAND CRUISER HZJ80 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 94kW SUV AWD [01/90 - 12/97] ALTERNATOR 1
TOYOTA LAND CRUISER PZJ70RV D 3.5L 1PZ SOHC 10v Diesel 5cyl 72kW SUV AWD [01/90 - 08/91] ALTERNATOR 1
