PROJECTA ICB700 12V 7A POWER MANAGEMENT BOARD INC BATTERY CHARGE MASTER SWITCH FUSE BOX SOLAR CONTRO

Projecta ICB3500 12V 35A Power Management Board - Battery Charger Solar & More

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

Projecta

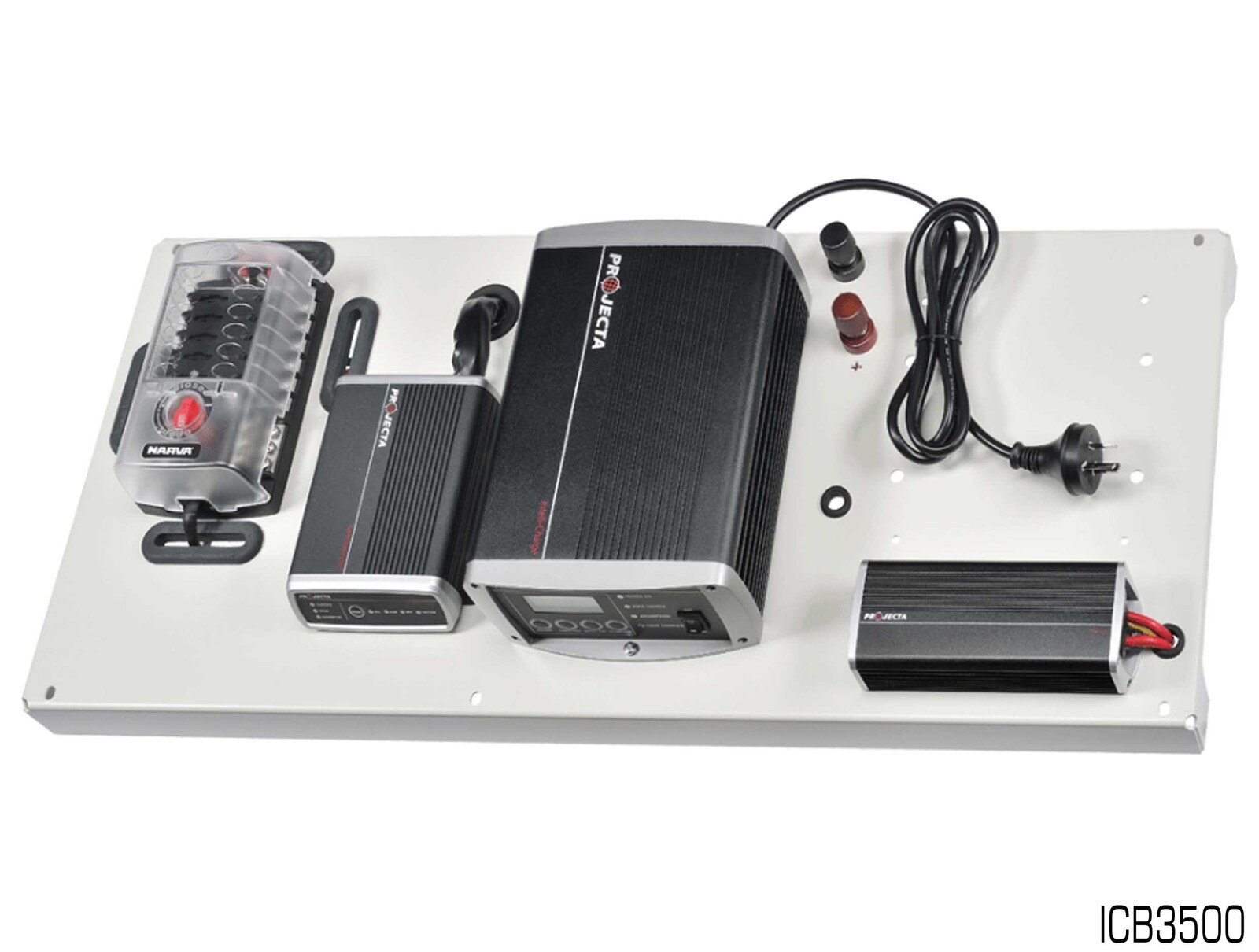

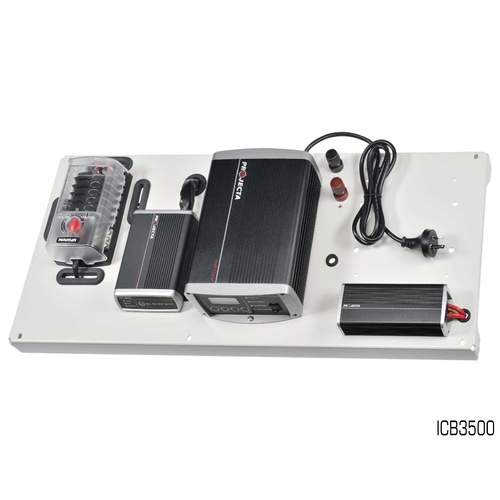

12v 35a Power Management Board

ICB3500

Sold as Each

Utilising the latest range of premium ‘Intelli’ power management equipment, these 35 Amp power boards are a sophisticated and complete system that is ideal for caravan and motor home applications. Pre-built, these all-in-one units enable quick and easy installation.

FEATURES

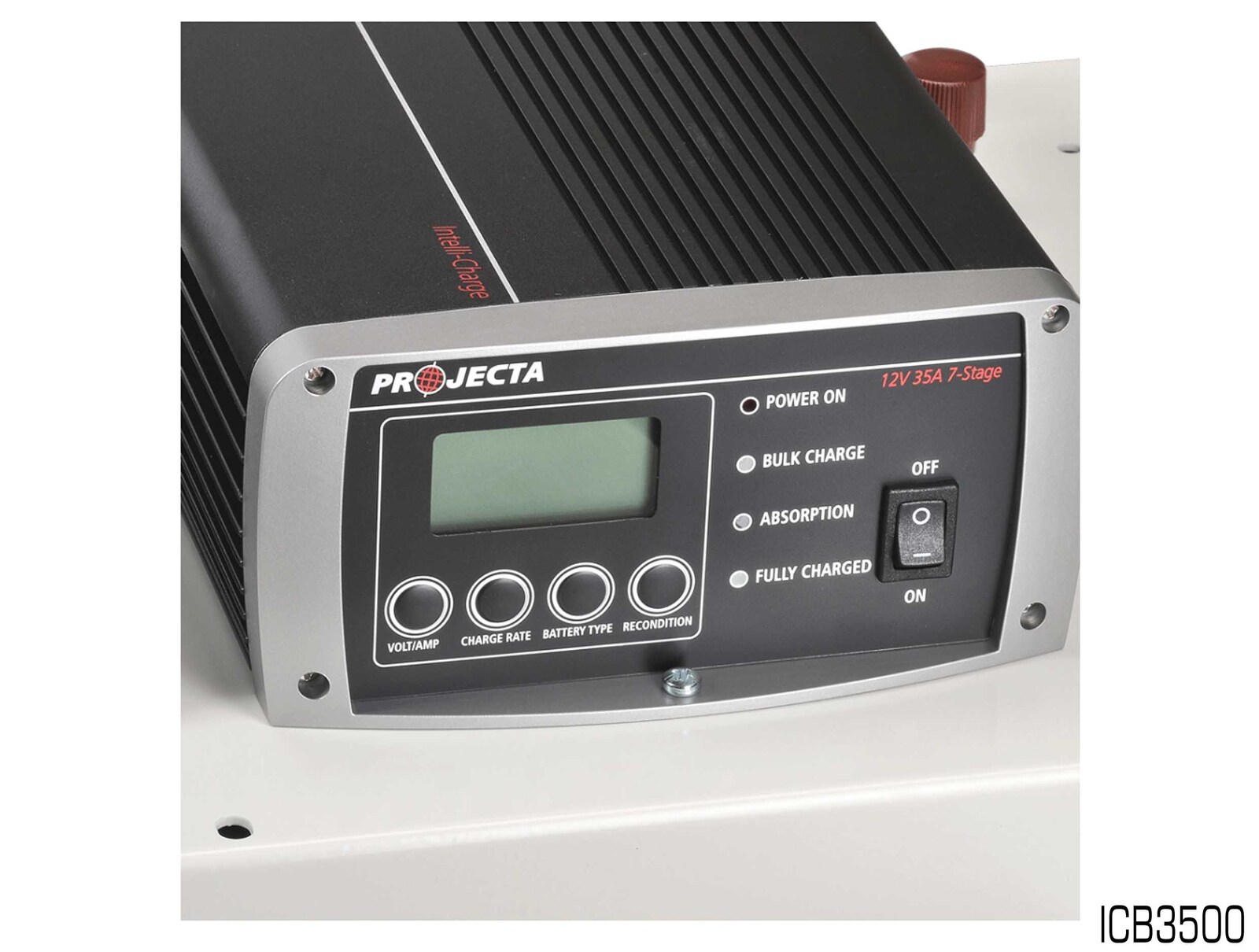

7 stage charger

A sophisticated 7A automatic charger that features multi-chemistry selection and adjustable output to match your battery type

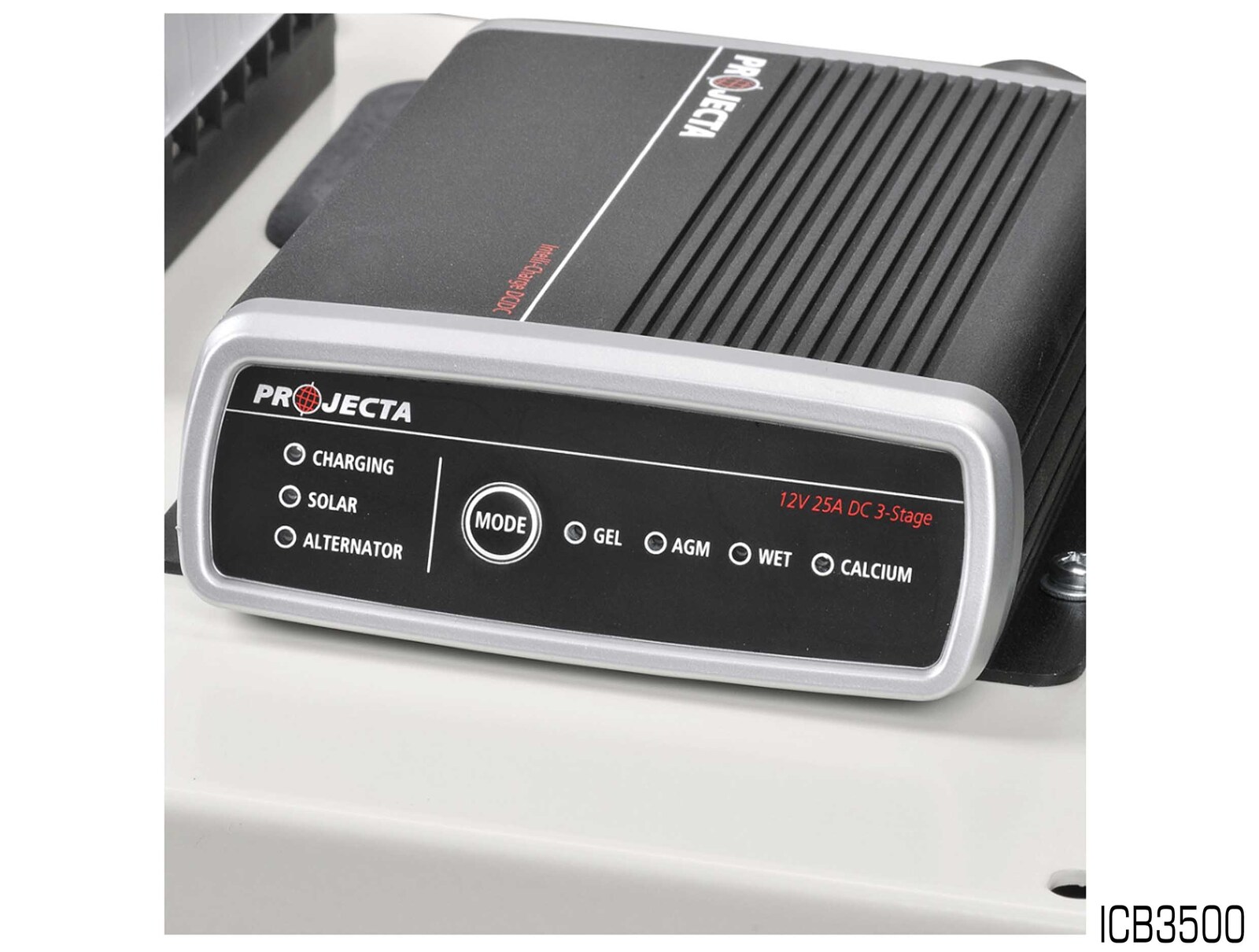

DC/solar controller

Advanced battery charger that utilises both solar and the tow vehicle’s power to deliver a comprehensive 3 stage charge

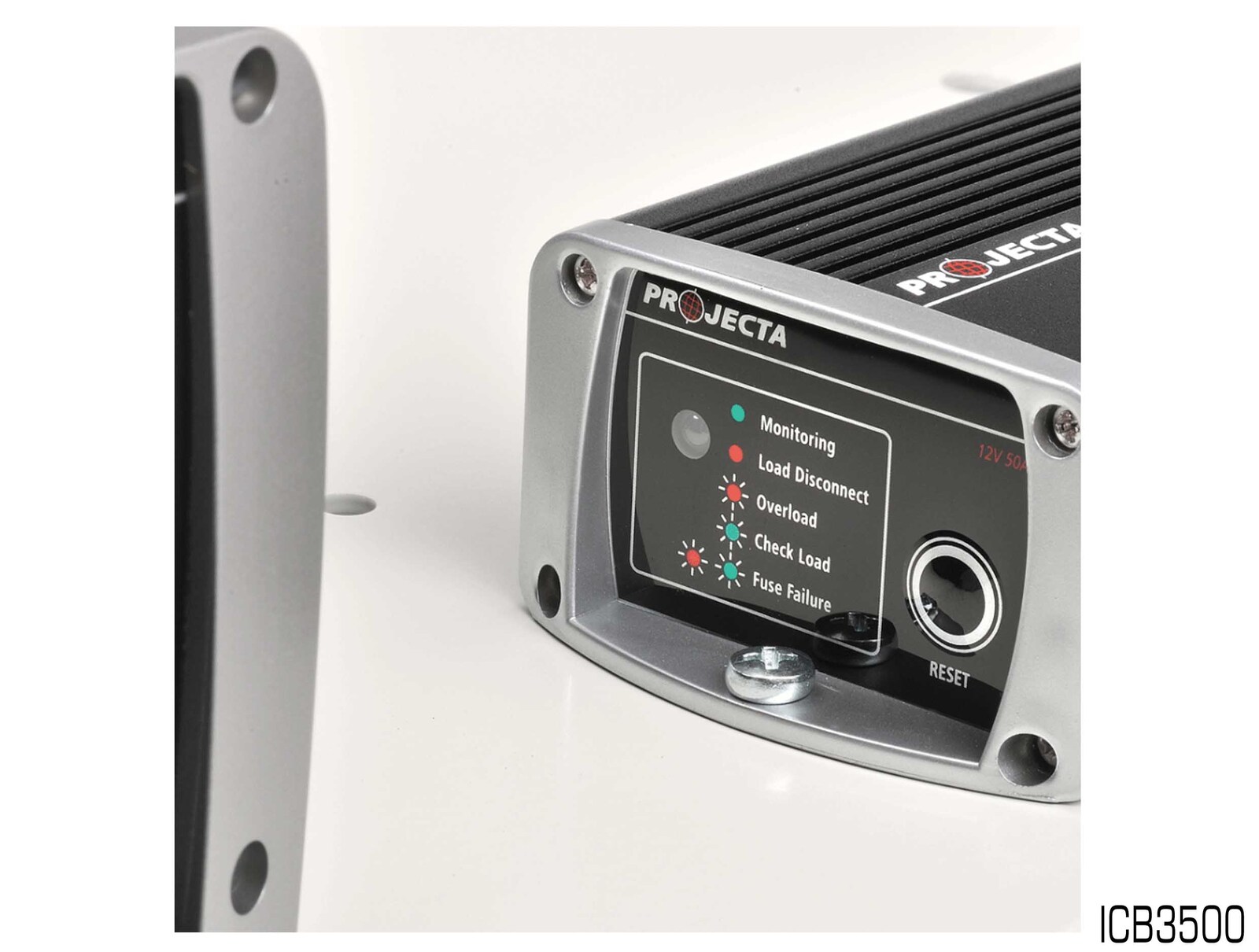

Low voltage disconnect

A robust and compact unit that protects expensive deep cycle batteries from damage caused by over-discharge

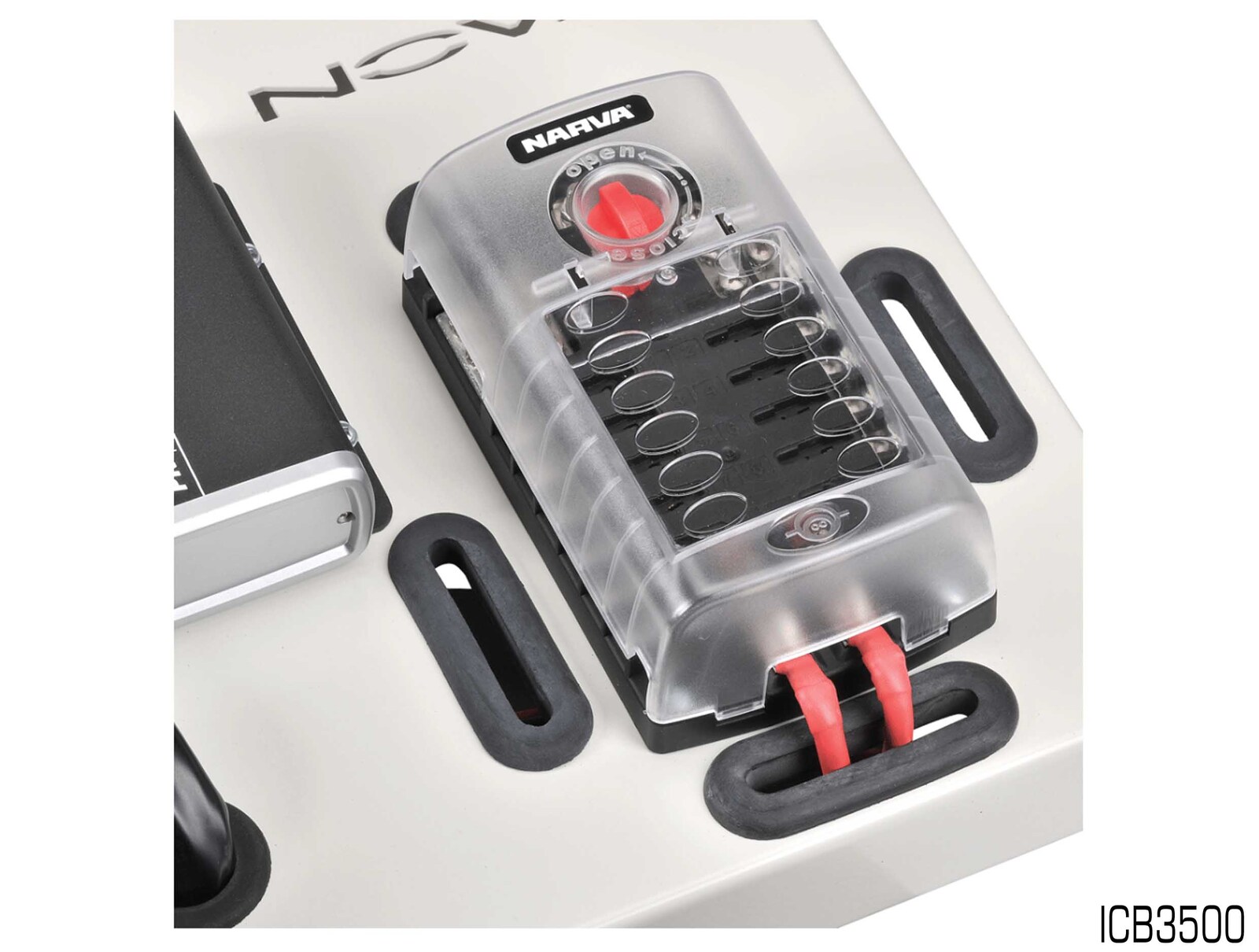

Fuse distribution box

A 12-way standard ATS blade fuse/circuit breaker block with single grounding and dual power inputs

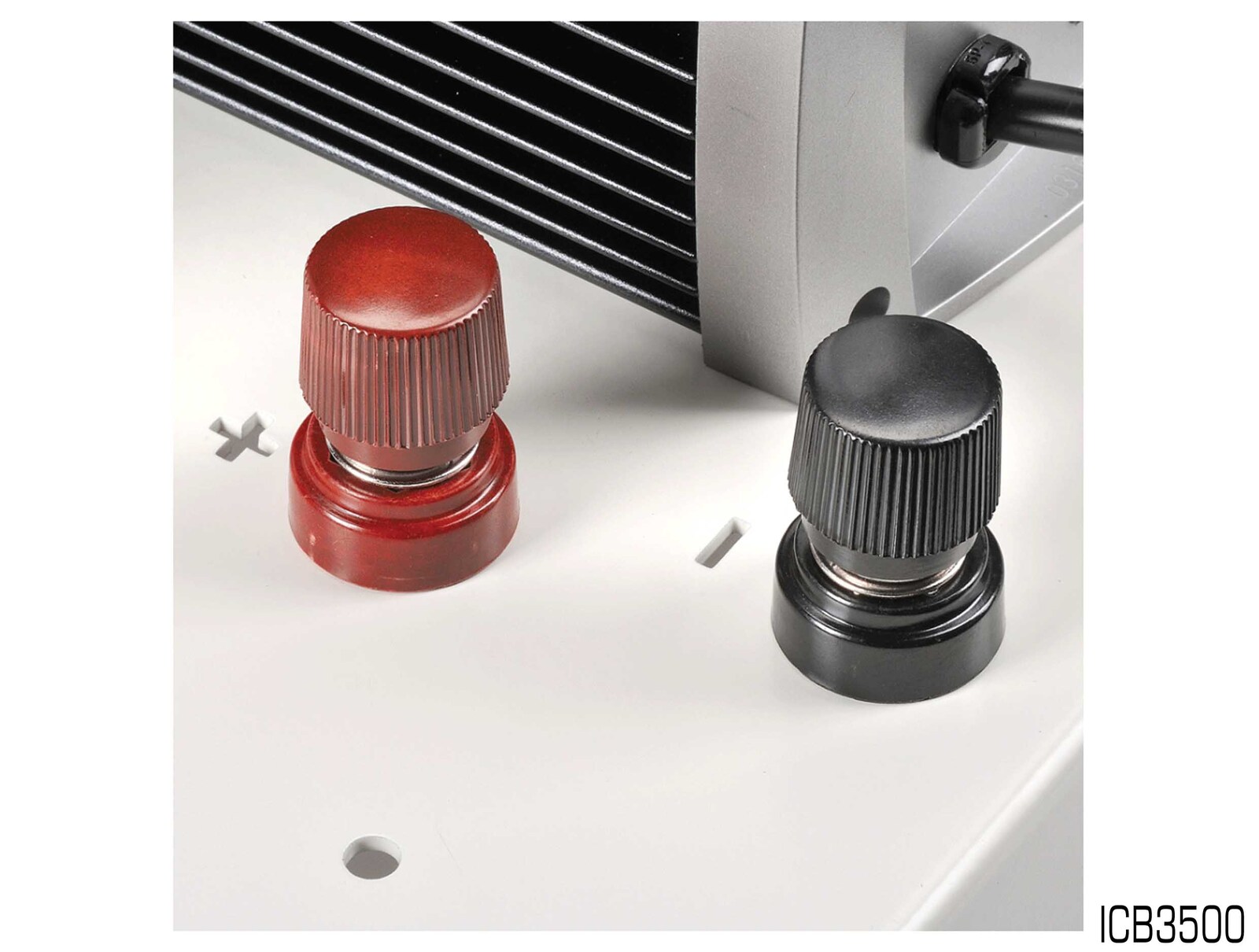

Direct battery connection

Heavy-duty positive and negative terminal posts allow for quick and direction connection to the batteries (P/No. INVPOSTS)

SPECIFICATIONS

PART NO ICB3500
240V CHARGING
CHARGER PART No. IC3500
CHARGE TYPE 7 Stage Automatic
INPUT 240VAC, 50Hz, 570W
OUTPUT 12V
OUTPUT CURRENT 2,8,16,35A
BATTERIES SUPPORTED Gel, AGM, Wet & Calcium
12V DC/SOLAR CHARGING
PART No. IDC25
CHARGE TYPE 3 Stage
ALTERNATOR INPUT VOLTAGE 9-32Vdc
MAX SOLAR INPUT 23Vdc, 385W
BATTERIES SUPPORTED Gel, AGM, Wet & Calcium
ALTERNATOR TYPE Smart & Conventional
LVD CONTROL
PART No. LVD50
INPUT VOLTAGE 10-16V
OUTPUT CURRENT 50A
