Description

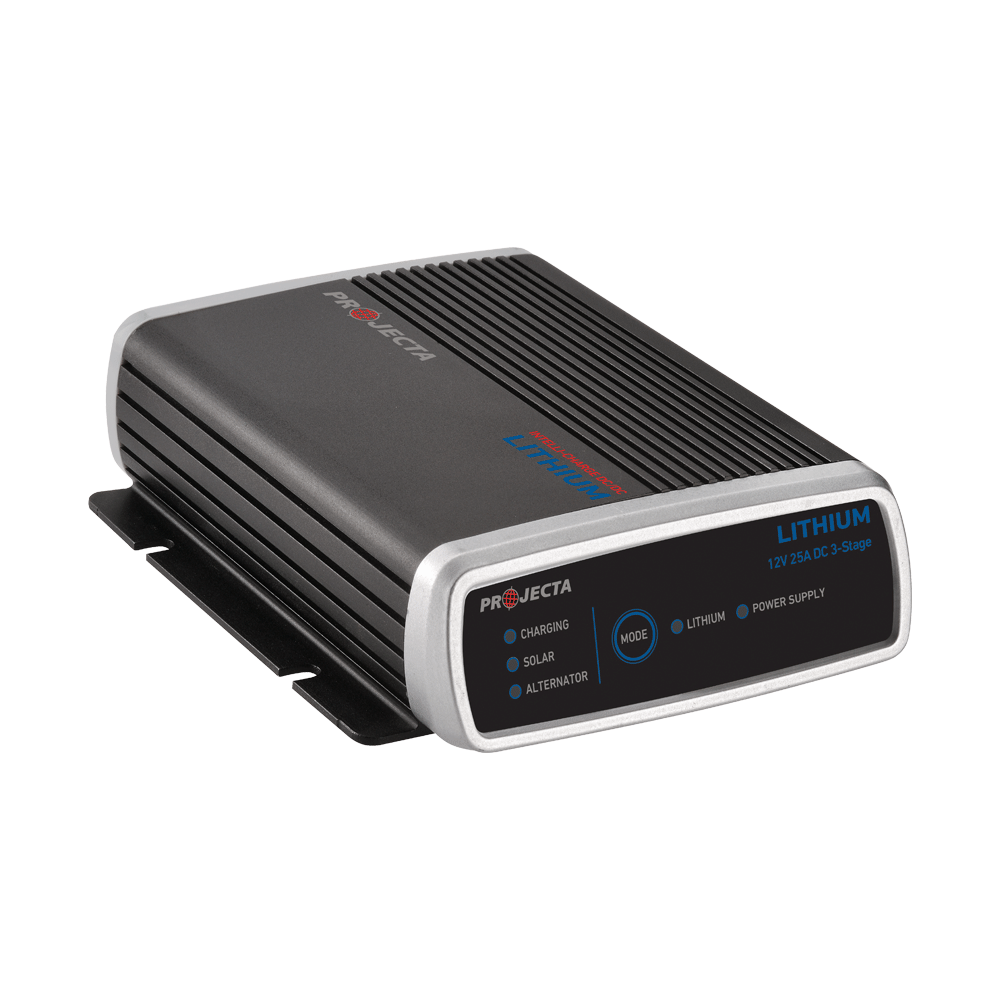

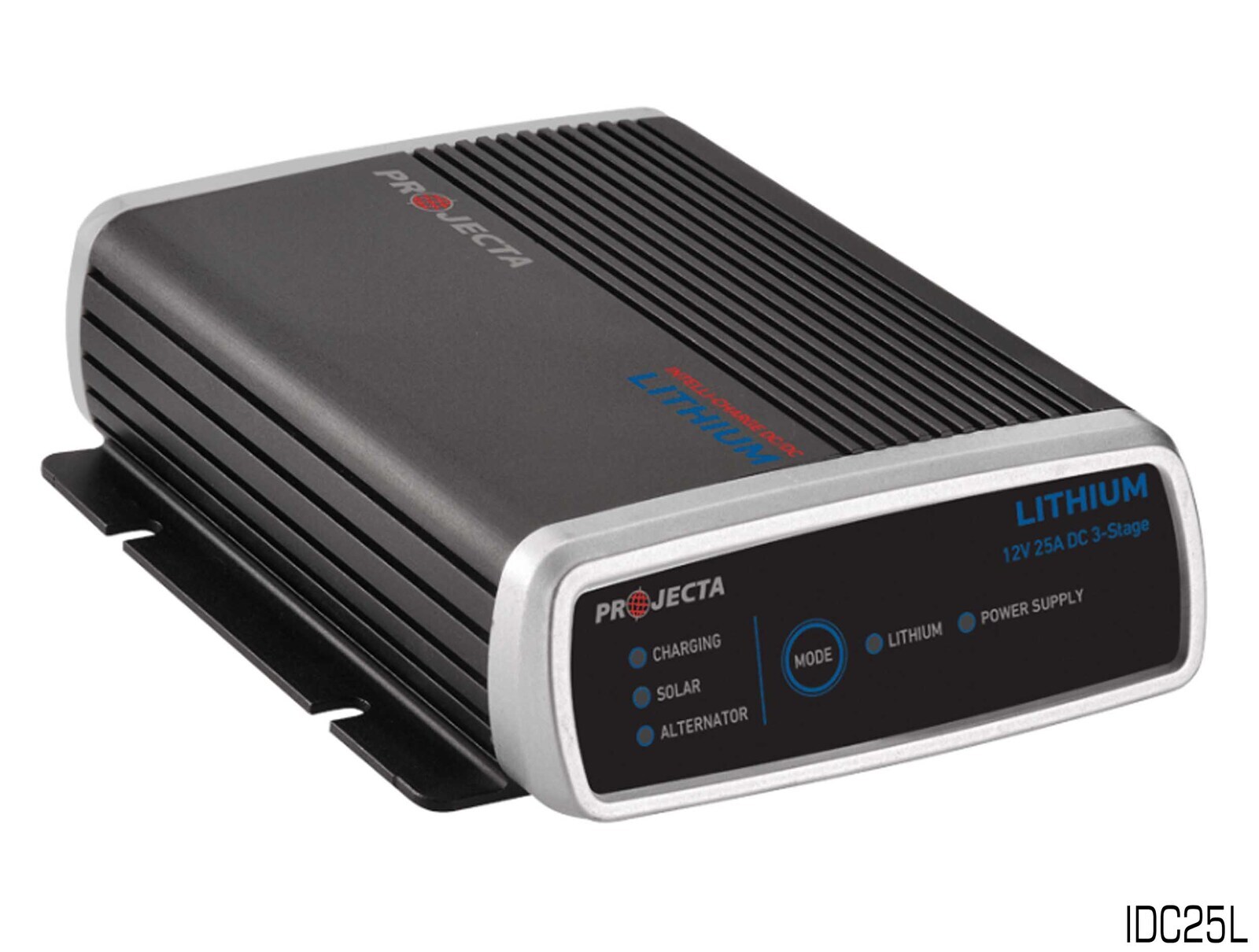

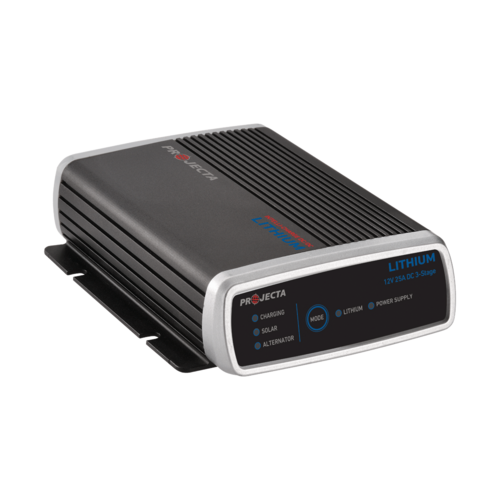

Projecta 25A 5 Stage Intelli-Charge 9-32V Lithium Dual Battery Charger

IDC25L

SOLD AS EACH

An advanced DC/solar battery charger engineered for todays sophisticated lithium iron phosphate batteries.

Features

Lithium charging technology: Engineered for use with todays advanced lithium battery technology
Engine bay installation: Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C
Dual charging modes: Engineered to work with both smart and conventional alternators
Dual input operation: Simultaneous dual battery charging from both solar and alternator inputs
Total safeguard protection: Over temperature, reverse connection, over/under and spark free protection

Specifications

Part No: IDC25L
Charge Type: 5 Stage
Alternator Input Voltage: 9-32Vdc
Max Solar Input: 28Vdc, 360W
Output Current: Input 9-11Vdc 20A, Input 11-32Vdc 25A
Back Drain on Aux Battery: 9.5-10.5mA
Charging Profile: 1st Soft Start: 1.25A, 2nd Soft Start: 6.25A, Bulk Charge Current: 25A, Absorption Voltage: 14.5V, Float Voltage: 13.5V
Battery Capacity: 50-250Ah
Batteries Supported: Lithium iron phosphate
Smart Alternator: 12V: Turn On: 12.2-20V, 24V: Turn On: 24.4-32V, Turn Off: <11.9V, Turn Off: <24V
Conventional Alternator: 12V: Turn On: 13.4-20V, 24V: Turn On: 26.8-32V, Turn Off: <12.8V, Turn Off: <25.6V
Operating Temperature: -10°C to +80°C
