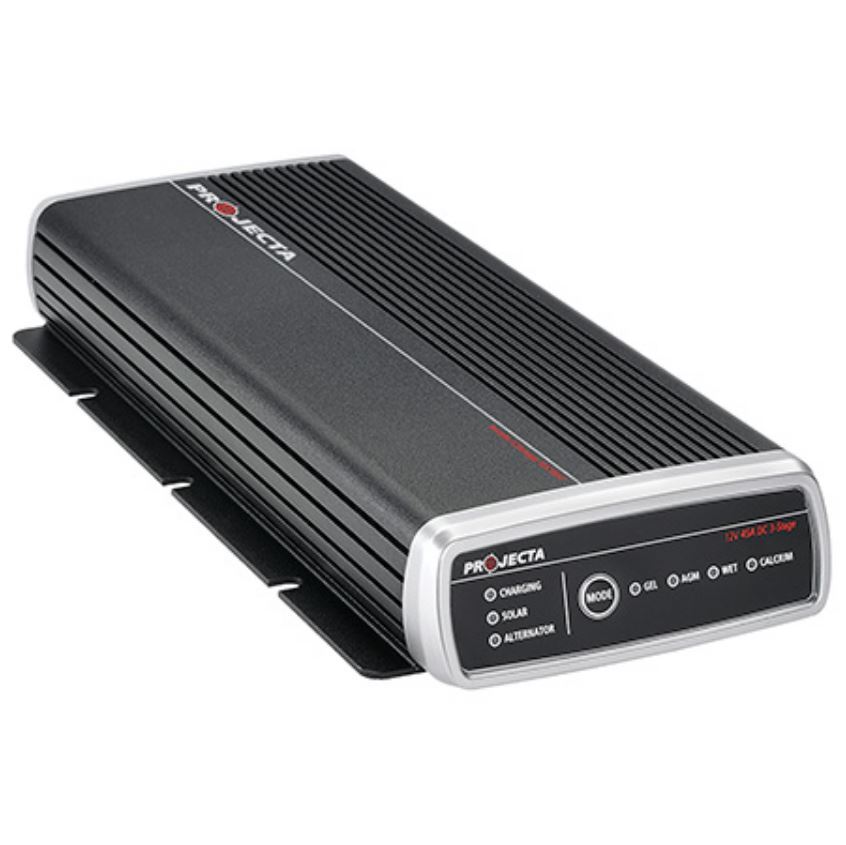

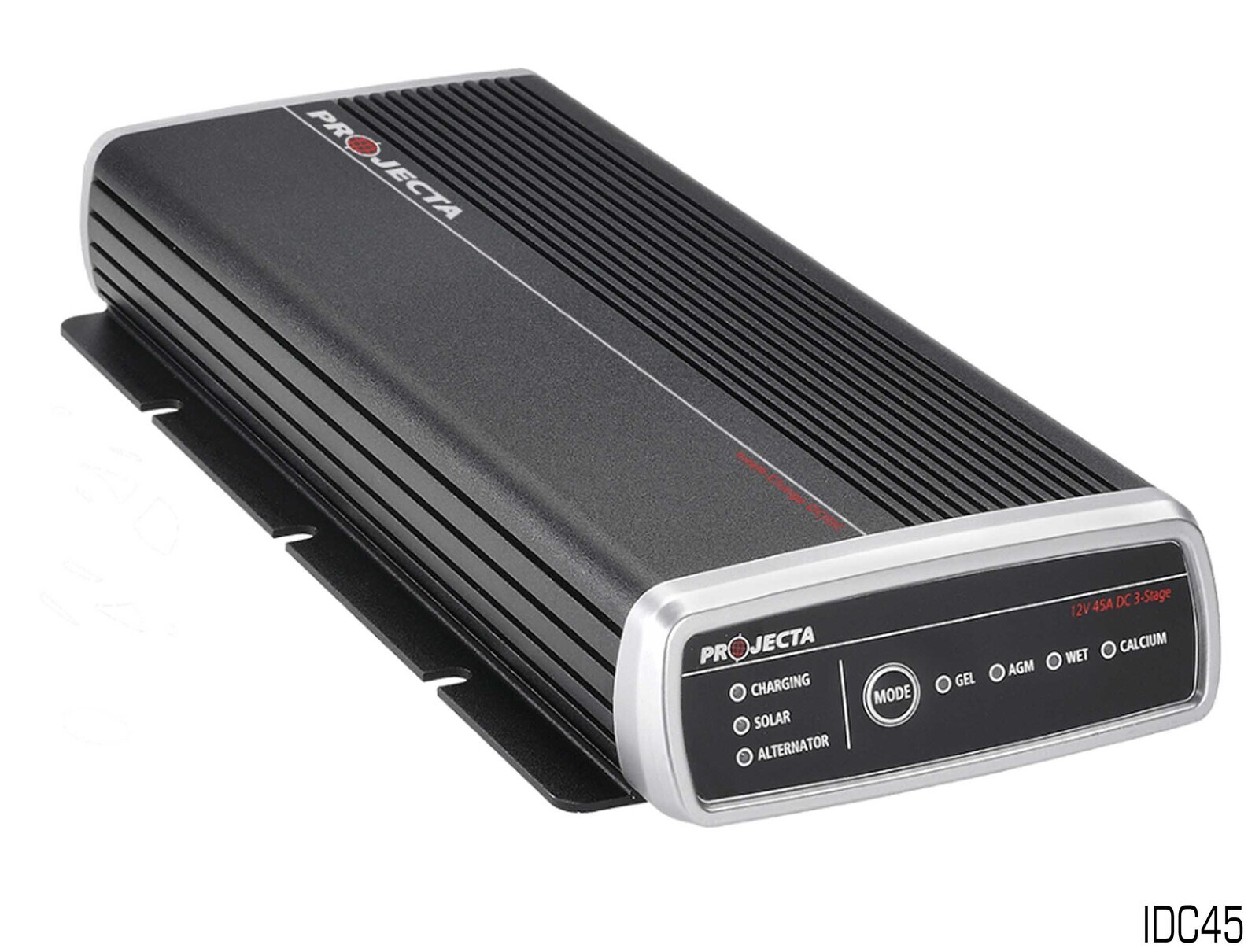

Projecta IDC45 Dual Battery System DC to DC 3 Stage Charger 12/24 Volt 45 Amp
Description
Projecta 45A 3 Stage Intelli-Charge 9-32v Deep Cycle
Dual Battery Charger
Ideal for the larger power requirements of caravans, motor homes and trucks, the IDC45 sets a new benchmark for DC-DC battery management, providing unrivalled performance and features.
Features
- Engine bay installation: Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C
- Dual charging modes: Engineered to work with both smart and conventional alternators
- Multi-chemistry: Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel

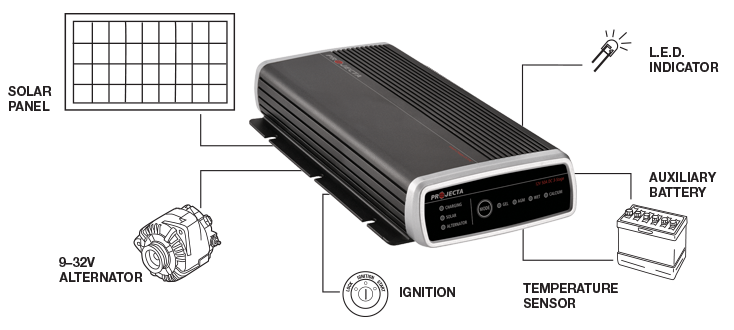

- Dual input operation: Simultaneous dual battery charging from both solar and alternator inputs
- Total safeguard protection: Over temperature, reverse connection, over/under and spark free protection
Specifications
- Part No: IDC45
- Charge Type: 3 Stage
- Alternator Input Voltage: 9-32Vdc
- Max Solar Input: 28Vdc, 693W
- Output Current: Input 9-11Vdc 37A, Input 11-32Vdc 45A
- Back Drain on Aux Battery: <5mA
- Charger Control: Gel: 14.1V, AGM: 14.4V, Wet: 14.7V, Calcium: 15.4V
- Battery Capacity: 150-600Ah
- Batteries Supported: Gel, AGM, Wet & Calcium
- Smart Alternator: 12V: Turn On: 12.2-20V, 24V: Turn On: 24.4-32V, Turn Off: <11.9V, Turn Off: <24V
- Conventional Alternator: 12V: Turn On: 13.4-20V, 24V: Turn On: 26.8-32V, Turn Off: <12.8V, Turn Off: <25.6V
- Operating Temperature: -10°C to +80°C
