OEX SMX066 Starter Motor for Harley Davidson Check App Below

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

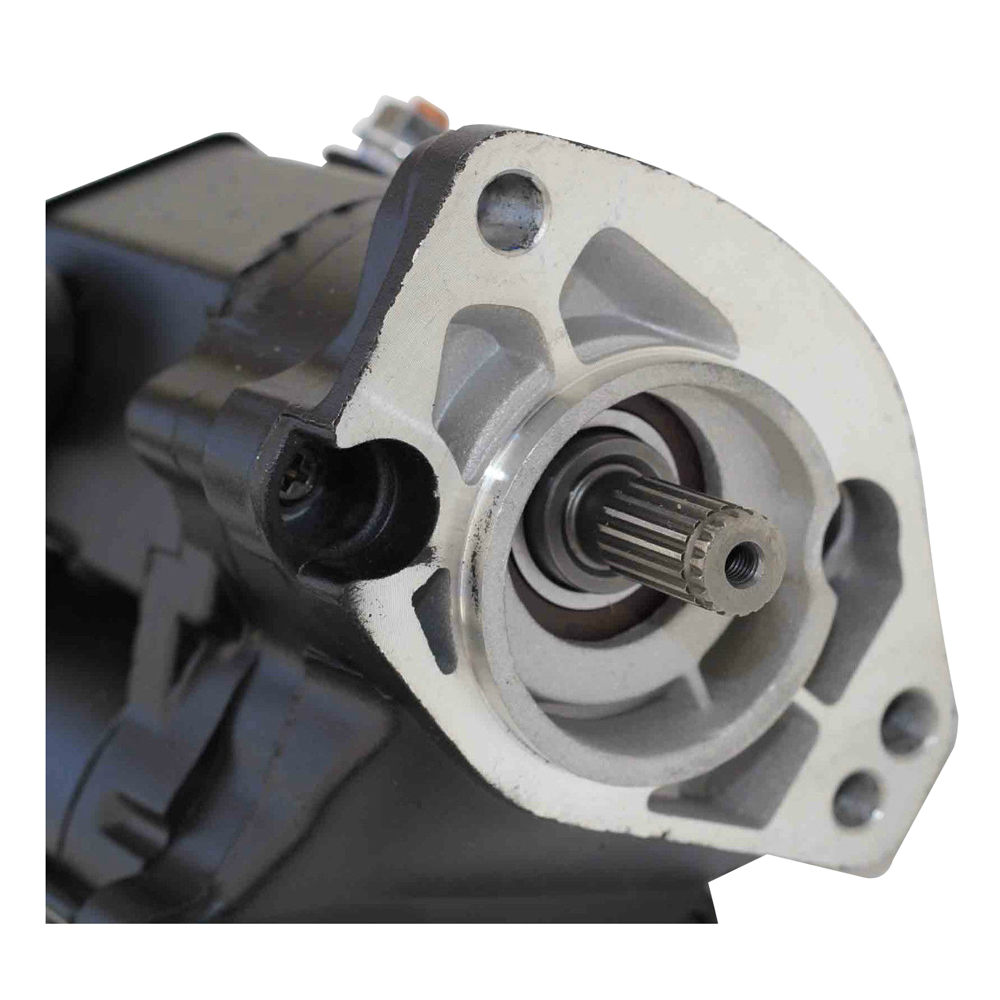

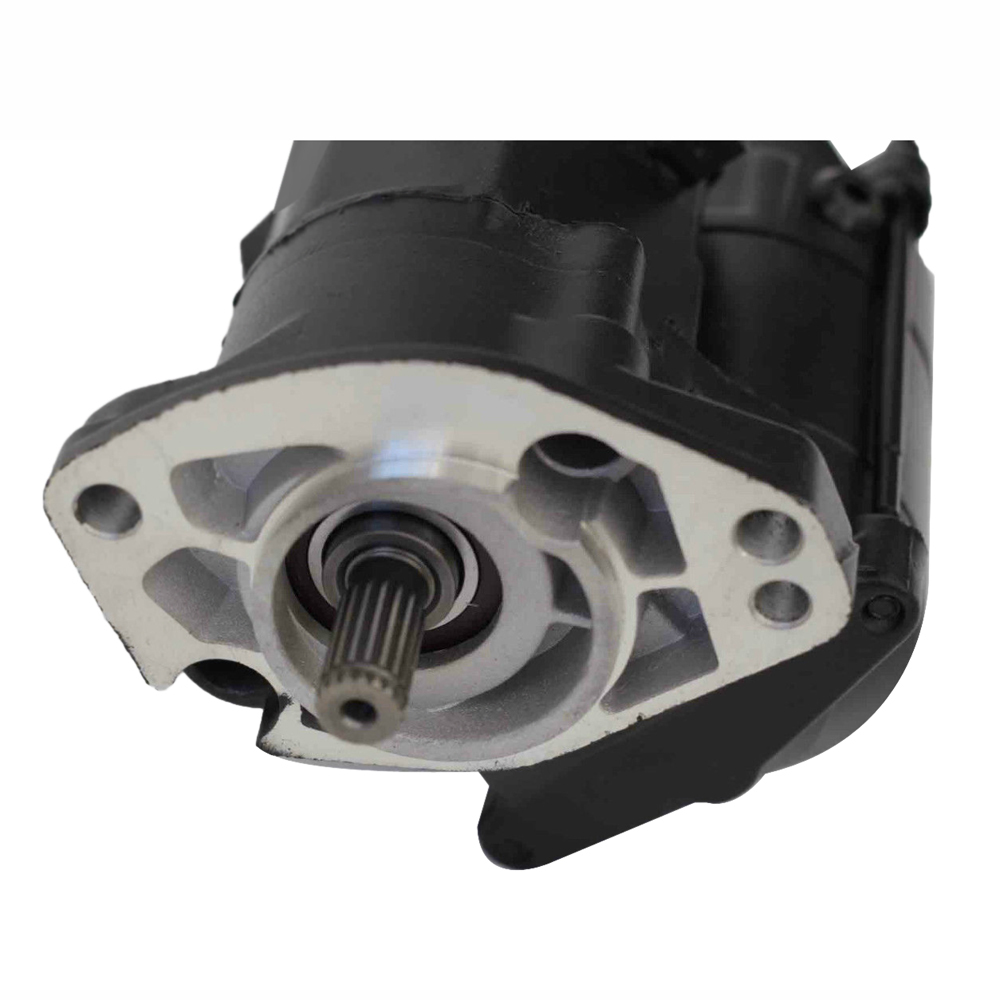

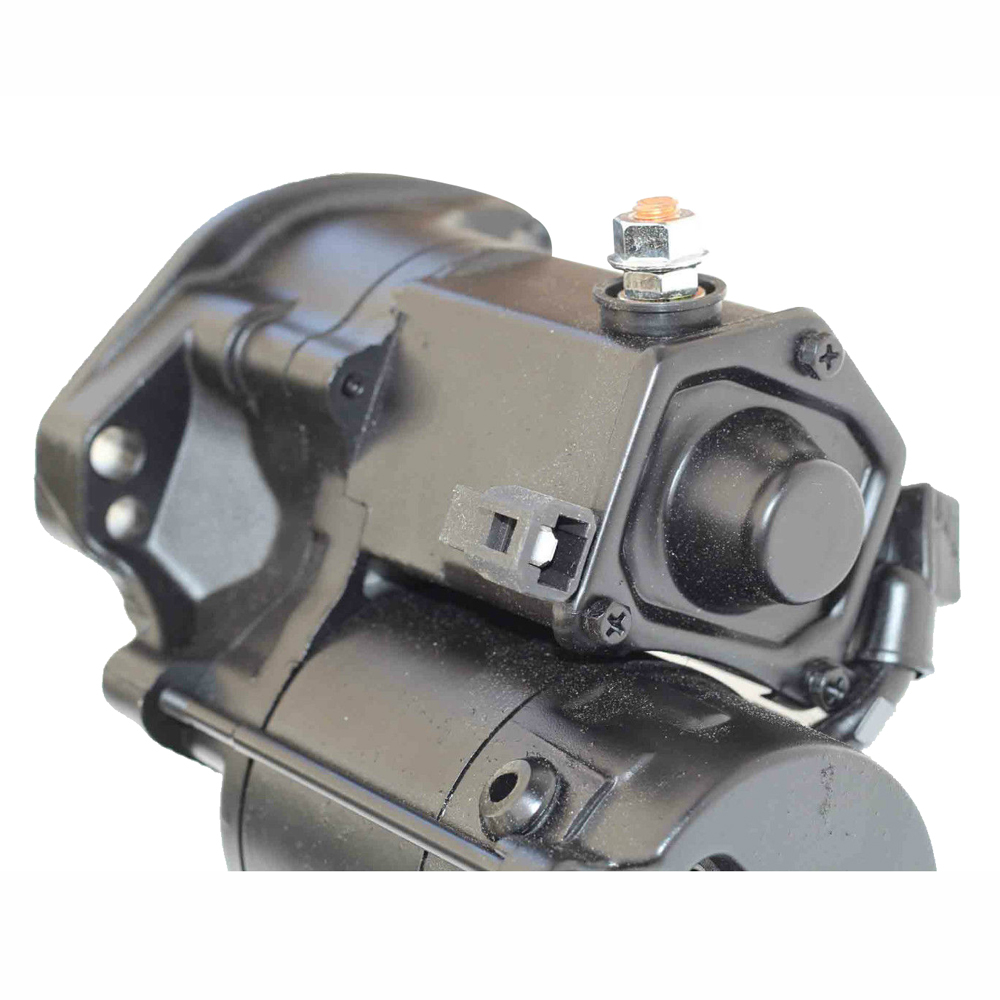

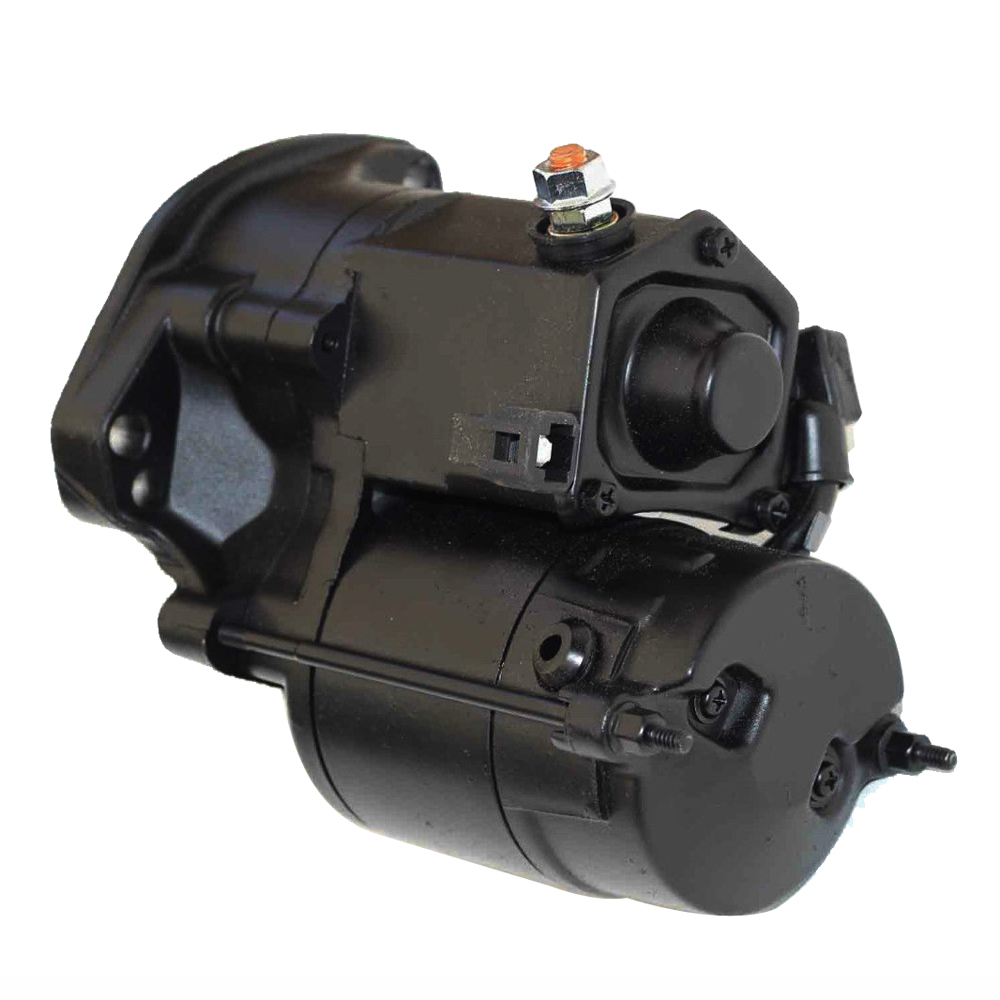

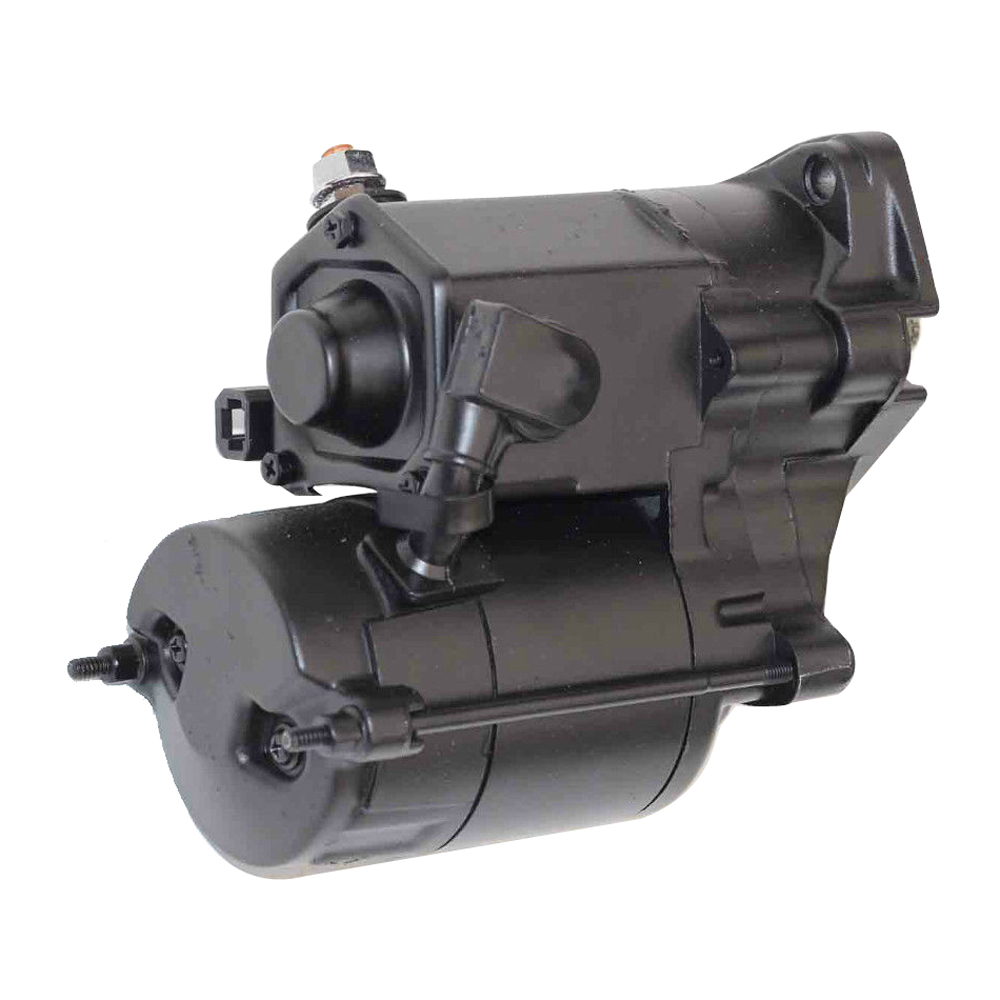

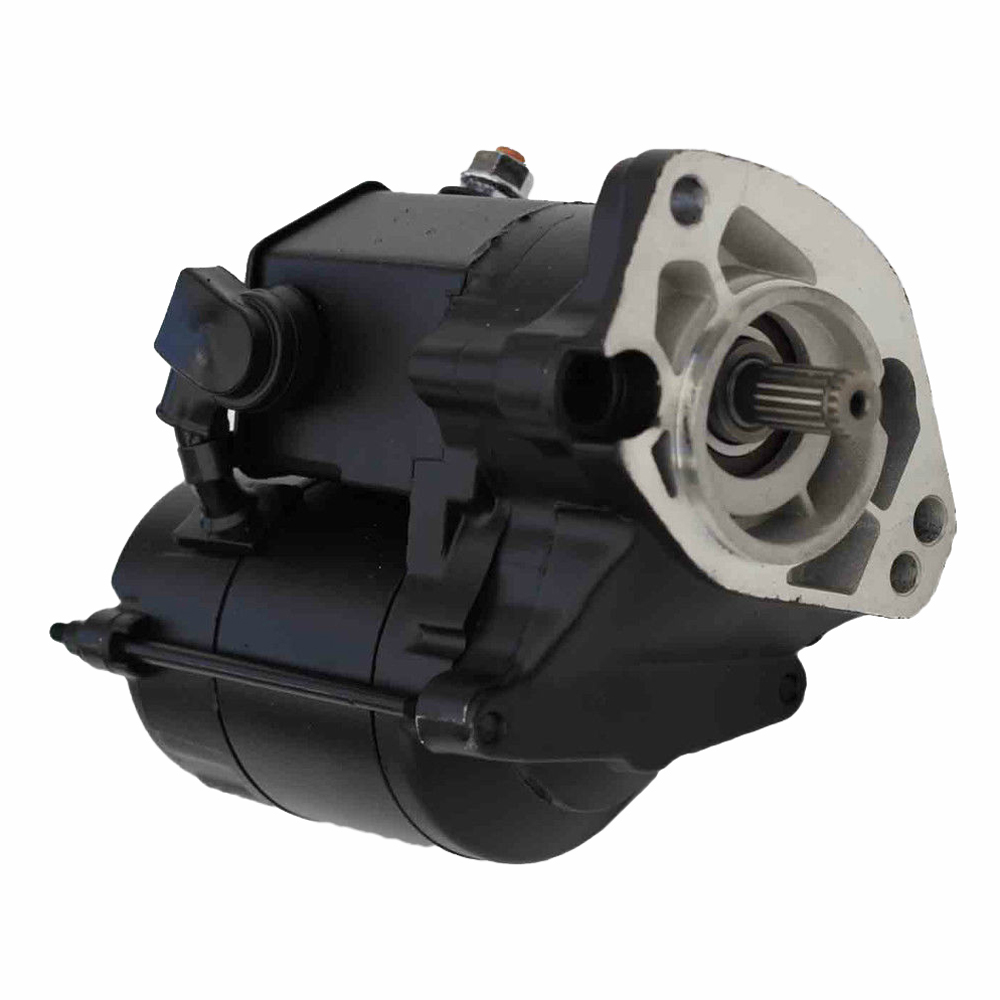

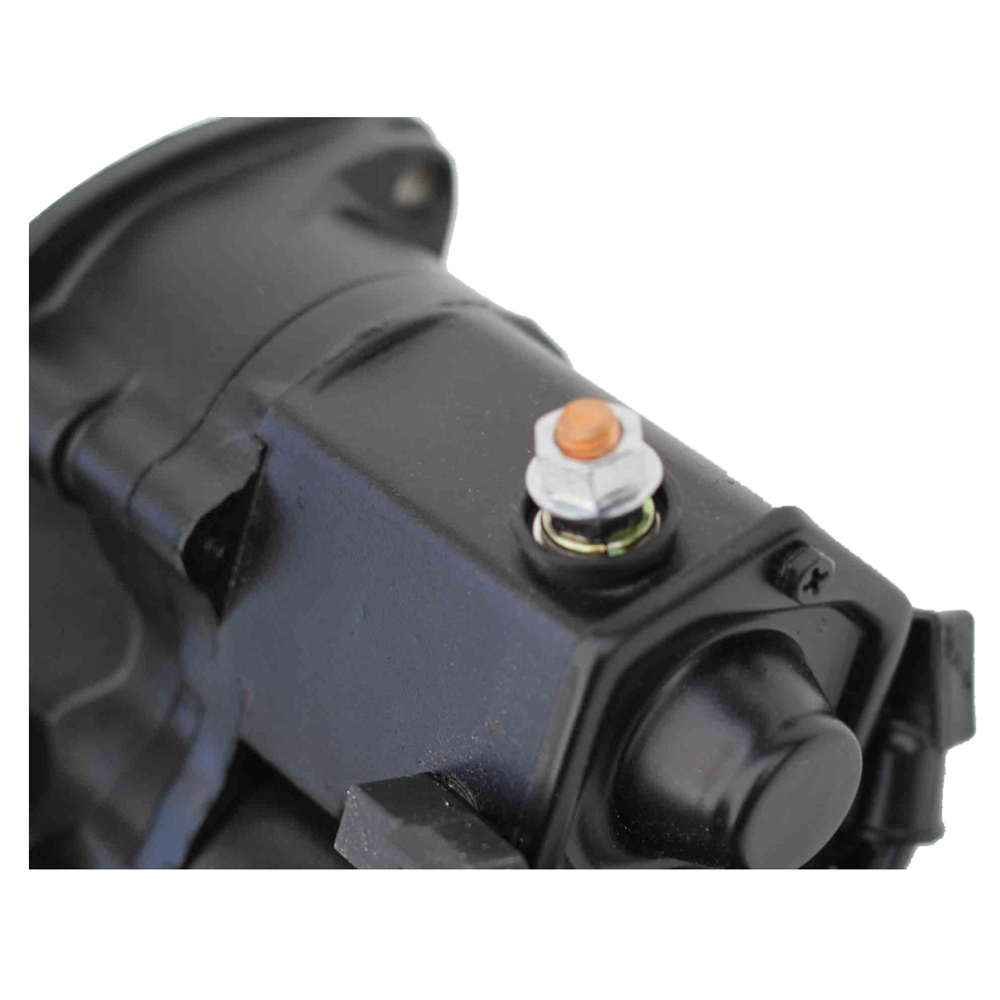

OEX Brand New Starter Motor

Hi Torque Gear Reduction Starter

Harley Davidson 1200cc-1340cc & 1450cc V Twin

Electra Road King Classic Electra Glide Classic Ultra Classic Fat Boy Heritage Softail Road Glide Dyna Super Glide Dyna Street Bob Dyna Night Train Softail Duece Springer Softail

This Harley Davidson starter motor is a quality brand new starter motor it come with a 1 year / 20,000km warranty. The starter motor is a 12 volt 1.4kw dry clutch type. Suits various V Twin Models from 1994-2006. 3 bolt.

Part no: AL065
Volts: 12
Kw: 1.4
Number of tooth: 17
Overall length: 205mm
Mounting hole dia: 3/16-24mm
Mounting holes centre to centre: 95mm
Flange dia: 54mm
Pinion dia: 13mm
Pinion at rest: 39mm

(Pinion at rest is the pinion gear depth)

3 Bolt

AL066

SMX066

SOLD AS EACH

Suits these vehicles:

Harley Davidson Starter Motor

Harley Davidson Classic FLHTCI 1.5L 1450 Carb 2cyl Motor Bike [01/1996-12/1998] Starter Motor 1
Harley Davidson Dyna FXDS 1.4L TC88 DOHC-PB 4v Carb V2 Motor Bike [01/1994-12/2002] Starter Motor 1
Harley Davidson Dyna Street Bob FXDBI 1.5L 1450 Carb 2cyl Motor Bike [01/2006-On] Starter Motor 1
Harley Davidson Dyna Super Glide FXD 1.4L TC88 DOHC-PB 4v Carb V2 Motor Bike [01/1995-12/2006] Starter Motor 1
Harley Davidson Electra Glide Classic FLHTCI 1.3L 1340 Carb 2cyl Motor Bike [01/2000-12/2006] Starter Motor 1
Harley Davidson Electra Road King FLHR 1.3L 1340 Carb 2cyl Motor Bike [01/1996-12/1998] Starter Motor 1
Harley Davidson Fat Boy FLSTF 1.4L TC88 DOHC-PB 4v Carb V2 Motor Bike [01/1998-12/2006] Starter Motor 1
Harley Davidson Heritage Softail FLSTS 1.4L TC88 DOHC-PB 4v Carb V2 Motor Bike [01/1998-12/2003] Starter Motor 1
Harley Davidson Heritage Softail FLSTSC 1.5L 1450 Carb 2cyl Motor Bike [01/2005-12/2006] Starter Motor 1
Harley Davidson Night Train FXSTB 1.4L B1450 4v Carb V2 Motor Bike [01/1999-12/2006] Starter Motor 1
Harley Davidson Road Glide FLTR 1.5L 1450 Carb 2cyl Motor Bike [01/1998-12/2002] Starter Motor 1
Harley Davidson Road Glide FLTRI 1.4L 1450 EFI 4v EFI V2 Motor Bike [01/1998-12/2006] Starter Motor 1
Harley Davidson Road King CLASSIC FLHRCI 1.5L 1450 Carb 2cyl Motor Bike [01/1998-12/2006] Starter Motor 1
Harley Davidson Road King FLHR 1.3L 1340 Carb 2cyl Motor Bike [01/1994-12/1995] Starter Motor 1
Harley Davidson Road King FLHR 1.5L 1450 Carb 2cyl Motor Bike [01/1999-12/2006] Starter Motor 1
Harley Davidson Road King FLHRI 1.5L 1450 Carb 2cyl Motor Bike [01/1996-12/2006] Starter Motor 1
Harley Davidson Softail Duece FXSTDI 1.5L 1450 Carb 2cyl Motor Bike [01/2001-12/2002] Starter Motor 1
Harley Davidson Springer Softail FXSTS 1.3L 1340 Carb 2cyl Motor Bike [01/1994-12/1999] Starter Motor 1
Harley Davidson Ultra Classic FLHTCUI 1.5L 1450 Carb 2cyl Motor Bike [01/1995-12/2006] Starter Motor 1
Unit Denso Starter Motor 228000-2550 Starter Motor 1

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.

INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.

WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.

PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.

RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.

Thank you For Looking!

HAPPY SHOPPING !

Specifications

SKU	SMX066
Barcode #	9315275678191
Brand	OEX
Shipping Weight	4.5000kg
Shipping Width	0.180m
Shipping Height	0.180m
Shipping Length	0.200m
Shipping Cubic	0.006480000m3
Unit Of Measure	ea
