Starter Motor for Holden HSV Avalanche Y-Series Z-Series V8 5.7L Gen 3

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

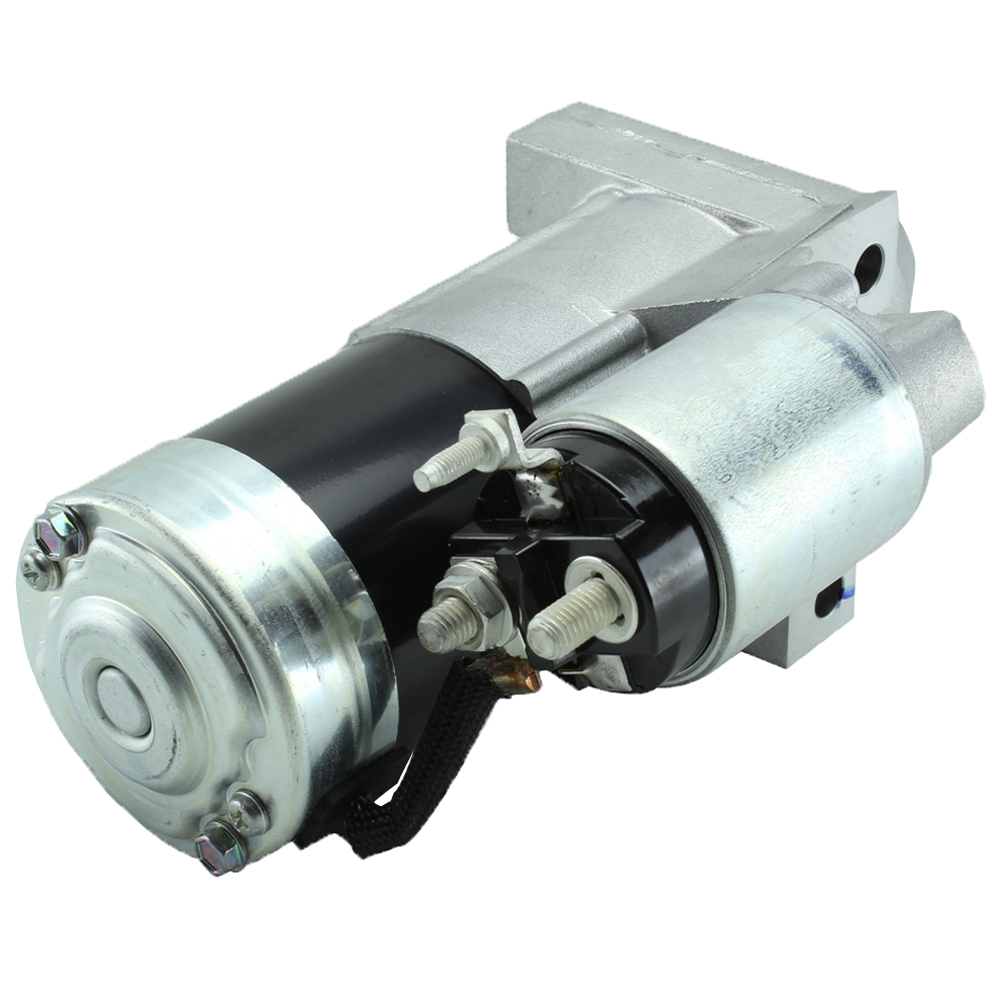

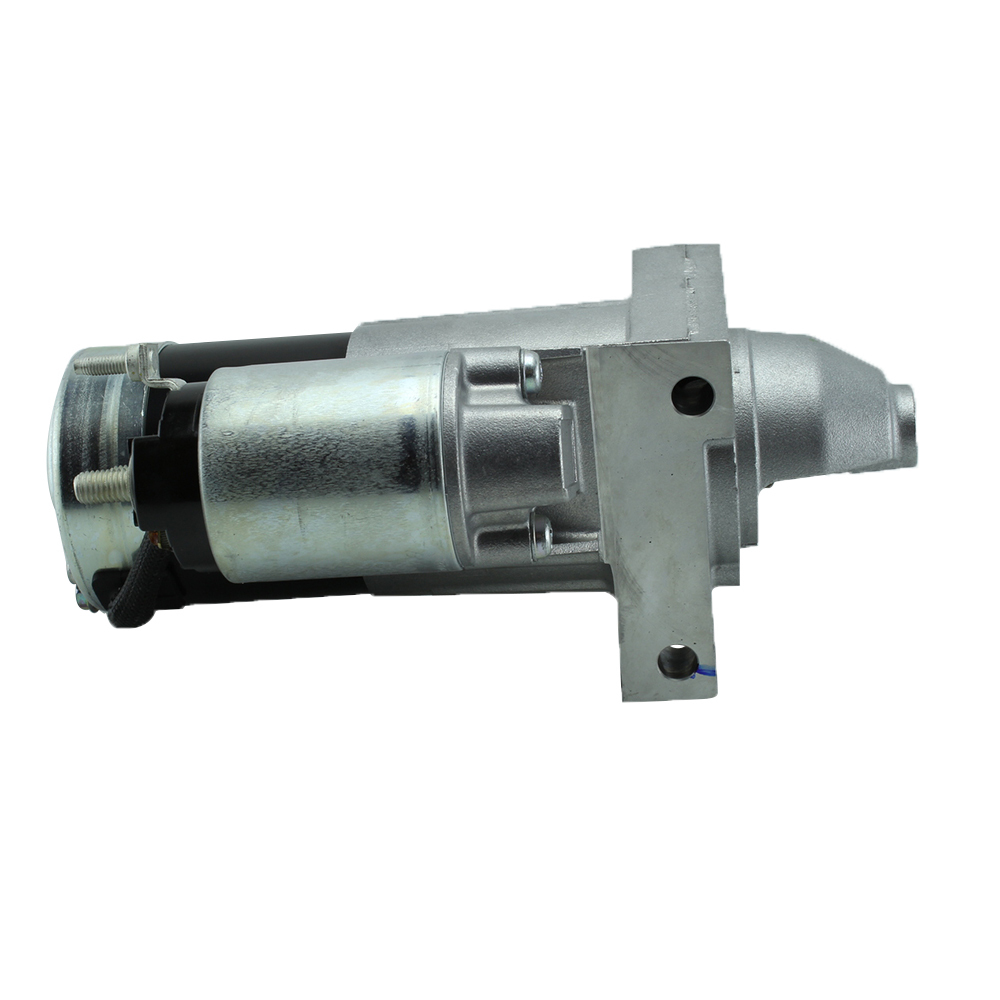

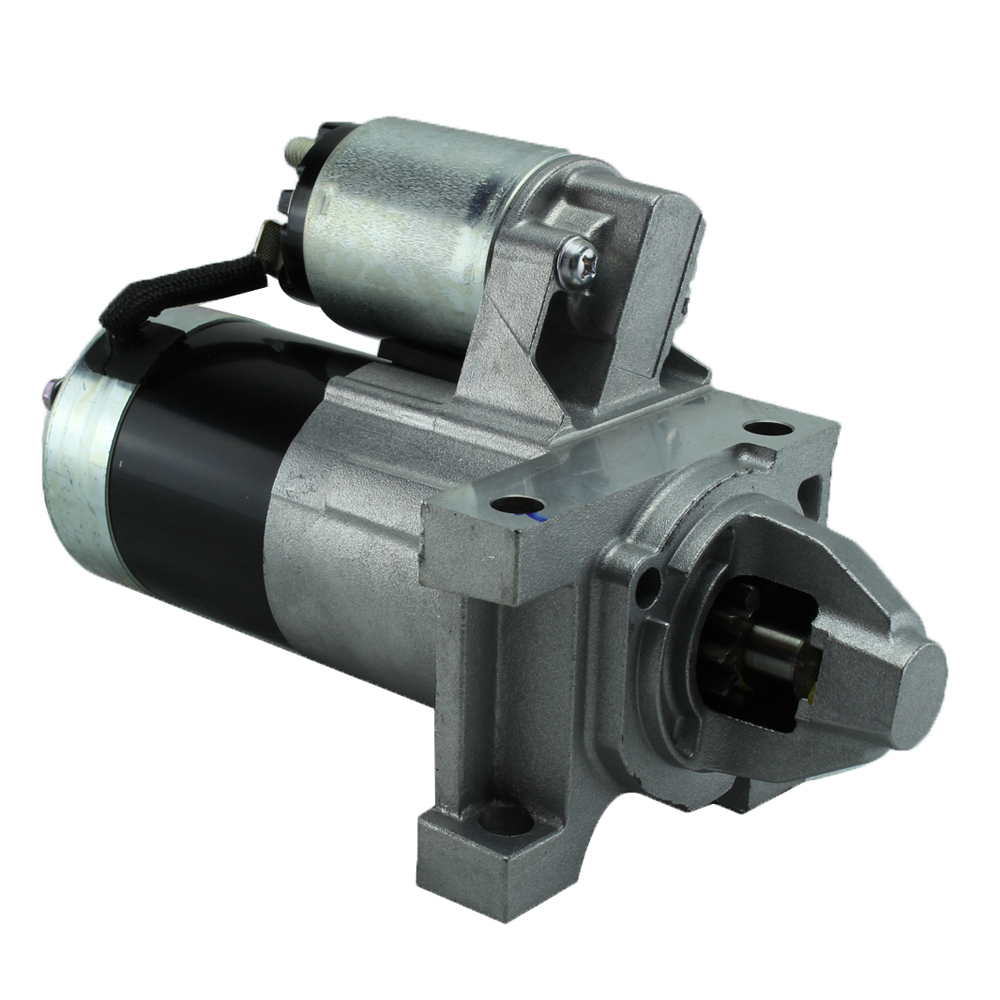

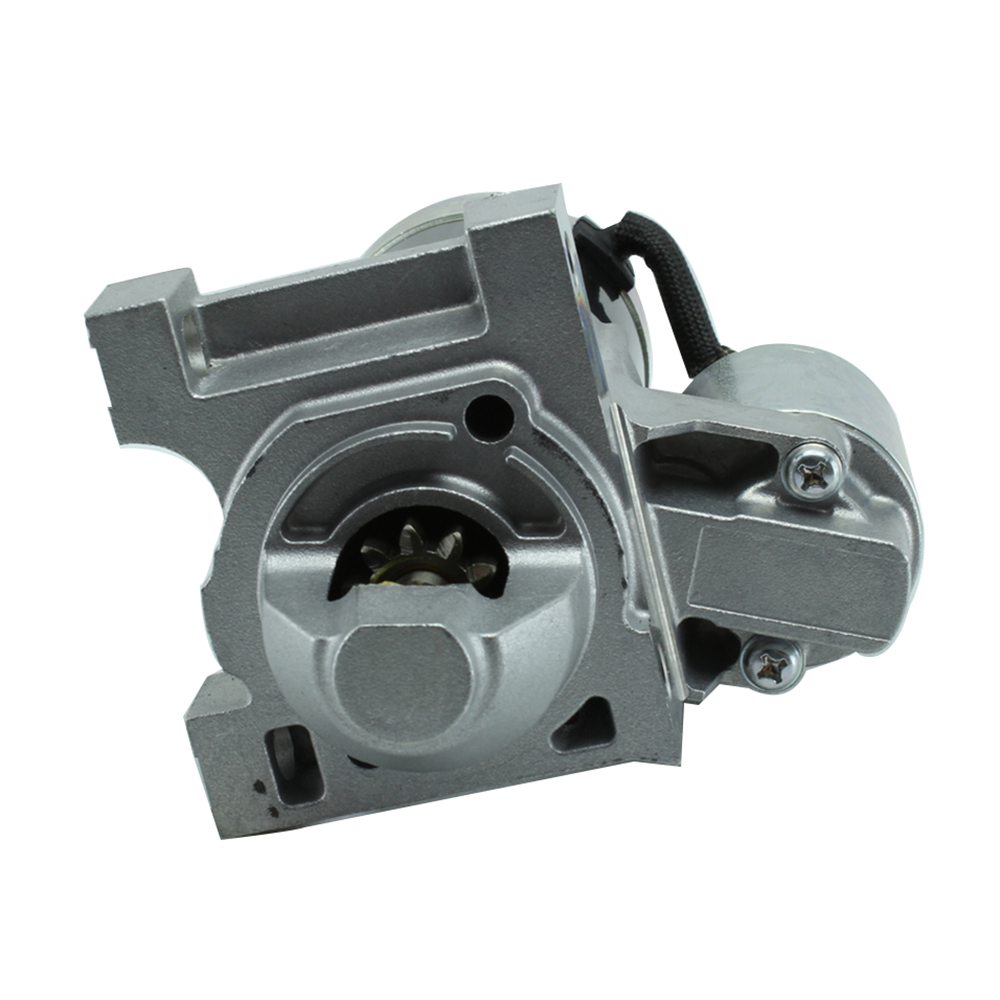

OEX Brand New Starter Motor

Suits Holden V8 5.7L 6.0L Gen 3 Gen 4 Commodore Crewman Monaro VT VU VX VY VZ Statesman WH WK & HSV Models

Description: STR 12V 10TH CW Delco Style
Warranty: 3yr Passenger 1yr Commercial
Flange Diameter: 58mm
Mount Centres A: 74mm
Mount Hole Diameter: 10
Number of Teeth: 10
Overall Length: 226mm
Pinion at Rest: 11mm
Pinion Diameter: 28mm
Power Rating: 1.2kW
Rotation: CW
Suits Unit Make: Delco
Voltage: 12
Weight: 3.72kg
Item Type: Starter Motor
New / Reman.: New
Starter Mount Type: Pad
Wet / Dry Clutch: Dry

DXS535

SOLD AS EACH

Compatible with these vehicles:

Holden Adventra VY Series 2 VZ

Adventra VY Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Wagon AWD [08/2003-07/2004] Starter Motor 1
Adventra VZ 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Wagon AWD [08/2004-07/2007] Starter Motor 1

Holden Berlina VT Series 2 VX Series 1 VX Series 2 VY Series 1 VY Series 2 VZ

Berlina VT Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [06/1999-09/2000] Starter Motor 1
Berlina VT Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Wagon RWD [06/1999-09/2000] Starter Motor 1
Berlina VX Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [10/2000-07/2001] Starter Motor 1
Berlina VX Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Wagon RWD [10/2000-07/2001] Starter Motor 1
Berlina VX Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [08/2001-09/2002] Starter Motor 1
Berlina VX Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Wagon RWD [08/2001-09/2002] Starter Motor 1
Berlina VY Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [10/2002-07/2003] Starter Motor 1
Berlina VY Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Wagon RWD [10/2002-07/2003] Starter Motor 1
Berlina VY Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [08/2003-07/2004] Starter Motor 1
Berlina VY Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Wagon RWD [08/2003-07/2004] Starter Motor 1
Berlina VZ 3.6L HFV6 LE0 DOHC-PB 24v MPFI V6 4sp Auto 4dr Sedan RWD [08/2004-07/2006] Starter Motor 1
Berlina VZ 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [08/2004-07/2006] Starter Motor 1
Berlina VZ 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Wagon RWD [08/2004-07/2007] Starter Motor 1
Berlina VZ 6.0L Gen4 L76 OHV 16v MPFI V8 260kW 4sp Auto 4dr Sedan RWD [08/2004-07/2006] Starter Motor 1
Berlina VZ 6.0L Gen4 L76 OHV 16v MPFI V8 260kW 4sp Auto 4dr Wagon RWD [08/2004-07/2007] Starter Motor 1

Holden Calais VT Series 2 VX Series 1 VX Series 2 VY Series 1 VY Series 2 VZ

Calais VT Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [06/1999-09/2000] Starter Motor 1
Calais VX Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [10/2000-07/2001] Starter Motor 1
Calais VX Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [08/2001-09/2002] Starter Motor 1
Calais VY Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [10/2002-07/2003] Starter Motor 1
Calais VY Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [08/2003-07/2004] Starter Motor 1
Calais VZ 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [08/2004-07/2006] Starter Motor 1
Calais VZ 6.0L Gen4 L76 OHV 16v MPFI V8 260kW 4sp Auto 4dr Sedan RWD [08/2004-07/2006] Starter Motor 1

Holden Caprice WH Series 1 WH Series 2 WK WL

Caprice WH Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [06/1999-07/2001] Starter Motor 1
Caprice WH Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [08/2001-04/2003] Starter Motor 1
Caprice WK 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [05/2003-07/2004] Starter Motor 1
Caprice WL 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [08/2004-12/2005] Starter Motor 1
Caprice WL 6.0L Gen4 L76 OHV 16v MPFI V8 260kW 4sp Auto 4dr Sedan RWD [01/2006-08/2006] Starter Motor 1

Holden Commodore VE Series 1 SS/SSV to MY09

Commodore VE Series 1 SS/SSV to MY09 6.0L Gen4 L98 OHV 16v MPFI V8 270kW 6sp Auto 2dr Utility RWD [09/2007-12/2008] Starter Motor 1
Commodore VE Series 1 SS/SSV to MY09 6.0L Gen4 L98 OHV 16v MPFI V8 270kW 6sp Auto 4dr Sedan RWD [08/2006-12/2008] Starter Motor 1
Commodore VE Series 1 SS/SSV to MY09 6.0L Gen4 L98 OHV 16v MPFI V8 270kW 6sp Auto 4dr Wagon RWD [01/2008-12/2008] Starter Motor 1

Holden Commodore VT Series 2 VU Series 1 VU Series 2 VX Series 1 VX Series 2 VY Series 1 VY Series 2 VZ

Commodore VT Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [06/1999-09/2000] Starter Motor 1
Commodore VT Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Wagon RWD [06/1999-09/2000] Starter Motor 1
Commodore VT Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [06/1999-09/2000] Starter Motor 1
Commodore VT Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Wagon RWD [06/1999-09/2000] Starter Motor 1
Commodore VU Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Utility RWD [11/2000-08/2001] Starter Motor 1
Commodore VU Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Utility RWD [11/2000-08/2001] Starter Motor 1
Commodore VU Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Utility RWD [08/2001-09/2002] Starter Motor 1
Commodore VU Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Utility RWD [08/2001-09/2002] Starter Motor 1
Commodore VX Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [10/2000-07/2001] Starter Motor 1
Commodore VX Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Wagon RWD [10/2000-07/2001] Starter Motor 1
Commodore VX Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [10/2000-07/2001] Starter Motor 1
Commodore VX Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Wagon RWD [10/2000-07/2001] Starter Motor 1
Commodore VX Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [08/2001-09/2002] Starter Motor 1
Commodore VX Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [08/2001-09/2002] Starter Motor 1
Commodore VY Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Cab Chassis 1 Tonne RWD [10/2002-07/2003] Starter Motor 1
Commodore VY Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Utility RWD [10/2002-07/2003] Starter Motor 1
Commodore VY Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [10/2002-07/2003] Starter Motor 1
Commodore VY Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Wagon RWD [10/2002-07/2003] Starter Motor 1
Commodore VY Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Cab Chassis 1 Tonne RWD [10/2002-07/2003] Starter Motor 1
Commodore VY Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Utility RWD [10/2002-07/2003] Starter Motor 1
Commodore VY Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [10/2002-07/2003] Starter Motor 1
Commodore VY Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Wagon RWD [10/2002-07/2003] Starter Motor 1
Commodore VY Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Cab Chassis 1 Tonne RWD [08/2003-07/2004] Starter Motor 1
Commodore VY Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Utility RWD [08/2003-07/2004] Starter Motor 1
Commodore VY Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [08/2003-07/2004] Starter Motor 1
Commodore VY Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Wagon RWD [08/2003-07/2004] Starter Motor 1
Commodore VY Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Cab Chassis 1 Tonne RWD [08/2003-07/2004] Starter Motor 1
Commodore VY Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Utility RWD [08/2003-07/2004] Starter Motor 1
Commodore VY Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [08/2003-07/2004] Starter Motor 1
Commodore VY Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Wagon RWD [08/2003-07/2004] Starter Motor 1
Commodore VZ 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Cab Chassis 1 Tonne RWD [08/2004-07/2007] Starter Motor 1
Commodore VZ 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Utility RWD [08/2004-07/2007] Starter Motor 1
Commodore VZ 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [08/2004-07/2006] Starter Motor 1
Commodore VZ 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Cab Chassis 1 Tonne RWD [08/2004-07/2007] Starter Motor 1
Commodore VZ 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Utility RWD [08/2004-07/2007] Starter Motor 1
Commodore VZ 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [08/2004-07/2006] Starter Motor 1
Commodore VZ 6.0L Gen4 L76 OHV 16v MPFI V8 260kW 4sp Auto 2dr Utility RWD [08/2004-07/2006] Starter Motor 1
Commodore VZ 6.0L Gen4 L76 OHV 16v MPFI V8 260kW 4sp Auto 4dr Sedan RWD [08/2004-07/2006] Starter Motor 1
Commodore VZ 6.0L Gen4 L76 OHV 16v MPFI V8 260kW 6sp Man 2dr Utility RWD [08/2004-07/2006] Starter Motor 1
Commodore VZ 6.0L Gen4 L76 OHV 16v MPFI V8 260kW 6sp Man 4dr Sedan RWD [08/2004-07/2006] Starter Motor 1
Commodore VZ 6.0L Gen4 L98 OHV 16v MPFI V8 270kW 4sp Auto 2dr Utility RWD [08/2006-08/2007] Starter Motor 1
Commodore VZ 6.0L Gen4 L98 OHV 16v MPFI V8 270kW 6sp Man 2dr Utility RWD [08/2006-08/2007] Starter Motor 1

Holden Crewman VY Series 2 VZ Cross 8 VZ SS VZ SS/SSZ/SV8

Crewman VY Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Utility RWD [08/2003-07/2004] Starter Motor 1
Crewman VY Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Utility RWD [08/2003-07/2004] Starter Motor 1
Crewman VY Series 2 Cross 8 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Utility AWD [08/2003-07/2004] Starter Motor 1
Crewman VZ Cross 8 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Utility AWD [08/2004-07/2007] Starter Motor 1
Crewman VZ Cross 8 6.0L Gen4 L76 OHV 16v MPFI V8 260kW 4sp Auto 4dr Utility AWD [08/2004-07/2006] Starter Motor 1
Crewman VZ SS 6.0L Gen4 L76 OHV 16v MPFI V8 260kW 4sp Auto 4dr Utility RWD [01/2006-07/2007] Starter Motor 1
Crewman VZ SS 6.0L Gen4 L76 OHV 16v MPFI V8 260kW 6sp Man 4dr Utility RWD [01/2006-07/2007] Starter Motor 1
Crewman VZ SS/SSZ/SV8 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Utility RWD [08/2004-12/2005] Starter Motor 1
Crewman VZ SS/SSZ/SV8 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Utility RWD [08/2004-12/2005] Starter Motor 1

Holden VZ Thunder SS

Crewman VZ Thunder SS 6.0L Gen4 L98 OHV 16v MPFI V8 270kW 4sp Auto 4dr Utility RWD [01/2006-07/2007] Starter Motor 1
Crewman VZ Thunder SS 6.0L Gen4 L98 OHV 16v MPFI V8 270kW 6sp Man 4dr Utility RWD [01/2006-07/2007] Starter Motor 1

Holden Monaro V2 Series 1 V2 Series 2 V2 Series 3 VZ

Monaro V2 Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Coupe RWD [12/2001-11/2002] Starter Motor 1
Monaro V2 Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Coupe RWD [12/2001-11/2002] Starter Motor 1
Monaro V2 Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Coupe RWD [12/2002-07/2003] Starter Motor 1
Monaro V2 Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Coupe RWD [12/2002-07/2003] Starter Motor 1
Monaro V2 Series 3 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Coupe RWD [08/2003-08/2004] Starter Motor 1
Monaro V2 Series 3 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Coupe RWD [08/2003-08/2004] Starter Motor 1
Monaro VZ 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Coupe RWD [09/2004-12/2005] Starter Motor 1
Monaro VZ 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Coupe RWD [09/2004-12/2005] Starter Motor 1

Holden Statesman WH Series 1 WH Series 2 WK WL

Statesman WH Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [06/1999-07/2001] Starter Motor 1
Statesman WH Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [08/2001-04/2003] Starter Motor 1
Statesman WK 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [05/2003-07/2004] Starter Motor 1
Statesman WL 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [08/2004-12/2005] Starter Motor 1
Statesman WL 6.0L Gen4 L76 OHV 16v MPFI V8 260kW 4sp Auto 4dr Sedan RWD [01/2006-08/2006] Starter Motor 1

HSV Avalanche VY Y-Series Series 2 VZ Z-Series

Avalanche VY Y-Series Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Utility AWD [09/2003-09/2004] Starter Motor 1
Avalanche VY Y-Series Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Wagon AWD [09/2003-09/2004] Starter Motor 1
Avalanche VZ Z-Series 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Utility AWD [10/2004-07/2006] Starter Motor 1
Avalanche VZ Z-Series 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Wagon AWD [10/2004-07/2006] Starter Motor 1

HSV Caprice VR VS Series 1

Caprice VR 5.7L 350 cu.in Stroker OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [07/1993-03/1995] Starter Motor 1
Caprice VS Series 1 5.7L 350 cu.in Stroker OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [04/1995-05/1996] Starter Motor 1

HSV Clubsport VT Series 2 VX Series 1 VX Series 2

Clubsport VT Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [06/1999-09/2000] Starter Motor 1
Clubsport VT Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [06/1999-09/2000] Starter Motor 1
Clubsport VX Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [09/2000-09/2001] Starter Motor 1
Clubsport VX Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [09/2000-09/2001] Starter Motor 1
Clubsport VX Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [09/2001-10/2002] Starter Motor 1
Clubsport VX Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [09/2001-10/2002] Starter Motor 1

HSV VY Y-Series Series 1 VY Y-Series Series 2

Clubsport VY Y-Series Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [10/2002-08/2003] Starter Motor 1
Clubsport VY Y-Series Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [10/2002-08/2003] Starter Motor 1
Clubsport VY Y-Series Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [09/2003-09/2004] Starter Motor 1
Clubsport VY Y-Series Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [09/2003-09/2004] Starter Motor 1

HSV Coupe 4 V2 Series 3 VZ Z-Series

Coupe 4 V2 Series 3 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Coupe AWD [02/2004-09/2004] Starter Motor 1
Coupe 4 VZ Z-Series 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Coupe AWD [10/2004-07/2006] Starter Motor 1

HSV Coupe GTO V2 Series 1 V2 Series 2 V2 Series 3

Coupe GTO V2 Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Coupe RWD [12/2001-01/2003] Starter Motor 1
Coupe GTO V2 Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Coupe RWD [12/2001-01/2003] Starter Motor 1
Coupe GTO V2 Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Coupe RWD [02/2003-08/2003] Starter Motor 1
Coupe GTO V2 Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Coupe RWD [02/2003-08/2003] Starter Motor 1
Coupe GTO V2 Series 3 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Coupe RWD [09/2003-09/2004] Starter Motor 1
Coupe GTO V2 Series 3 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Coupe RWD [09/2003-09/2004] Starter Motor 1

HSV Coupe GTS V2 Series 1 V2 Series 2 V2 Series 3

Coupe GTS V2 Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Coupe RWD [12/2001-01/2003] Starter Motor 1
Coupe GTS V2 Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Coupe RWD [02/2003-08/2003] Starter Motor 1
Coupe GTS V2 Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Coupe RWD [02/2003-08/2003] Starter Motor 1
Coupe GTS V2 Series 3 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Coupe RWD [02/2004-09/2004] Starter Motor 1
Coupe GTS V2 Series 3 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Coupe RWD [02/2004-09/2004] Starter Motor 1

HSV Grange WH Series 1 WH Series 2 WK

Grange WH Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [07/1999-09/2001] Starter Motor 1
Grange WH Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [09/2001-07/2003] Starter Motor 1
Grange WK 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [08/2003-10/2004] Starter Motor 1

HSV GTS VR VS Series 1 VS Series 2 VT Series 1 VT Series 2 VX Series 1

GTS VR 5.7L 350 cu.in Stroker OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [07/1993-03/1995] Starter Motor 1
GTS VR 5.7L 350 cu.in Stroker OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [07/1993-03/1995] Starter Motor 1
GTS VS Series 1 5.7L 350 cu.in Stroker OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [04/1995-05/1996] Starter Motor 1
GTS VS Series 1 5.7L 350 cu.in Stroker OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [04/1995-05/1996] Starter Motor 1
GTS VS Series 2 5.7L 350 cu.in Stroker OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [06/1996-12/1999] Starter Motor 1
GTS VT Series 1 5.7L 350 cu.in Stroker OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [09/1997-05/1999] Starter Motor 1
GTS VT Series 1 5.7L 350 cu.in Stroker OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [09/1997-05/1999] Starter Motor 1
GTS VT Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [04/2000-09/2000] Starter Motor 1
GTS VX Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [09/2000-09/2001] Starter Motor 1

HSV GTS VY Y-Series Series 1 VY Y-Series Series 2

GTS VY Y-Series Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [10/2002-08/2003] Starter Motor 1
GTS VY Y-Series Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [10/2002-08/2003] Starter Motor 1
GTS VY Y-Series Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [09/2003-09/2004] Starter Motor 1
GTS VY Y-Series Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [09/2003-09/2004] Starter Motor 1

HSV Maloo VU Series 1 VU Series 2

Maloo VU Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Utility RWD [04/2001-09/2001] Starter Motor 1
Maloo VU Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Utility RWD [04/2001-09/2001] Starter Motor 1
Maloo VU Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Utility RWD [09/2001-10/2002] Starter Motor 1
Maloo VU Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Utility RWD [09/2001-10/2002] Starter Motor 1

HSV Maloo VY Y-Series Series 1 VY Y-Series Series 2

Maloo VY Y-Series Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Utility RWD [10/2002-08/2003] Starter Motor 1
Maloo VY Y-Series Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Utility RWD [10/2002-08/2003] Starter Motor 1
Maloo VY Y-Series Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 2dr Utility RWD [09/2003-09/2004] Starter Motor 1
Maloo VY Y-Series Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 2dr Utility RWD [09/2003-09/2004] Starter Motor 1

HSV Manta VS Series 1 VS Series 2

Manta VS Series 1 5.0L LB9 304 cu.in OHV 16v MPFI V8 4sp Auto 4dr Wagon RWD [04/1995-05/1996] Starter Motor 1
Manta VS Series 2 5.0L LB9 304 cu.in OHV 16v MPFI V8 4sp Auto 4dr Wagon RWD [06/1996-07/1997] Starter Motor 1

HSV Senator VR VS Series 1 VS Series 2 VT Series 2 VX Series 1 VX Series 2

Senator VR 5.7L 350 cu.in Stroker OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [07/1993-03/1995] Starter Motor 1
Senator VR 5.7L 350 cu.in Stroker OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [07/1993-03/1995] Starter Motor 1
Senator VS Series 1 5.7L 350 cu.in Stroker OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [04/1995-05/1996] Starter Motor 1
Senator VS Series 1 5.7L 350 cu.in Stroker OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [04/1995-05/1996] Starter Motor 1
Senator VS Series 2 5.7L 350 cu.in Stroker OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [06/1996-07/1997] Starter Motor 1
Senator VS Series 2 5.7L 350 cu.in Stroker OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [06/1996-07/1997] Starter Motor 1
Senator VT Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [06/1999-09/2000] Starter Motor 1
Senator VT Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Wagon RWD [06/1999-09/2000] Starter Motor 1
Senator VT Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [06/1999-09/2000] Starter Motor 1
Senator VX Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [09/2000-09/2001] Starter Motor 1
Senator VX Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [09/2000-09/2001] Starter Motor 1
Senator VX Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [09/2001-10/2002] Starter Motor 1
Senator VX Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [09/2001-10/2002] Starter Motor 1

HSV Senator VY Y-Series Series 1 VY Y-Series Series 2

Senator VY Y-Series Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [10/2002-08/2003] Starter Motor 1
Senator VY Y-Series Series 1 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [10/2002-08/2003] Starter Motor 1
Senator VY Y-Series Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [09/2003-09/2004] Starter Motor 1
Senator VY Y-Series Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [09/2003-09/2004] Starter Motor 1

HSV Statesman VR VS Series 1 VS Series 2

Statesman VR 5.7L 350 cu.in Stroker OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [07/1993-03/1995] Starter Motor 1
Statesman VS Series 1 5.7L 350 cu.in Stroker OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [04/1995-05/1996] Starter Motor 1
Statesman VS Series 2 5.7L 350 cu.in Stroker OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [06/1996-05/1998] Starter Motor 1

HSV SV99 VT Series 2

SV99 VT Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 4sp Auto 4dr Sedan RWD [06/1999-09/2000] Starter Motor 1
SV99 VT Series 2 5.7L Gen3 LS1 OHV 16v MPFI V8 6sp Man 4dr Sedan RWD [06/1999-09/2000] Starter Motor 1

HSV XU8 VT Series 1 5.0L LB9 304 cu.in OHV 16v MPFI V8 5sp Man 4dr Sedan RWD [08/1997-05/1999] Starter Motor 1

Unit

Unit Delco Starter Motor 10455715 12v Starter Motor 1
Unit Delco Starter Motor 10465463 Starter Motor 1
Unit Delco Starter Motor 9000853 Starter Motor 1
Unit Delco Starter Motor 9000867 Starter Motor 1
Unit Delco Starter Motor 92057015 12v Starter Motor 1
Unit Mitsubishi Starter Motor M0T85582 [92169668] 12v CW Starter Motor 1
Unit Mitsubishi Starter Motor M0T85591 Starter Motor 1

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.

INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.

WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.

PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.

RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.

Thank you For Looking!

HAPPY SHOPPING !

Specifications

SKU	DXS535-4
Barcode #	9315275654065
Brand	OEX
Shipping Weight	4.2000kg
Shipping Width	0.250m
Shipping Height	0.200m
Shipping Length	0.400m
Shipping Cubic	0.020000000m3
Unit Of Measure	ea
