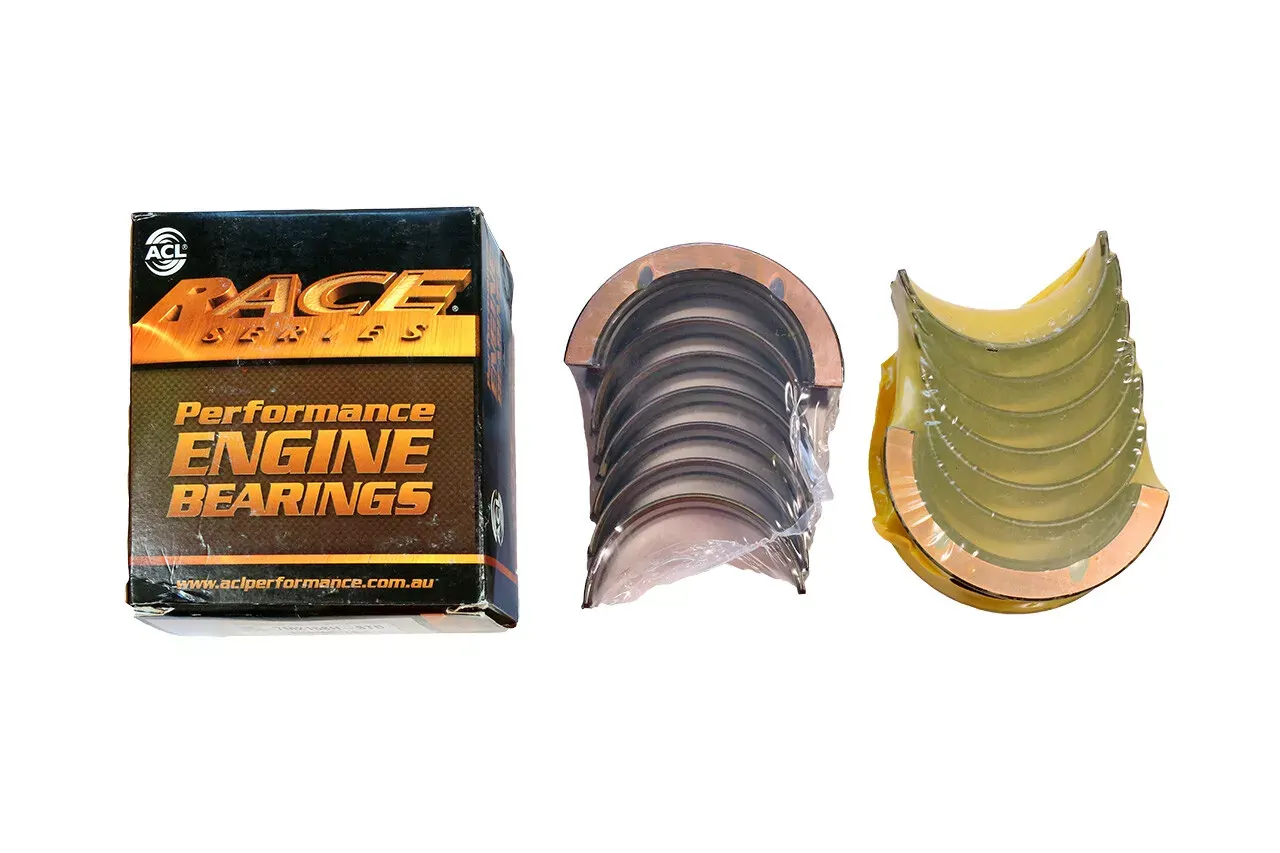

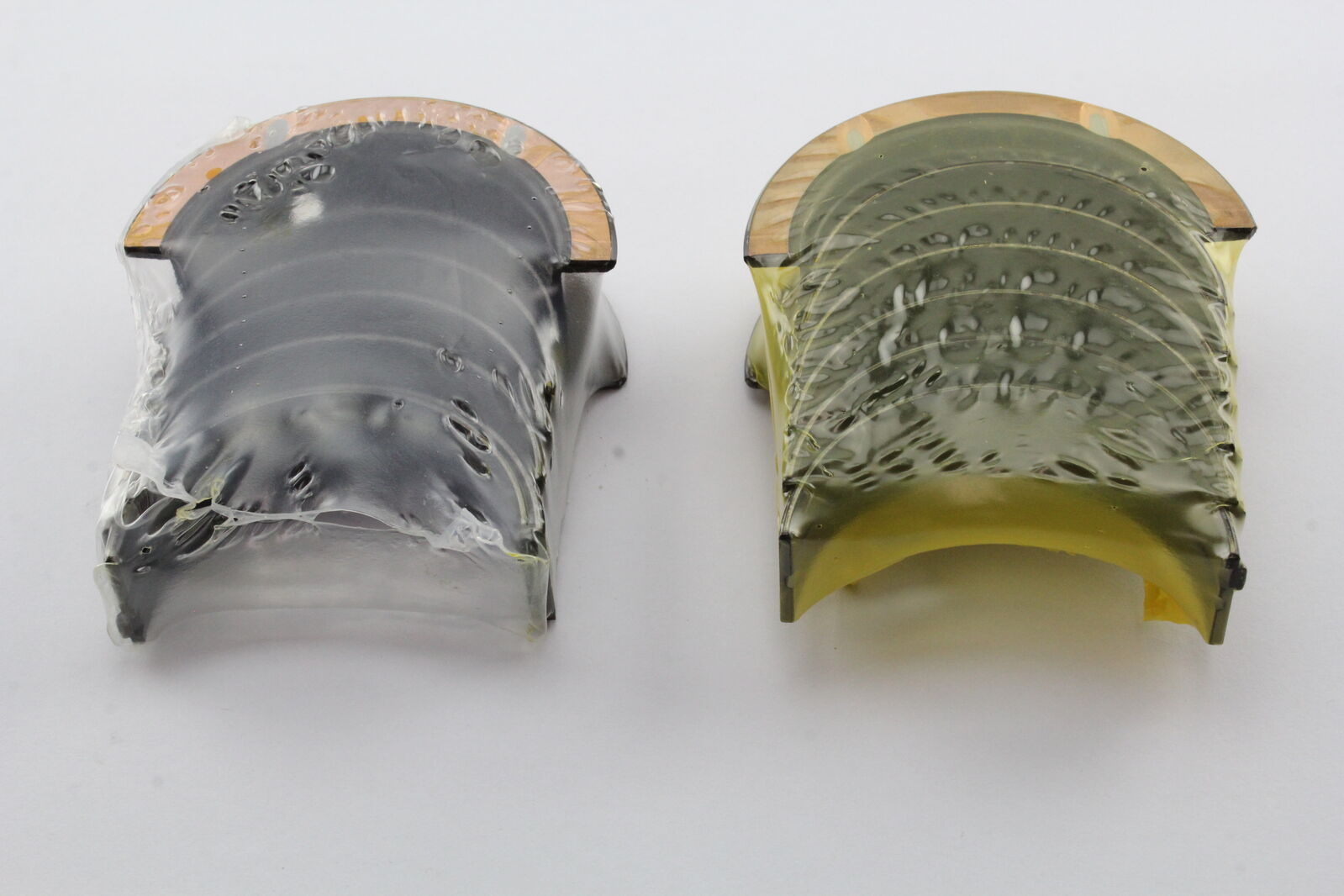

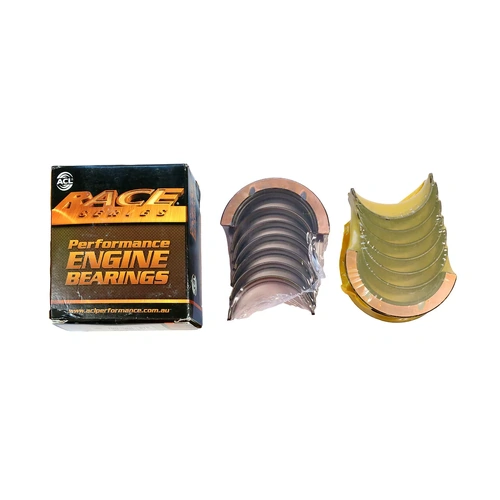

ACL RACE 7M2394H-STD MAIN BEARING SET STD SUIT RB20 RB25 RB28 RB30

ACL 7M2394HX-STD Race Series Main Bearing Set for Nissan RB20 RB25 RD28 RB30 Eng

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

ACL

Performance Race Series Standard Main Bearing Set - 0.001" or 0.025mm Extra Oil Clearance OverSize

7M2394HX-STD

SOLD AS A SET

Engines

Nissan RB20DE 1999cc 6 Cyl DOHC 24V EFI ULP
Nissan RB20DET 1999cc 6 Cyl DOHC 24V EFI Turbo
Nissan RB20E/S 1999cc 6 Cyl SOHC 12V EFI/Carb ULP
Nissan RB25E 2498cc 6 Cyl SOHC 12V EFI ULP
Nissan RB25DE 2498cc 6 Cyl DOHC 24V EFI ULP
Nissan RB25DET 2498cc 6 Cyl DOHC 24V Turbo EFI ULP
Nissan RB30/E/S 2964cc 6 Cyl SOHC 12V EFI/Carb ULP
Nissan RB30ET 2964cc 6 Cyl SOHC 12V Turbo ULP
Nissan RD28 2.8L 6 Cyl SOHC 12V Diesel
Nissan RD28T RD28Ti 2.8L 6 Cyl 12V Turbo/Intercool

Spec

Material Race Series (Tri-Metal)

Position 1,2,3,4,5,6
Std Shaft Diam 2.1634"/2.1644" (54.951mm/54.975mm)
Oil Clearance TBA
Maximum Wall 0.0714" (1.814mm)
Housing Bore 2.3089"/2.3094" (58.645mm/58.658mm)
Max Length 0.7530" (19.120mm)

Position 7
Std Shaft Diam 2.1634"/2.1644" (54.951mm/54.975mm)
Oil Clearance TBA
Maximum Wall 0.0714" (1.814mm)
Housing Bore 2.3089"/2.3094" (58.645mm/58.658mm)
Max Length 1.0610" (26.950mm)

APPLICATION

HOLDEN CALAIS VL EFi 3.0L RB30E SOHC 12v Petrol 6cyl 114kW Sedan RWD [03/86 - 09/88] MAIN BEARING CRANK SHAFT 1
HOLDEN CALAIS VL EFi 3.0L RB30E SOHC 12v Petrol 6cyl 114kW Wagon RWD [03/88 - 08/88] MAIN BEARING CRANK SHAFT 1
HOLDEN CALAIS VL EFi Turbo 3.0L RB30ET SOHC 12v Turbo Petrol 6cyl 150kW Sedan RWD [01/86 - 08/88] MAIN BEARING CRANK SHAFT 1
HOLDEN CALAIS VL EFi Turbo 3.0L RB30ET SOHC 12v Turbo Petrol 6cyl 150kW Wagon RWD [01/88 - 12/88] MAIN BEARING CRANK SHAFT 1
HOLDEN COMMODORE VL EFi 3.0L RB30E SOHC 12v Petrol 6cyl 114kW Sedan RWD [03/86 - 09/88] MAIN BEARING CRANK SHAFT 1
HOLDEN COMMODORE VL EFi 3.0L RB30E SOHC 12v Petrol 6cyl 114kW Wagon RWD [03/86 - 09/88] MAIN BEARING CRANK SHAFT 1
HOLDEN COMMODORE VL EFi Turbo 3.0L RB30ET SOHC 12v Turbo Petrol 6cyl 150kW Sedan RWD [01/86 - 08/88] MAIN BEARING CRANK SHAFT 1
HOLDEN COMMODORE VL EFi Turbo 3.0L RB30ET SOHC 12v Turbo Petrol 6cyl 150kW Wagon RWD [01/86 - 08/88] MAIN BEARING CRANK SHAFT 1

NISSAN PATROL 260L,GQ,GR,Y60 IV 3.0L RB30S SOHC 12v Petrol 6cyl 100kW SUV AWD [01/90 - 12/97] MAIN BEARING CRANK SHAFT 1
NISSAN PATROL Y60 IV TD 2.8L RD28T SOHC 12v Turbo Diesel 6cyl 85kW Cab Chassis AWD [01/94 - 12/97] MAIN BEARING CRANK SHAFT 1
NISSAN PATROL Y60A IV TD 2.8L RD28T SOHC 12v Turbo Diesel 6cyl 85kW SUV AWD [09/88 - 06/97] MAIN BEARING CRANK SHAFT 1
NISSAN PATROL Y61 IV TDiC 2.8L RD28Ti SOHC 12v Turbo Diesel 6cyl 96kW SUV AWD [01/98 - 02/00] MAIN BEARING CRANK SHAFT 1
NISSAN SKYLINE SCRR31 3.0L RB30E SOHC 12v Petrol 6cyl 117kW Sedan RWD [07/86 - 12/90] MAIN BEARING CRANK SHAFT 1
NISSAN SKYLINE WCRR31 3.0L RB30E SOHC 12v Petrol 6cyl 117kW Wagon RWD [07/86 - 12/90] MAIN BEARING CRANK SHAFT 1
