ACL 5M2357-STD MAIN BEARING SET SUIT

ACL 7M8103HXC-STD Race Coated Main Bearing Set for Toyota 1JZ-GTE 2JZ-GE 2JZ-GTE

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

ACL

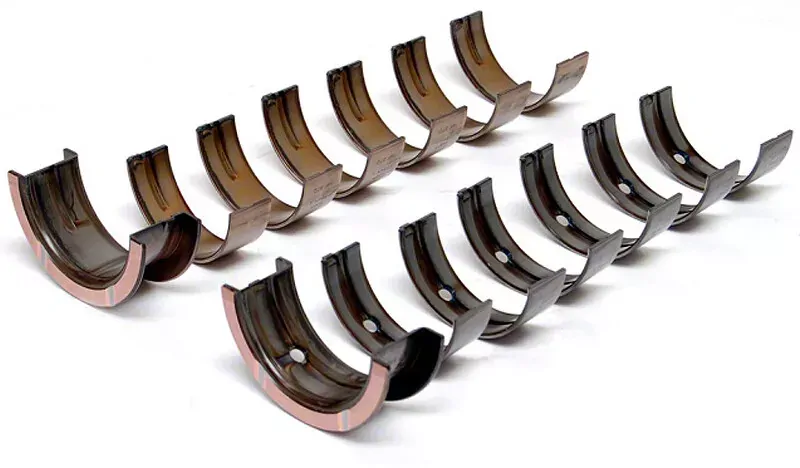

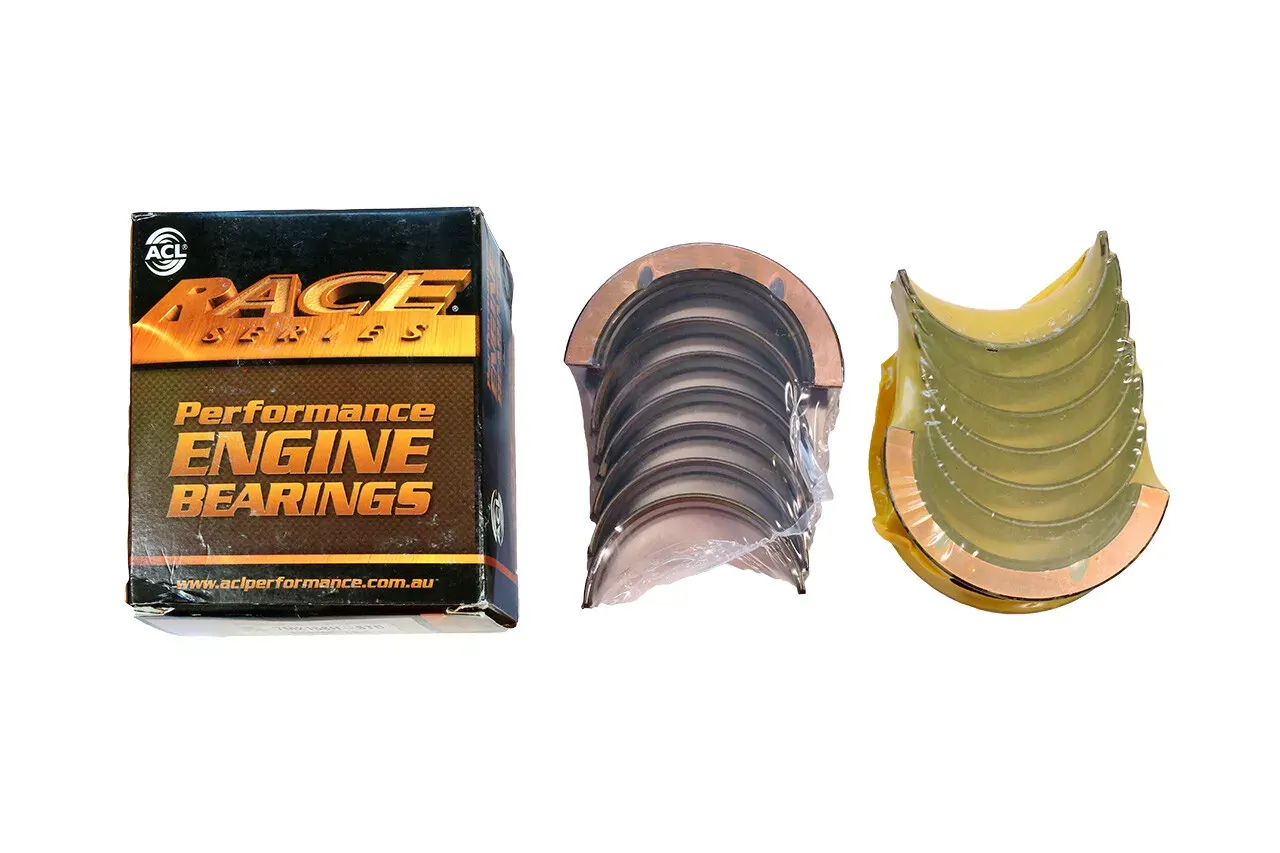

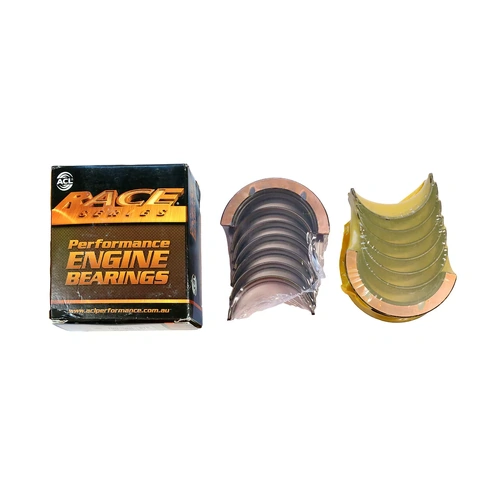

Performance Race Series Calico Coated Standard Main Bearing Set - 0.001" or 0.025mm Extra Oil Clearance

7M8103HXC-STD

SOLD AS EACH

Engines

Toyota 1JZ-GTE 2493cc 6 Cyl DOHC 24V Turbo ULP
Toyota 2JZ-GE 2999cc 6 Cyl DOHC 24V EFI ULP
Toyota 2JZ-GTE 2999cc 6 Cyl DOHC 24V Turbo ULP

Specs

Material Race Series (Tri-Metal)
Position 1
Std Shaft Diam 2.4403"/2.4410" (61.984mm/62.001mm)
Oil Clearance TBA
Maximum Wall 0.0784" (1.991mm)
Housing Bore 2.5992"/2.5998" (66.020mm/66.035mm)
Max Length 0.9060" (23.000mm)

Position 2,3,4,5,6,7
Std Shaft Diam 2.4403"/2.4410" (61.984mm/62.001mm)
Oil Clearance TBA
Maximum Wall 0.0784" (1.991mm)
Housing Bore 2.5992"/2.5998" (66.020mm/66.035mm)
Max Length 0.7870" (20.000mm)
Thrust Washers Try 2T8103-STD

APPLICATION

TOYOTA SOARER JZZ31 3.0L 2JZ-GE DOHC 24v Petrol 6cyl 166kW Coupe RWD [09/90 - 09/00] MAIN BEARING 1
TOYOTA SUPRA JZA80R i 3.0L 2JZ-GE DOHC 24v Petrol 6cyl 168kW Coupe RWD [05/93 - 07/02] MAIN BEARING 1
