Aeroflow AF49-1570 Engine Harness for Honda Integra DC2 K20 Engine 2002 - 2004

Aeroflow

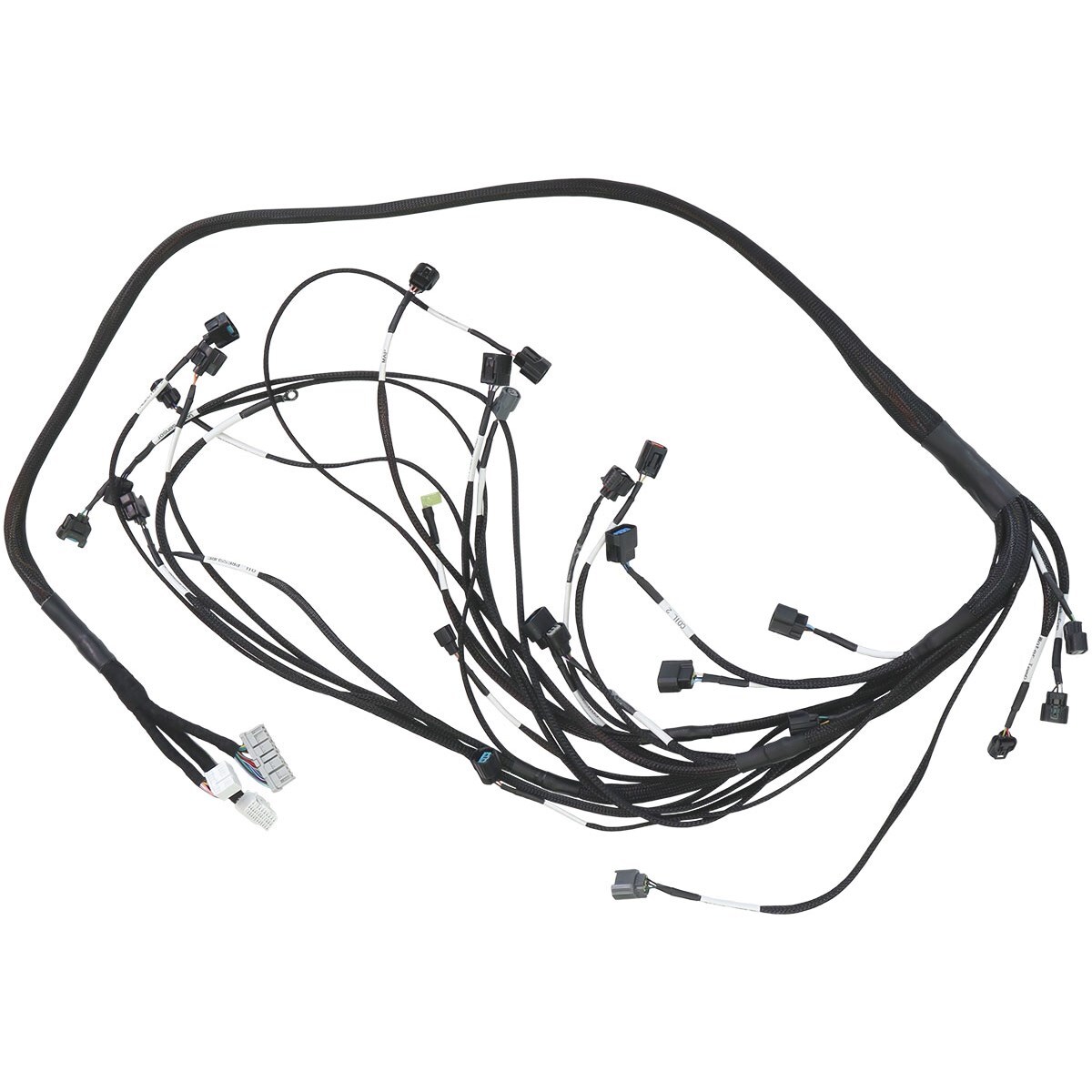

Honda K Series Engine Wiring Harness

For K20 Engine from 02-04 Integra DC2

AF49-1075

SOLD AS EACH

This Aeroflow Performance standalone harness is designed to replace 2002-2004 Integra DC5 & EP3 Type-R engine wiring harness. This harness can also be used as a universal K series harness for other Honda models when using the K20 platform. The alternator plug, knock sensor and starter motor plug is integrated into the engine harness but the alternator & starter power cables are not included. A single wire temperature sensor wire for k-swap cars with stock cluster and two extra wires run from the ECU to under the intake manifold for a EVAP Delete. Extra-long wires for both style vehicle speed sensor locations and an extended length of harness at the ECU will allow flexible routing options when mounting the ecu and routing through the firewall.  All plugs are clearly labelled for an easy install.

Note: to use this harness on a 05-06 integra or Cl7/9 Transmission will need to swap the plug & pinout to suit the VSS.

Note: NO water coolant temp sensor is located in this wiring harness and must be wired separately.

HARNESS CONNECTOR LIST:

• VTEC solenoid
• VTC
• Oil pressure sending unit
• Crank Sensor (CKP) (02-04 K20 style)
• Coils 1-4
• Cam (CPS) Exhaust Side
• Top Dead Center sensor (TDC) Intake Side
• Engine Coolant Temp (ECT) (02-04 K20 style)
• Knock Sensor (KS) (02-04 K20 style)
• Intake Air Temperature (IAT)
• Alternator (02-04 K20 style)
• Manifold Air Pressure (MAP) Throttle Position Sensor
• (TPS) Idle control motor
• Electronic speed sensor (VSS)
• Injectors 1-4
• h20 sending unit (for gauge cluster)
• Reverse Lights
• Reverse Lockout solenoid
• Starter signal
• Computer plugs A and B
• Power distribution cap
• Ground
• 2 Extra Wires
