Aeroflow AF64-2060 Billet Oil Cooler Sandwich Adapter Universal Black Anodised

Aeroflow

Billet Oil Cooler Sandwich Adapter

Universal fitment, Black Anodised finish

AF64-2060

SOLD AS EACH

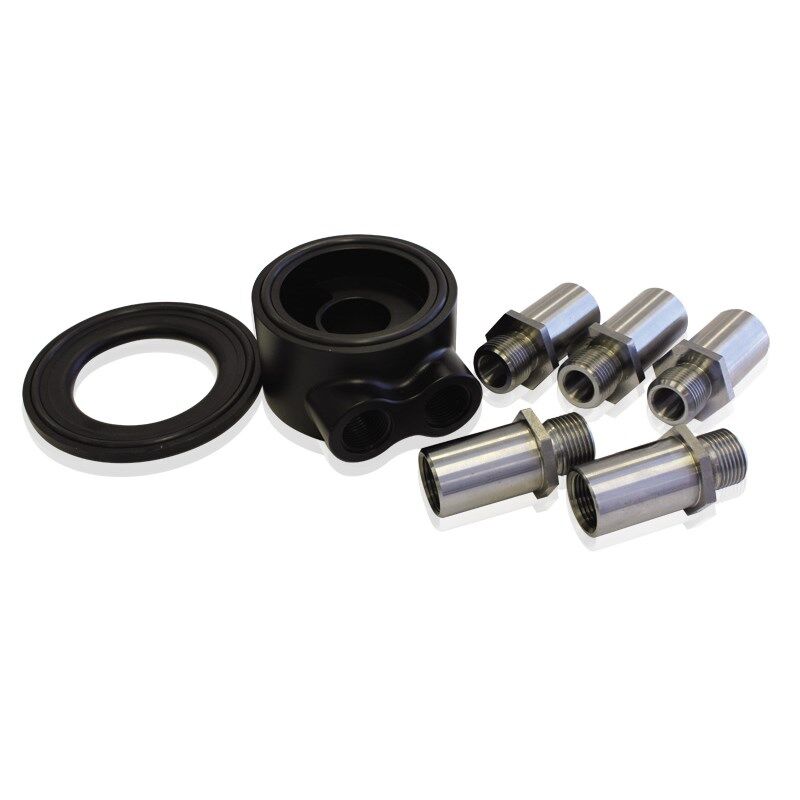

The Aeroflow Performance universal billet sandwich adapter is designed to sit in-between the standard oil filter and the vehicle engine block. It is required for most engine oil cooler installations to provide oil flow to the external oil cooler. In most cases the factory OE oil filter will work with this sandwich adaptor. It is designed as a universal fitment item and mayor may not fit your application.

The main body is made from billet 6061 aluminium, then anodised black for great looks and corrosion resistance. This features two labelled inlet and outlet -8ANORB ports provided for plumbing the engine oil to and from the sandwich adapter.

The oil filter landing will take oil filter O-ring sizes from inner diameter of 62mm (2-7/16”) to outer diameter 87mm (3-3/8”).  In some applications when fitting this sandwich adaptor, it may interfere with the frame or exhaust systems and a new shorter depth filter may need to be used for ground clearance.

This includes the following thread inserts that are the same thread on both male and female sides:

• 3/4”-16 thread insert
• 13/16”-16 thread insert
• M18 x 1.5mmthread insert
• M20 x 1.5mmthread insert
• M22 x 1.5mmthread insert

Specifications

Sandwich Adapter Dimensions:

• Overall Diameter - 76.55mm
• Overall Height - 43.75mm
• Centre to Centre of -8ORB Ports - 33.90mm

Oil Filter landing Dimensions:

• Seal Internal Diameter - 62mm
• Seal Outside Diameter - 87mm

Thread Inserts

• 3/4”-16 thread insert
• 13/16”-16 Short thread insert
• 13/16”-16 Long thread insert
• M18 x 1.5mmthread insert
• M20 x 1.5mmthread insert
• M22 x 1.5mmthread insert

Important Information

• Recommend to torque the thread insert to 18-20 FT.LBS
