Aeroflow AF82-2009 90° Oil Block Adapter for GM LS V8 with Front or Rear Sump
Description
Aeroflow

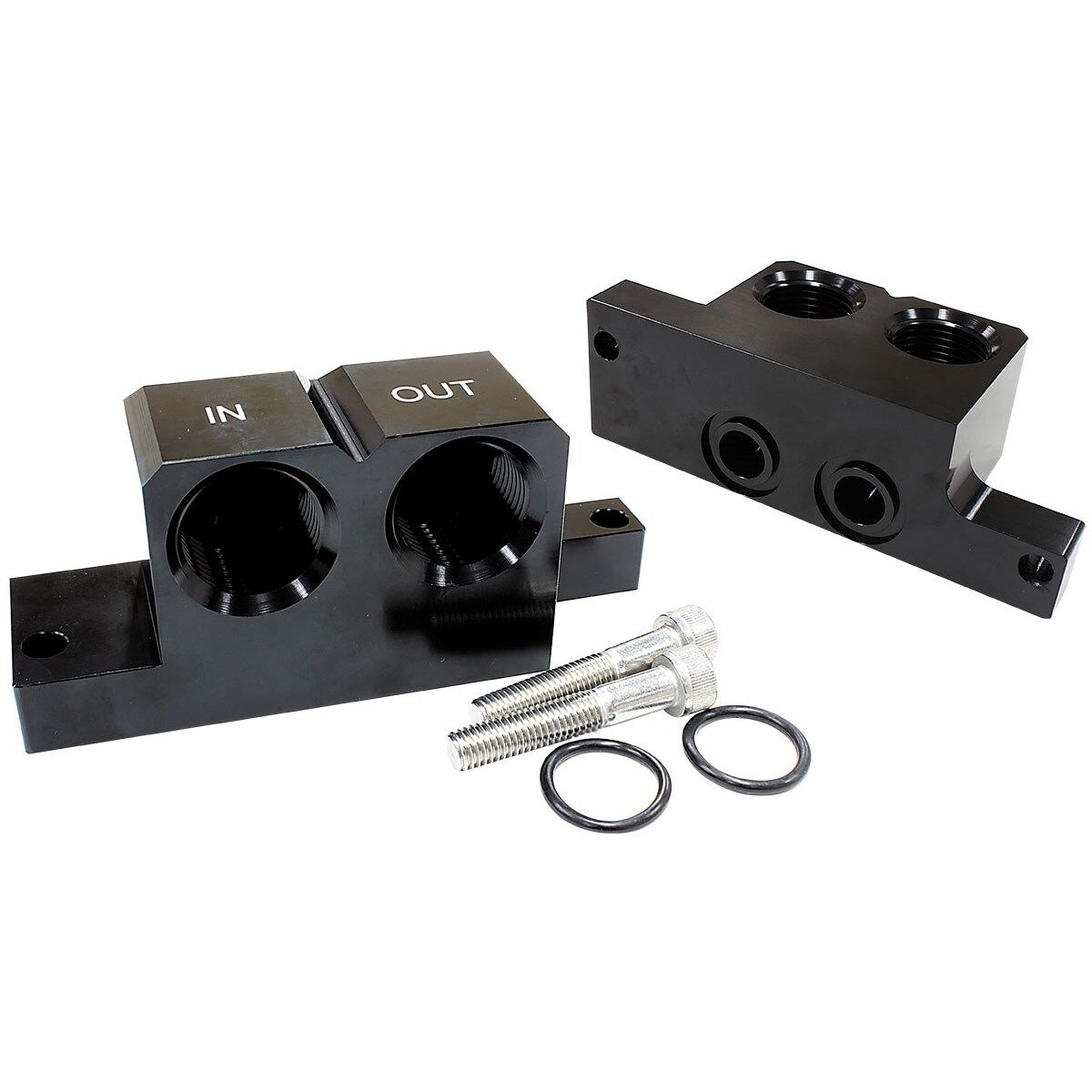

90° Oil Block Adapter
For GM LS V8 Series with Front or Rear Sump with Left Hand Starter Conversion
AF82-2009
SOLD AS EACH
Aeroflow Performance now offer the bolt-on oil block adapter in a 90-degree (horizontal) position. Still retaining the two female -12ORB fittings but with the horizontal outlets is great for tight clearances to run your remote oil filter lines. This block suits Aeroflow LS series front sump oil pan (AF82-2016) and rear sump oil pan (AF82-2012). CNC machined from 6061-T6 aluminium and hard anodised black finish. This oil block adapter is great for those using a left hand starter conversion kits on GM LS series engines.
Specifications
Dimensions:
- Length - 133mm
- Width - 42mm
- Height- 55mm
- Centre to Centre of -12ORB Ports - 38mm
- Height to Centre of -12ORB Ports - 39mm
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | AF82-2009 |
| Barcode # | 9337206122016 |
| Brand | Aeroflow |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.080m |
| Shipping Length | 0.130m |
| Shipping Cubic | 0.001040000m3 |
