AEROFLOW AF95-0350 SMALL BLOCK CHEV V8 BARE ALUMINIUM CYLINDER HEADS

AEROFLOW AF95-2350 SB CHEV V8 200cc COMPLETE ALUMINIUM CYLINDER HEADS PAIR

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

AEROFLOW

COMPLETE ALUMINIUM CYLINDER HEADS (PAIR)

AF95-2350

SOLD AS EACH

200CC RUNNER WITH 64CC CHAMBER

SUIT SMALL BLOCK CHEVY - STRAIGHT PLUGS

Aeroflow's Small block Chevy cylinder heads are designed for entry-level street performance engines and ideal for operating in the idle to 6500 rpm range. Made from A356 aluminium castings. These complete heads include larger-than-stock 1.43" (36.3mm) diameter valve spring with damper to handle up to 0.575" (14.61mm) maximum valve lift. Recommended spark plugs are 14mm x 3/4" reach with flat gasket seat.

HEAD SPECS:

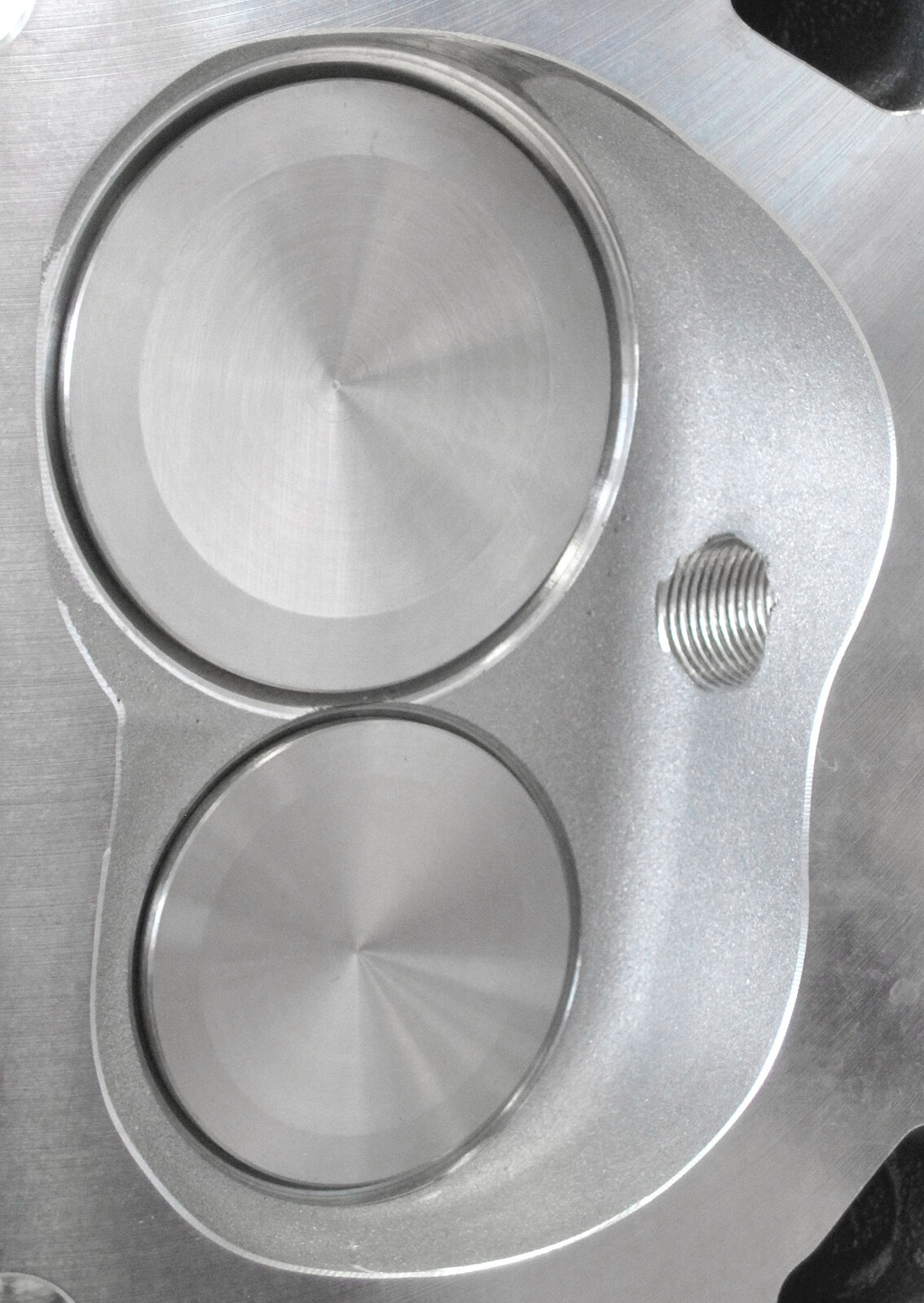

Chamber volume: 64cc Chamber
Intake port volume: 180cc or 200cc
Intake valve size: 2.02"
Exhaust valve size: 1.60"
Valve spring diameter: Single spring with damper 1.430" (36.3mm)
Spring installed height: 1.85" @ 100lbs
Maximum valve lift: 0.575" (14.61mm) @ 300lbs
Rocker stud diameter: 7/16"
Pushrod diameter: 5/16" (width of slot in guide plate)
Spark plug style: Straight

IMPORTANT NOTICE:

We recommend to check installed spring seat pressure & open pressure before installing your cylinder heads to make sure the spring pressure is correct for your application.

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.

INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.

WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.

PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.

RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.

Thank you For Looking!

HAPPY SHOPPING !

Specifications

SKU	AF95-2350
Barcode #	9337206086875
Brand	Aeroflow
Shipping Weight	20.0000kg
Shipping Width	0.500m
Shipping Height	0.400m
Shipping Length	0.800m
Shipping Cubic	0.160000000m3
