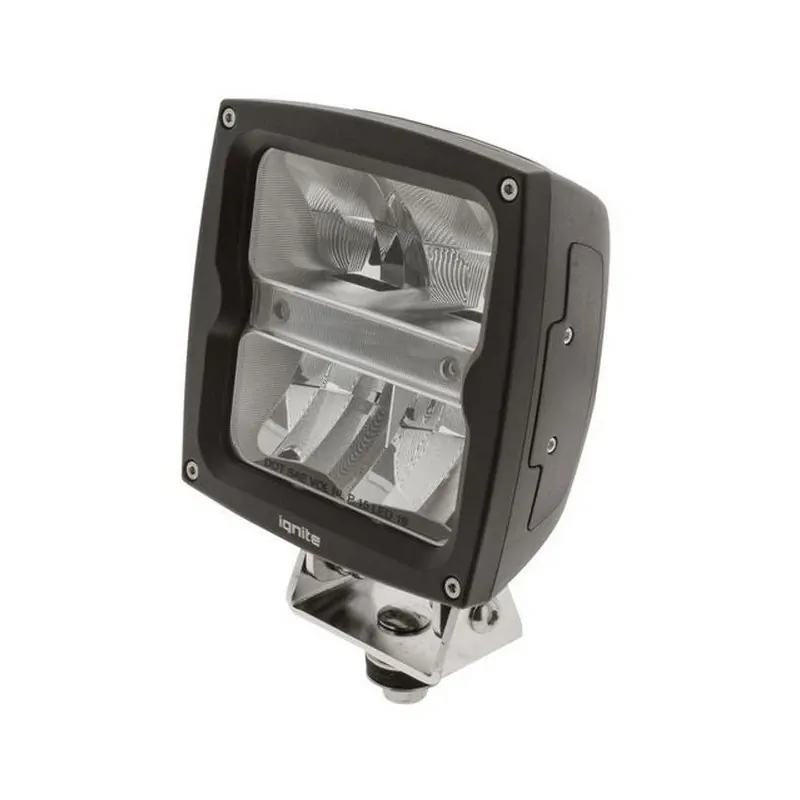

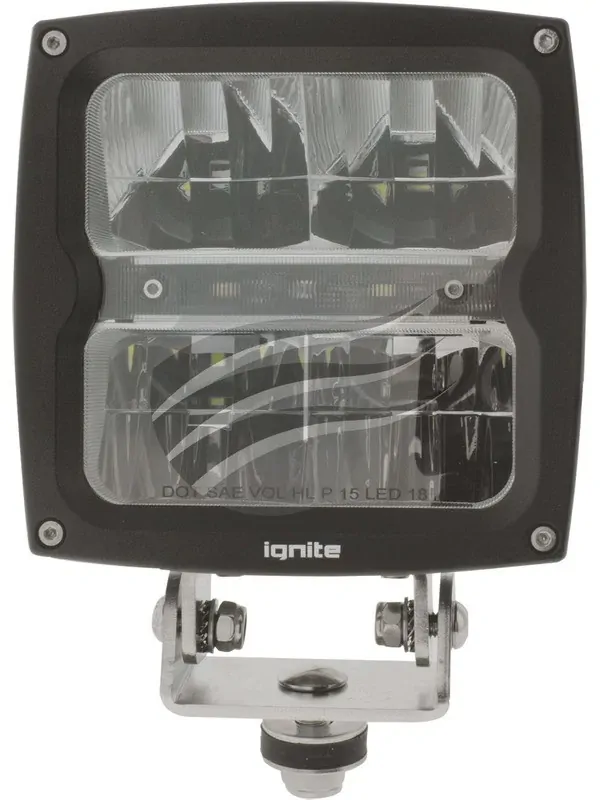

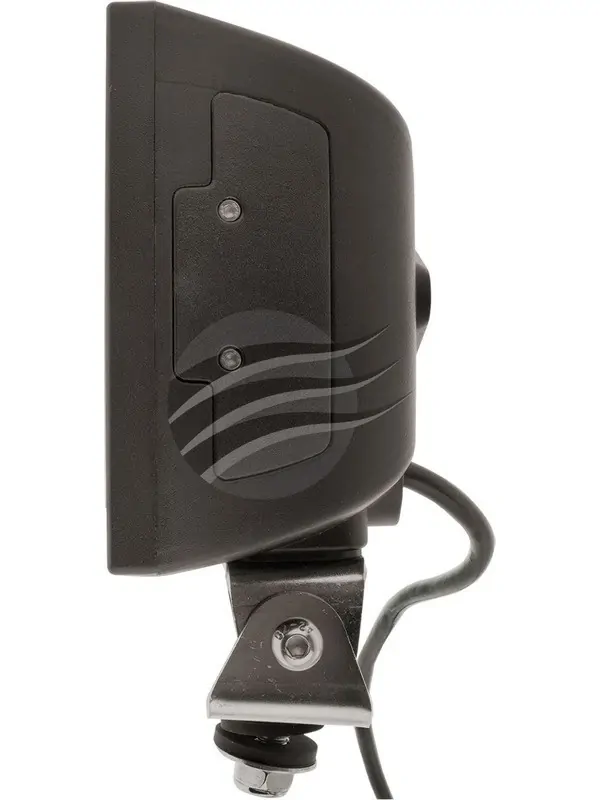

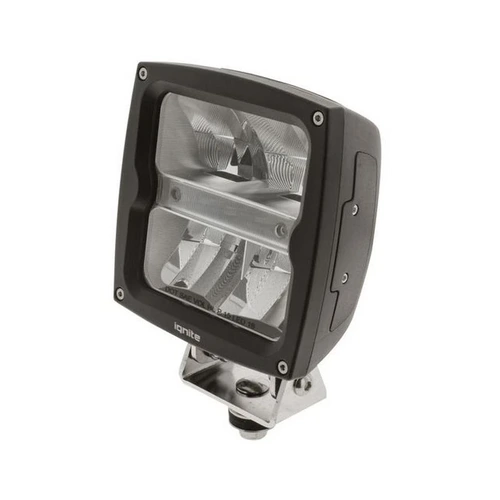

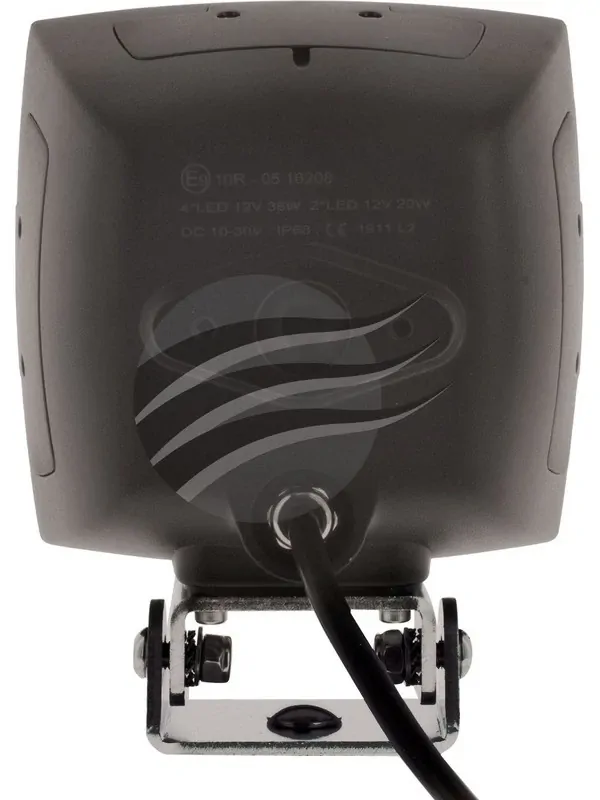

Ignite IHL4B | Square 150mm | High Low LED | Head Light | Black Face | 60 Watt

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

Ignite

Square 150mm High Low LED Head Light Black Face 60 Watt 10-30 Volt

IHL4B

SOLD AS EACH

Specs

Ignite Square LED HeadLamp 10 - 30 Volt 60 Watt
150mm x 150mm - Black Fascia
High / Low Beam and Position Lamp
2 x 10 Watt High Intensity ETI LED's for Low Beam
4 x 10 Watt High Intensity ETI LED's for High Beam
2 x 1 Watt LumiLEDs LED's for Position Lamp
Low Beam: 1,800 Raw Lumens and 1,530 Effective Lumens and 5,700K
High Beam: 3,600 Raw Lumens and 3,060 Effective Lumens and 5,700K
Position Lamp: 160 Raw Lumens and 130 Effective Lumens and 5,700K
Low Beam: 1 Lux @ 163m and 26,875cd Peak Beam Intensity
High Beam: 1 Lux @ 280m and 78,125cd Peak Beam Intensity
Current Draw: 4.9amp @ 12 Volt and 2.51amp @ 24 Volt
Polycarbonate Free Form Optical Reflector Technology for Low and High Beam Lamps
Polycarbonate Lens assembly
Integrated Electronic Thermal Management (ETM)
Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
Stainless Steel Single Bolt Mount Bracket and Hardware
400mm Lead with 4 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant
50,000 Hours LED Lifespan
ECE R6, R7, R10, DOT and CE Approved
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
2 Year Warranty
Weight: 1.25kg

Type LED
Shape Square
Voltage Multivolt
Beam Type High/Low Beam
Width (mm) 150
Height (mm) 150
Depth (mm) 80

Spare Parts

IWH030 Adaptor Harness for Negative Switched Vehicles
