Ignite IHL7RB Round High Low LED Head Light Black Face 65 Watt 7" or 178mm

Ignite

Round High Low LED Head Light Black Face 65 Watt 7" or 178mm

IHL7RB

SOLD AS EACH

Specs

• Ignite 7" Round LED Headlamp 9 - 36 Volt 65 Watt
• High/Low Beam and Park Light - Black Fascia
• 7" or 178mm Round
• 6 x 10 Watt High Intensity CREE LEDs for Park Light and High Beam
• 1 x 5 Watt High Intensity LUMI LED for Low Beam
• Current Draw: 4.1amp at 12 Volt, 1.8amp at 24 Volt High Beam
• 1.7amp at 12 Volt, 0.8amp at 24 Volt for Low Beam
• High Beam 3,900 Raw or 3,315 Effective Lumens and 6,500K
• Low Beam 1,800 Raw or 1,530 Effective Lumens and 6,500K
• Lexan Polycarbonate Lens and Reflectors
• Patented TIR Lens Optics System for High Beam and Park Lights
• Black anodised Polyester Powder Coated Die-Cast Aluminium (ADC12) Housing
• 6063 Extruded Aluminium Heat Sink
• 150mm Lead with H4 Connector and High Beam Adaptor Plug
• 50,000 Hours LED Lifespan
• Integrated Electronic Thermal Management (ETM)
• Reverse Polarity and Power Surge Protection
• UV Stabilized
• EMC Compliant
• Shock Resistant, Vibration Tested to 6G's
• Environment temperature -40~+60 °C
• ECE R112 / R7, DOT, CE Certified
• IP68 and IP69K Rating
• 1.4kg
• 5 Year Warranty
• ​​​​Type       LED
• Shape    Round
• Voltage  Multivolt
• Beam Type          High/Low Beam

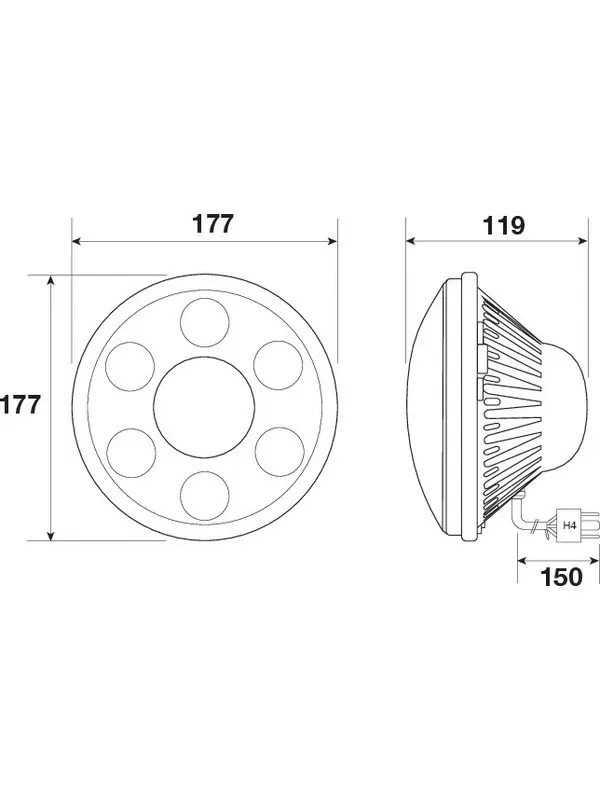

• Width (mm)        176
• Height (mm)       176
• Depth (mm)        115.2

Notes:

• Replaces PAR56 Headlights, either Sealed or Semi-Sealed Beams
• For Negatively Switched vehicles must use Adaptor Harness Part No. IWH030
• Adaptor lead supplied for Headlight to work purely as a High Beam unit only
