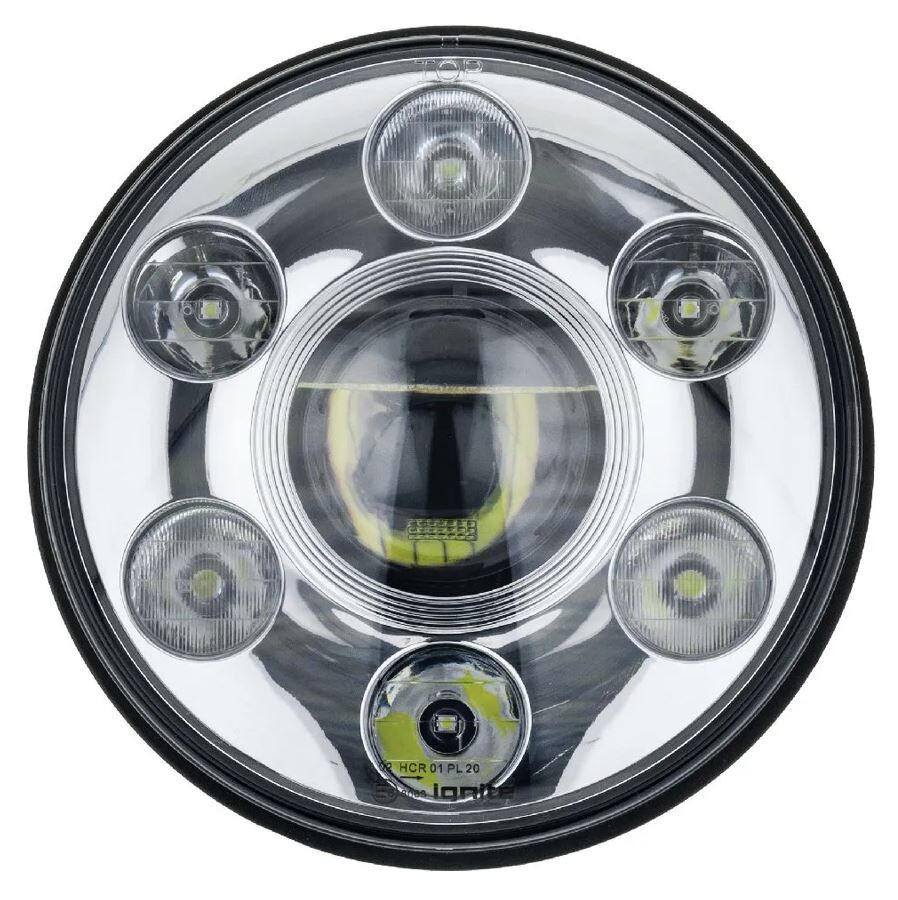

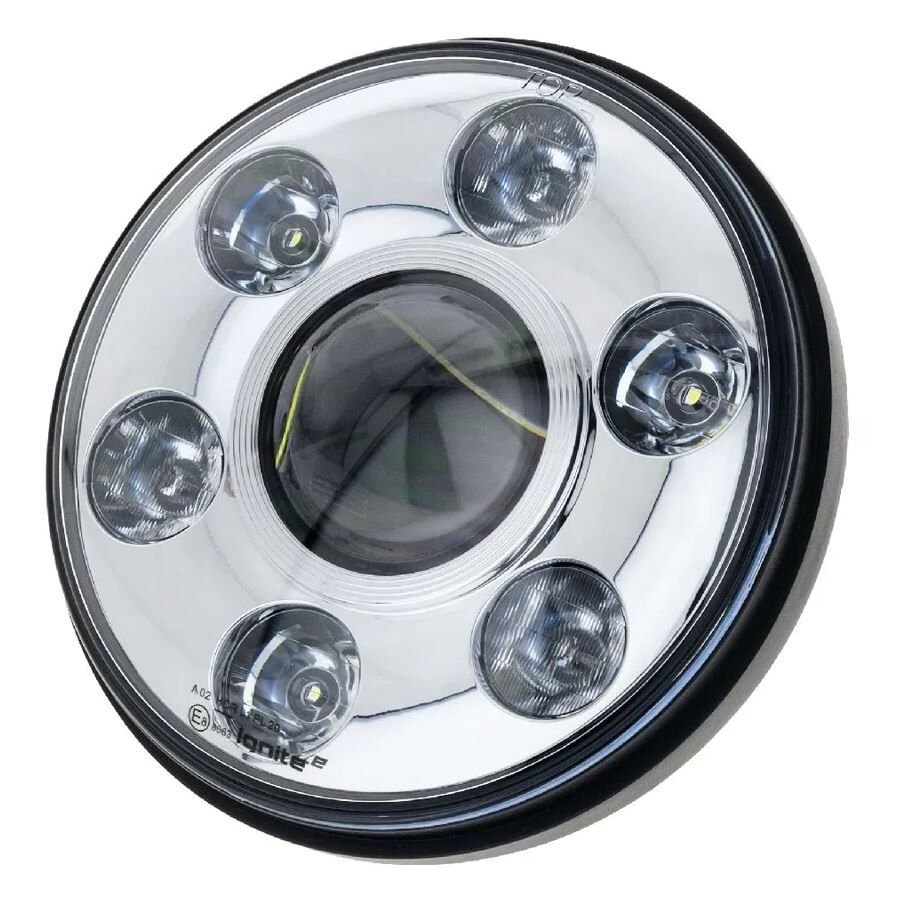

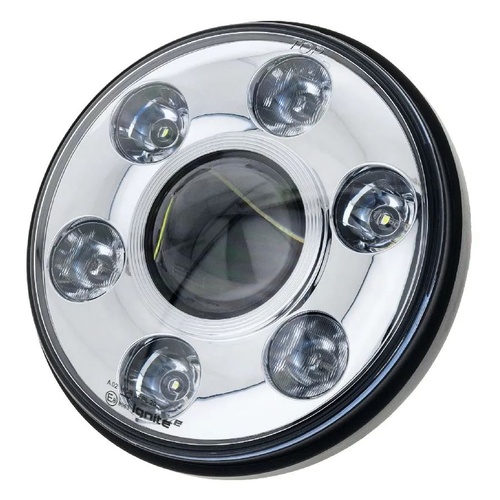

Ignite IHL7RC-DRL Round High Low LED Head Light Chrome Face 65 Watt 7" or 178mm

Ignite

Round High Low LED Head Light with Day Time Running Lamp (DRL) Chrome Face 65 Watt 7" or 178mm

IHL7RC-DRL

SOLD AS EACH

Specs

• Ignite 7" Round LED Headlamp 9 - 36 Volt 65 Watt
• High/Low Beam and Daytime Running Lamp (DRL) - Chrome Fascia
• 7" or 178mm Round
• 6 x 10 Watt High Intensity CREE LEDs for Park Light and High Beam
• 1 x 5 Watt High Intensity Phillips LED for Low Beam
• Current Draw: 4.10amp at 12 Volt, 1.80amp at 24 Volt High Beam
• 1.70amp at 12 Volt, 0.80amp at 24 Volt for Low Beam
• High Beam 3,900 Raw or 3,100 Effective Lumens and 6,500K
• Low Beam 1,800 Raw or 1,450 Effective Lumens and 6,500K
• Lexan Polycarbonate Lens and Reflectors
• Patented TIR Lens Optics System for High Beam and Daytime Running Lights (DRL)
• Black anodised Polyester Powder Coated Die-Cast Aluminium Housing

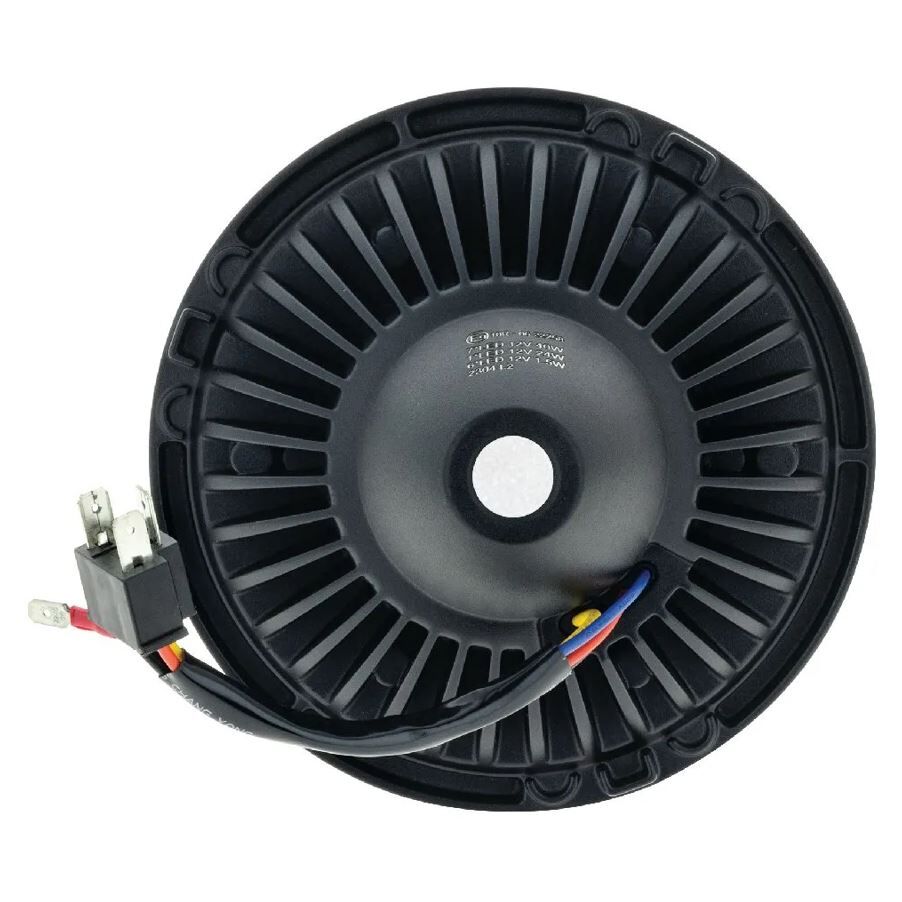

• 6063 Extruded Aluminium Heat Sink

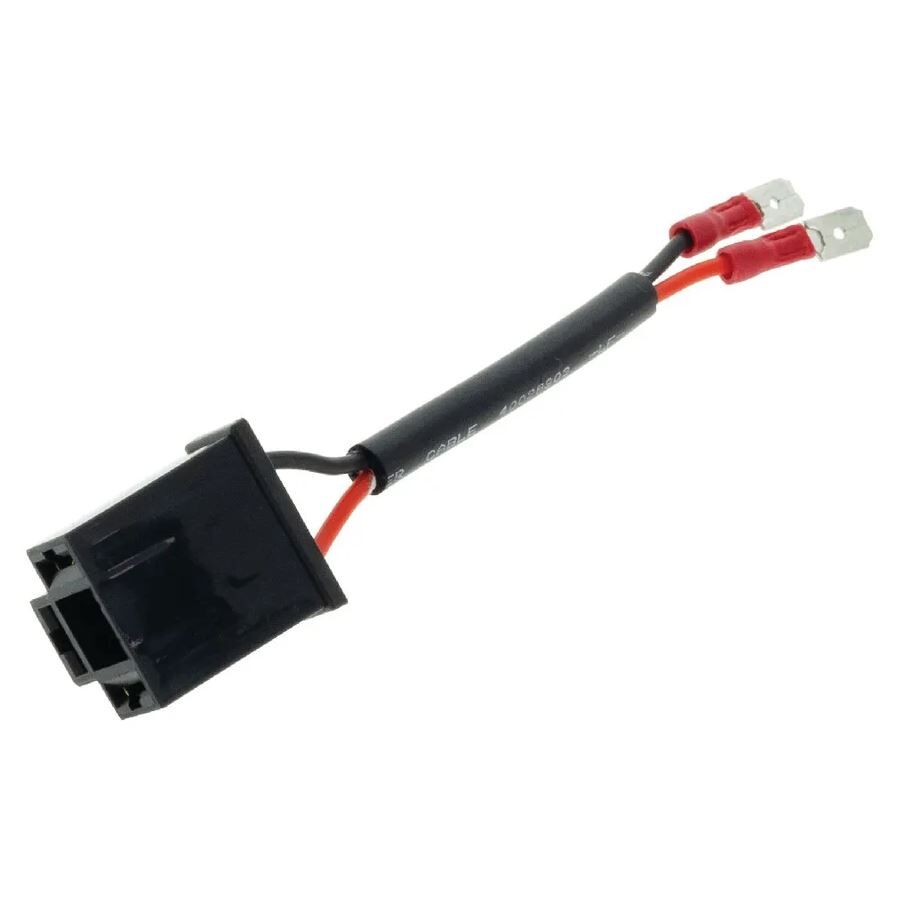

• 150mm Lead with H4 Connector and High Beam Adaptor Plug
• Integrated Electronic Thermal Management (ETM)
• Reverse Polarity and Power Surge Protection
• UV Stabilized
• EMC Compliant
• Shock Resistant, Vibration Tested to 6G's
• 50,000 Hours LED Lifespan
• ECE R112 / R7, DOT, CE Certified
• Environment temperature -40~+60 °C
• IP68 Rating
• 5 Year Warranty
• 1.4kg
• Type       LED
• Shape    Round
• Voltage  Multivolt
• Beam Type          High/Low Beam
• Width (mm)        177
• Height (mm)       177
• Depth (mm)        119

Note

• Replaces PAR56 Headlights, either Sealed or Semi-Sealed Beams
• For Negatively Switched vehicles must use Adaptor Harness Part No. IWH030
