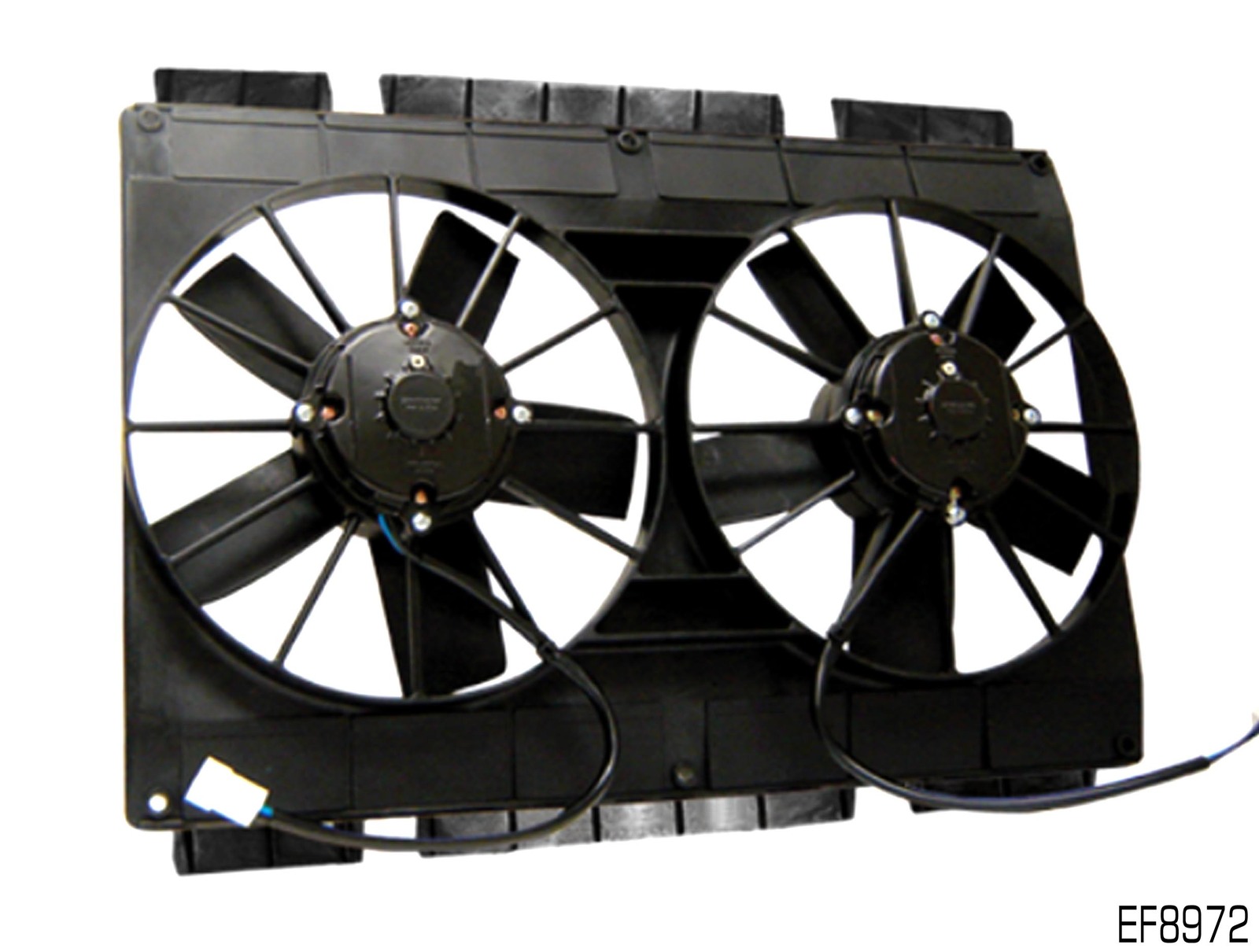

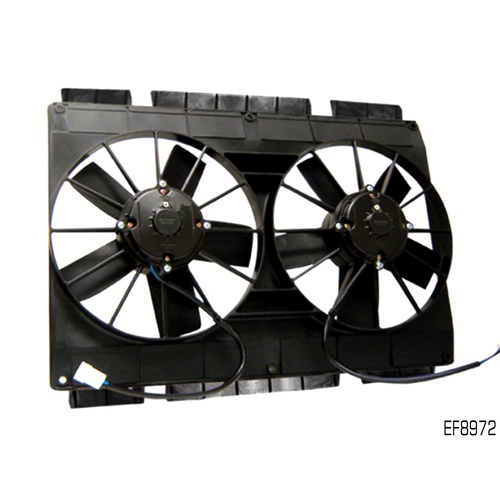

MARADYNE EF8972 DUAL 11” MACH TWO FANS & SHROUD 12V 225W - CROSSFLOW RADIATORS

MARADYNE

 DUAL 11” MACH TWO FANS & SHROUD

FOR CROSSFLOW RADIATORS

EF8972

MARADYNE# MM22KT

SOLD AS EACH

12 VOLT

STRAIGHT BLADE FANS WITH 2 x 225 WATT MOTORS AND

11” DIA FAN ASSEMBLIES

HIGH PROFILE, PULLER TYPE AIRFLOW

TOP & BOTTOM MOUNTING FLANGES.



·        (2) 225 watt heavy duty motors

·        Powerful, wide straight blade (puller only)

·        All glass-filled nylon construction

·        Includes locking mating pigtail connector and rubber spacers for proper spacing off of heat exchanger



  SPECIFICATIONS:

MOTOR:  (2) 225w

CURRENT DRAW:  22.0

CFM @ 0 in. STATIC:  2,760

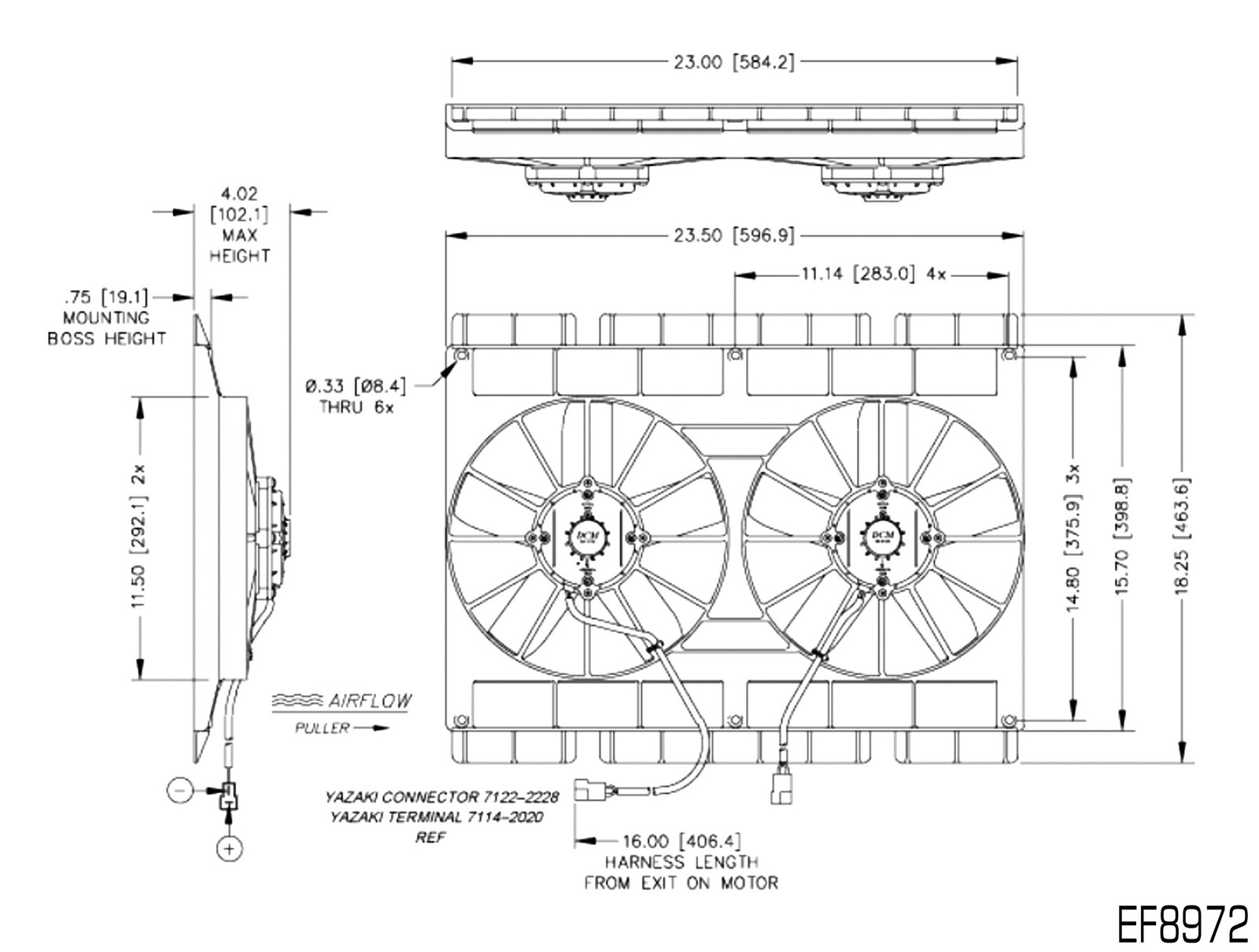

WIDTH: 23.5 in.

HEIGHT: 18.25 in.

DEPTH: 3.80 in.



Recommended wire harnesses (sold separately)

MFA100 (adjustable thermostat)

MFA101 (A/C relay)

MFA102 (185° temperature switch)

MFA103 (195° temperature switch)

MFA111 (dual fan adapter)



MARADYNE® High Performance Fans is a brand name owned by DCM Manufacturing, a wholly-owned subsidiary of Dreison International, Inc.

DCM Manufacturing manufactures and sells accessories and components serving the off-road equipment,

agricultural machinery, heavy-duty truck, automotive, bus, RV, marine and military markets.



Designing Maximum-Performance Electric Cooling Fans

A well-designed electric radiator cooling fan is critical to prevent engine overheating in a variety of demanding driving conditions.

The heat generated in stop-and-go-driving, when racing, and from hot weather, can kill engines. Electric cooling fans will provide

the airflow needed to dissipate excess engine heat with the least impact on horsepower and fuel economy.

Without airflow, a radiator can become simply a holding tank for hot coolant.
