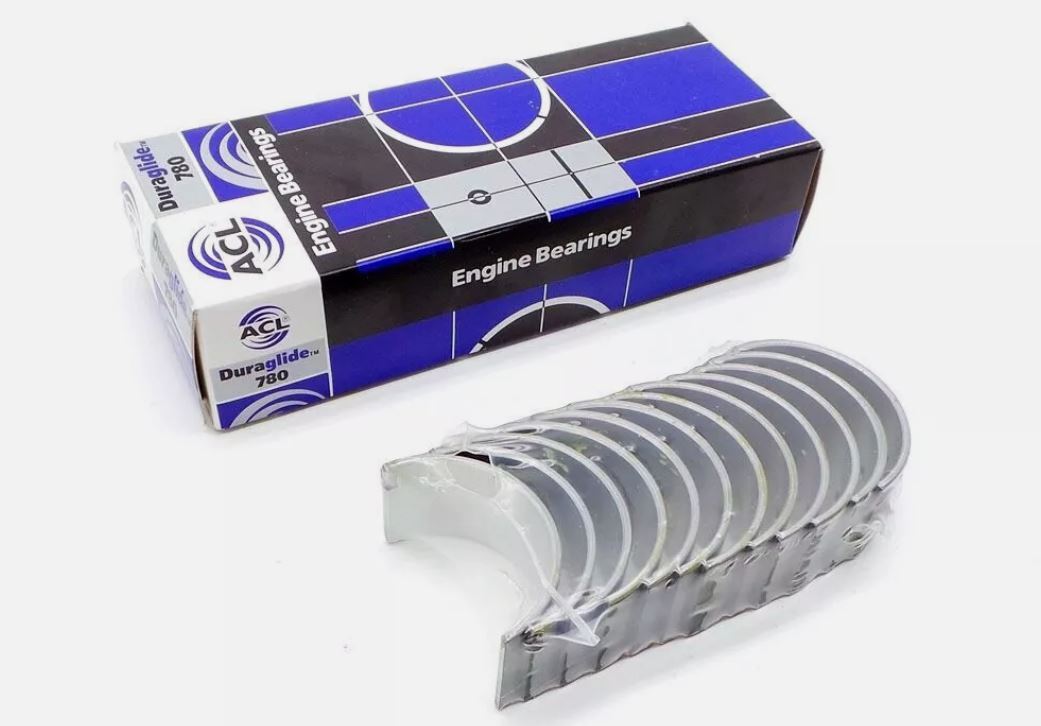

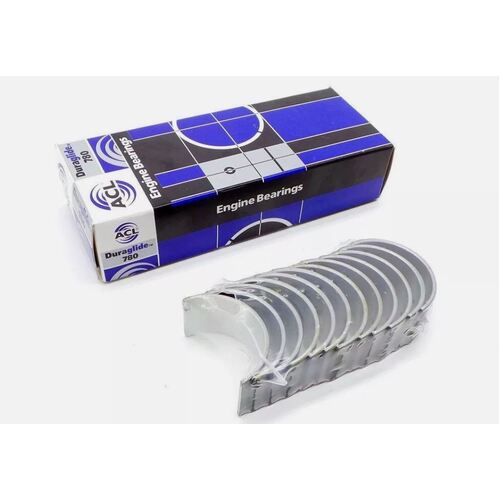

NASON CONROD BEARING SET STD SUIT TOYOTA LANDCRUISER 1HZ 1HDT 6B8396-STD

ACL 6B8396S-STD Conrod Bearing Set STD for Toyota Landcruiser 1HZ 1HD-T 1HD-FTE

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

ACL

CONROD BEARING SET

6B8396S-STD

SOLD AS EACH

Conrod Bearing Set 6B8396
Brand ACL Duraglide
Manufacturer ACL
Conrod Bearing (c) 8396
Half Type Identical Halves
OE Part Number 1 13041-17010
Manufacturer ACL
Min Std Shaft Size 2.3226in / 58.995mm
Max Std Shaft Size 2.3230in / 59.005mm
Min Std Tunnel Size 2.4415in / 62.014mm
Max Std Tunnel Size 2.4422in / 62.032mm
Max Wall At Crown 0.0587in / 1.492mm
Max Overall Length 0.9272in / 23.55mm
Min Vertical Oil Clearance 0.0012in / 0.03mm
Max Vertical Oil Clearance 0.0035in / 0.089mm
Material F780

Contains 12 Pieces

Engines

Toyota 1HD-FT 1HD-FTE 4166cc 6 Cyl SOHC 24V Diesel
Toyota 1HD-T 4166cc 6 Cyl SOHC 12V Diesel
Toyota 1HZ 4166cc 6 Cyl SOHC 12V Diesel

APPLICATION

TOYOTA LAND CRUISER HDJ80 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 115kW SUV AWD [01/90 - 08/92] CONROD BEARING 1
TOYOTA LAND CRUISER HDJ80 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 118kW SUV AWD [08/92 - 12/97] CONROD BEARING 1
TOYOTA LAND CRUISER HDJ80,HDJ81V TD 24V 4.2L 1HD-FT SOHC 24v Turbo Diesel Direct Inj. 6cyl 125kW SUV AWD [01/95 - 12/97] CONROD BEARING 1
TOYOTA LAND CRUISER HDJ81 TD 4.2L 1HD-T SOHC 12v Turbo Diesel Direct Inj. 6cyl 123kW SUV AWD [01/90 - 12/97] CONROD BEARING 1
TOYOTA LAND CRUISER HZJ105 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW SUV AWD [03/98 - 08/07] CONROD BEARING 1
TOYOTA LAND CRUISER HZJ70RV,HZJ75RV,HZJ7... D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW SUV AWD [01/90 - 01/07] CONROD BEARING 1
TOYOTA LAND CRUISER HZJ75RP,HZJ79R D 4.2L 1H-Z SOHC 12v Diesel 6cyl 96kW Pickup AWD [01/90 - 01/07] CONROD BEARING 1
TOYOTA LAND CRUISER HZJ80 D 4.2L 1H-Z SOHC 12v Diesel 6cyl 94kW SUV AWD [01/90 - 12/97] CONROD BEARING 1
