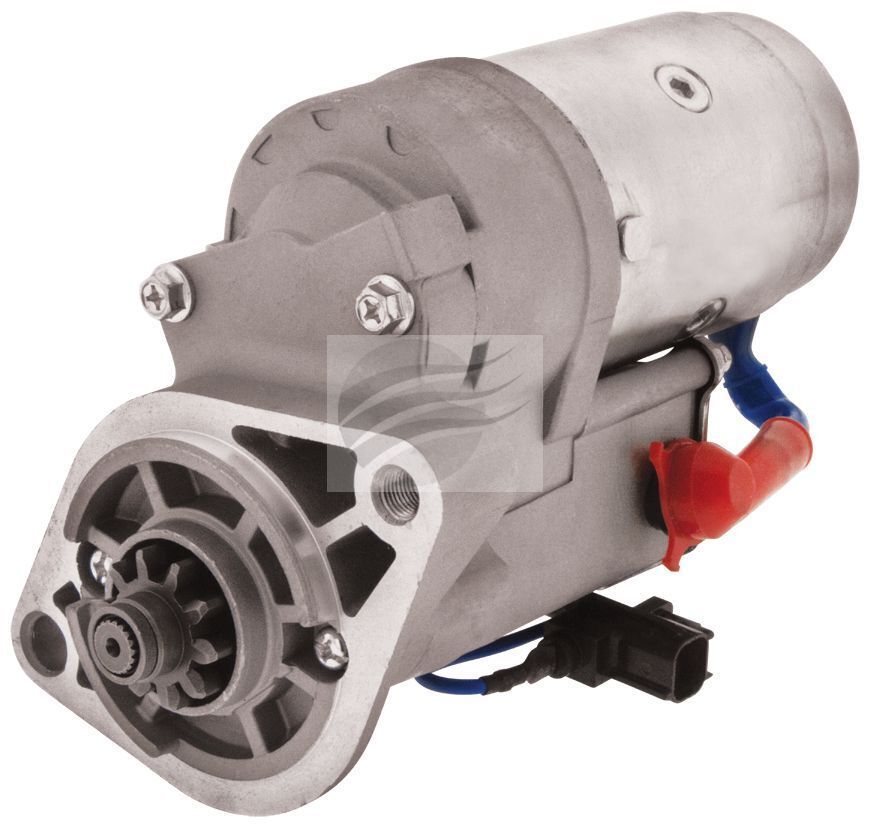

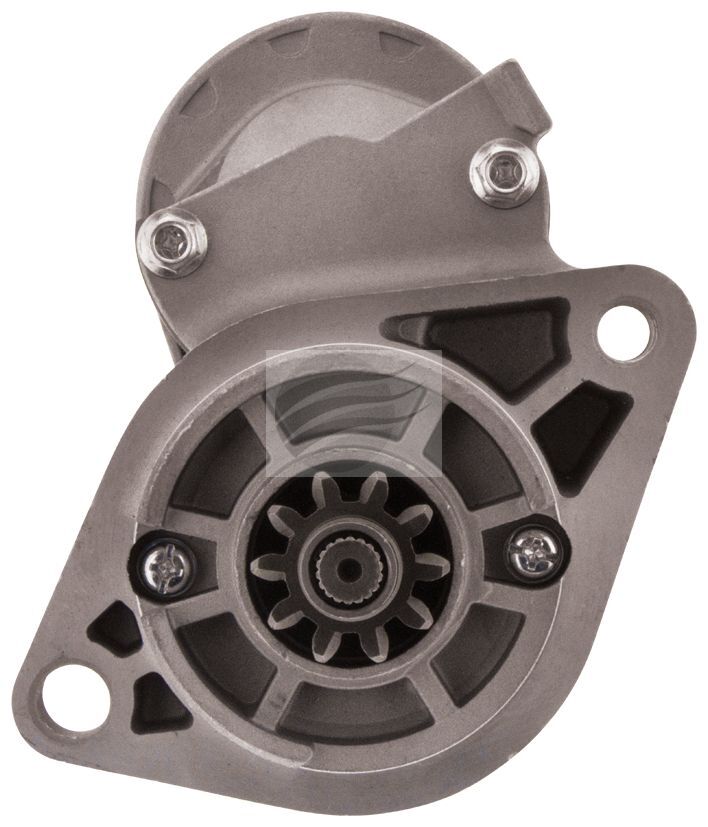

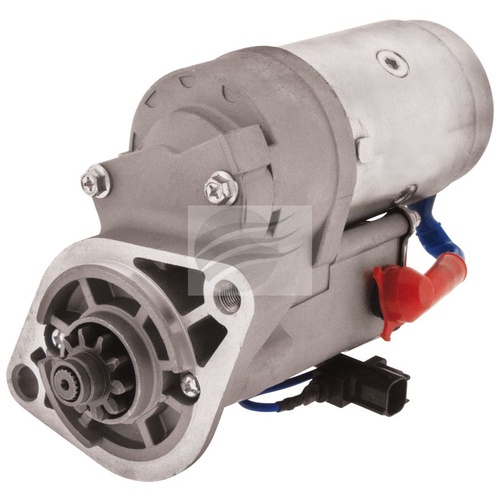

OEX DXS575 STARTER MOTOR FOR TOYOTA HIACE HILUX 1KD-FTV 2KD-FTV

Jaylec 70-8578 Starter Motor for Toyota HiAce Hilux 1KD-FTV 2KD-FTV 1KZ Check App

Calculate Shipping

FREE STD SHIPPING - $0.00
Delivery Australia Wide

Free pick-up from store - $0.00
This item is pick up only

Description

JAYLEC

STARTER MOTOR

12V 10TH DENSO STYLE

CHECK PLUG LOCATION

70-8578

SOLD AS EACH

Specifications

Voltage 12V
Kilowatt 2.2kW
Number of Teeth 10T
Pinion Diameter 38mm
Rotation CW
Pinion at Rest 18mm
Flange Diameter 82mm
Mount Hole Center to Center 130mm
Mount Hole Diameter M12- 13mm
Overall Length 233mm
Oil Sealed
Series
Ground NEGATIVE
Housing Index FIXED

APPLICATION

DAIHATSU DELTA V138 Di 3.0L 1KD-FV DOHC 16v Diesel Direct Inj. 4cyl 85kW Cab Chassis RWD [10/03 - 12/06] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA 4 RUNNER KZN130G,KZN130W II Turbo-D 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW SUV AWD [08/93 - 03/96] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA COMMUTER,HIACE KDH202,KDH212,KDH222 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Bus RWD [09/06 - 12/06] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA COMMUTER,HIACE KDH203R,KDH221,KDH22... V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Bus RWD [08/04 - 01/19] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA COMMUTER,HIACE KDH205,KDH225,KDH227 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 94kW Bus AWD [08/04 - 09/07] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA COMMUTER,HIACE KDH223 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Bus RWD [05/10 - 12/14] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA GRANVIA KCH10 TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 103kW MPV RWD [08/95 - 12/02] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA GRANVIA KCH10 TDi 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW MPV RWD [08/95 - 12/04] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA GRANVIA KCH16 TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW MPV AWD [08/95 - 05/02] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HIACE KCH40G,KZH100,KZH110... IV TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW Bus RWD [08/93 - 08/04] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HIACE KCH40W IV TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 104kW Bus RWD [08/99 - 05/02] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HIACE KCH46 IV 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 104kW Bus AWD [08/99 - 05/02] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HIACE KDH200,KDH220 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 75kW Van RWD [01/05 - 09/06] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HIACE KDH200,KDH220 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [09/06 - 07/10] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HIACE KDH200,KDH223 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 75kW Van RWD [01/05 - 01/19] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HIACE KDH201,KDH221 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Van RWD [05/10 - 01/19] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HIACE KDH201,KDH221 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [11/06 - 01/19] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HIACE KDH205,KDH225 V 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 94kW Van AWD [08/04 - 09/07] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HIACE KZH106,KZH116,KZH126 IV TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW Bus AWD [08/93 - 08/04] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HILUX KUN16 VII D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Utility RWD [08/05 - 08/06] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HILUX KUN16 VII D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Utility RWD [08/06 - 05/15] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HILUX KUN16R VII D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Cab Chassis RWD [08/06 - 06/15] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Cab Chassis AWD [02/05 - 08/06] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Utility AWD [03/05 - 08/06] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Cab Chassis AWD [08/06 - 09/15] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Utility AWD [08/06 - 09/15] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HILUX KZN165 VI TDi 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 85kW Utility AWD [12/99 - 04/05] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HILUX KZN165R TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 85kW Cab Chassis AWD [12/99 - 04/05] STARTER MOTOR 1
TOYOTA HILUX SURF KZN130 II TD 3.0L 1KZ-T SOHC 8v Turbo Diesel 4cyl 92kW SUV AWD [08/93 - 07/97] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HILUX SURF KZN130 II TDi 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW SUV AWD [08/93 - 10/95] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HILUX SURF KZN185 III TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 108kW SUV AWD [08/98 - 06/00] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA HILUX SURF KZN185 III TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW SUV AWD [12/95 - 07/98] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA LAND CRUISER GDJL76R,GDJL78R D-4D 3.5t 2.8L 1GD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 150kW SUV AWD [09/23 ON] STARTER MOTOR 1
TOYOTA LAND CRUISER KZJ71,KZJ78 PRADO IMPORT 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 92kW SUV AWD [05/93 - 05/96] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA LAND CRUISER PRADO KDJ120,KDJ125 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 127kW SUV AWD [11/06 - 12/10] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA LAND CRUISER PRADO KDJ121,KDJ125,KZJ120 D 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 92kW SUV AWD [09/02 - 02/07] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA LAND CRUISER PRADO KDJ150,KDJ155 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 127kW SUV AWD [08/09 - 06/15] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA LAND CRUISER PRADO KZJ120R D 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW SUV AWD [08/05 - 07/09] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA LAND CRUISER PRADO KZJ90 TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 103kW SUV AWD [04/95 - 07/00] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA LAND CRUISER PRADO KZJ90R,KZJ90W,KZJ95R... TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 92kW SUV AWD [03/00 - 02/03] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA LAND CRUISER PRADO KZJ95 TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW SUV AWD [03/00 - 02/03] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA REGIUS ACE KDH200 D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [08/04 - 12/20] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA REGIUS ACE KDH201,KDH211,KDH221 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Van RWD [08/04 - 12/20] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.
TOYOTA REGIUS ACE KDH206 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Van AWD [08/04 - 12/20] STARTER MOTOR 1 Option offered has dual start terminal, suits both large and small connector. 10 tooth and 11 tooth units are interchangeable.

Terms & Conditions

TERMS & CONDITIONS

ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.

THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.

INSURANCE

AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,

ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE

CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.

WARRANTY

WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.

PAYMENT

PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.

CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.

RETURNS

ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS

DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.

Thank you For Looking!

HAPPY SHOPPING !

Specifications

SKU	70-8578
Barcode #	9316042179279
Brand	JAYLEC
Shipping Weight	6.8000kg
Shipping Width	0.180m
Shipping Height	0.180m
Shipping Length	0.250m
Shipping Cubic	0.008100000m3
