Aeroflow AF6263-5000 GM LS Cathedral Port Low Rise EFI Modular Intake Manifold
Description
Aeroflow
GM LS Cathedral Port Low Rise EFI Modular Intake Manifold Kit, Black Finish
Suit 102mm/105mm Throttle Body & 14mm Short Injectors
AF6263-5000
SOLD AS EACH
The Aeroflow Performance GM LS modular intake manifolds allow the end user to customize their intake manifold depending on each individual application. This cast aluminium manifold performs well and offers an extremely good value for a performance intake manifold for the very popular GM LS engine family.
Aeroflow offer either a hi rise manifold where bonnet modifications will be required. The long runner design allows for high rpm horsepower with big cube engines for a serious drag racer. A low-rise design manifold which allows it to fit under a stock bonnet in most street car applications. Short intake runners with tapered top are designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response.

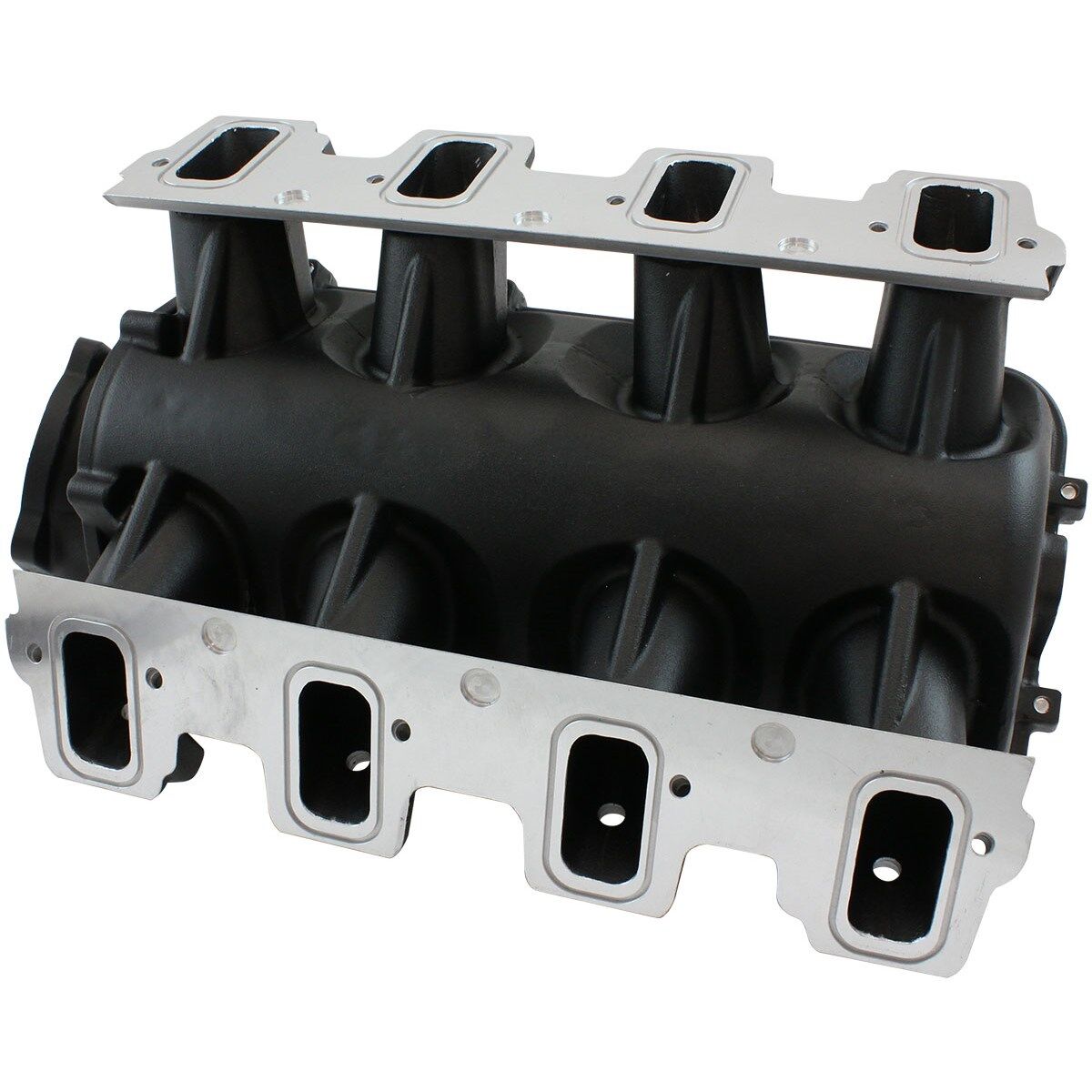

The modular design is made up of the bottom base which bolts to the cylinder heads and the top plate which bolts to the base with an O-ring to seal both components. Each base will fit either a cathedral port or rectangle port cylinder heads. With a choice of NON-EFI with no injector bosses or EFI with 16 injector bosses (8 undrilled) complete with fuel rails and cross over, designed to suit 14mm short length (33mm) fuel injectors. All bases have a provision for a LS style map sensor on the rear along with 1 x 3/8" NPT and 1 x 1/8" NPT ports with bungs.

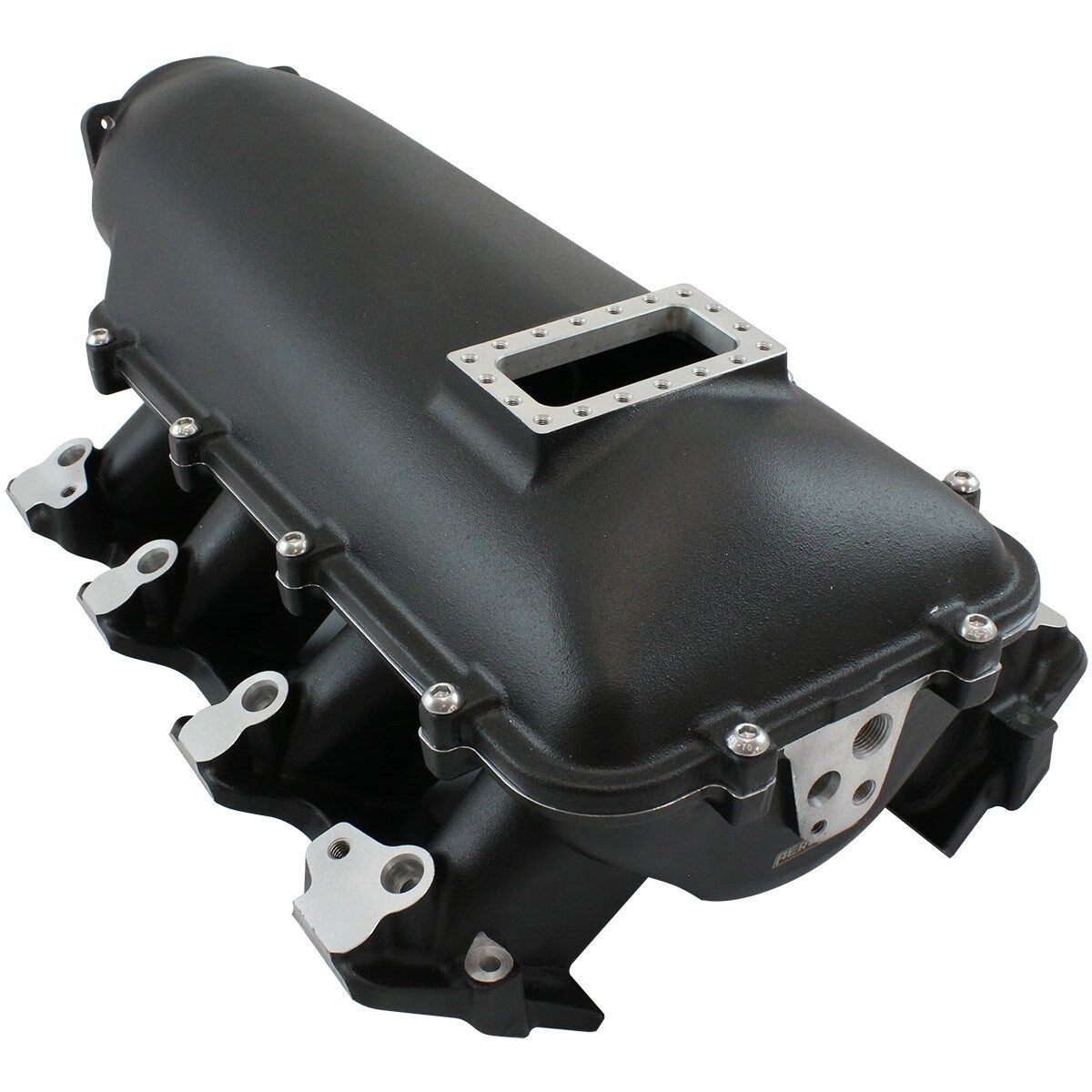

The top plate features a short throttle body snout to accept a 102mm 4 bolt GM LS throttle body. A burst panel is welded on the top plate which releases pressure (200psi) in the event of a backfire to save your intake manifold.
Each intake manifold can be purchased complete or as individual items. Available in either natural cast or black power coated finishes.
Specifications
Manifold Specifications
- 4 Bolt GM LS Throttle Body pattern on snout
- Overall height from front snout is 225mm (Ensure to Check Bonnet Clearance)
- Port Size: 0.957" x 2.45"
- Intake manifold gasket O-Ring (AF6999-1000).
- 3/8" NPT port (x1)
- 1/8" NPT port (x1)
- 1 x GM LS Style Map Sensor provision.

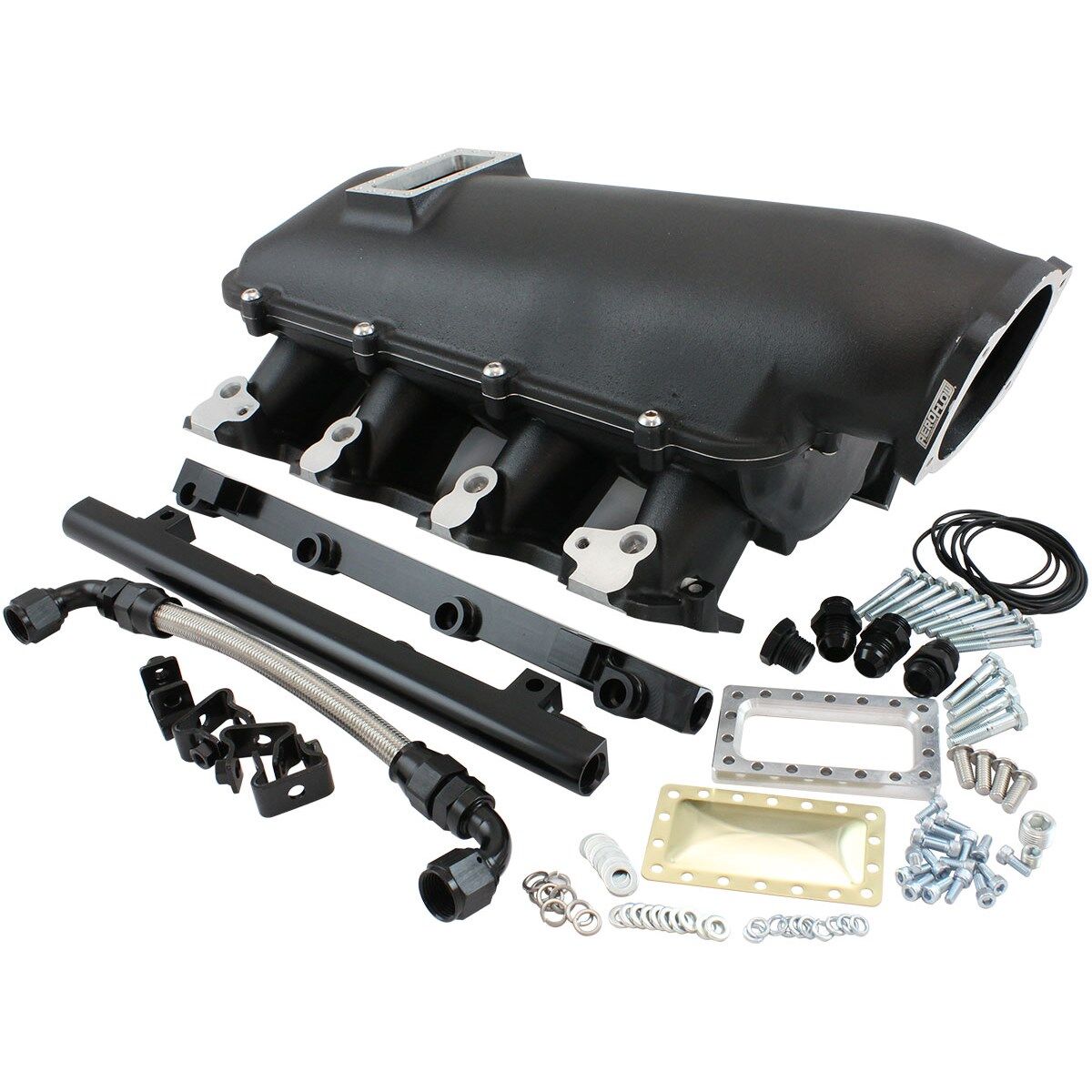

Intake Manifold Includes
- Fuel Rail Kit (AF6999-6003)
- 8 x Intake Manifold O-Ring Gaskets(AF6233-5002)
- 8 x M6 x 1.00mm Hex Screws (45mm UHL)
- 8 x M6 Flat Washers
- 1 x 3/8" NPT Steel Port Plug
- 1 x1/8" NPT Steel Port Plug
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR GISBORNE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | AF6263-6000 |
| Barcode # | 9337206151757 |
| Brand | Aeroflow |
| Shipping Weight | 13.8000kg |
| Shipping Width | 0.420m |
| Shipping Height | 0.280m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.070560000m3 |
