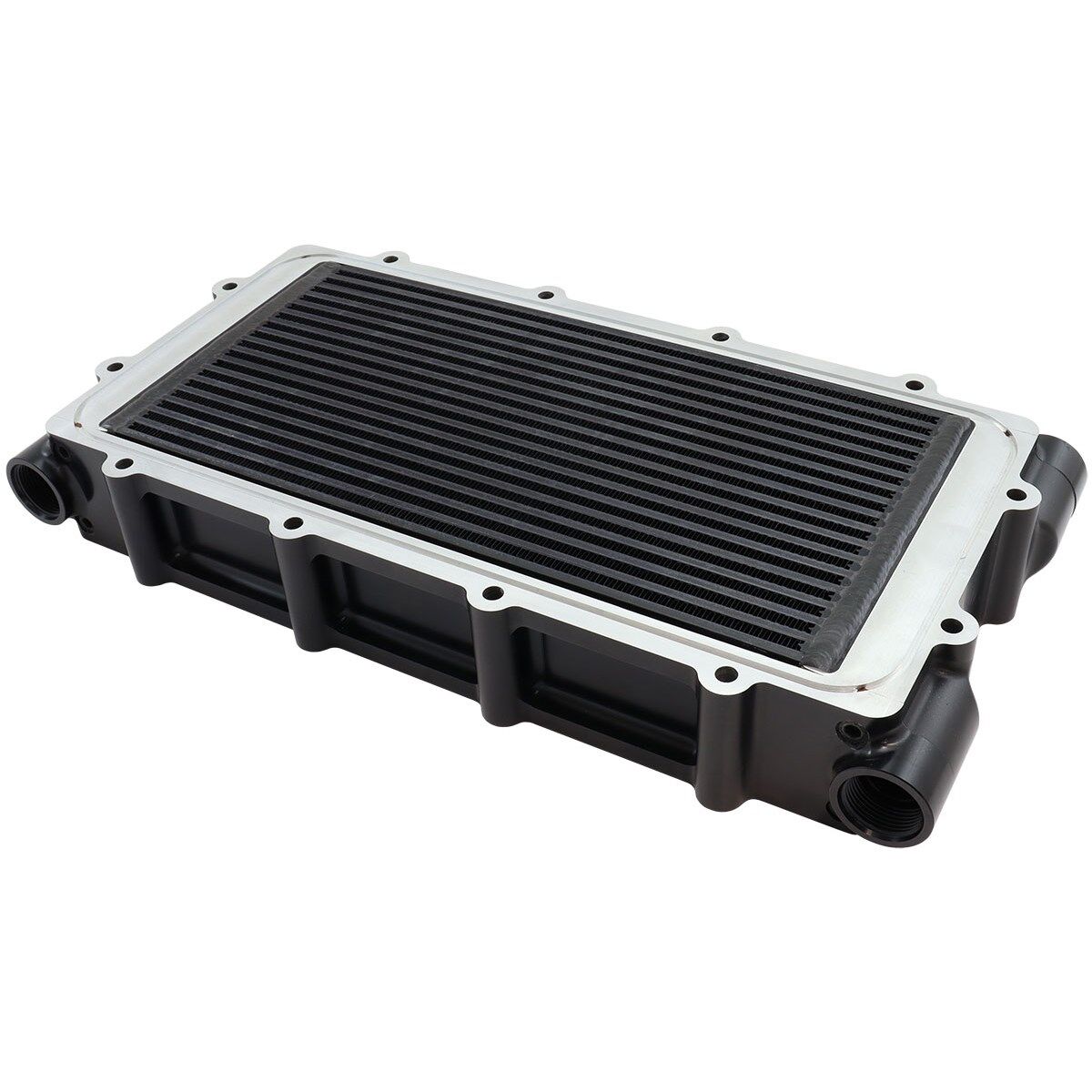

Aeroflow AF6288-0001 Water to Air Intercooler for Modular Intake Manifold 2-3/4"
Description
Aeroflow
Water to Air Intercooler for Modular Intake Manifold
2-3/4" Tall, Black CNC Finish
AF6288-0001
SOLD AS EACH
A water to air intercooler is one where the exchange of heat occurs between water and air. Water is passed through the core of the intercooler instead of air which is responsible for drawing the heat out of the intake air through the intercooler so that the heat from your charge pipes is transferred to the water.
These water to air intercoolers is specifically designed to suit the Aeroflow Performance range of modular intake manifolds. Designed to be sandwiched between the base and top plate which are both sold separately. This water to air intercooler features 4 x -16ORB ports for the water to be plumbed into it. This is a great alternative to your conventional air to air intercoolers as you have a constant flow of cool water always circulating through the intercooler core. This is especially useful during drag racing, when the core temperature raises significantly during a pass, and then the car sits still for several minutes.

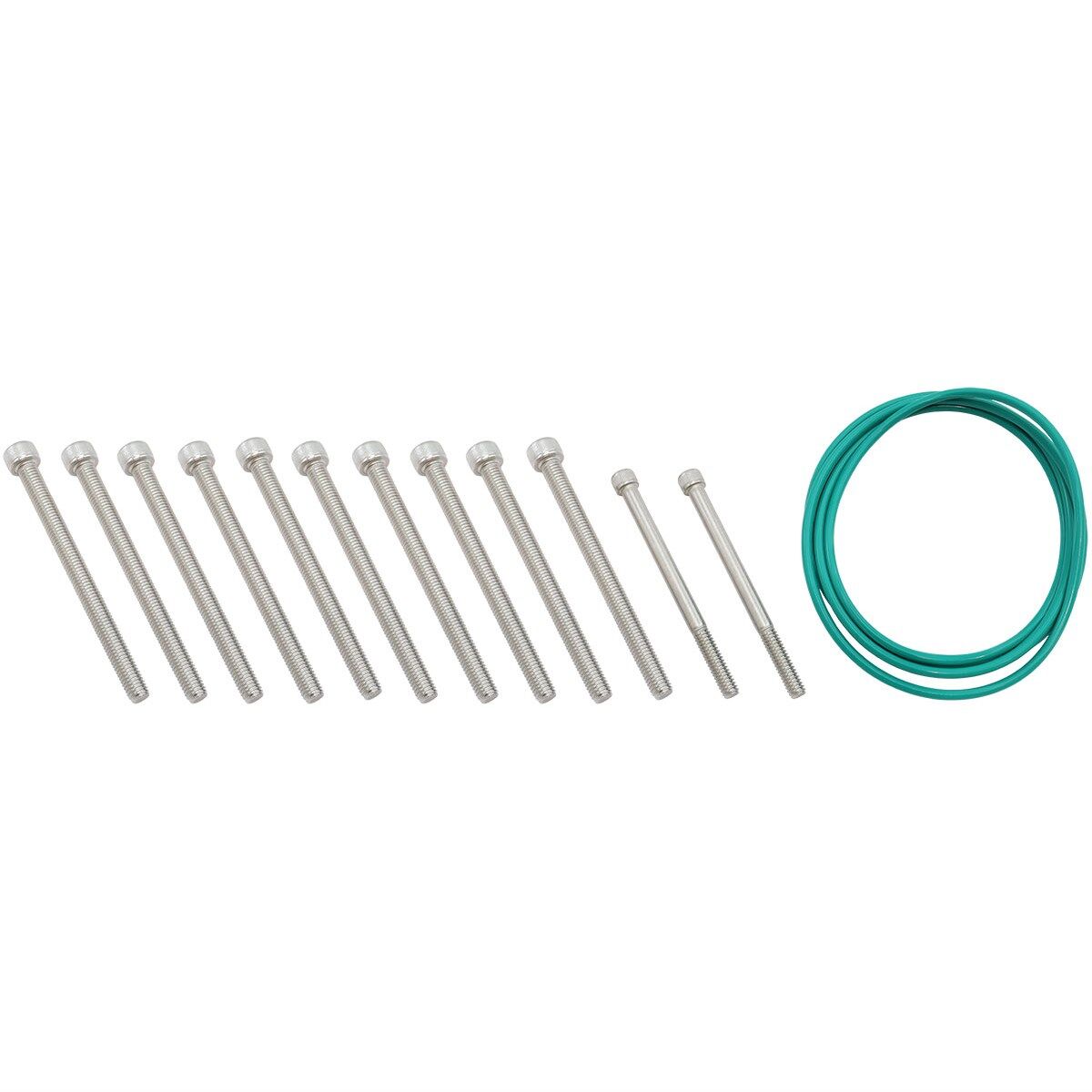

Another bonus is the incredible low pressure drop this water to air intercoolers provide with as low as 0.05 psi recorded on the core. This intercooler core is encased in a full CNC machined billet outer case which is available in either raw or black anodized finish. It comes with mounting hardware to bolt directly to the modular intake manifolds in the Aeroflow Performance range.
Terms & Conditions
TERMS & CONDITIONS
ALL ITEMS ARE SUBJECT TO WAREHOUSE STOCK AND AVAILABILITY.
THE ITEM WILL BE SHIPPED AS SOON AS PAYMENT HAS BEEN RECEIVED.
INSURANCE
AUTOLINK PREFERS TO FREIGHT GOODS WITH REGISTERED POST FOR INSURANCE REASONS. A $5.00 EXTRA COST WILL BE INCURRED UNLESS BUYER REQUESTS A DIFFERENT POSTAGE METHOD,
ALTHOUGH WE STRONGLY RECOMMENDED YOU GO THIS WAY IN CASE OF TRANSIT DAMAGE OR LOSS OF ITEM. IF ANY STOCK IS DAMAGED IN TRANSIT OR LOST PLEASE
CONTACT AUTOLINK ONLINE AUTO PARTS AND WE WILL FIX UP ANY PROBLEMS YOU HAVE. ANY CLAIMS FOR DAMAGE STOCK OR LOST ITEMS WILL ONLY BE ACCEPTED IF SENT VIA REGISTERED POST.
WARRANTY
WARRANTY WILL ONLY BE GIVEN IF ITEM IS FOUND TO BE FAULTY.
PAYMENT
PAYPAL IS THE PREFERRED PAYMENT (PLEASE VERIFY YOUR PAYPAL ACCOUNT). PAYMENT MUST BE RECEIVED WITHIN 5 DAYS UPON COMPLETION OF SALE OR ORDER WILL BE CANCELLED.
CASH PAYMENTS ACCEPTED WHEN PICKING UP FROM OUR SUNSHINE DEPOT.
RETURNS
ALL RETURNS MUST BE SENT BACK TO AUTOLINK ONLINE AUTO PARTS. ALL PARTS WILL BE EXCHANGED IF THE ITEM IS
DEFECTIVE OR AN INCORRECT ITEM HAS BEEN SHIPPED. ALL RETURNS MUST BE REPORTED WITHIN 5 DAYS OF DELIVERY DATE.
Thank you For Looking!
HAPPY SHOPPING !
Specifications
| SKU | AF6288-0001 |
| Brand | Aeroflow |
| Shipping Weight | 4.5000kg |
| Shipping Width | 0.420m |
| Shipping Height | 0.900m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.226800000m3 |
